Hotdot HW-06

Hotdot Rechargeable Hand Warmers

Model: HW-06 Instruction Manual

1. Inleiding

Thank you for choosing the Hotdot Rechargeable Hand Warmers, Model HW-06. This device is designed to provide portable warmth with advanced temperature control and a user-friendly interface. Please read this manual thoroughly before use to ensure proper operation and safety.

2. Wat is in die boks

  • 2 x Hotdot Rechargeable Hand Warmers (Model HW-06)
  • 1 x Laaikabel
  • 1 x Gebruikershandleiding
  • 1 x Greeting Card (with thermochromic feature)
Hotdot Rechargeable Hand Warmers in gift packaging with accessories
Figure 2.1: Contents of the Hotdot Hand Warmers package, including two devices, a charging cable, and the user manual.

3. Opstelling en laai

Before first use, fully charge both hand warmers. The device features a 3200 mAh battery capacity and takes approximately 3.5 hours to fully charge.

  1. Connect the provided charging cable to the charging port on the hand warmer.
  2. Koppel die ander kant van die kabel aan 'n versoenbare USB-kragadapter (nie ingesluit nie).
  3. The LED display will indicate charging status. Once fully charged, the display will show 100%.
Hotdot Rechargeable Hand Warmer connected to a charging cable
Figure 3.1: The hand warmer connected to its charging cable.

4. Operasie

The Hotdot hand warmer features a single button for power and temperature control, along with an LED display for real-time information.

4.1 Krag aan/af

  • To turn on: Press and hold the power button for approximately 3 seconds. The LED display will illuminate, showing the current battery percentage en temperatuur.
  • To turn off: Press and hold the power button for approximately 3 seconds. The LED display will turn off.

4.2 Temperatuuraanpassing

Once the device is powered on, single-click the power button to cycle through the three available heat levels:

  • First Setting: Ongeveer 104°F (40°C)
  • Second Setting: Ongeveer 122°F (50°C)
  • Third Setting: Ongeveer 131°F (55°C)

The LED display will show the selected temperature in real-time.

LED display showing temperature settings on the hand warmer
Figure 4.1: The LED display indicating the current temperature setting.
Close-up of the single control button on the hand warmer
Figure 4.2: The single button used for power and temperature adjustments.

5. Kenmerke

  • NTC Smart Temperature Control: Equipped with advanced NTC technology, the hand warmer heats up rapidly (within 1 second) and maintains a stable temperature, preventing overheating.
  • Visible Temperature and Battery Screen: The integrated LED screen displays both the current temperature and the remaining battery level, allowing for easy monitoring.
  • Verlengde looptyd: Provides warmth for up to 20 hours on a single charge, depending on the selected heat level.
  • Stylish & Portable Design: Features a smooth surface and ergonomic design, making it comfortable to hold and easy to carry for various outdoor activities.
Diagram showing the internal NTC smart temperature control chip
Figure 5.1: Illustration of the NTC smart temperature control chip for efficient and safe heating.
Graph demonstrating the rapid 1-second heating capability
Figure 5.2: A graph comparing the rapid heating time of the Hotdot hand warmer (1 second) to other devices.
Image showing two hand warmers with '20H' indicating up to 20 hours of battery life
Figure 5.3: The hand warmers are capable of providing warmth for up to 20 hours.

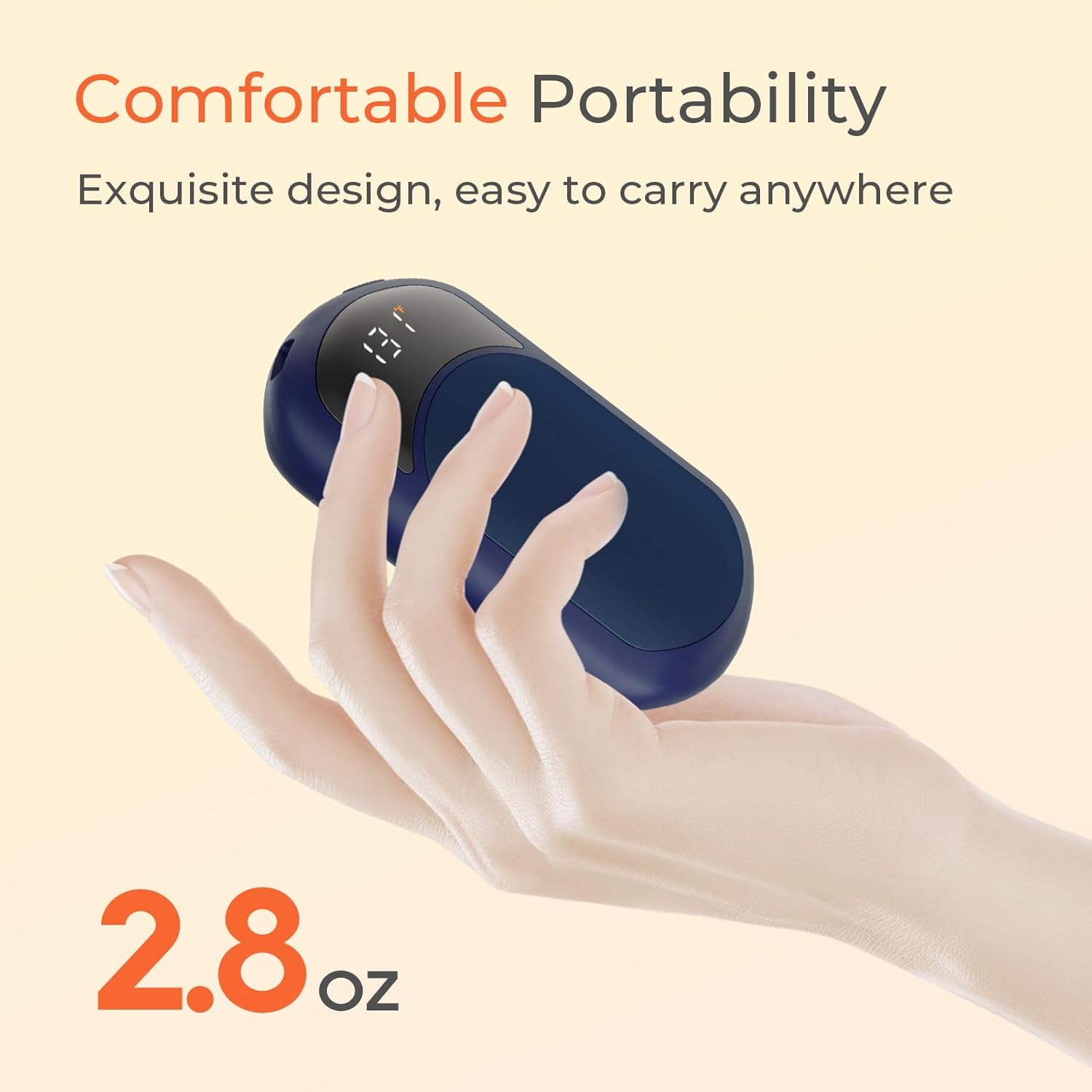

Hand holding the compact Hotdot hand warmer, illustrating its portable size
Figure 5.4: The compact and lightweight design of the hand warmer, fitting comfortably in a hand.

6. Veiligheidsinligting

The Hotdot hand warmers are designed with multiple safety features and are FCC certified to ensure safe operation.

  • Oorladingsbeskerming: Prevents damage to the battery from excessive charging.
  • Explosion-Proofing: Enhanced design to minimize risks.
  • Leak-Proofing: Constructed with materials and design to prevent internal leaks.
  • Moenie die toestel vir lang tye aan uiterste temperature of direkte sonlig blootstel nie.
  • Moenie probeer om die toestel uitmekaar te haal of te verander nie.
  • Hou buite bereik van kinders en troeteldiere.
  • If the device shows signs of damage or malfunction, discontinue use immediately.

7. Onderhoud

  • Skoonmaak: Wipe the surface of the hand warmer with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
  • Berging: Store the hand warmers in a cool, dry place when not in use. Ensure they are fully charged before long-term storage to preserve battery life.

8. Probleemoplossing

  • Toestel skakel nie aan nie: Maak seker dat die toestel volledig gelaai is. Druk en hou die aan/af-knoppie vir 3 sekondes in.
  • Toestel verhit nie: Check if the device is powered on and a temperature level is selected. Ensure the battery has sufficient charge.
  • Toestel laai nie: Verify the charging cable is securely connected to both the hand warmer and the power source. Try a different USB port or power adapter.
  • Inconsistent temperature: Ensure the device is not covered or obstructed, which can affect heat dissipation.

9. Spesifikasies

KenmerkSpesifikasie
ModelHW-06
HandelsmerkHotdot
MateriaalAluminium, plastiek
Battery kapasiteit3200 mAh
Battery Laai Tyd3.5 ure
Laer temperatuurgradering104°F (40°C)
Boonste temperatuurgradering131°F (55°C)
HerbruikbaarheidHerlaaibaar
Ingesluit komponenteGift box, Charging Cable, User Manual, Greeting Card

10. Waarborg en Ondersteuning

The Hotdot Rechargeable Hand Warmers come with a Lewenslange waarborg.

For any questions, technical support, or warranty claims, please contact our customer service team:

© 2026 Hotdot. All rights reserved.
