Philips Baristina Espresso Coffee Machine User Manual

Belangrike veiligheidsinligting

Please read this user manual carefully before using the appliance and save it for future reference. Incorrect use may result in electric shock, fire, or other injuries. Always follow basic safety precautions.

• Verseker die voltage wat op die toestel aangedui word, stem ooreen met u plaaslike netvoedingtage voor aansluiting.
• Moenie die toestel, netsnoer of prop in water of enige ander vloeistof dompel nie.
• Hou die toestel buite bereik van kinders.
• Ontkoppel die toestel voor skoonmaak en wanneer dit nie gebruik word nie.
• Moenie die toestel gebruik as die koord, prop of ander dele beskadig is nie.
• Only use original Philips accessories and parts.

Produk verbyview

The Philips Baristina Espresso Coffee Machine (Model BAR302/20) is designed to deliver fresh, aromatic espresso with ease. It features a compact design, a 16-bar pump pressure system, and an integrated automatic grinder for optimal coffee extraction.

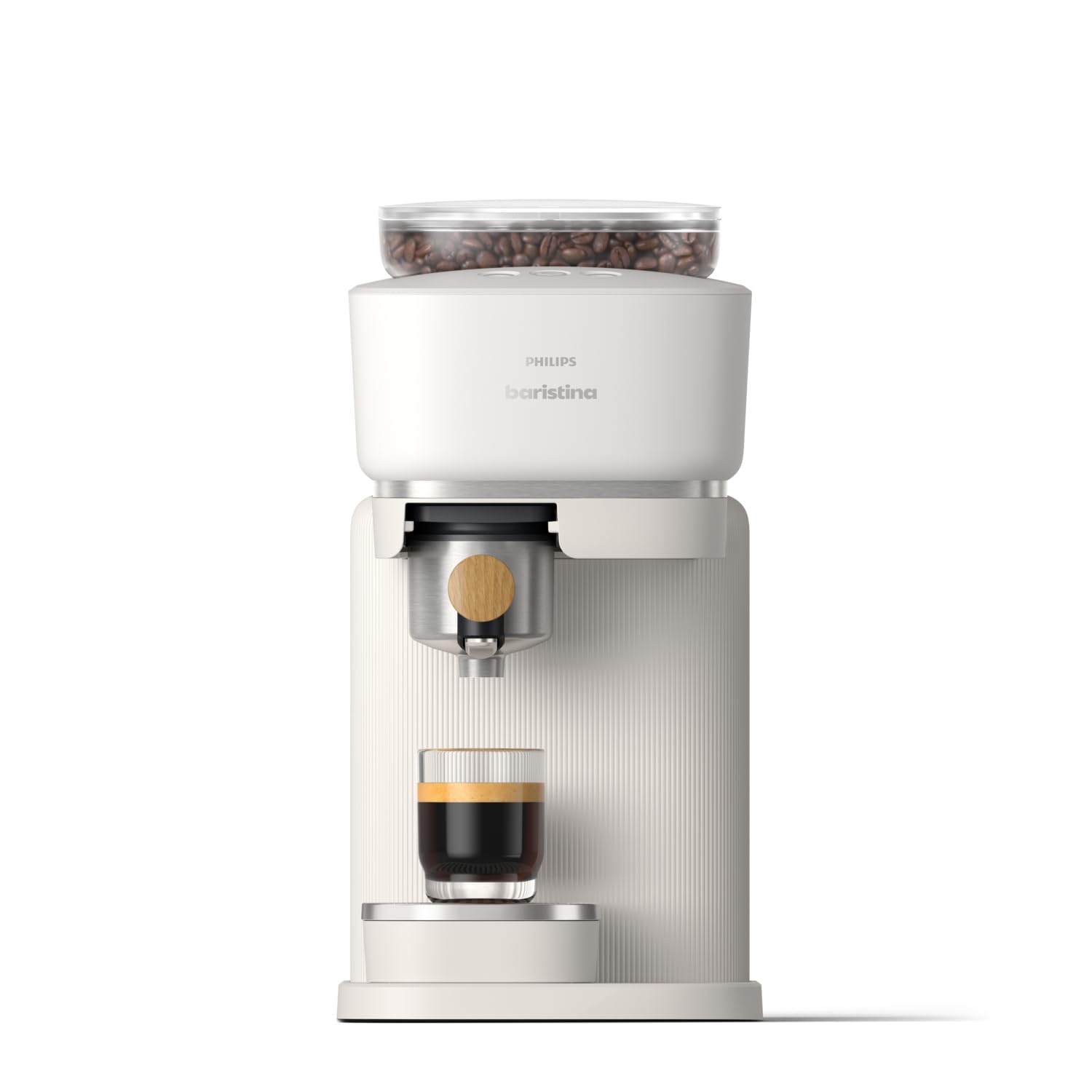

Figuur 1: Voorkant view of the Philips Baristina Espresso Coffee Machine, showing the coffee outlet and drip tray.

Sleutel kenmerke:

• Fresh Taste: Enjoy the aroma of freshly ground beans with every cup.
• Real Espresso, Made Simple: 16 bar pump pressure ensures full aroma development.
• Slide and Enjoy: Simple operation; just slide the handle, and the Baristina handles the rest.
• Aanpasbare Drankies: Choose between Espresso, Café Crema, or Extra intensity.
• Maklike skoonmaak: Rinse the container or wipe with a cloth. Avoid cleaning dirty and hidden containers.

Opstelling

1. Uitpak en Aanvanklike Skoonmaak:

Carefully remove all packaging materials. Before first use, clean the water tank, drip tray, and portafilter with warm water and a mild detergent. Rinse thoroughly.

2. Vul die watertenk:

Remove the water tank from the side of the machine. Fill it with fresh, cold tap water up to the MAX indication. Reinsert the water tank securely into its position.

Figuur 2: Kant view of the coffee machine showing the removable water tank on the left.

3. Vul die boontjiehouer:

Open the lid of the bean hopper located on top of the machine. Pour fresh coffee beans into the hopper. Ensure the lid is closed properly after filling to maintain bean freshness.

Figuur 3: Top view showing coffee beans being poured into the integrated bean hopper.

4. First Use / Priming:

After filling the water tank, place a cup under the coffee spout. Turn on the machine. The machine may perform an initial rinse cycle. Allow this cycle to complete. This primes the system and ensures optimal performance.

Bedryfsinstruksies

1. Preparing Your Coffee:

Place your cup on the drip tray. The machine will automatically grind the beans and brew your coffee. For different coffee types, use the control buttons on top of the machine.

Figuur 4: Close-up of the control panel with buttons for different coffee selections (Espresso, Café Crema, Extra intensity).

2. Selecting Coffee Type and Intensity:

Use the dedicated buttons on the top panel to select your desired coffee: Espresso for a concentrated shot, Café Crema for a longer coffee with a rich crema, or Extra Intensity for a stronger brew. The machine will adjust grinding and brewing parameters accordingly.

3. Brouproses:

Once your selection is made, the machine will automatically grind the fresh beans, tamp them, and extract the coffee. The unique slide mechanism simplifies the brewing process.

Figuur 5: The sliding mechanism for the portafilter, simplifying coffee preparation.

Onderhoud

Regular cleaning and maintenance ensure the longevity and optimal performance of your Philips Baristina coffee machine.

1. Daaglikse skoonmaak:

• Lekbak: Maak die drupbak daagliks leeg en spoel dit af.
• Watertenk: Spoel die watertenk daagliks uit en vul dit met vars water.
• Portafilter: After each use, remove and rinse the portafilter to remove any coffee grounds.
• Buitekant: Vee die buitekant van die masjien af ​​met 'n sagte, damp lap.

2. Ontkalking:

The machine will indicate when descaling is required. Use a Philips-approved descaling solution and follow the instructions provided with the descaler. Regular descaling prevents limescale buildup and maintains brewing quality.

3. Cleaning the Brew Group:

Refer to the detailed instructions in the full manual for cleaning the internal brew group. This typically involves removing the brew group and rinsing it under running water.

Let wel: The product is not dishwasher safe. Clean components manually as instructed.

Probleemoplossing

If you encounter issues with your Philips Baristina, refer to the following common problems and solutions:

For more complex issues or if the problem persists, please contact Philips Customer Support.

Spesifikasies

Waarborg en Ondersteuning

Waarborginligting:

This Philips Baristina Espresso Coffee Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of the warranty in your region. Keep your proof of purchase for warranty claims.

Kliëntediens:

Vir verdere hulp, produkregistrasie, of om antwoorde op gereelde vrae te vind, besoek asseblief die amptelike Philips-ondersteuning website for your country. You can typically find contact information for customer service, including phone numbers and email support, on their webwebwerf.

Aanlyn ondersteuning: www.philips.com/support
