ASprink PM-247-WF WiFi Thermal Label Printer User Manual

1. Inleiding

This manual provides detailed instructions for the setup, operation, and maintenance of your ASprink PM-247-WF WiFi Thermal Label Printer. This printer is designed for efficient label printing for small businesses and packages, featuring 300DPI resolution and versatile connectivity options including Wi-Fi and USB.

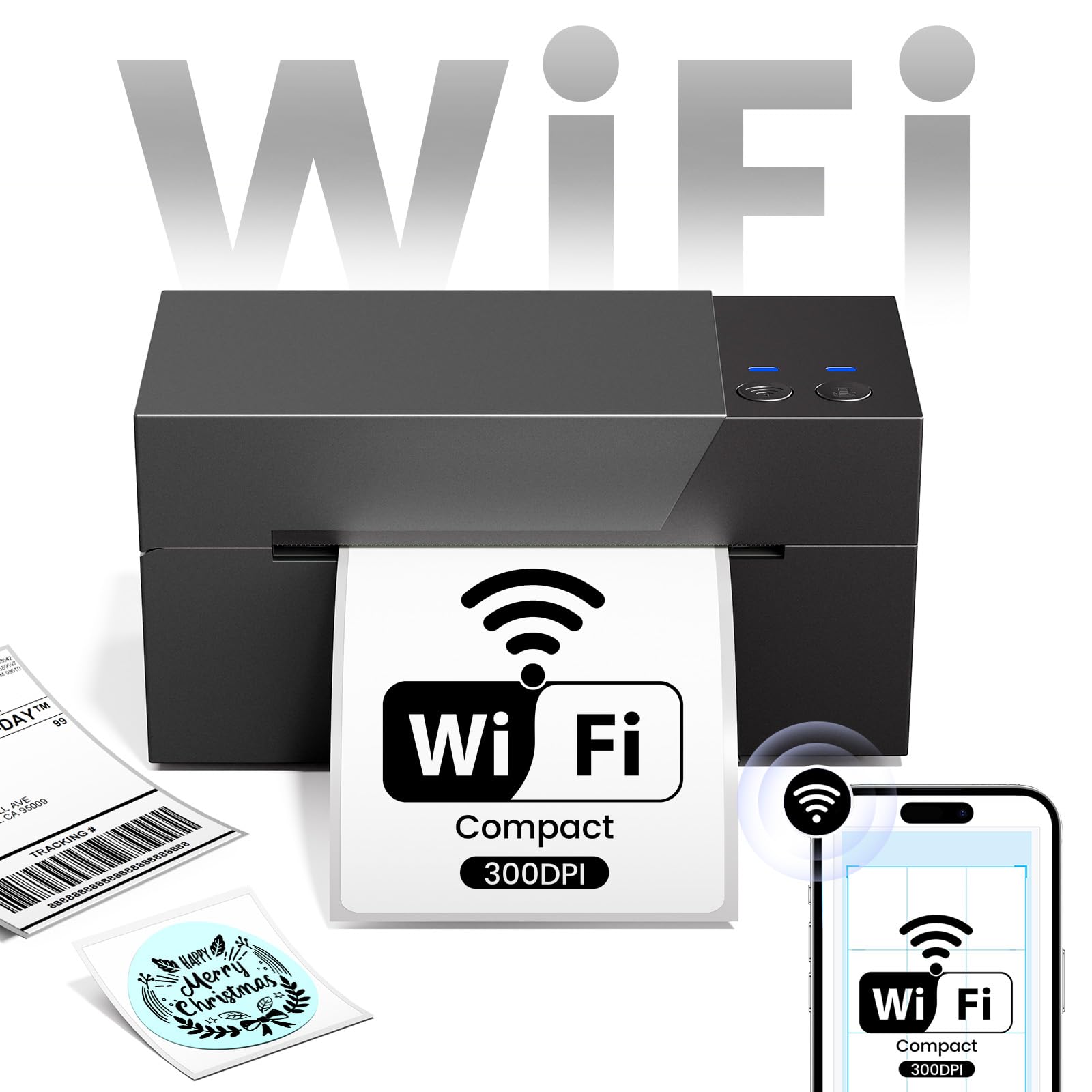

Image 1.1: ASprink PM-247-WF WiFi Thermal Label Printer.

2. Pakketinhoud

Verifieer asseblief dat alle items in die pakket teenwoordig is:

• ASprink PM-247-WF Thermal Label Printer
• Kragadapter
• USB kabel
• Vinnige Begingids (hierdie handleiding)
• Sample Thermal Labels (may vary)

3. Produk verbyview

The ASprink PM-247-WF printer is designed for ease of use and compact integration into your workspace. It supports label widths from 1 to 4.6 inches, accommodating various label types including 4x6 inch shipping labels.

Image 3.1: The ASprink PM-247-WF printer supports various label widths from 1 to 4.6 inches.

4. Opstelling

4.1 Fisiese verbinding

1. Plaas die drukker op 'n stabiele, plat oppervlak.
2. Koppel die kragadapter aan die drukker en dan aan 'n kragaansluiting.
3. If using a USB connection, connect the USB cable from the printer to your computer.

4.2 Laai van etikette

1. Maak die boonste deksel van die drukker oop.
2. Insert the thermal labels into the label compartment, ensuring the print side is facing up.
3. Adjust the label guides to fit the width of your labels snugly.
4. Maak die boonste deksel toe. Die drukker sal outomaties die etiketgrootte opspoor en kalibreer.

4.3 Drywer- en sagteware-installasie

For optimal performance, install the necessary drivers and software:

• For Computers (Windows, Mac, Linux, Chrome OS): Download and install the latest printer drivers from the official ASprink support webwebwerf.
• For Mobile Devices (Android, iOS): Download the "Labelife" application from your device's app store.

4.4 Wi-Fi-verbinding

The PM-247-WF supports Wi-Fi connectivity for wireless printing from multiple devices.

1. Maak seker dat jou drukker aangeskakel is.
2. Follow the Wi-Fi setup instructions provided in the "Labelife" app or the printer driver software to connect the printer to your local Wi-Fi network.
3. Sodra dit gekoppel is, sal die Wi-Fi-aanwyserliggie op die drukker konstant brand.

Image 4.1: The ASprink PM-247-WF supports Wi-Fi connectivity with Android, iOS, iPad, Windows, Mac OS, and Chrome OS.

5. Bedryfsinstruksies

5.1 Printing via Wi-Fi

The Wi-Fi feature allows printing from anywhere within your Wi-Fi range, supporting up to 5 devices simultaneously.

1. Ensure your device (computer, smartphone, tablet) is connected to the same Wi-Fi network as the printer.
2. Maak die dokument of etiket oop wat jy wil druk.
3. Select the ASprink PM-247-WF from your list of available printers.
4. Adjust print settings (e.g., label size, orientation) as needed and initiate printing.

Image 5.1: Wi-Fi connectivity enables convenient printing from various locations within your network.

Image 5.2: Wi-Fi printing allows greater flexibility compared to proximity-limited Bluetooth printing.

Image 5.3: The printer supports simultaneous connections and printing from up to 5 devices.

5.2 Printing via USB

For direct connection, you can use the USB cable.

1. Koppel die drukker aan jou rekenaar met die meegeleverde USB-kabel.
2. Ensure the printer drivers are installed on your computer.
3. Open the document or label, select the ASprink PM-247-WF printer, and print.

5.3 Supported Platforms and Print Quality

The ASprink PM-247-WF is compatible with major shipping partners and marketplaces, including eBay, Amazon, Etsy, Shopify, ShipStation, USPS, UPS, FedEx, and more. It delivers a print resolution of 300DPI, ensuring clear and crisp labels. The printing speed is approximately 100mm/s, capable of producing up to 72 sheets of 4"x 6" labels per minute.

Image 5.4: The printer is widely compatible with various e-commerce and shipping platforms.

6. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en optimale werkverrigting van u drukker.

• Maak die drukkop skoon: Gebruik 'n pluisvrye lap liggiesampened with isopropyl alcohol to gently wipe the print head. Ensure the printer is off and cooled down before cleaning.
• Skoonmaak van die rollers: Periodically clean the rubber rollers with a damp cloth to prevent dust and label residue buildup.
• Algemene sorg: Keep the printer free from dust and debris. Avoid exposing it to extreme temperatures or direct sunlight.

7. Probleemoplossing

If you encounter issues with your ASprink PM-247-WF printer, refer to the following common solutions:

• Drukker reageer nie: Check power connections and ensure the printer is turned on. Verify USB or Wi-Fi connection status.
• Swak drukgehalte: Ensure you are using high-quality thermal labels. Clean the print head as described in the Maintenance section. Verify print settings (e.g., darkness, resolution) in your software.
• Etikette word nie korrek ingevoer nie: Ensure labels are loaded properly and the label guides are adjusted. Recalibrate the printer if necessary (refer to software instructions).
• Verbindingskwessies: For Wi-Fi, ensure the printer and your device are on the same network. For USB, try a different USB port or cable. Reinstall drivers if issues persist.

For further assistance, please contact ASprink support.

8. Spesifikasies

9. Waarborg en Ondersteuning

ASprink provides free, lifetime technical support for your PM-247-WF printer. If you require assistance, please contact the ASprink support team via phone, online chat, or email. Support inquiries are typically answered within 24 hours.

For the most up-to-date contact information, please visit the official ASprink webwebwerf.
