Suuwer S725 Heat Pump Thermostat and Cover Plate Trim Kit

Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your Suuwer S725 Heat Pump Thermostat and its accompanying Wall Plate Cover. The S725 thermostat is designed for heat pump systems, offering programmable control for optimal home comfort and energy efficiency. The included wall plate cover helps to conceal wall imperfections left by previous thermostat installations, ensuring a clean and finished look.

Verenigbaarheid en belangrike notas

Voor installasie, sorgvuldig hersienview the compatibility requirements to ensure proper function and avoid damage to your HVAC system or the thermostat.

• Versoenbare stelsels: Designed for Heat Pump systems (with auxiliary or emergency heat) and Heat Pump (without auxiliary) systems, supporting up to 2 heat and 1 cool stages.
• Onversoenbare Stelsels:
  • Not compatible with 110-240V electric heat systems (e.g., electric baseboard heat, line voltage, convectors, radiant-ceiling heat).
  • Does not work with conventional multistage stelsels.
  • Does not work with mini-split systems.
  • Does not work with 12V RV thermostats.
• Voorinstallasiekontrole: Verify that your existing thermostat is a heat pump system and that the connection ports on your wall match the S725 base.
• Wall Plate Cover: The included wall plate cover measures 6.3 inches (W) x 5.12 inches (H) x 0.2 inches (D) and is designed to conceal marks or holes left by older thermostats, providing a neat appearance.

Opstelling en installasie

Follow these steps for safe and correct installation of your S725 thermostat and cover plate.

1. Skakel uit

Before beginning any installation, turn off the power to your heating and cooling system at the main circuit breaker or fuse box. This is critical for safety.

2. Remove Old Thermostat

Carefully remove your old thermostat from the wall. Take a picture of the existing wiring connections for reference. Label each wire with its corresponding terminal letter before disconnecting them.

3. Install Thermostat Base and Wiring

Mount the S725 thermostat base to the wall using the provided screws. Connect the wires from your HVAC system to the corresponding terminals on the S725 base. Refer to the wiring diagram below for typical connections. Ensure all connections are secure.

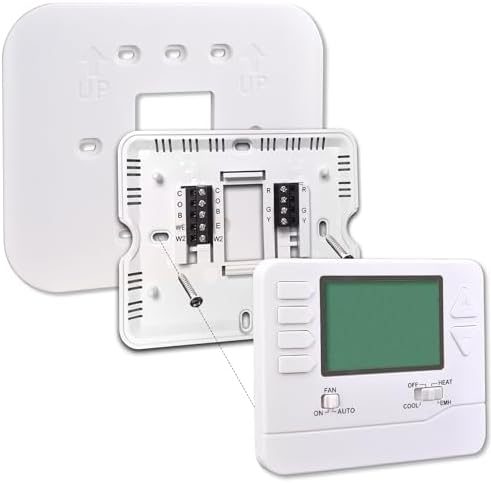

Prent: View of the Suuwer S725 thermostat's back panel and wiring terminals, along with the wall plate. This image illustrates how the thermostat connects to the wall and the cover plate fits behind it.

The S725 thermostat measures approximately 4.72 inches (W) x 3.86 inches (H) x 0.98 inches (D). The cover plate dimensions are 6.3 inches (W) x 5.12 inches (H) x 0.2 inches (D).

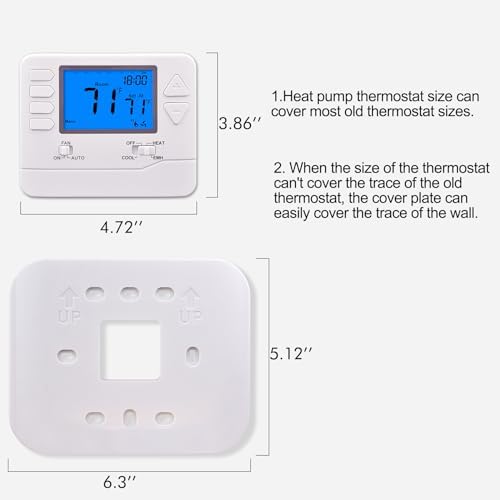

Prent: Diagram showing the dimensions of the Suuwer S725 thermostat and its wall plate cover. This image helps in assessing if the plate will cover existing wall marks.

4. Install Wall Plate Cover (Optional)

If your old thermostat left visible marks or holes on the wall, install the Suuwer Wall Plate Cover before attaching the thermostat. The cover plate is designed to fit behind the thermostat, providing a clean and finished appearance without the need for repainting or additional wall repairs.

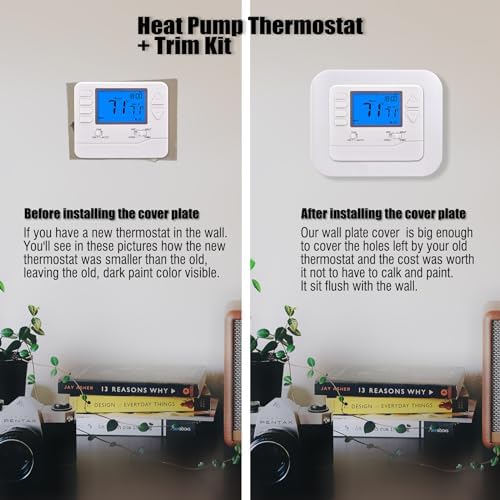

Prent: A side-by-side comparison showing a thermostat installed without the cover plate (left) and with the Suuwer wall plate cover (right). The image demonstrates how the cover plate effectively conceals wall imperfections.

5. Heg die termostaat aan die basis vas

Once the wiring is complete and the cover plate (if used) is in place, carefully align the S725 thermostat unit with its base and snap it into position.

6. Herstel krag

Turn the power back on at the circuit breaker. The thermostat display should illuminate.

Bedryfsinstruksies

The S725 thermostat features a backlit display and touch controls for easy operation.

Mode seleksie

Use the mode switch or buttons to select your desired operating mode:

• KOEL: Aktiveer die verkoelingstelsel.
• AF: Skakel beide verhittings- en verkoelingstelsels af.
• HITTE: Activates the heating system.
• EMH (Emergency Heat): Activates emergency heating, typically used when the primary heat pump system is not functioning.

Aanhangerwerk

Use the fan switch or buttons to control the fan:

• OP: Die waaier loop aanhoudend.
• VOERTUIG: Die waaier loop slegs wanneer die verhittings- of verkoelingstelsel aktief in werking is.

Temperatuur aanpassing

Use the Up and Down arrow buttons to adjust the desired temperature setpoint.

Programming (5-1-1 Day)

The S725 offers 5-1-1 day programmable scheduling, allowing separate programs for weekdays, Saturday, and Sunday. Each day can have up to four program periods:

• Wakker: Your desired temperature for when you wake up.
• Verlaat: An energy-saving temperature for when you are away from home.
• Terugkeer: Your desired temperature for when you return home.
• Slaap: An energy-saving temperature for overnight.

Refer to the detailed programming instructions in the full product manual (if available) for specific steps on setting schedules. Generally, you will press a "Program" or "Set" button, then use the Up/Down arrows and mode buttons to adjust times and temperatures for each period.

Onderhoud

The Suuwer S725 thermostat requires minimal maintenance to ensure optimal performance.

• Skoonmaak: Vee die buitekant van die termostaat liggies af met 'n sagte, damp lap. Moenie skuurmiddels of oplosmiddels gebruik nie, aangesien dit die skerm of c kan beskadig.asing.
• Ligging: Ensure the thermostat is not exposed to direct sunlight, drafts, or heat sources, as these can affect temperature readings.

Probleemoplossing

If you encounter issues with your S725 thermostat, consider the following common solutions:

• Geen skerm/geen krag:
  • Check the circuit breaker for your HVAC system to ensure power is on.
  • Verify that all wiring connections at the thermostat base are secure.
• System Not Responding (Heating/Cooling):
  • Ensure the thermostat is set to the correct mode (HEAT, COOL, EMH).
  • Check that the temperature setpoint is above the ambient temperature for heating or below for cooling.
  • Confirm compatibility (refer to the "Compatibility and Important Notes" section). Incorrect wiring or incompatible systems are common causes.
• Onakkurate temperatuurlesing:
  • Ensure the thermostat is not located near heat sources (lamps, appliances) or in direct sunlight.
  • Check for drafts from windows or doors that might affect the sensor.

If problems persist after attempting these solutions, contact Suuwer customer support for further assistance.

Spesifikasies

Waarborg en Ondersteuning

For information regarding product warranty, returns, or technical support, please refer to the official Suuwer webwebwerf of kontak hul kliëntediens direk. Bewaar u aankoopbewys as bewys van aankoop.

Suuwer Customer Support: Besoek gerus die Suuwer Store on Amazon of hul amptenaar webwebwerf vir kontakbesonderhede.
