Instruksie Handleiding

1. Inleiding

This manual provides essential instructions for the safe and efficient operation of the Generic YLE-3000 YLE-3108 Temperature Driver. Please read this manual thoroughly before installation and use, and retain it for future reference. This device is designed for precise temperature control in various industrial and scientific applications.

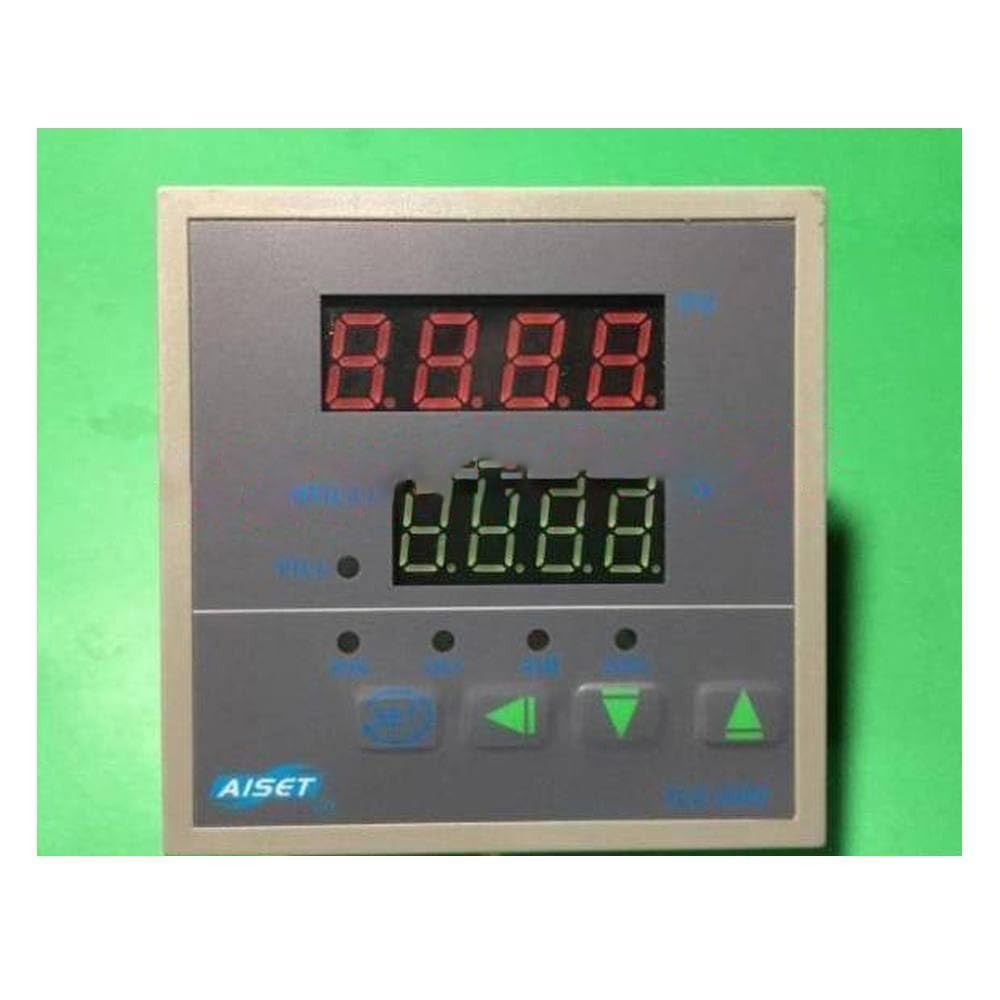

Image 1: The Generic YLE-3000 YLE-3108 Temperature Driver unit, showing its compact form factor.

2. Veiligheidsinligting

WAARSKUWING: Versuim om hierdie veiligheidsinstruksies te volg, kan lei tot elektriese skok, brand of ernstige besering.

• Ensure all electrical connections are made by a qualified electrician in accordance with local and national electrical codes.
• Disconnect power before performing any installation, wiring, or maintenance.
• Moenie die toestel gebruik as dit beskadig lyk nie.
• Hou die toestel weg van water, vog en uiterste temperature.
• Hierdie toestel is bedoel vir professionele gebruik.
• Do not attempt to modify or repair the device yourself. Refer all servicing to qualified personnel.

3. Produkkenmerke

The YLE-3000 YLE-3108 Temperature Driver offers robust performance and reliability for temperature regulation. Key features include:

• Precise temperature control capabilities.
• Stable and reliable performance for industrial applications.
• Compact design for easy integration.
• Duursame konstruksie vir langtermyn gebruik.

4. Pakketinhoud

Upon opening the package, verify that all items are present and undamaged. The standard package includes:

• 1 x Generic YLE-3000 YLE-3108 Temperature Driver Unit
• 1 x Instruksiehandleiding (hierdie dokument)

Image 2: The packaging box for the YLE-3000 YLE-3108 Temperature Driver. The box is brown cardboard with product information and branding printed on it.

5. Opstelling en installering

Installation of the YLE-3000 YLE-3108 Temperature Driver requires careful attention to electrical connections. It is highly recommended that installation be performed by a qualified professional.

1. Montering: Select a suitable location for mounting the driver, ensuring adequate ventilation and protection from environmental factors.
2. Bedrading:
   • Identify the input power terminals.
   • Koppel die kragtoevoer volgens die voltage and current requirements specified in the 'Specifications' section.
   • Identify the output terminals for the heating/cooling element.
   • Connect the heating/cooling element to the appropriate output terminals.
   • Connect the temperature sensor to its designated input terminals. Ensure correct polarity if applicable.
3. Aanvanklike kragopwekking: After all connections are secure, apply power to the unit. Observe for any unusual behavior or error indicators.

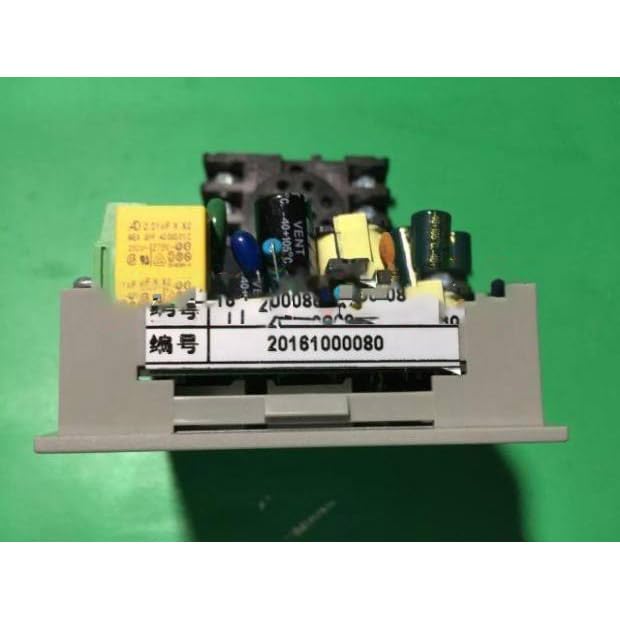

Beeld 3: A view of the internal components of the YLE-3000 YLE-3108 Temperature Driver, showing various electronic parts mounted on a circuit board.

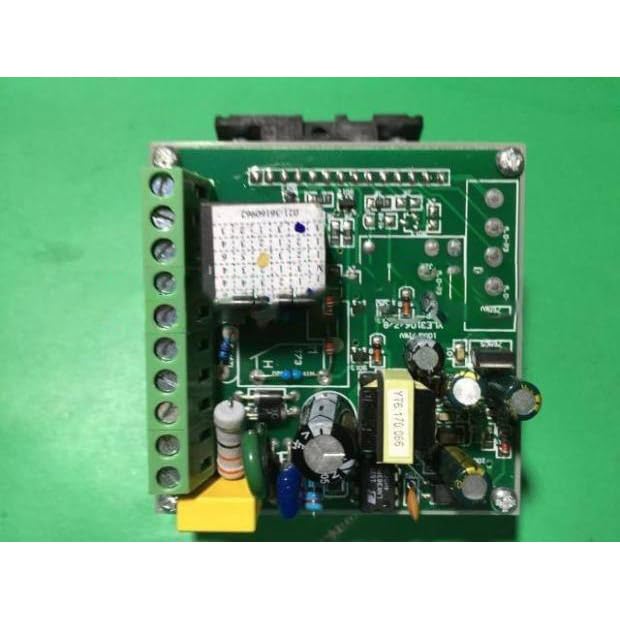

Beeld 4: 'n Gedetailleerde view of the circuit board for the YLE-3000 YLE-3108 Temperature Driver, highlighting the terminal blocks for electrical connections.

6. Bedryfsinstruksies

Once installed and powered, the YLE-3000 YLE-3108 Temperature Driver is ready for operation. Specific operational details may vary based on the exact model and configuration. Refer to any accompanying diagrams or labels on the device for precise button functions and display indicators.

1. Krag aan: Ensure the device is properly connected to a power source. The unit should power on automatically or via a designated power switch.
2. Stel temperatuur: Use the control interface (buttons/dial) to set the desired temperature. The display will typically show the current temperature and the setpoint.
3. Moduskeuse: If applicable, select the operating mode (e.g., heating, cooling, auto) using the mode selection controls.
4. Monitering: Continuously monitor the temperature readings and the system's response to ensure stable operation.

7. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your temperature driver.

• Skoonmaak: Periodically clean the exterior of the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the device is powered off and disconnected before cleaning.
• Inspeksie: Regularly inspect all wiring and connections for signs of wear, damage, or loose contacts. Address any issues promptly.
• Ventilasie: Ensure that ventilation openings are clear and not obstructed to prevent overheating.

8. Probleemoplossing

If you encounter issues with your YLE-3000 YLE-3108 Temperature Driver, refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak gekwalifiseerde dienspersoneel.

9. Spesifikasies

The following specifications apply to the Generic YLE-3000 YLE-3108 Temperature Driver:

• Model: YLE-3000 YLE-3108
• Handelsmerk: Generies
• Tipe: Temperature Driver / Controller
• Invoer Voltage: (Typical range, e.g., 100-240V AC, 50/60Hz - Spesifieke voltage not provided, refer to device label)
• Temperatuurreeks: (Typical range, e.g., -50°C to 150°C - Specific range not provided, refer to device label)
• Uitset tipe: (Typical, e.g., Relay output, SSR output - Specific type not provided, refer to device label)
• ASIN: B0D2LFBSCH

Note: For precise and detailed specifications, always refer to the product label or accompanying documentation provided with your specific unit.

10. Waarborg en Ondersteuning

This product is sold by a third-party seller. For warranty information, technical support, or service inquiries, please contact the seller directly or refer to any warranty card included with your purchase. Generic brand products typically carry a standard manufacturer's warranty against defects in materials and workmanship.

Bewaar u aankoopbewys as bewys van aankoop vir enige waarborgeise.
