ECOROAD EC9 Electric Scooter User Manual

1. Introduction and Safety Guidelines

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your ECOROAD EC9 Electric Scooter. Please read it thoroughly before your first ride to ensure proper use and to prevent accidents.

Algemene Veiligheidswaarskuwings

• Dra altyd 'n helm en gepaste veiligheidstoerusting (kniebeskermers, elmboogbeskermers) wanneer jy ry.
• Do not ride in wet conditions, heavy rain, or through puddles deeper than 1 inch.
• Avoid riding on uneven surfaces, loose gravel, or steep inclines/declines that exceed the scooter's capabilities.
• Maak seker dat alle boute en snelkoppelingsmeganismes stewig vasgemaak is voor elke rit.
• Observe local traffic laws and regulations. Riding on public roads may be restricted in some areas.
• The scooter is designed for riders aged 13 and above.
• Moenie die maksimum gewigslimiet van 264 pond (120 kg) oorskry nie.
• Handhaaf 'n veilige afstand van ander voertuie en voetgangers.
• Familiarize yourself with the braking system and practice emergency stops in a safe, open area.

2. Pakketinhoud en samestelling

Your ECOROAD EC9 Electric Scooter comes partially assembled. Please check all components upon unpacking.

Ingesluit komponente:

• EC9 Electric Scooter ×1
• Charger ×1 + Power Cord ×1
• Hexagonal wrench ×1 + Spare screw set
• Handleiding ×1

Monteerstappe:

1. Vou die bromponie oop: Lig die stuurstang versigtig op totdat dit in die regop posisie vassluit. Maak seker dat die voumeganisme stewig vas is.
2. Heg die stuurstange aan: Insert the handlebar assembly into the stem. Align the holes and secure it with the provided screws using the hexagonal wrench.
3. Gaan verbindings na: Ensure all cables (brake, display, throttle) are properly connected and not pinched.
4. Aanvanklike heffing: Before first use, fully charge the scooter battery. Refer to the 'Charging the Battery' section for details.

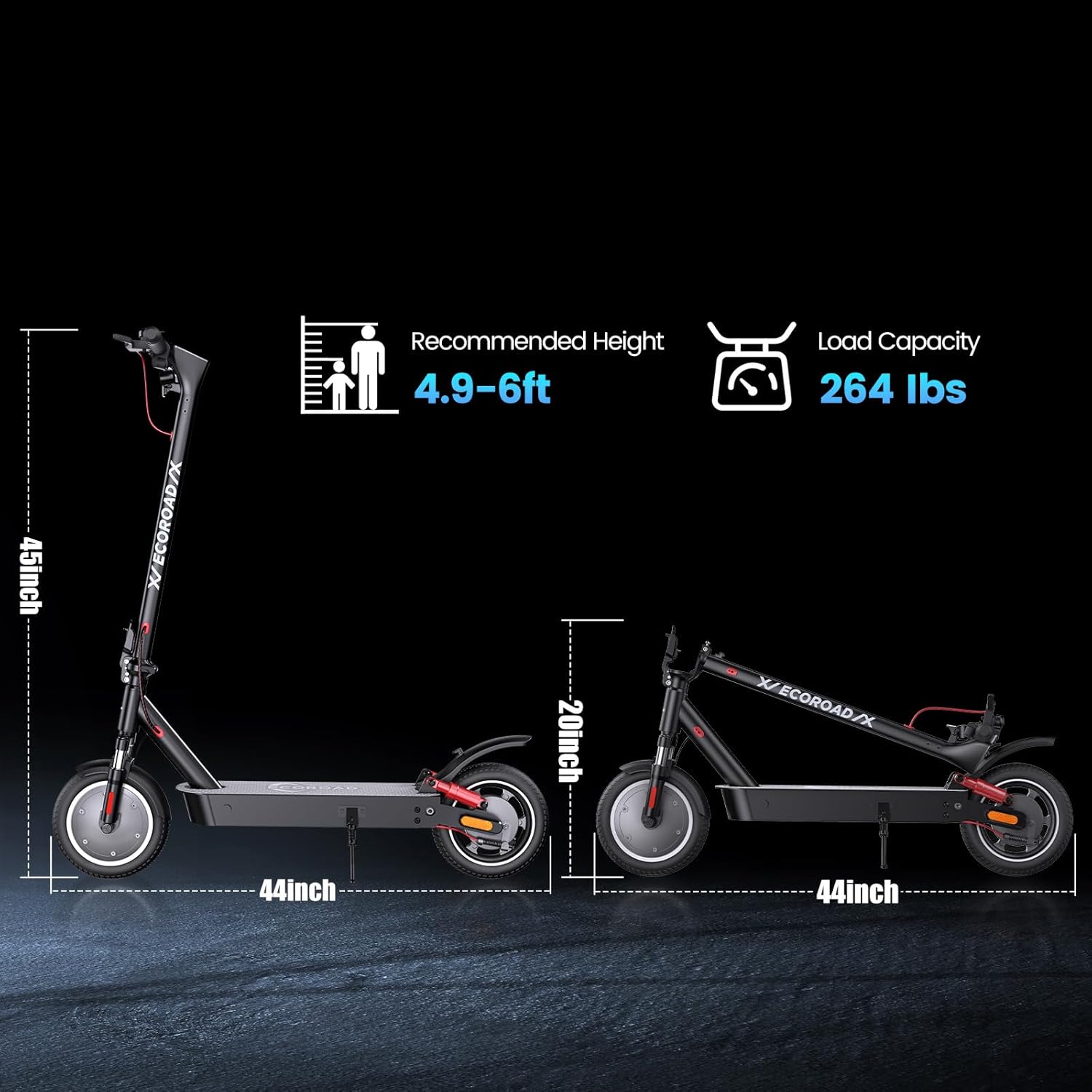

Image: The ECOROAD EC9 Electric Scooter shown in both its unfolded and folded states, illustrating its dimensions and compact storage capability. The unfolded height is approximately 45 inches, and the length is 44 inches. When folded, the height reduces to about 20 inches.

3. Laai die battery

The ECOROAD EC9 is equipped with a UL2272-certified 36V 13Ah lithium battery.

Laai prosedure:

1. Ensure the scooter is powered off before charging.
2. Locate the charging port, usually covered by a rubber flap, on the scooter deck.
3. Connect the charger to the charging port, then plug the power cord into a standard electrical outlet.
4. Die aanwyserliggie op die laaier sal tipies rooi word tydens laai en groen wanneer dit volledig gelaai is.
5. 'n Volle lading neem ongeveer 6 uur. Do not overcharge the battery.
6. Disconnect the charger once charging is complete and securely close the charging port cover.

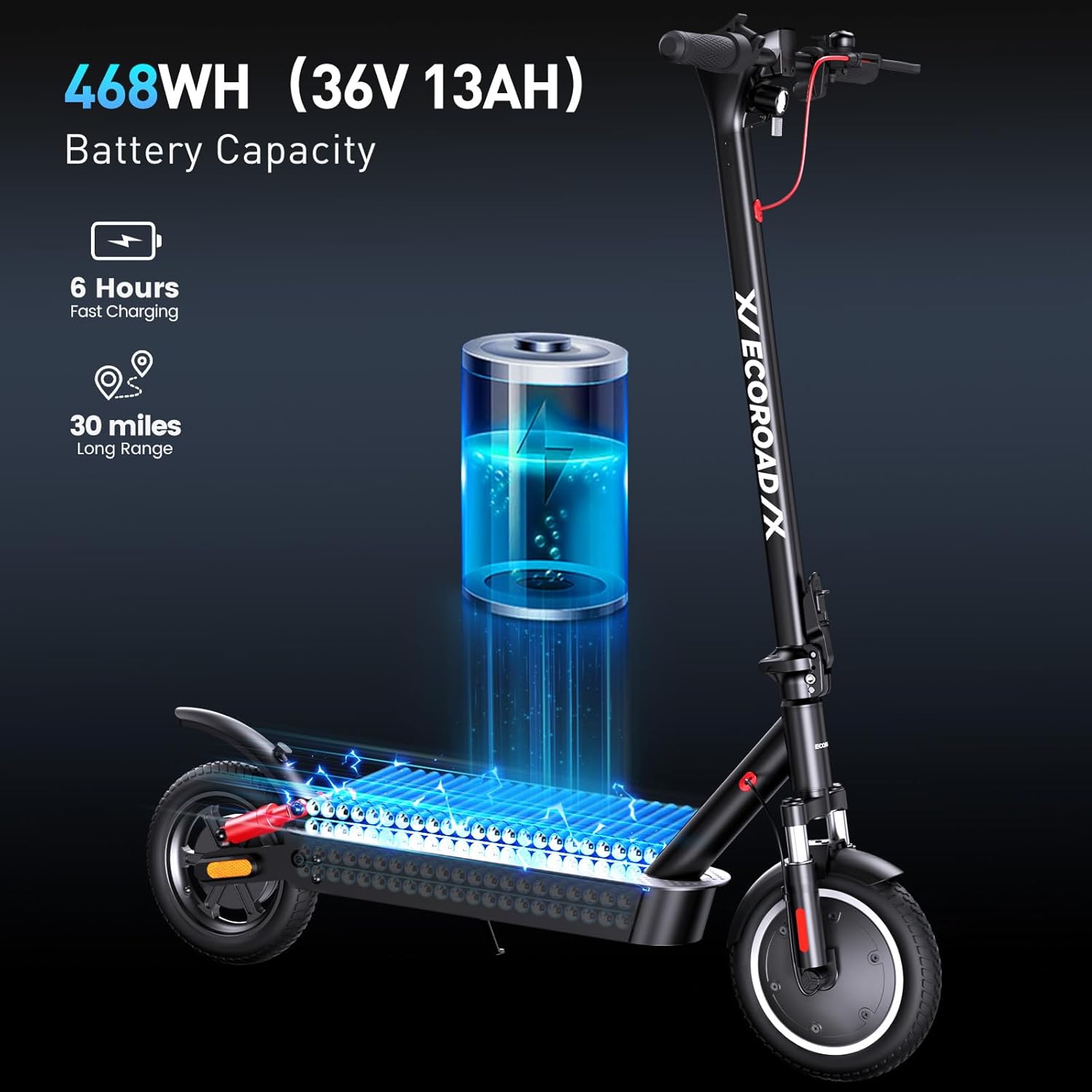

Image: An illustration highlighting the 468WH (36V 13AH) battery capacity of the ECOROAD EC9 Electric Scooter. It indicates a 6-hour fast charging time and a maximum range of 30 miles.

4. Bedryfsinstruksies

Familiarize yourself with the controls and features of your ECOROAD EC9 Electric Scooter before riding.

Power On/Off and Riding Modes:

• Krag aan: Press and hold the power button on the display for a few seconds.
• Skakel af: Druk en hou die aan/af-knoppie weer in totdat die skerm afskakel.
• Ry modes: The scooter features three riding modes: Eco (9 MPH), Race (15 MPH), and Sport (21 MPH). Cycle through these modes by pressing the mode button (usually a short press of the power button after turning on).
• Cruise Control: Activate cruise control by maintaining a consistent speed for a few seconds. The scooter will hold this speed until the brake is applied or the throttle is disengaged.

Image: A visual representation of the ECOROAD EC9 Electric Scooter's cruise control feature and its three distinct riding modes: Eco (9 MPH), Race (15 MPH), and Sport (21 MPH).

Display and App Integration:

• The anti-glare LED display shows real-time speed, battery level, riding mode, and mileage.
• The scooter can sync with the ECOROAD App via Bluetooth for ride analytics, digital locking, and firmware updates.

Image: The ECOROAD EC9 Electric Scooter's integrated LED display showing speed and battery, alongside a smartphone screen demonstrating the ECOROAD app with features like Bluetooth pairing, lock/unlock, heading control, cruise control, and real-time speed/mileage display.

Lighting and Signals:

• The scooter is equipped with 360° LED lights for visibility, including a bright headlight, taillight, and turn signals.
• Activate the headlight and taillight for night riding or low-light conditions.
• Use the turn signals to indicate your direction to others.

Beeld: 'n Nabyskoot view of the ECOROAD EC9 Electric Scooter's safety lighting system, showcasing the illuminated headlight, turn signals, and taillight for enhanced visibility during rides.

Remstelsel:

• The EC9 features a dual braking system: EABS (Electronic Anti-lock Braking System) and a rear disc brake.
• To brake, gently squeeze the brake levers on the handlebars. Apply both brakes simultaneously for optimal stopping power.
• Practice braking at different speeds to understand the scooter's stopping distance.

Image: A rider on the ECOROAD EC9 Electric Scooter demonstrating the efficient brake system, which includes a rear drum brake and a hidden power-off brake for quick and safe stopping.

5. Onderhoud en versorging

Regular maintenance ensures the longevity and safe operation of your ECOROAD EC9 Electric Scooter.

Algemene sorg:

• Skoonmaak: Vee die bromponie met advertensie afamp cloth after each ride. Avoid using high-pressure water jets or harsh chemicals.
• Berging: Bêre die bromponie op 'n koel, droë plek weg van direkte sonlig en uiterste temperature.
• Batterysorg: Do not allow the battery to fully discharge. Charge it regularly, even if not in use, to maintain battery health.

Tires and Suspension:

• The EC9 features 10-inch solid puncture-proof tires, reducing the need for frequent inflation checks.
• Regularly inspect tires for wear, cuts, or embedded debris.
• The scooter is equipped with 4 shock absorbers (front and rear) for comfort. Periodically check the suspension components for any signs of damage or looseness.

Beeld: 'n Nabyskoot view of the ECOROAD EC9 Electric Scooter's 10-inch solid tire, emphasizing its anti-skid effects and long service life due to its puncture-proof design.

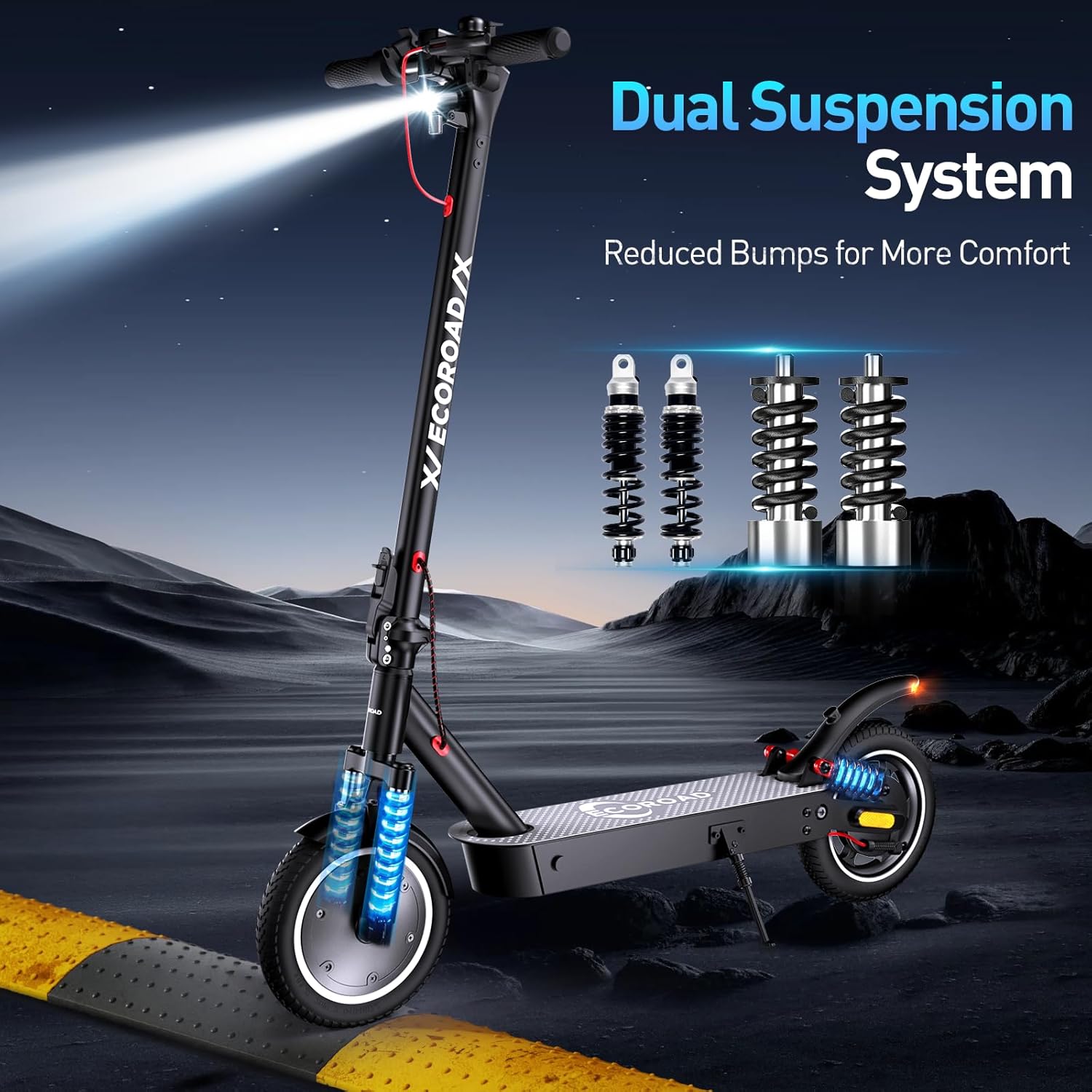

Image: An illustration of the ECOROAD EC9 Electric Scooter's dual suspension system, featuring four shock absorbers (two front, two rear) designed to reduce bumps and enhance rider comfort.

6. Probleemoplossing

This section addresses common issues you might encounter with your ECOROAD EC9 Electric Scooter.

7. Tegniese spesifikasies

Detailed specifications for the ECOROAD EC9 Electric Scooter.

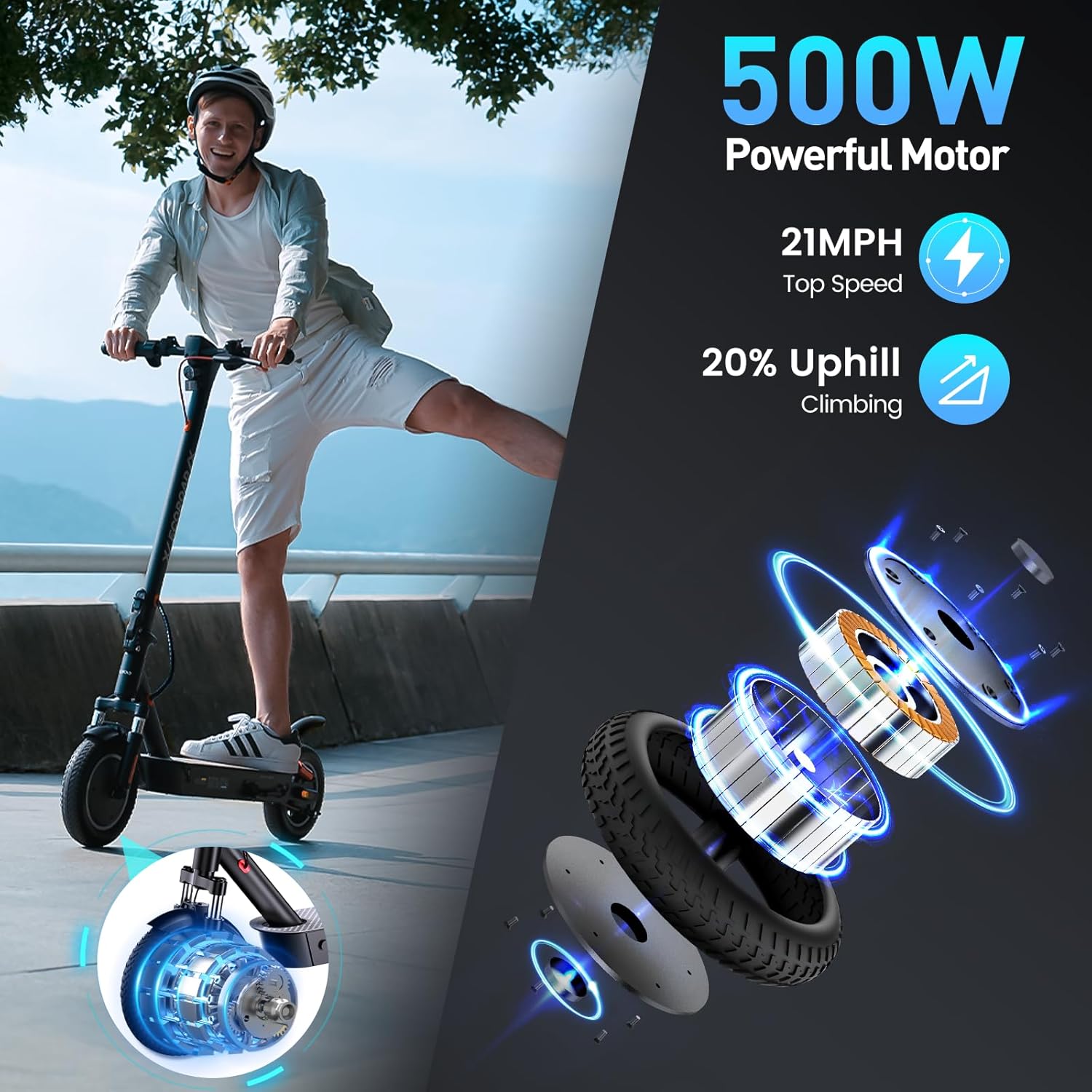

Beeld: 'n Ontplofte view illustrating the 500W powerful motor of the ECOROAD EC9 Electric Scooter, highlighting its capability to reach 21 MPH top speed and conquer 20% uphill inclines.

8. Waarborg en Ondersteuning

ECOROAD provides warranty coverage for your EC9 Electric Scooter.

Waarborginligting:

• The ECOROAD EC9 Electric Scooter comes with a limited warranty.
• Specific warranty periods apply to different parts: a 1 jaar waarborg for the main components and a 180-dae waarborg for other parts.
• Behou asseblief jou aankoopbewys vir waarborgeise.

Kliëntediens:

For any questions, technical assistance, or warranty claims, please contact ECOROAD customer support. Support is available 24/7.

Refer to the contact information provided with your purchase or visit the official ECOROAD webwebwerf vir hulp.
