1. Veiligheidsinligting
Please read all instructions carefully before installation and operation. Keep this manual for future reference. Always disconnect power before servicing or cleaning the unit. Ensure proper grounding to reduce the risk of electric shock. Do not operate the range hood if any parts are damaged.
2. Pakketinhoud
Verifieer dat alle komponente teenwoordig en onbeskadig is tydens uitpak.
- Range kap
- Baffle Filters (2 pcs)
- Oliebak
- LED Lighting (pre-installed)
- Installation Part (mounting hardware)
- Gebruikershandleiding
Beeld: Voorkant view of the Vesta Top Selections Range Hood, showcasing sy slanke vlekvrye staal ontwerp.
3. Opstelling en installering
This Vesta range hood is designed for under-cabinet mounting. Ensure adequate clearance above your cooking surface as per local building codes. The unit features a 23-inch depth, which is longer than many conventional models, providing enhanced coverage.
Image: Diagram illustrating the dimensions of the Vesta Range Hood, including its 22.9"D x 29.75"W x 8.3"H size and 23-inch depth.
The range hood is compatible with three vent shapes: a 6-inch round vent, a 3.25"x10" top rectangle vent, or a 3.25"x10" back rectangle vent. Select the appropriate venting option for your kitchen configuration.
4. Bedryfsinstruksies

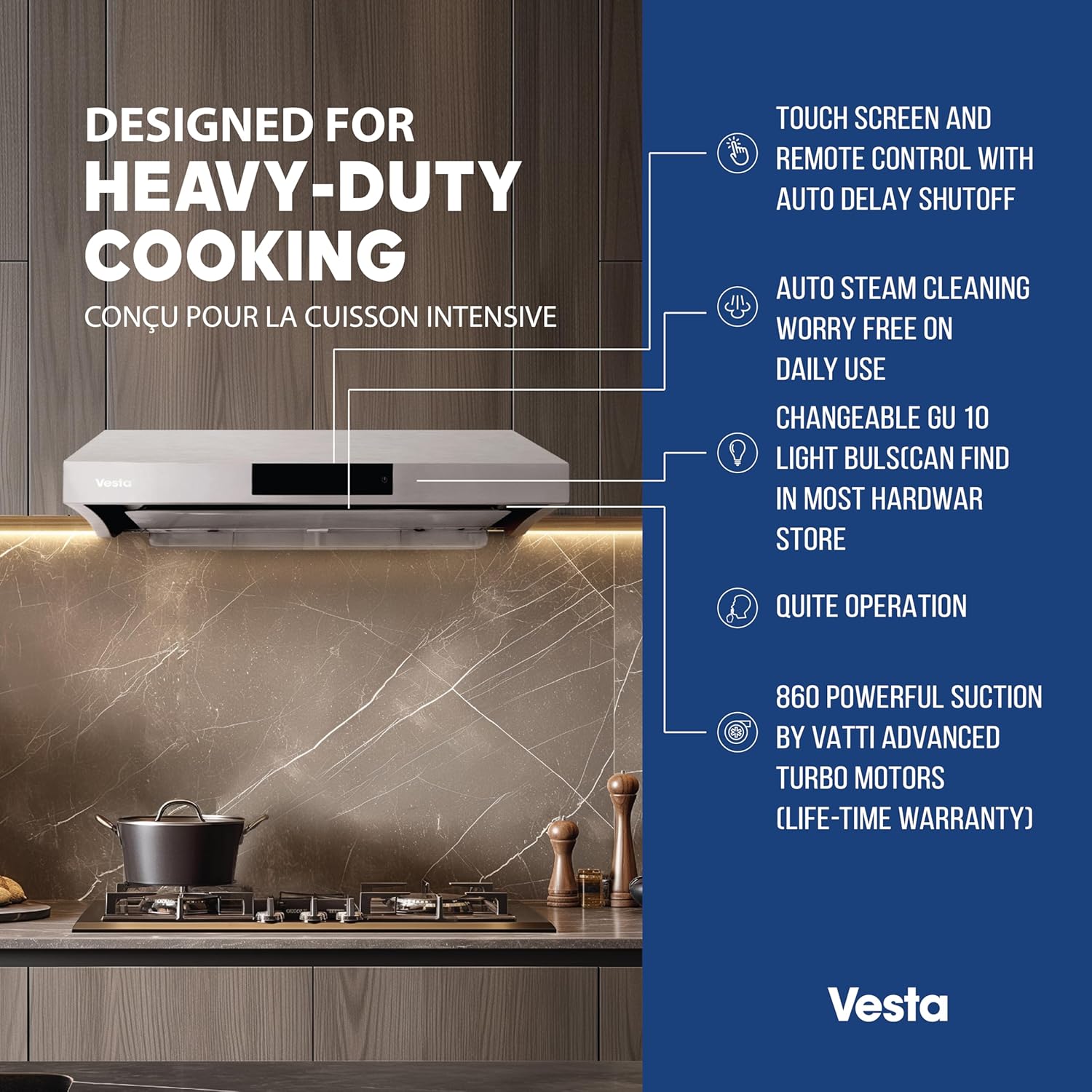

The Vesta range hood features a touch screen control panel for easy operation. The panel includes a clock display, delay shut-off function, and filter cleaning reminder.
Image: Close-up of the Vesta Range Hood's touch control panel, showing the digital display and various function icons.
Waaierspoedbeheer
The unit offers 6 fan speed levels to accommodate various cooking needs. Adjust the fan speed using the up and down arrows on the touch panel. The dual motors provide a powerful 860 CFM suction capacity.
LED Beligting
Two LED lights are integrated to provide brighter illumination for your cooking area. The lights can be controlled via the touch panel.
Auto Delay Turn Off
Utilize the Auto Delay Turn Off function to set a customizable timer from 1 to 15 minutes. This allows the hood to continue clearing the air after cooking is complete, then automatically shut off.
Amptelike Produkvideo
Video: An introductory video demonstrating the features and operation of the Vesta Auto-Clean Range Hood, including its touch controls, powerful suction, and auto-clean function.
5. Onderhoud
Gereelde onderhoud verseker optimale prestasie en lang lewensduur van jou afzuigkap.
Auto-Clean Function
The range hood features a steam auto-clean function. Activate this setting via the touch panel to simplify internal cleaning. The specially designed magic plate separates captured smoke and increases ventilation performance, eliminating over 95% of smoke and grease particles. Collected grease flows into an integrated metal oil collector.
Beeld: Onderkant view of the Vesta Range Hood, showing the dual aluminum alloy centrifugal blowers and the integrated oil collector.
Baffle Filter Cleaning
The two baffle filters are dishwasher-safe for easy cleaning. The touch panel will provide a reminder when filter cleaning is due. Remove the filters by sliding them out and wash them regularly to maintain air flow efficiency.
Oliebak
The long oil tray at the back of the unit collects grease. A grease level indicator shows when the oil collector is full and needs to be emptied and cleaned.
6. Probleemoplossing
If you encounter issues with your range hood, refer to the following common solutions:
- Geen krag: Kontroleer die stroombreker en maak seker dat die eenheid behoorlik ingeprop is.
- Lae suiging: Clean or replace the baffle filters. Ensure the exhaust duct is not blocked.
- Oormatige geraas: Verify that the fan blades are clean and free of obstructions. Ensure the unit is securely mounted.
- Ligte werk nie: Check the LED light connections. If lights are replaceable, ensure they are correctly installed.
- Auto-Clean Not Activating: Ensure the water reservoir (if applicable for steam function) is filled and the function is correctly selected on the touch panel.
For persistent issues, please contact customer service.
7. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Handelsmerk | Vesta |
| Modelnommer | Atlanta 30SS |
| Produkafmetings (DxWxH) | 22.9" D x 29.75" B x 8.3" H |
| Materiaal tipe | Vlekvrye staal |
| Lugvloeikapasiteit | 860 kubieke voet per minuut (CFM) |
| Noise Level (Highest Speed) | 65 dB |
| Aantal waaiersnelhede | 6 |
| Beheer tipe | Raak Paneel |
| Ligbron | LED (2 lights) |
| Voltage | 110 Volt |
| Wattage | 80 watt |
| Filter tipe | Baffle filters |
| Montage tipe | Onder Kabinet Mount |
| Spesiale kenmerke | Auto Fan Shut-Off, Grease Filter, LED Lighting, Noise Reduction, Timer, Steam Auto Clean |
8. Waarborg en Ondersteuning
Vesta provides a 1-year limited factory warranty for the range hood and a lifetime motor warranty. This warranty covers defects in materials and workmanship under normal use.
For customer service or product inquiries, please contact a qualified specialist directly. You can reach Vesta support by dialing (905) 886-5858 during business days.
Please have your model number (Atlanta 30SS) and proof of purchase ready when contacting support.
