Inleiding
Thank you for choosing the BLAUPUNKT BPS-ES650 6.5" 3-Way Slim Car Speakers. These speakers are engineered to deliver high-quality audio performance in a space-saving design, making them suitable for various vehicle installations. This manual provides essential information for the proper installation, operation, and maintenance of your new car speakers.
Veiligheidsinligting
- Always disconnect the vehicle's battery negative terminal before beginning any electrical work to prevent short circuits.
- Maak seker dat alle bedrading behoorlik geïsoleer en vasgemaak is om skade deur vibrasie of skerp kante te voorkom.
- Moenie luidsprekers installeer op plekke wat die bestuurder se view or interfere with vehicle safety features.
- Raadpleeg 'n professionele motor-klankinstalleerder as u onseker is oor enige aspek van die installasieproses.
- Avoid exposing speakers to excessive moisture or extreme temperatures.
Pakketinhoud
Verifieer dat alle items in die pakket teenwoordig is:
- 2 x BLAUPUNKT BPS-ES650 6.5" 3-Way Slim Car Speakers
- 2 x Protective Grilles
- Monteringshardeware (skroewe, knippies, ens.)
Produk Kenmerke
- Slim 3-Way Design: Integrates a 6.5" woofer, 1.2" tweeter, and 0.5" super tweeter for a full-range sound experience, ideal for limited installation spaces.
- Kragtige klankuitset: Delivers a peak power handling of 120W per pair and an RMS power of 60W per pair, ensuring clear audio.
- Hoë kwaliteit komponente: Features neodymium magnets in the tweeter and a ceramic/PET diaphragm in the super tweeter for crisp and detailed highs.
- Breë frekwensierespons: Covers a wide audio spectrum from 60Hz to 20kHz, providing deep bass and high treble.
- Duursame konstruksie: Built with PP cone material and a rubber surround for longevity and consistent performance.
- 4 Ohm impedansie: Compatible with a wide range of car audio systems.
- 85dB Sensitivity: Efficiently converts power into dynamic sound.
Opstelling en installasie
Proper installation is crucial for optimal performance. It is recommended to have these speakers installed by a qualified professional if you are not experienced with car audio systems.
1. Beplanning en Voorbereiding
- Choose a suitable mounting location, typically vehicle doors, ensuring adequate depth and clearance.
- Verify the speaker dimensions against your vehicle's mounting space.

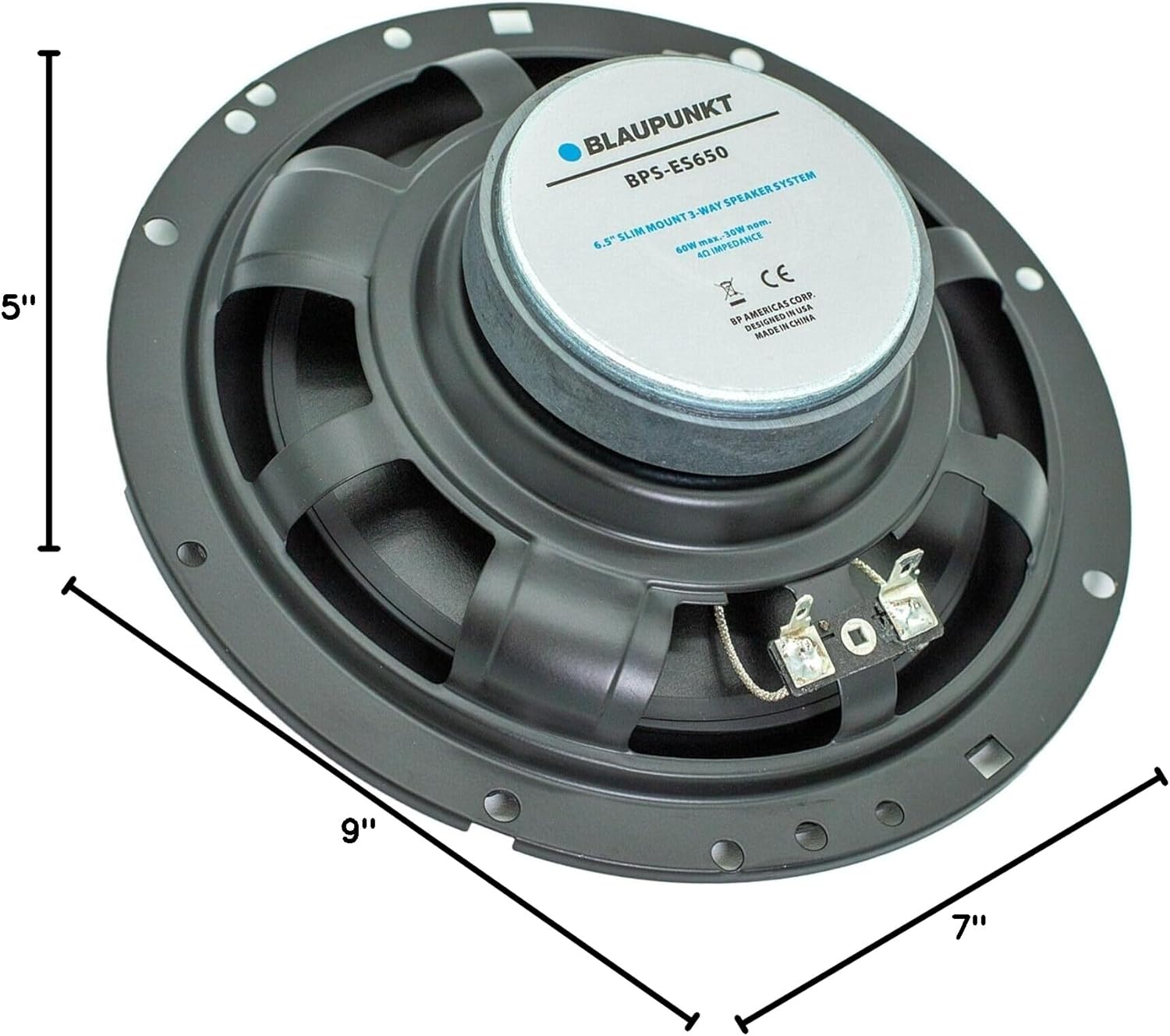

Image: BLAUPUNKT BPS-ES650 speaker with indicated dimensions (5"D x 7"W x 9"H) for installation planning.
2. Monteer die luidsprekers
- Verwyder die bestaande luidsprekers versigtig of berei die monteringsplek voor.
- Position the BPS-ES650 speaker and mark the screw holes.
- Drill pilot holes if necessary, ensuring not to damage any vehicle components behind the mounting surface.
- Secure the speaker using the provided mounting hardware.
Beeld: Voorkant view of the BLAUPUNKT BPS-ES650 speaker, showing the woofer, tweeter, and super tweeter components before grille installation.
Beeld: Syprofile of the BLAUPUNKT BPS-ES650 speaker, highlighting its slim design for easier fitment in tight spaces.
3. Bedradingsverbindings
- Connect the speaker wires from your car audio system to the terminals on the back of the speaker.
- Ensure correct polarity: positive (+) to positive and negative (-) to negative. Incorrect wiring can lead to poor sound quality or damage.
- The BPS-ES650 speakers have a 4 Ohm impedance. Ensure your ampDie versterker of hoofeenheid is versoenbaar met hierdie impedansie.
Beeld: Agter view of the BLAUPUNKT BPS-ES650 speaker, showing the magnet structure and the positive and negative wiring terminals.
4. Attaching Grilles
- Once the speakers are mounted and wired, attach the protective grilles. These grilles protect the speaker cones from physical damage.
Beeld: Voorkant view of the BLAUPUNKT BPS-ES650 speaker with the protective grille installed, providing both protection and a finished aesthetic.
Bedryfsinstruksies
After successful installation, operate your speakers through your car's head unit or amplewendiger.
- Krag aan: Skakel jou motor se klankstelsel aan.
- Volumebeheer: Start with the volume at a low level and gradually increase it to a comfortable listening level. Avoid excessively high volumes to prevent distortion and potential speaker damage.
- Oudio-instellings: Adjust bass, treble, balance, and fader settings on your head unit to optimize sound quality for your vehicle's acoustics and personal preference.
- Inbreekperiode: Allow a short break-in period (approximately 10-20 hours of normal use) for the speaker components to loosen up and achieve their full sound potential.
Onderhoud
Regular maintenance ensures the longevity and performance of your speakers.
- Skoonmaak: Use a soft, dry cloth to gently wipe dust and dirt from the speaker grilles and surrounds. Do not use harsh chemicals or abrasive cleaners.
- Inspeksie: Periodically check the speaker cones and surrounds for any signs of damage, tears, or deterioration. Ensure all mounting screws remain tight.
- Omgewingsbeskerming: While designed for automotive use, avoid prolonged exposure to extreme heat, cold, or direct sunlight when possible, as these can degrade speaker materials over time.
Probleemoplossing
If you encounter issues with your BPS-ES650 speakers, refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Geen geluid van luidsprekers nie | Incorrect wiring; loose connections; amplifier/head unit issue; speaker damage. | Check all wiring connections for proper polarity and tightness. Verify the amplifier/head unit is powered on and functioning. Test with another audio source if possible. |
| Vervormde of onduidelike klank | Volume too high; incorrect audio settings; loose speaker cone; damaged speaker. | Reduce volume. Adjust bass/treble settings on your head unit. Inspect speaker cones for physical damage. Ensure speakers are securely mounted. |
| Swak of geen bas | Incorrect wiring polarity; bass settings too low; phase issues. | Double-check speaker wire polarity (+/-). Increase bass settings on your head unit. If using multiple speakers, ensure they are in phase. |
| Intermitterende klank | Loose wiring connection; faulty speaker wire; ampverligter oorverhit. | Inspect all wiring for loose connections or frayed wires. Ensure adequate ventilation for your amplewendiger. |
Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Handelsmerk | BLAUPUNKT |
| Modelnommer | 850053034091 |
| Luidsprekergrootte | 6.5 duim |
| Tipe luidspreker | 3-rigting koaksiaal |
| Piek kraghantering | 120 Watt (per paar) |
| RMS Kraghantering | 60 Watt (per paar) |
| Impedansie | 4 ohm |
| Sensitiwiteit | 85 dB |
| Frekwensierespons | 60 Hz - 20 kHz |
| Woofer materiaal | PP Cone with Rubber Surround |
| Tweeter-tipe | 1.2" Tweeter with Neodymium Magnet |
| Super Tweeter Type | 0.5" Super Tweeter with Ceramic/PET Diaphragm |
| Montage tipe | Deur |
| Verbindingstegnologie | RCA (for audio input to amplifier/head unit) |
| Itemafmetings (D x B x H) | 5" D x 7" B x 9" H |
Waarborg inligting
The BLAUPUNKT BPS-ES650 speakers come with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official BLAUPUNKT webwebwerf. Bewaar u bewys van aankoop vir waarborgeise.
Ondersteuning
For further assistance, technical support, or inquiries regarding your BLAUPUNKT BPS-ES650 speakers, please visit the official BLAUPUNKT website or contact their customer service department. You can often find FAQs, additional resources, and contact information on their support pages.
