SEESII Impact Driver S300 Instruction Manual

1. Inleiding

Dankie vir die aankoopasing the SEESII S300 Impact Driver. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and keep it for future reference.

2. Veiligheidsinligting

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves. Ensure the tool is switched off and the battery is removed before making any adjustments, changing accessories, or storing the tool.

3. Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• Impact Driver Body (1 unit)
• 2000mAh Batteries (2 units)
• Herlaaier (1 eenheid)
• Impact Bit Set
• Japanese Instruction Manual (1 book)

4. Produkkenmerke

4.1 Powerful Torque and High Efficiency

The SEESII Impact Driver boasts a maximum torque of 300 N·m and a no-load speed of up to 3000 RPM, ensuring quick and efficient fastening and loosening of screws. It delivers a powerful impact rate of 4000 BPM, making it suitable for demanding tasks. The 6.35mm hex chuck provides stable operation, and the integrated LED light illuminates dark work areas.

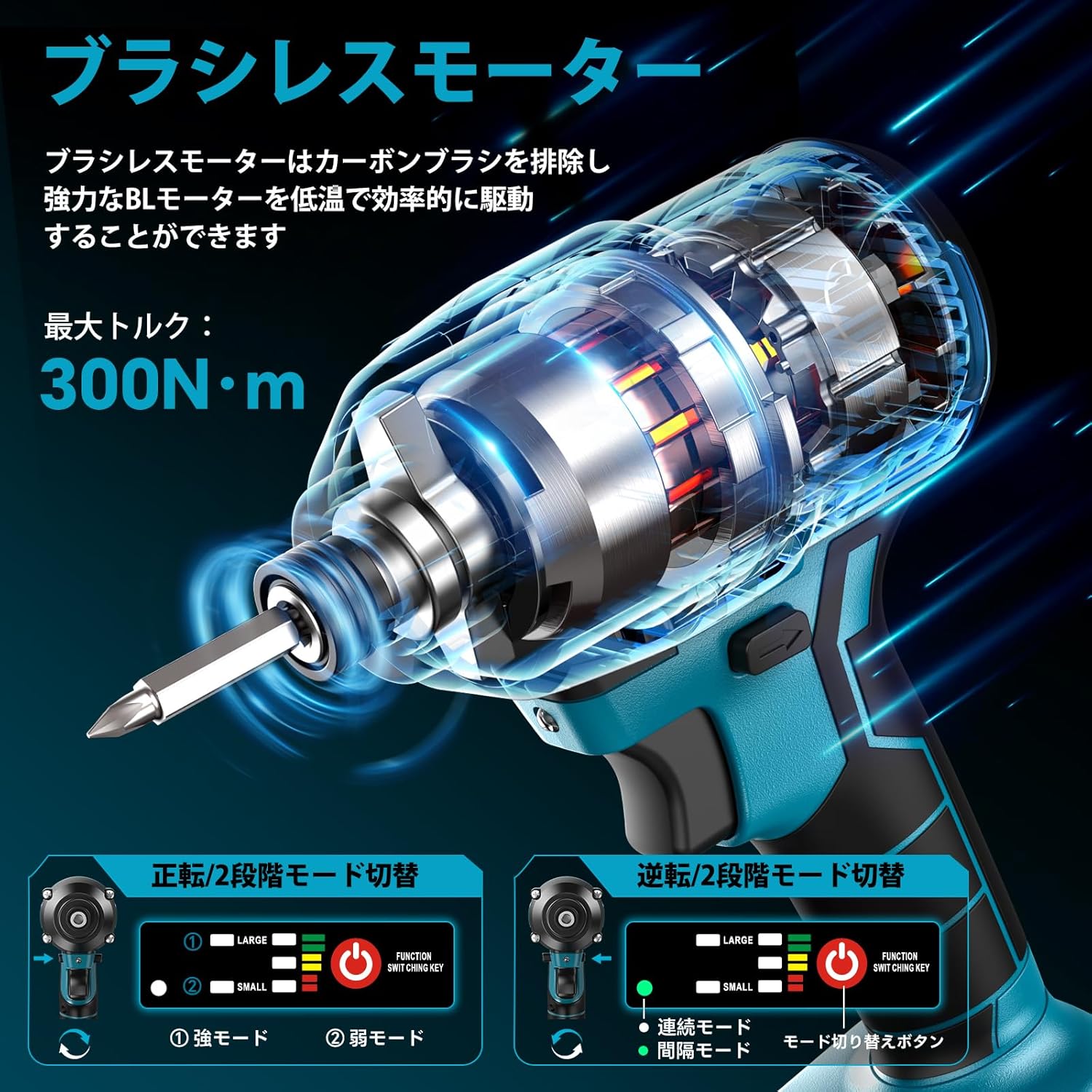

4.2 Advanced Brushless Motor

Equipped with a state-of-the-art brushless motor, this impact driver offers enhanced durability and efficiency by eliminating carbon brushes. This design results in lower operating temperatures and reduced maintenance. The unique vibration control system minimizes vibration and noise during operation, providing a comfortable and quiet working environment.

4.3 Variable Speed, Forward/Reverse, and 4 Operating Modes

Designed for ease of use, the impact driver features stepless variable speed control, allowing precise adjustment of rotation speed with finger pressure. A simple forward/reverse lever enables quick switching between fastening and loosening. Four distinct modes are available:

• High-Efficiency Mode (Forward): For rapid task completion.
• Power-Saving Mode (Forward): Ideal for extended use.
• Auto-Stop Mode (Reverse): Prevents nuts from flying off when loosened forcefully. This mode is active only during reverse rotation.
• Continuous Mode (Reverse): For efficient continuous loosening.

4.4 Large Capacity Batteries and LED Illumination

The product includes two 2000mAh large-capacity batteries, ensuring prolonged operation without frequent recharging. A battery level indicator with 4 LED segments shows the remaining power at a glance. The dedicated rapid charger fully charges one battery in approximately 2.5 hours. An integrated LED work light automatically illuminates when the tool is in use, enhancing visibility in dimly lit areas and improving work efficiency.

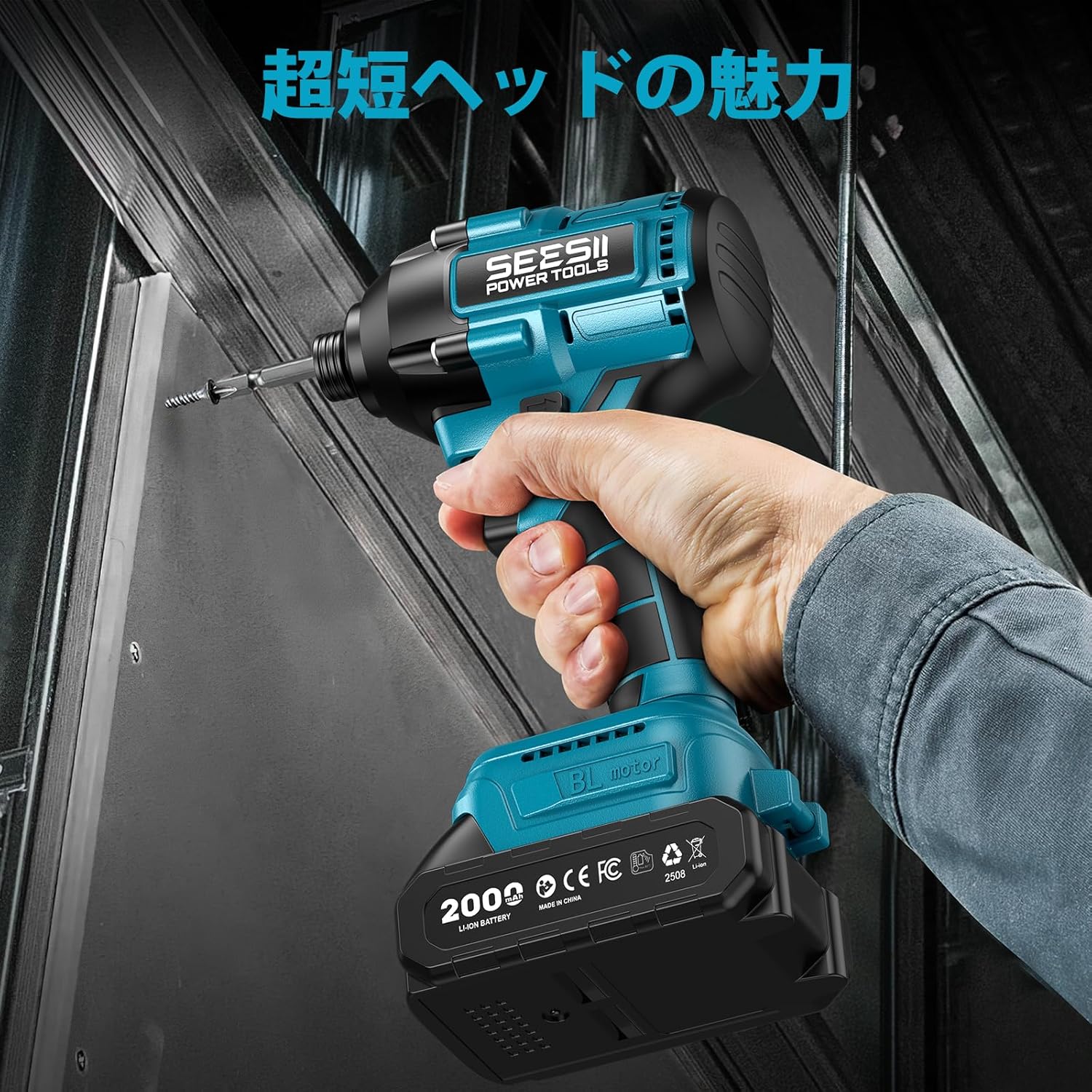

4.5 Kompakte en liggewig ontwerp

The motor section of the tool is approximately 3 cm shorter than conventional models, resulting in a compact length of 12 cm. Weighing only 1 kg, its lightweight design ensures easy handling and significantly boosts work efficiency.

5. Opstelling

5.1 Battery installering en verwydering

1. To install: Align the battery with the base of the tool and slide it in until it clicks securely into place.
2. To remove: Press the battery release button located on the side of the battery and slide the battery out.

5.2 Bit Installasie en Verwydering

1. To install: Pull the chuck collar forward, insert the desired hex bit into the chuck, and release the collar. Ensure the bit is securely seated.
2. Om te verwyder: Trek die boorkopkraag vorentoe en trek die boorpunt uit.

6. Bedryfsinstruksies

6.1 Aan/Af en Spoedbeheer

The tool is powered on by pressing the trigger. The speed is controlled by the amount of pressure applied to the trigger; more pressure results in higher speed. Release the trigger to turn off the tool.

6.2 Vorentoe/Agtertoe Rotasie

Use the forward/reverse lever located above the trigger to select the desired rotation direction. Push the lever to the left for forward rotation (fastening) and to the right for reverse rotation (loosening). The center position locks the trigger for safety.

6.3 Moduskeuse

Press the mode switch button on the base of the tool to cycle through the four operating modes: High-Efficiency (Forward), Power-Saving (Forward), Auto-Stop (Reverse), and Continuous (Reverse). Select the appropriate mode for your task.

6.4 LED-werkslig

The integrated LED light automatically activates when the trigger is pressed, providing illumination to the work area.

7. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en optimale werkverrigting van jou impakskroefdraer.

• Skoonmaak: Keep the tool and its ventilation openings clean to prevent overheating. Use a soft, damp lap; moenie harde chemikalieë of skuurmiddels gebruik nie.
• Battery sorg: Store batteries in a cool, dry place away from direct sunlight. Do not expose batteries to extreme temperatures. Charge batteries fully before storage and periodically during long storage periods to maintain their health.
• Bit-inspeksie: Regularly inspect bits for wear or damage. Replace worn bits to ensure efficient and safe operation.

8. Probleemoplossing

If you encounter issues with your impact driver, refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.

9. Spesifikasies

10. Waarborg en Ondersteuning

This product comes with a 1-year manufacturer's warranty. We conduct strict quality control before shipment. However, if you encounter any issues with the product upon arrival, we offer refunds or free exchanges.

For any questions or problems regarding the product, please do not hesitate to contact us. We aim to respond promptly to customer needs within 24 hours.

Hoe om ons te kontak:

1. Gaan na 'Bestelgeskiedenis'.
2. Select the relevant order.
3. Click on the product.
4. Click on 'Contact Seller'.
