Levenhuk Atom DNB250 Digital Day and Night Vision Binoculars User Manual

Inleiding

This manual provides detailed instructions for the proper use and maintenance of your Levenhuk Atom DNB250 Digital Day and Night Vision Binoculars. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity. The Levenhuk Atom DNB250 offers high-definition imaging for both day and night observations, featuring optical and digital magnification, infrared illumination, and recording capabilities.

Pakketinhoud

Carefully unpack the box and ensure all items listed below are present and in good condition. If any items are missing or damaged, please contact your retailer.

• Levenhuk Atom DNB250 Digital Night Vision Binoculars
• Drasak
• Nekband
• Verwyderbare herlaaibare battery
• USB Type-C kabel
• Vee skoon
• Gebruikershandleiding
• Waarborgkaart

Image: Levenhuk Atom DNB250 Digital Night Vision Binoculars with all included accessories laid out.

Produk verbyview

Kontroles en poorte

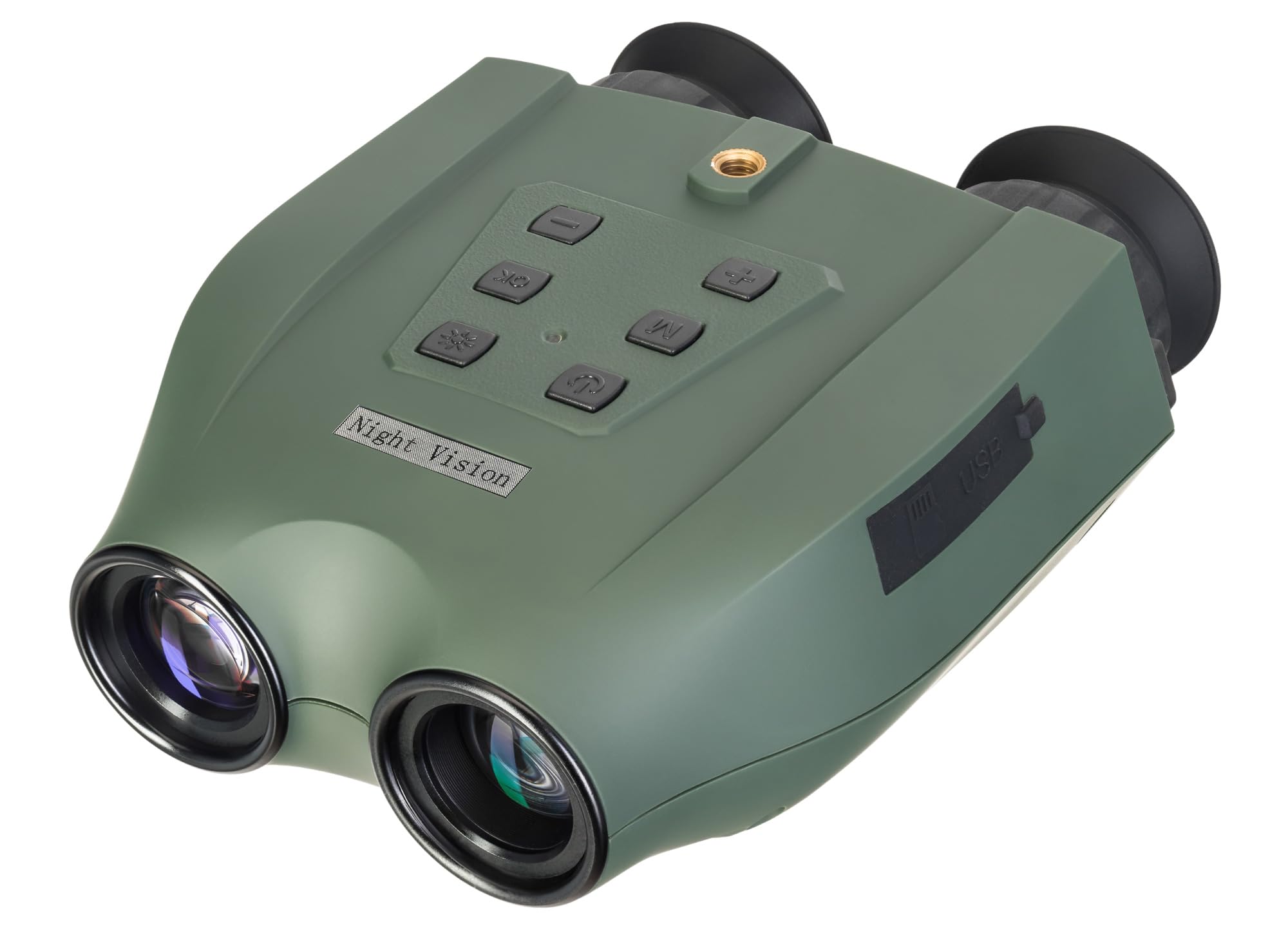

Beeld: Bo view of the binoculars highlighting the control panel.

• Kragknoppie: Skakel die toestel aan of af.
• IR-knoppie: Activates and adjusts the infrared illuminator brightness levels.
• OK knoppie: Confirms selections and takes photos/starts video recording.
• Kieslys-knoppie: Accesses the device settings menu.
• Zoom In/Up Button (+): Increases digital magnification or navigates up in menus.
• Zoom Out/Down Button (-): Decreases digital magnification or navigates down in menus.

Beeld: Sykant view of the binoculars showing the USB-C port and microSD card slot.

• MicroSD -kaartgleuf: For inserting a memory card (up to 128GB, not included) to store photos and videos.
• USB Tipe C-poort: For charging the device and transferring data to a computer.

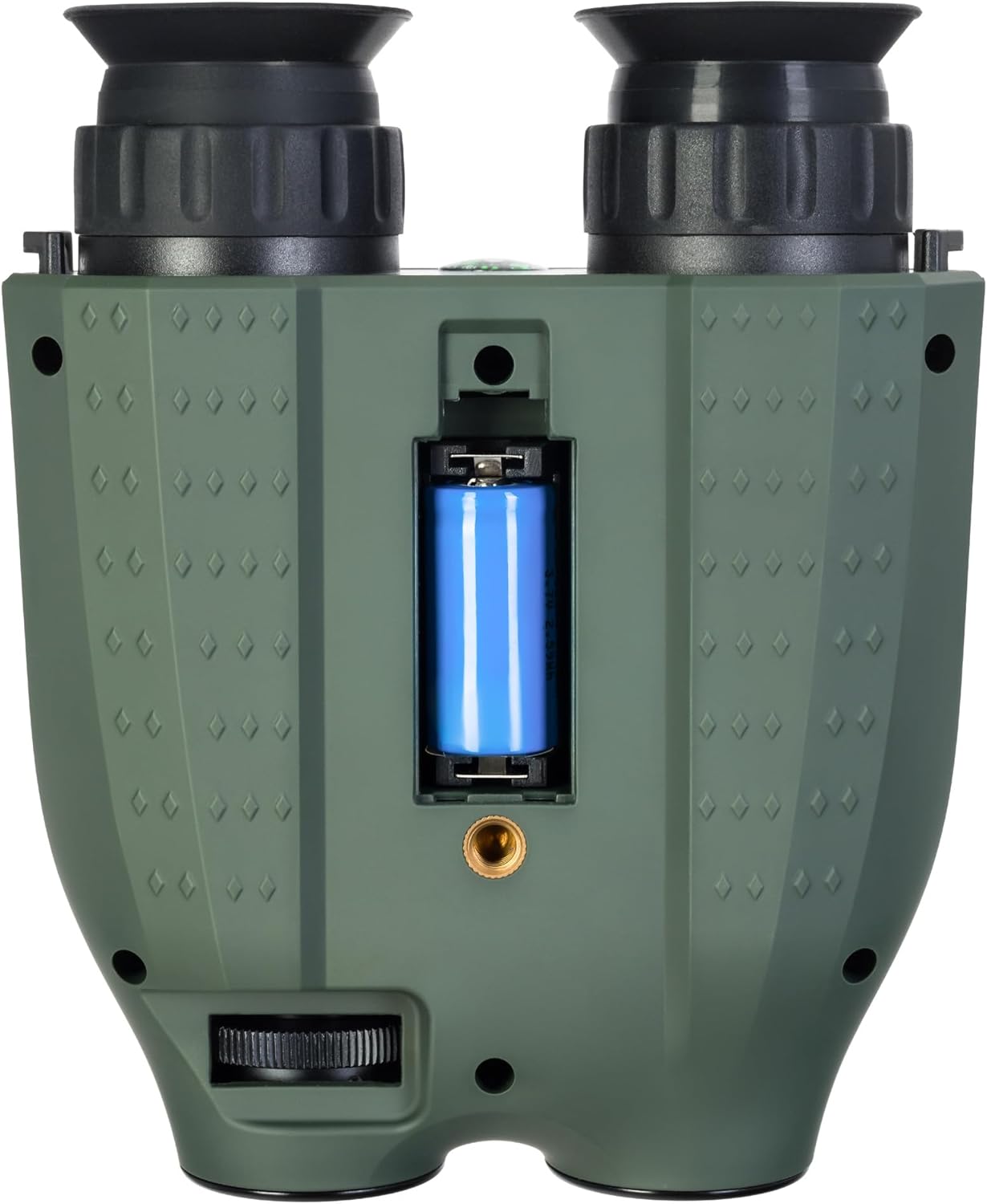

Beeld: Onderkant view of the binoculars showing the battery compartment and tripod mounting thread.

• Battery kompartement: Houses the removable rechargeable battery.
• Tripod Mounting Thread: Allows attachment to a standard tripod.

Opstelling

1. Battery Installasie

1. Locate the battery compartment on the bottom of the device.
2. Maak die kompartement se deksel oop.
3. Plaas die meegeleverde herlaaibare battery in en maak seker dat die polariteit korrek is.
4. Maak die batterykompartement se deksel stewig toe.

2. Geheuekaartinstallasie

A microSD card (up to 128GB) is required for storing photos and videos. It is not included in the package.

1. Locate the microSD card slot on the side of the device.
2. Plaas die microSD-kaart liggies in die gleuf totdat dit in plek klik.
3. Om te verwyder, druk die kaart na binne totdat dit uitspring.

3. Laai die battery

Before first use, fully charge the battery. The device can be charged using the supplied USB Type-C cable.

1. Connect the USB Type-C cable to the device's USB port.
2. Connect the other end of the cable to a USB power source (e.g., computer, wall adapter - not included).
3. Die laai-aanwyser sal die laaistatus wys.

Operasie

1. Skakel aan/af

• To power on, press and hold the Power Button until the display activates.
• To power off, press and hold the Power Button again until the display shuts down.

2. Fokusaanpassing

Adjust the focus by rotating the eyepiece rings until the image appears clear on the internal displays.

3. Magnification (Optical and Digital Zoom)

The device features 6x optical magnification and up to 8x digital zoom.

• Gebruik die Zoom In (+) en Zoom Out (-) buttons to adjust the digital magnification.

4. Infrared (IR) Illumination

The infrared illuminator enhances visibility in low-light or complete darkness. It has three brightness levels.

• Druk die IR-knoppie to cycle through the IR brightness levels (Low, Medium, High, Off).
• The IR illuminator automatically adapts to lighting conditions.

5. Photo and Video Recording

The built-in recorder captures observations as photos (JPG, up to 8000x6000px) and videos (AVI, up to 2560x1440px).

• To take a photo: Press the OK-knoppie een keer.
• To start video recording: Press and hold the OK-knoppie. Press again to stop recording.
• Captured media is stored on the inserted microSD card.

6. Vertoonmodusse

The binoculars are equipped with two color IPS screens that can be used together or separately.

• Day shooting provides full-color images.
• Night shooting provides monochrome images for enhanced visibility in darkness.

Monteer Opsies

The Levenhuk Atom DNB250 can be used handheld or mounted for stable observation.

• Driepoot montage: The device features a standard tripod mounting thread on its base, allowing it to be attached to a tabletop tripod (included) or any compatible full-size tripod for extended, stable viewing en opname.
• Helmbevestiging: The NVD can also be mounted on a helmet for hands-free operation (helmet mount not included).

Onderhoud en versorging

• Skoonmaak: Use the provided cleaning wipe to gently clean the lenses and external surfaces. Avoid abrasive materials or harsh chemicals.
• Berging: When not in use, store the binoculars in the carrying pouch in a cool, dry place, away from direct sunlight and extreme temperatures.
• Batterysorg: Verwyder die battery as die toestel vir 'n lang tydperk nie gebruik gaan word nie.
• Duursaamheid: The device features a lightweight and durable ABS plastic body with a polymer coating for increased damage resistance and a reliable grip.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

Levenhuk provides a lifetime warranty for all elements of this device, reflecting its commitment to high quality and standards. For warranty claims or technical support, please refer to the warranty card included in your package or visit the official Levenhuk webwebwerf.
