Inleiding
The LiNKFOR 1000Mbps RJ45 Gigabit Ethernet Splitter is designed to expand your network connectivity, allowing a single Ethernet input to be shared by two devices simultaneously. This device supports high-speed data transfer up to 1000Mbps, ensuring stable and fast network performance for your connected devices. It is compatible with various Ethernet cable categories from Cat 5e to Cat 8 and requires external USB power for optimal operation.
This splitter is ideal for connecting multiple devices such as routers, computers, laptops, network switches, and smart TVs to a single Ethernet line without significant signal interference.
Image: The LiNKFOR Ethernet Splitter in use, demonstrating its support for 1000 Mbps network speed and USB power.
Image: A technical diagram showcasing the broad compatibility of the splitter with different Ethernet cable categories and devices.
Pakketinhoud
Verifieer asseblief dat alle items in u pakket teenwoordig is:
- 1x RJ45 Ethernet Splitter
- 1x USB Type-C Power Cable
- 1x Gebruikershandleiding
Image: The LiNKFOR Ethernet Splitter, a USB Type-C power cable, and the user manual are shown, illustrating the complete package contents.
Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | LiNKFOR |
| Modelnommer | 1X2 |
| Aantal poorte | 2 |
| Kleur | Swart |
| Behuisingsmateriaal | Aluminium |
| Produkafmetings (L x B x H) | 5L x 5.8W x 2.2H cm |
| Item gewig | 60 gram |
| Voltage | 5 Volt (DC) |
| Huidige gradering | 210 mA |
| Tipe koppelvlak | RJ45 |
| Data-oordragtempo | 1000 Megabits per second (Mbps) |
| Boonste temperatuurgradering | 60 grade Celsius |
| Versoenbare toestelle | Desktop, Network Switch, Computer, Laptop, Router, Television |
| Versoenbare kabels | Cat 5e, Cat 6, Cat 7, Cat 8 Ethernet Cables |
Image: A visual representation of the product's technical specifications and included items, highlighting key features.
Opstelling en installasie
The LiNKFOR Ethernet Splitter is designed for plug-and-play operation, requiring no driver installation. Follow these steps for proper setup:
- Koppel krag: Connect the provided USB Type-C power cable to the splitter's USB 5V port and plug the other end into a 5V/1A USB power source (e.g., a computer USB port, a USB wall adapter). This external power is essential for stable operation and full Gigabit speed.
- Verbind invoer: Connect your main Ethernet cable (from your router, modem, or network switch) to the "LAN IN" port on the splitter.
- Connect Outputs: Connect two separate Ethernet cables from the splitter's two output ports to your desired devices (e.g., two computers, a computer and a smart TV).
- Verifieer verbinding: Check the LED indicators on the splitter. When operating at 1000Mbps, all LEDs should be illuminated. If operating at 100Mbps, the yellow LED will not be lit.

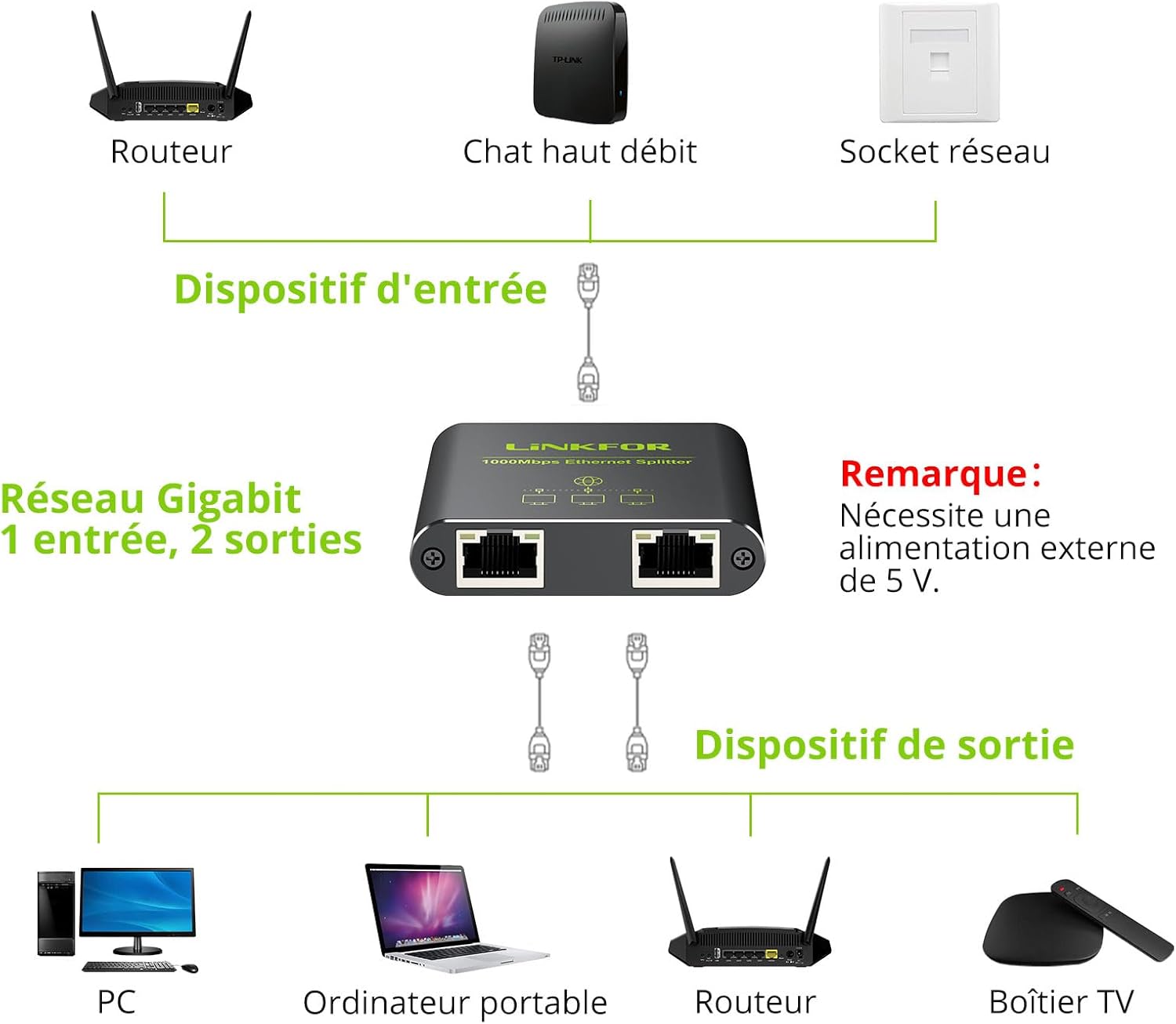

Image: A clear diagram illustrating the connection process for the Ethernet splitter, showing one input from a router and two outputs to devices like a PC and a laptop.
Image: A simplified network setup diagram emphasizing the plug-and-play nature of the Ethernet splitter, showing easy connection steps.
Beeld: 'n Gedetailleerde view of the splitter's ports, including the USB 5V power input and the LAN IN port, along with LED indicators for connection status.
Bedryfsinstruksies
Once properly connected and powered, the LiNKFOR Ethernet Splitter will automatically distribute the network signal from the single input to the two connected output devices. Both output devices can access the network simultaneously.
- Gelyktydige gebruik: The splitter allows two devices to share a single Ethernet cable connection at the same time.
- Gigabit-spoed: The device supports a maximum data transfer rate of 1000Mbps (1 Gigabit per second), provided your network infrastructure (router, cables, and connected devices) also supports these speeds.
- Stabiele transmissie: The splitter is designed to ensure that the transmission signals to the two output devices do not interfere with each other, maintaining stable network performance.
Image: Two laptops are shown connected to the splitter, actively using the network simultaneously, highlighting the device's capability.
Image: A graphic representation of Gigabit Ethernet speed, indicating the splitter's ability to handle high data transfer rates.
Video: This video demonstrates the LiNKFOR Ethernet Splitter in action, showing its package contents, how to connect it, and its ability to provide simultaneous network access to multiple devices at Gigabit speeds without interference.
Onderhoud
To ensure the longevity and optimal performance of your LiNKFOR Ethernet Splitter, follow these maintenance guidelines:
- Skoonmaak: Gebruik 'n sagte, droë lap om die toestel skoon te maak. Vermy die gebruik van vloeibare skoonmaakmiddels of aërosols.
- Omgewing: Keep the splitter in a cool, dry place, away from direct sunlight, heat sources, and excessive moisture.
- Kabelbestuur: Ensure all connected cables are not bent sharply or under strain, which can damage the cables or ports.
- Kragtoevoer: Always use a stable 5V/1A USB power source. Unstable power can affect performance or damage the device.
Probleemoplossing
If you encounter issues with your Ethernet splitter, refer to the following common troubleshooting steps:
- Geen netwerkverbinding:
- Ensure the USB power cable is securely connected to a 5V/1A power source and the splitter. The splitter requires external power to function.
- Check all Ethernet cables for secure connections at both ends (splitter, router/modem, and end devices).
- Verify that the main Ethernet cable connected to the "LAN IN" port is active and providing a network signal.
- Try using different Ethernet cables to rule out faulty cables.
- Restart your router/modem and the connected devices.
- Stadige netwerkspoed:
- Confirm that the USB power cable is connected. Without sufficient power, the splitter may operate at reduced speeds (e.g., 100Mbps instead of 1000Mbps).
- Check the LED indicators on the splitter. If the yellow LED is not lit, it indicates a 100Mbps connection. Ensure your main Ethernet cable and connected devices support Gigabit speeds.
- Ensure you are using Cat 5e or higher rated Ethernet cables for Gigabit speeds.
- Test your network speed directly from your router/modem to one device to determine if the issue is with the splitter or your overall network.
- Intermitterende verbinding:
- Kyk vir los kabelverbindings.
- Maak seker dat die kragtoevoer stabiel is.
- Avoid placing the splitter near strong electromagnetic interference sources.
Waarborg en Ondersteuning
LiNKFOR products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official LiNKFOR website. Please have your product model number (1X2) and ASIN (B0CTHJCDQP) ready when contacting support.
Onderdele Beskikbaarheid: Information regarding spare parts availability is not provided.
Sagteware-opdaterings: Information regarding guaranteed software updates is not provided.
