GeckoMan Electric Fly Swatter Racket User Manual

Inleiding

Thank you for choosing the GeckoMan 2-Pack Rotating Head Rechargeable Electric Fly Swatter Racket. This manual provides essential information for the safe and effective use of your new bug zapper. Please read it thoroughly before operation and retain it for future reference.

The GeckoMan Electric Fly Swatter Racket, shown in both its compact handheld form and with the telescopic extension for reaching higher areas. A USB-C charging cable is also visible.

Veiligheidsinligting

• WAARSKUWING: Keep out of reach of children. This device generates high voltage.
• Do not touch the inner metal mesh when the device is active or charging.
• Moet nie naby vlambare gasse of vloeistowwe gebruik nie.
• Do not wash the device with water or immerse it in water. Clean with a dry cloth.
• Avoid using the device in rain or wet conditions.
• Do not insert metal objects into the mesh.
• Maak seker dat die toestel volledig gelaai is voor die eerste gebruik vir optimale werkverrigting.

Pakketinhoud

Your GeckoMan Electric Fly Swatter Racket package includes:

• 2 x Electric Fly Swatter Rackets
• 2 x Telescopic Extension Wands
• 2 x USB Tipe-C-laaikabels
• 2 x muurbevestigingshakies
• 2 x Charging Bases (for standing mode)

'n verbyview of the GeckoMan Electric Fly Swatter Racket and its included accessories, such as the telescopic wand, charging cable, wall mount, and charging base.

Produk Kenmerke

• Patented Rotating Head Design: Allows for easy bug catching from various angles and surfaces, including walls and ceilings. The head can also be locked for traditional racket-style swinging.
• Extendable Telescopic Wand: Extends from 17 to 28 inches (43 to 70 cm) for reaching high or distant areas.
• Herlaaibare doeltreffendheid: Equipped with a robust 1200mAh rechargeable Lithium-ion battery, conveniently rechargeable via a USB Type-C port. Features an overcharge protection chip.
• Powerful Insect Elimination: Delivers a 3500V electric shock to swiftly eliminate flying insects such as flies, fruit flies, mosquitoes, gnats, wasps, spiders, hornets, and moths.
• 3-Layer Wire Mesh Design: Ensures safety by preventing accidental shocks, even if the outer mesh is touched.
• Veelsydige gebruik: Can be used handheld, stood upright on its charging base to attract insects, or mounted on the wall for storage or as an indoor bug zapper.

Opstelling

1. Laai die toestel

1. Before first use, fully charge the electric fly swatter.
2. Connect the provided USB Type-C charging cable to the charging port on the handle of the swatter.
3. Steek die ander kant van die USB-kabel in 'n versoenbare USB-kragadapter (nie ingesluit nie) of 'n rekenaar se USB-poort.
4. Die laai-aanwyserliggie sal tydens laai brand en afskakel wanneer dit volledig gelaai is.

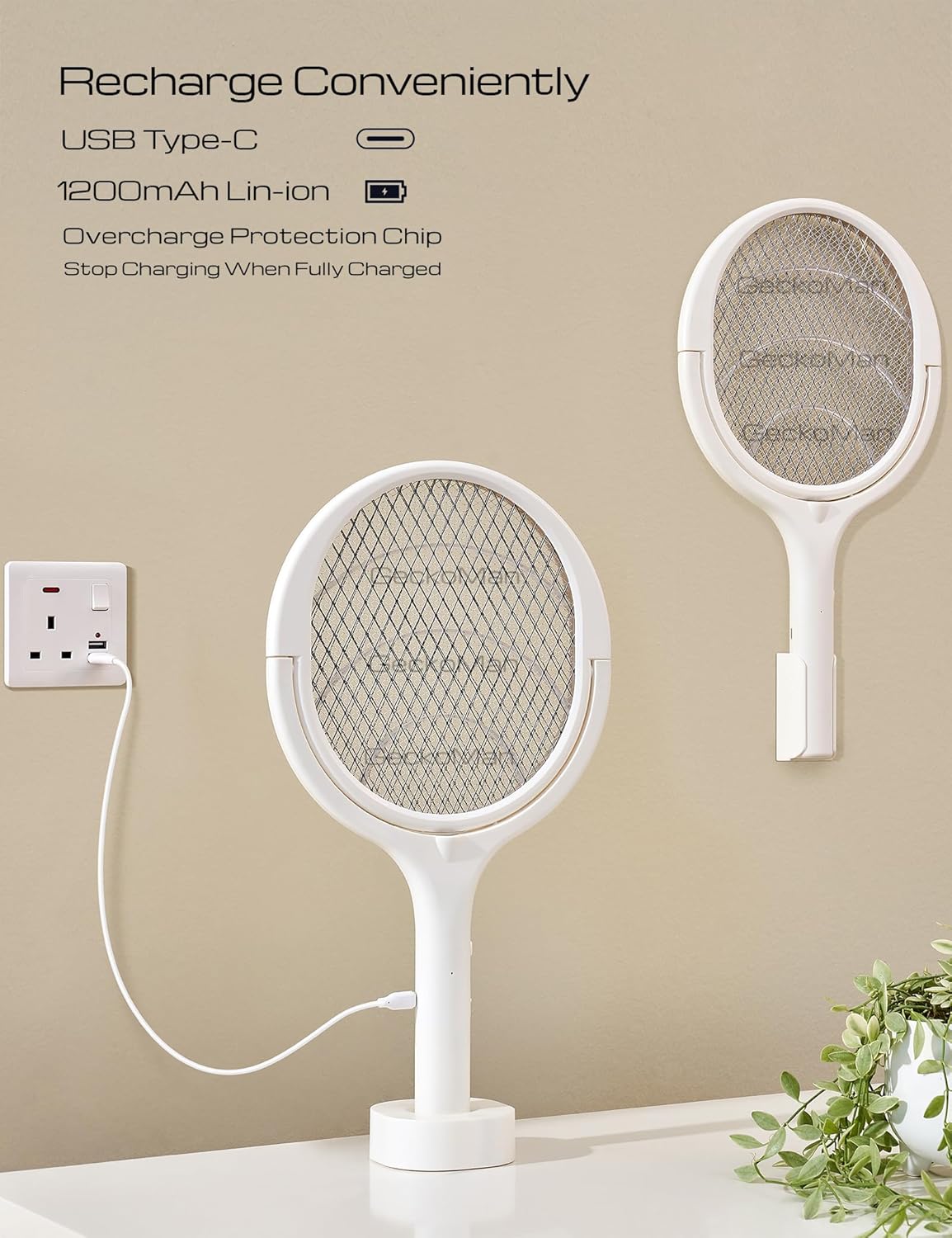

The electric fly swatter connected to a USB-C cable for convenient recharging. It can be charged while standing on its base.

2. Attaching the Telescopic Extension Wand

1. Locate the telescopic extension wand.
2. Align the end of the swatter's handle with the opening on the extension wand.
3. Gently push and twist until the swatter is securely attached to the wand.
4. To extend the wand, twist the sections counter-clockwise to unlock, pull to desired length, then twist clockwise to lock.

A user demonstrating how to attach the telescopic extension wand to the electric fly swatter, allowing for extended reach.

Bedryfsinstruksies

1. Handheld Mode

• Ensure the swatter is charged.
• Press and hold the power button on the handle. The indicator light will turn on, signifying the mesh is electrified.
• Swing the racket towards the insect to make contact with the electrified mesh. A "zap" sound indicates successful elimination.
• Release the power button after use.

A user demonstrating the traditional racket-like swing motion with the electric fly swatter, ideal for catching flying insects.

2. Rotating Head Function

• The swatter head can rotate up to 90 degrees.
• To rotate, gently push the head to the desired angle. It will click into place.
• This feature is ideal for reaching bugs on flat surfaces like walls, ceilings, or floors without awkward wrist movements.

A user utilizing the rotating head feature of the electric fly swatter to effectively capture insects on a wall surface.

A visual representation demonstrating the 90-degree rotation capability of the fly swatter head, highlighting its flexibility for various angles.

3. Standing Mode (Indoor Bug Zapper)

• Place the swatter into its charging base.
• Ensure the device is plugged in for continuous power.
• The swatter will emit a purple UV light, attracting insects to the electrified mesh.
• This mode is effective for passive bug elimination in indoor spaces.

4. Wall Mount Mode

• Attach the wall mount bracket to a suitable wall using appropriate fasteners (not included).
• Hang the electric fly swatter on the bracket for convenient storage or to use it as a wall-mounted bug zapper.
• Ensure the device is plugged in for continuous power if using as a zapper.

Onderhoud

• Skoonmaak: After use, ensure the device is turned off and unplugged. Use a dry brush or cloth to gently remove any insect debris from the mesh. Do not use water or cleaning solutions.
• Berging: Store the electric fly swatter in a cool, dry place away from direct sunlight and moisture.
• Batterysorg: Om die batterylewe te verleng, vermy om die battery gereeld heeltemal te leeg te maak. Laai die toestel gereeld, selfs al word dit nie voortdurend gebruik nie.

Probleemoplossing

Spesifikasies

• Handelsmerk: Gekman
• Modelnommer: BUGZILLA2201
• Kleur: Wit
• Styl: 2-Pack + 2 Extensions
• Produk afmetings: 9.5"L x 1.2"W x 17.5"H (Racket only)
• Verlengde lengte: Tot 28 duim (70 cm)
• Item gewig: 1.22 Kilograms (2.68 pounds) per pack
• Aantal stukke: 2 (Rackets)
• Aanbevole gebruike: Bug Zapping (Flies, Mosquitoes, Gnats, Fruit Flies, Wasps, Spiders, Hornets, Moths)
• Electric Shock Voltage: 3500 V
• Battery: 1200mAh Litiumioon (ingesluit)
• Laaipoort: USB Tipe-C
• UPC: 767461255300

Waarborg en Ondersteuning

GeckoMan products are designed for quality and reliability. For any questions, concerns, or warranty claims, please contact GeckoMan customer support. Refer to the product packaging or the official GeckoMan webwebwerf vir die mees onlangse kontakinligting.

Webwebwerf: GeckoMan Amazon Store

E-pos: support@geckoman.net
