1. Inleiding
Thank you for choosing the Brilliant Palmero Ceiling Fan with RGB Function. This product combines efficient LED lighting with a powerful fan to provide both illumination and comfortable air circulation. Designed for indoor use, it features remote control operation for convenience and an RGB function for customizable ambiance. Please read this manual thoroughly before installation and operation to ensure safe and correct use.
Image 1: The Brilliant Palmero Ceiling Fan offers dual functionality, combining cooling and lighting. It is energy-efficient, improves air circulation, provides comfort, saves space, and can be used year-round.
2. Sleutel kenmerke
The Brilliant Palmero Ceiling Fan is equipped with several features designed for comfort and convenience:
- Integrated 40W LED: Energy-efficient and cost-effective ceiling lamp.
- Ventilator Function: Provides pleasant air circulation.
- Afstandbeheer ingesluit: Allows for easy adjustment of light intensity, light color, and fan speed from a distance.
- RGB-funksie: Offers dynamic color lighting options for various moods.
- Dimbare beligting: Adjust brightness and color temperature from warm white to cool white.
- Omkeerbare waaierblaaie: Supports both summer (cooling) and winter (heat circulation) modes.
Beeld 2: verbyview of key features: integrated LED, fan, and remote control for ease of use.
3. Veiligheidsinstruksies
Volg altyd basiese veiligheidsmaatreëls wanneer u elektriese toestelle installeer en gebruik om die risiko van brand, elektriese skok en persoonlike besering te verminder.
- Professionele installasie: Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met alle plaaslike en nasionale elektriese kodes.
- Kragontkoppeling: Ensure the power supply is disconnected at the main circuit breaker before installation, maintenance, or cleaning.
- Veilige montering: The ceiling fan must be securely mounted to a structural ceiling joist or a suitable support system capable of holding the fan's weight.
- Lemspeling: Maak seker dat daar voldoende speling tussen die waaierlemme en enige hindernisse (mure, meubels) is om beserings of skade te voorkom.
- Waterblootstelling: This product is designed for indoor use only and is not water-resistant. Do not expose to water or high humidity.
- Kinders en Troeteldiere: Hou kinders en troeteldiere weg van die waaier tydens werking en installasie.
- Afstandbeheer: Keep the remote control away from moisture and extreme temperatures.
4. Pakketinhoud
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact your retailer.
- Brilliant Palmero Ceiling Fan Unit
- Afstandbeheer
- E27 Tuya Light Bulb
- Monteer hardeware (skroewe, ankers, ens.)
- Gebruikershandleiding (hierdie dokument)
5. Opstelling en installering
Belangrik: Installation should only be carried out by a qualified electrician. Ensure the main power supply is switched off before beginning installation. The fan unit is largely pre-assembled, but professional installation to the ceiling and electrical wiring is required.
- Berei die monteerplek voor:
Identify a suitable location on the ceiling that can support the fan's weight (approximately 1.87 kg) and allows for proper blade clearance. Ensure there is an existing electrical junction box or prepare one according to local codes.
- Monteer die beugel:
Attach the mounting bracket securely to the ceiling joist or support structure using the provided hardware. Ensure it is firmly fixed and stable.
- Bedrading verbindings:
Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate installation guide (if applicable) or by a qualified electrician. Pay close attention to live, neutral, and ground connections. Ensure all connections are secure and insulated.
- Heg die waaiereenheid aan:
Carefully lift the fan unit and attach it to the mounting bracket. Secure it with the screws or locking mechanism as per the specific design. Ensure the fan is stable and does not wobble.
- Installeer die gloeilamp:
Insert the provided E27 Tuya light bulb into the lamp fitting. Ensure it is screwed in firmly but do not overtighten.
- Finale tjeks:
Double-check all connections and ensure no wires are pinched. Restore power at the main circuit breaker.
Image 3: Product dimensions and weight for installation planning.
6. Bedryfsinstruksies
The Brilliant Palmero Ceiling Fan is operated primarily via the included remote control. The E27 Tuya bulb also allows for smart control via a compatible app (refer to Tuya bulb instructions for app setup).
6.1 Afstandbeheerfunksies
Image 4: The remote control provides convenient operation of both lighting and fan functions.
- Krag aan/af: Druk die aan/af-knoppie om die waaier en lig aan of af te skakel.
- Waaierspoedbeheer: Use the fan speed buttons to adjust the airflow (typically multiple speed settings).
- Lig aan/af: Separate button for controlling the light independently.
- Light Brightness (Dimming): Adjust the light intensity using the dimming buttons.
- Ligte kleurtemperatuur: Change the light color from warm white to cool white.
- RGB-funksie: Activate and cycle through various RGB colors or modes.
- Timer funksie: Set a timer for the fan or light to turn off automatically (if available on remote).
Image 5: Detail of the fan blades and dynamic RGB lighting.
6.2 Seasonal Operation (Summer/Winter Mode)
The fan features a reversible motor function to optimize air circulation for different seasons. This function is typically controlled via a switch on the fan body or the remote control (refer to specific remote instructions).
- Somermodus (Teen die kloksgewyse rotasie): Skep 'n afwaartse lugvloei, wat 'n verkoelingseffek veroorsaak.
- Wintermodus (Kloksgewyse rotasie): Creates an upward airflow, circulating warm air near the ceiling throughout the room.
Image 6: Enjoy a gentle breeze on warm days or ensure optimal air circulation in the room, all from your favorite spot.
6.3 Dimmable Lighting
The integrated LED lighting is dimmable and allows for adjustment of color temperature to suit your preference and mood.

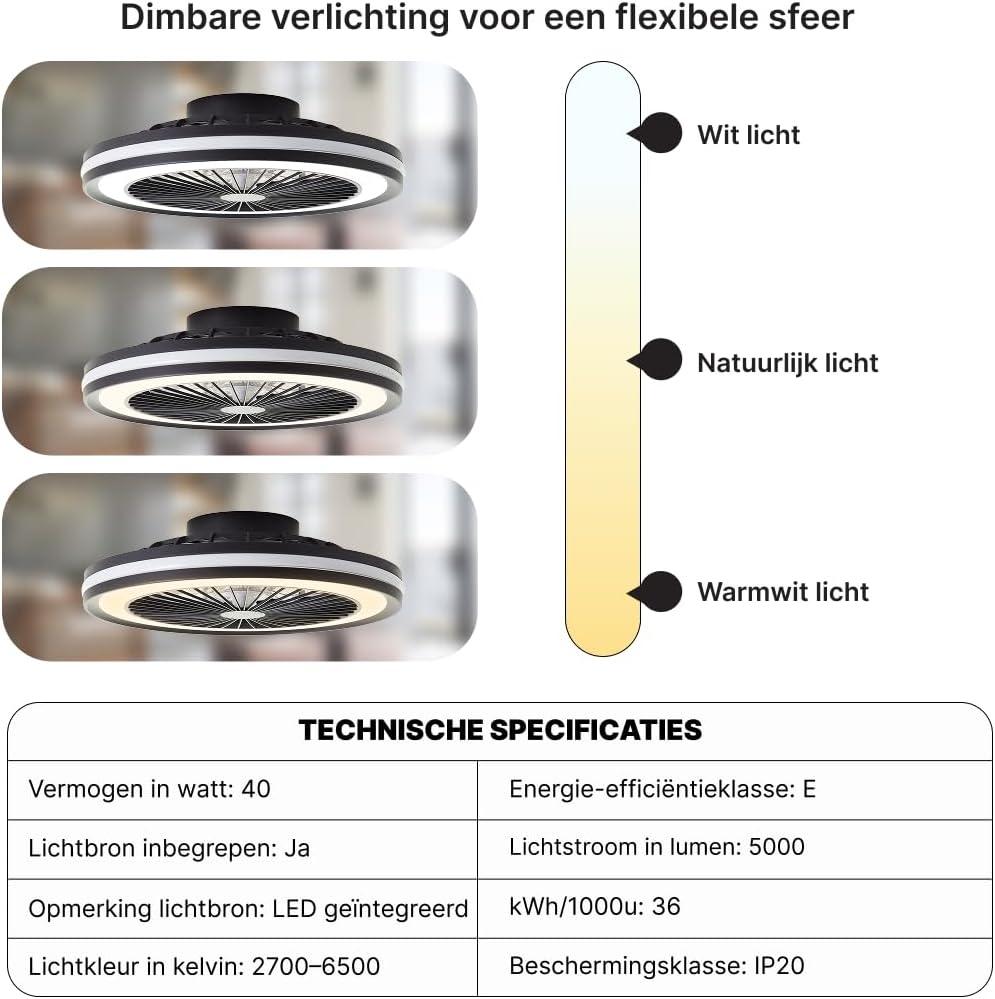

Image 7: Dimmable lighting for a flexible atmosphere, offering white, natural, and warm white light options.
7. Onderhoud
Regular maintenance ensures the longevity and optimal performance of your ceiling fan. Always disconnect power before performing any maintenance.
- Skoonmaak:
Wipe the fan blades and housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish. Ensure the fan is completely dry before restoring power.
- Gloeilamp vervanging:
If the E27 Tuya bulb needs replacement, ensure the power is off. Unscrew the old bulb and replace it with a new E27 LED bulb of compatible wattage (max 40W). Refer to the Tuya bulb's specific instructions for smart functionality setup if replacing with a new smart bulb.
- Draai bevestigingsmiddels vas:
Periodically check all screws and fasteners on the mounting bracket and fan housing to ensure they are secure. Tighten if necessary.
8. Probleemoplossing
If you encounter issues with your Brilliant Palmero Ceiling Fan, refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Waaier begin nie | Geen kragtoevoer nie; Los bedrading; Afstandbeheerder se battery is pap. | Kontroleer stroombreker; Verifieer bedradingsverbindings (raadpleeg elektrisiën); Vervang afstandbeheerbatterye. |
| Lig gaan nie aan nie | Bulb loose or faulty; No power supply; Remote control issue. | Check bulb connection or replace bulb; Check circuit breaker; Replace remote control batteries. |
| Fan wiebel | Los monteerskroewe; Ongebalanseerde lemme. | Tighten all mounting screws; Ensure blades are securely attached and balanced (balancing kit may be needed). |
| Afstandbeheer werk nie | Dooie batterye; Obstruksie; Afstandbeheer nie gekoppel nie. | Replace batteries; Remove obstructions between remote and fan; Re-pair remote if necessary (refer to remote instructions). |
Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.
9. Spesifikasies
The following table details the technical specifications of the Brilliant Palmero Ceiling Fan (Model G96460/75).
| Kenmerk | Detail |
|---|---|
| Modelnommer | G96460/75 |
| Handelsmerk | Briljant |
| Produkafmetings (L x B x H) | 13L x 46B x 13H cm |
| Gewig | 1.875 kg |
| Materiaal | Metaal |
| Kleur | Multi-colored (Warm White to Cool White) |
| Styl | Modern/Design |
| Soort kamer | Bathroom (Note: Product is not water-resistant, suitable for dry indoor environments) |
| Binne/buiteluggebruik | Binneshuise |
| Kragbron | Elektries met koord |
| Spesiale kenmerke | Remote control, Incl. E27 Tuya lamp, Energy-saving LED, Multifunctional (light + fan), RGB-function |
| Beheer metode | Afstandbeheer |
| Ligbron | Geïntegreerde LED |
| Aantal ligbronne | 1 |
| Ligte kleurtemperatuur | 2700-6500 Kelvin (Warm White to Cool White) |
| Wattage | 40 watt |
| Lamp Gepas | E27 (for included Tuya bulb) |
| Skakel Tipe | Touch (via remote) |
| Waterweerstandvlak | Nie waterbestand nie |
| Verbindingsprotokol | Wifi (for Tuya bulb) |
| Ligvloed | 5000 Lumen |
| Energiedoeltreffendheidklas | E |
| Energieverbruik | 36 kWh/1000h |
| Beskermingsklas | IP20 |
| Montage tipe | Ceiling mounting, Recessed mounting |
| Vergadering benodig | No (unit is pre-assembled, but installation is required) |
Note: Some specifications may vary slightly. Refer to the product packaging for the most accurate information.
10. Waarborg en Ondersteuning
Waarborg: The manufacturer provides a 1-year availability duration for spare parts within the EU. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact your retailer.
Kliëntediens: If you have any questions, require technical assistance, or need to report a problem that cannot be resolved using the troubleshooting guide, please contact the retailer or the manufacturer's customer service department. Keep your purchase receipt and model number (G96460/75) handy when contacting support.
