Yadea R-Max 2-in-1 Carpet and Steam Cleaner User Manual

1. Inleiding

Dankie vir die aankoopasing the Yadea R-Max 2-in-1 Carpet and Steam Cleaner. This innovative appliance combines the functions of a carpet cleaner and a steam cleaner, offering a versatile solution for deep cleaning various surfaces in your home and vehicle. Please read this manual thoroughly before use to ensure safe and effective operation and to maximize the lifespan of your product.

2. Veiligheidsinstruksies

• Always ensure the appliance is unplugged before cleaning, maintenance, or when not in use.
• Moenie die toestel in water of ander vloeistowwe dompel nie.
• Hou die toestel buite bereik van kinders en troeteldiere.
• Use only clean water in the clean water tank. Do not add cleaning solutions or chemicals unless specifically designed for this appliance and approved by Yadea.
• Exercise caution when using the steam function, as steam is hot and can cause burns. Keep hands and face away from the steam nozzle.
• Do not store the appliance in direct sunlight.
• Ensure the hose is free of debris and securely attached before operation.
• Always clean the tanks after each use and allow them to dry thoroughly to prevent mold and odors.

3. Produk verbyview

The Yadea R-Max is designed for efficient cleaning with its dual functionality. Key components include:

• Main Unit: Houses the motor, heating system, and water tanks.
• Clean Water Tank (1300ml): For fresh water supply.
• Dirty Water Tank (1800ml): Collects extracted dirty water.
• Hose: Connects the main unit to the cleaning attachments.
• Brush Head: Used for carpet and upholstery cleaning, featuring powerful suction.
• Brush Head Cover: A dedicated cloth cover for the brush head, used for wiping surfaces.
• Steam Nozzle: For targeted steam cleaning of hard-to-reach areas and stubborn grime.
• Control Panel: For selecting temperature modes and activating functions.

Image: Yadea R-Max cleaner with its main components and accessories.

4. Opstelling

1. Pak uit: Verwyder alle komponente versigtig uit die verpakking.
2. Vul skoonwatertenk: Open the clean water tank and fill it with clean water. Do not exceed the maximum fill line.
3. Attach Hose and Nozzle: Securely attach the hose to the main unit and then attach the desired cleaning nozzle (brush head or steam nozzle) to the other end of the hose.
4. Kragverbinding: Steek die kragkabel in 'n standaard 100V-elektriese uitlaat.

Image: The Yadea R-Max showing the clean water tank (1300ml) and dirty water tank (1800ml).

5. Bedryfsinstruksies

5.1 Power On and Heating

1. Druk die kragknoppie om die toestel aan te skakel.
2. Select your desired temperature mode: 100℃ steam, 60℃ hot water, or room temperature water. The appliance features a rapid heating system, reaching operating temperature in approximately 20-30 seconds.
3. The indicator light on the control panel will show the heating status.

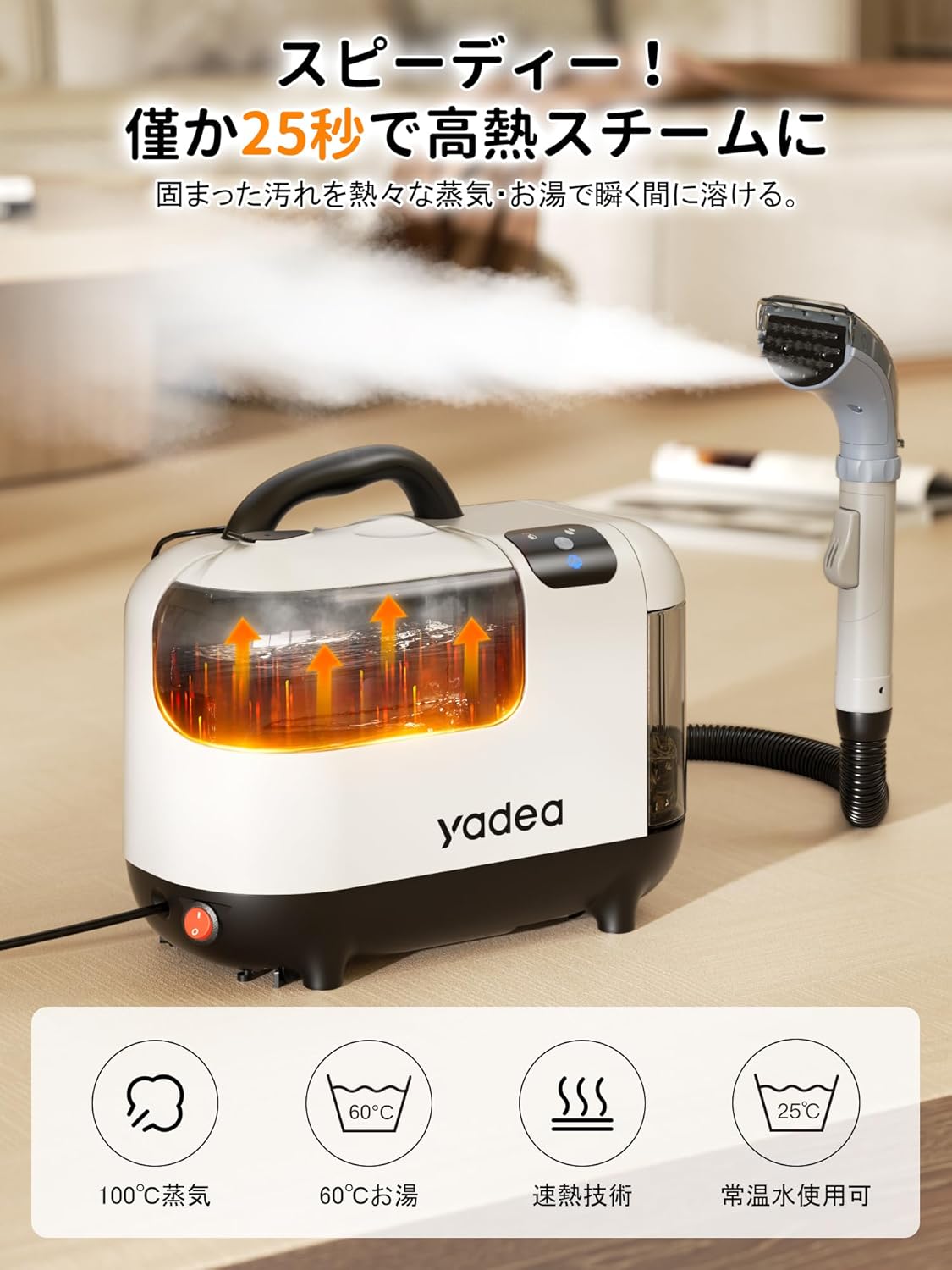

Image: The Yadea R-Max demonstrating its rapid heating capability to produce steam.

5.2 Carpet and Upholstery Cleaning (Stain Removal)

This mode is ideal for removing stains from carpets, sofas, car seats, mattresses, and other fabric products.

1. Attach the brush head to the hose.
2. Select either 100℃ steam or 60℃ hot water mode.
3. Direct the brush head over the stained area. Pull the spray lever to spray steam or hot water onto the stain, which helps lift the dirt.
4. Move the brush head slowly over the area, allowing the powerful 12000Pa suction to extract the water and lifted dirt into the dirty water tank.
5. Repeat as necessary until the stain is removed.

Image: The brush head actively removing a stain from a carpet using the suction function.

5.3 Steam Cleaning (Hard Surfaces and Gaps)

Use this mode for stubborn dirt on tiles, kitchen surfaces, bathroom fixtures, window frames, and other hard-to-reach areas.

1. Attach the steam nozzle to the hose. For wiping surfaces, you can also attach the brush head with its dedicated cloth cover.
2. Select the 100℃ steam mode.
3. Direct the steam nozzle at the target area. Pull the spray lever to release a powerful jet of steam or water.
4. For surfaces like kitchen counters or walls, use the brush head with the cloth cover to wipe away loosened dirt.
5. For narrow gaps or crevices, the concentrated steam jet from the steam nozzle can dislodge dirt effectively.

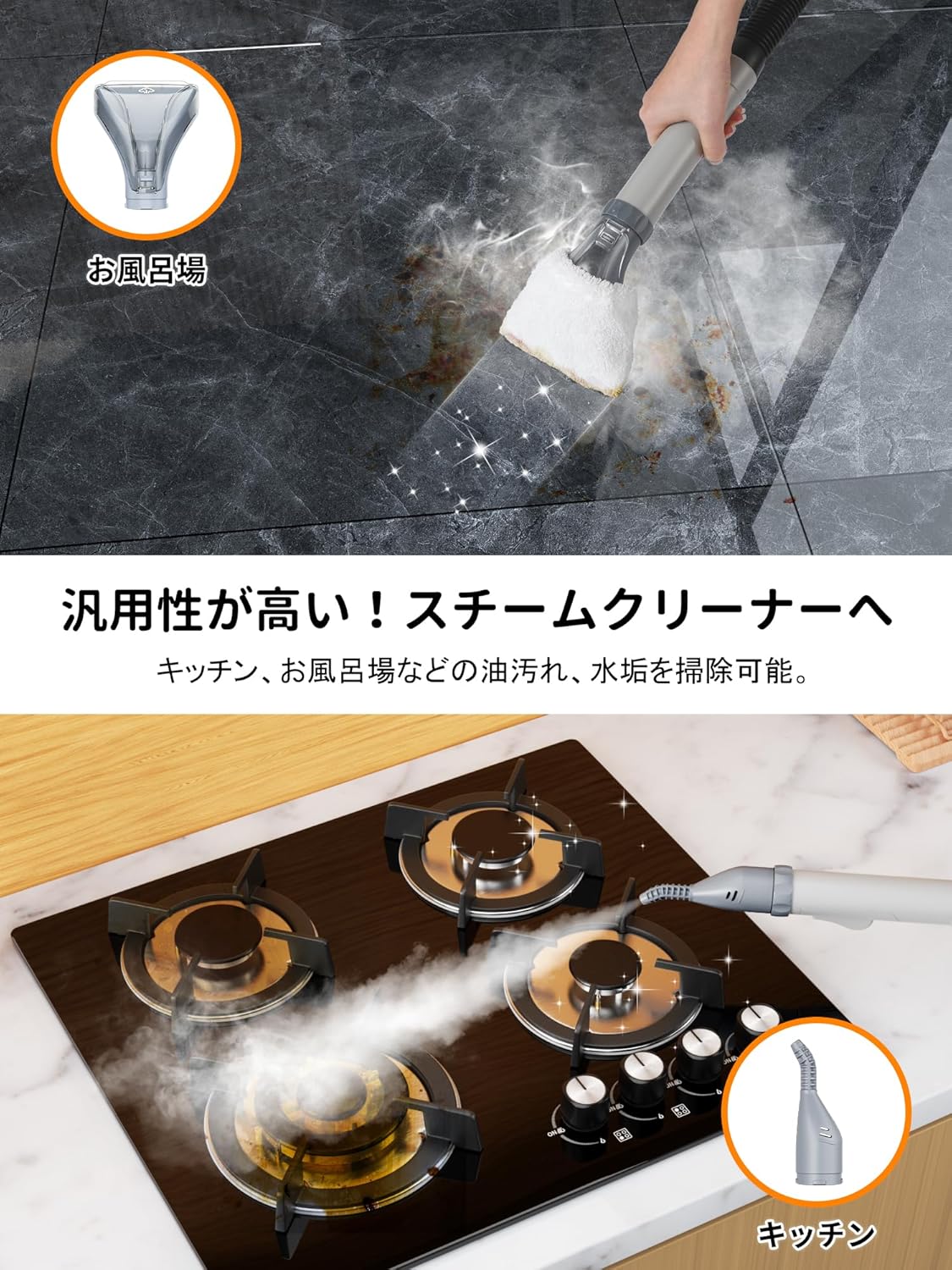

Image: The steam nozzle being used to clean a kitchen stove, demonstrating its effectiveness on oil stains.

6. Onderhoud

Regular maintenance ensures optimal performance and longevity of your Yadea R-Max cleaner.

1. Maak vuilwatertenk leeg en maak dit skoon: After each use, empty the dirty water tank and rinse it thoroughly with clean water. Allow it to air dry completely before reattaching.
2. Spoel skoon watertenk af: Periodically rinse the clean water tank to prevent mineral buildup.
3. Clean Nozzles and Hoses: Remove any debris or residue from the brush head, steam nozzle, and hose. For the brush head, open the transparent cover for washing.
4. Stoor behoorlik: Store the appliance in a cool, dry place, away from direct sunlight. Ensure all tanks are empty and dry before storage.

7. Probleemoplossing

8. Spesifikasies

• Handelsmerk: Yadea
• Model Naam: R-Max
• Kragverbruik: 1200 W
• Voltage: 100 V
• Maksimum temperatuur: 100°C (Steam)
• Verhittingstyd: Approximately 20-30 seconds
• Skoonwatertenk kapasiteit: 1300 ml
• Vuilwatertenk kapasiteit: 1800 ml
• Itemafmetings (D x B x H): 36 x 30.4 x 23.7 cm
• Ingesluit komponente: Steam nozzle, brush head, brush head cover
• Aanbevole gebruike: Carpets, sofas, mattresses, fabric products, pet sheets, car interiors, rugs, floor mats, curtains, window frames, tiles, kitchen surfaces, bathroom fixtures.

Image: Detailed specifications of the Yadea R-Max cleaner.

9. Waarborg en Ondersteuning

Your Yadea R-Max cleaner comes with a 12-month warranty from the date of arrival. If the product malfunctions under normal use conditions within this warranty period, it will be repaired or exchanged free of charge. Please retain your proof of purchase for warranty claims. For further support or inquiries, please contact Yadea customer service.
