IVELECT E97A LED Mist Maker Purifier Electric Mini Aroma Diffuser User Manual

Inleiding

Dankie vir die aankoopasing the IVELECT E97A LED Mist Maker Purifier Electric Mini Aroma Diffuser. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

Veiligheidsinstruksies

• Verseker die kragtoevoer voltage voldoen aan die toestel se vereistes.
• Moenie die hoofeenheid in water of enige ander vloeistof dompel nie.
• Place the diffuser on a stable, flat surface away from direct sunlight, heat sources, and electronic devices.
• Hou buite bereik van kinders en troeteldiere.
• Unplug the device before cleaning, refilling, or when not in use for extended periods.
• Moenie die misuitlaat blokkeer nie.
• Use only clean tap water or distilled water. Avoid using corrosive liquids or strong chemicals.
• If the device emits smoke or an unusual smell, immediately unplug it and contact customer support.

Pakketinhoud

Maak asseblief seker dat alle items teenwoordig en in 'n goeie toestand is wanneer u dit uitpak:

• IVELECT E97A LED Mist Maker Purifier Electric Mini Aroma Diffuser Main Unit
• USB-kragkabel
• Gebruikershandleiding (hierdie dokument)

Produk verbyview

Familiarize yourself with the components and controls of your aroma diffuser.

Figuur 1: The IVELECT E97A LED Mist Maker Purifier Electric Mini Aroma Diffuser fully assembled, showcasing its compact and spherical design.

Figuur 2: Diffuser with top cover removed, revealing the internal mist-making component and water reservoir area. This view helps in understanding how to fill water and clean the unit.

Figuur 3: Top view of the diffuser, highlighting the 'ON/OFF' button for mist function and the 'LED' button for controlling the light. The mist outlet is also visible.

Komponente:

• Mis uitlaat: Where the mist is released.
• Boonste deksel: Removable cover for accessing the water tank.
• Watertenk: Reservoir for water and essential oils.
• Mist Maker Component: Ultrasonic plate that generates mist.
• Basis Eenheid: Contains electronics and control buttons.
• USB-kragpoort: Om die kragkabel aan te sluit.

Kontroles:

• AAN/UIT-knoppie: Press to turn the mist function on or off.
• LED-knoppie: Press to cycle through LED light modes (e.g., color changing, fixed color, off).

Opstelling

1. Place the diffuser on a firm, flat, and waterproof surface.
2. Remove the top cover of the diffuser.
3. Fill the water tank with clean tap water or distilled water up to the maximum fill line. Do not overfill.
4. If desired, add 2-3 drops of essential oil directly into the water tank. Do not add more than recommended.
5. Plaas die boonste deksel veilig terug.
6. Connect the USB power cable to the diffuser's power port and then to a suitable USB power adapter (not included) or a USB port.

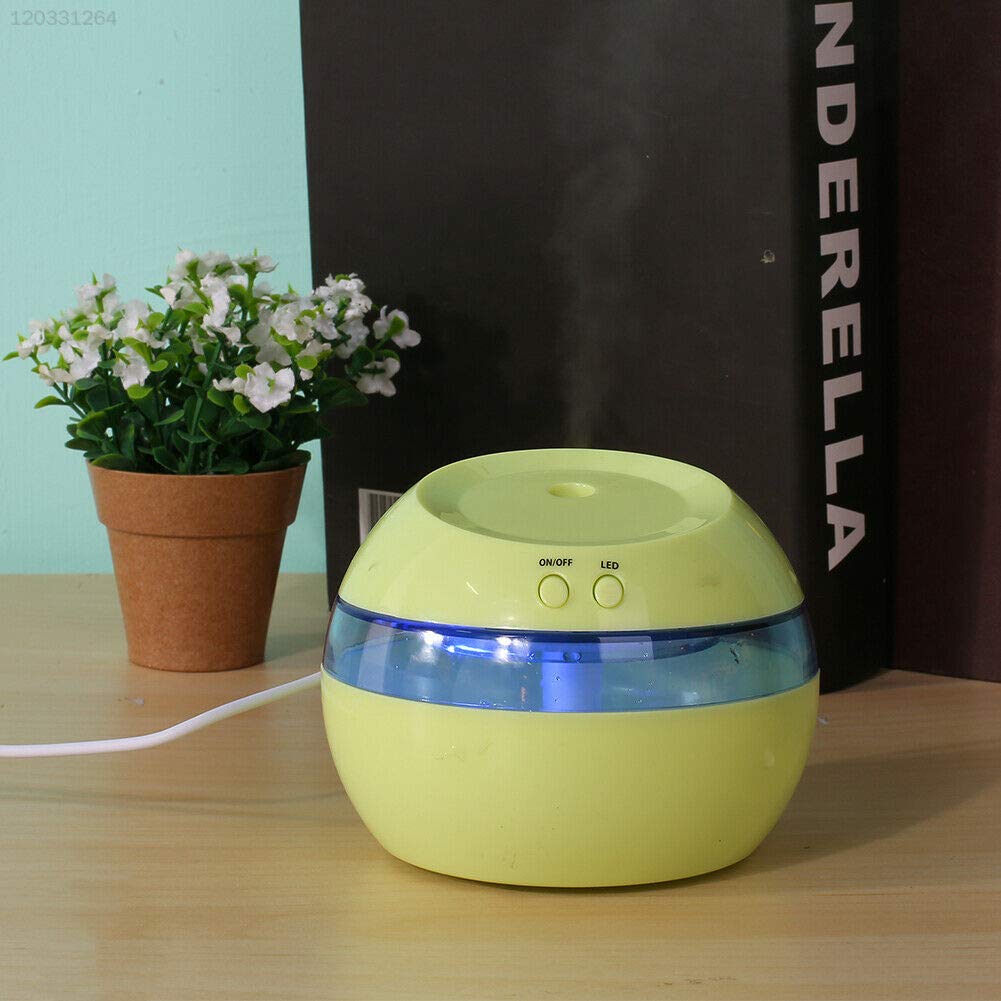

Figuur 4: The diffuser set up in an environment, demonstrating its compact size and placement suitability. Ensure the unit is placed on a stable surface during operation.

Bedryfsinstruksies

1. To Turn On Mist: Press the 'ON/OFF' button once. The diffuser will begin producing mist.
2. To Turn Off Mist: Press the 'ON/OFF' button again.
3. To Control LED Light: Press the 'LED' button. Each press will cycle through different light modes (e.g., color changing, fixed color, off).
4. Outomatiese afskakeling: The diffuser will automatically shut off when the water level is too low.

Onderhoud en Skoonmaak

Gereelde skoonmaak help om optimale prestasie te handhaaf en verleng die lewensduur van jou verspreider.

1. Daaglikse instandhouding: After each use, empty any remaining water from the tank. Wipe the inside of the tank with a clean, soft cloth.
2. Weeklikse skoonmaak:
   • Ontkoppel die verspreider en verwyder die boonste deksel.
   • Pour out any remaining water.
   • Add a small amount of warm water (not hot) and a few drops of neutral detergent to the water tank.
   • Gently wipe the inside of the tank and the mist maker component with a soft cloth or cotton swab. Avoid scratching the ultrasonic plate.
   • Rinse thoroughly with clean water, ensuring no detergent residue remains.
   • Vee die buitekant van die verspreider af met 'n sagte, droë lap.
   • Laat alle dele heeltemal lugdroog word voordat dit weer aanmekaargesit of gestoor word.
3. Belangrik: Do not use harsh chemicals, abrasive cleaners, or sharp objects to clean the diffuser.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

For warranty information or technical support, please refer to the retailer's policy or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: IVELECT
