White Rodgers 1F96U-42WF Sensi Touch 2 Smart Thermostat User Manual

1. Inleiding

This manual provides essential instructions for the installation, operation, and maintenance of your White Rodgers 1F96U-42WF Sensi Touch 2 Smart Thermostat. This smart thermostat offers advanced control over your home's heating and cooling system, featuring a touchscreen interface and Wi-Fi connectivity for remote management via the Sensi app, as well as compatibility with Amazon Alexa and Google Assistant.

2. Veiligheidsinligting

Please read and understand all instructions before installing or operating this thermostat. Failure to follow these instructions could result in property damage, injury, or death. Always turn off power to the heating and cooling system at the circuit breaker or fuse box before beginning installation to prevent electrical shock. Installation should be performed by a qualified technician if you are unsure about any steps.

• Ensure all wiring complies with local electrical codes and ordinances.
• Do not use this thermostat with voltages exceeding 30V AC.
• Hou die termostaat weg van water en oormatige humiditeit.

3. Pakketinhoud

Verifieer dat alle items in jou pakket teenwoordig is:

• White Rodgers 1F96U-42WF Sensi Touch 2 Smart Thermostat
• Montagebeugel
• Installasiegids (hierdie dokument)

4. Opstelling en installering

The Sensi Touch 2 Smart Thermostat is designed for wall mounting and requires a hardwired 24 Volts power source. A common wire (C-wire) is typically required for continuous power and Wi-Fi functionality. Refer to the detailed wiring diagrams in the Sensi app or the full installation guide for specific instructions tailored to your HVAC system.

4.1. Wiring Terminals

The thermostat supports universal system applications with the following terminal designations:

• RC: Power for cooling (24V AC)
• HR: Power for heating (24V AC)
• C: Common wire (required for smart features)
• W / E: Heat/Emergency Heat
• W2: Tweede Stage Verhit
• Y: Eerste Stage Afkoel
• Y2/*: Tweede Stage Cooling/Auxiliary
• O / B: Omkeerklep (hittepomp)
• G: Fan
• ACC+, ACC-: Accessory terminals

Ensure wires are securely connected to the correct terminals. Incorrect wiring can damage the thermostat or your HVAC system.

4.2. Fisiese installasie

1. Skakel af: Turn off power to your HVAC system at the circuit breaker.
2. Verwyder ou termostaat: Carefully remove your old thermostat from the wall. Take a picture of the wiring for reference.
3. Montagebeugel: Install the Sensi mounting bracket to the wall using the provided hardware.
4. Draadverbinding: Connect the wires from your wall to the corresponding terminals on the Sensi thermostat.
5. Heg termostaat aan: Secure the Sensi thermostat onto the mounting bracket.
6. Krag aan: Restore power to your HVAC system.

Figuur 1: Voorkant view of the White Rodgers Sensi Touch 2 Smart Thermostat, showcasing its modern design and LCD touchscreen.

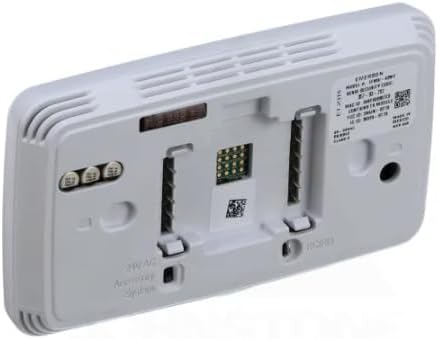

Figuur 2: Agter view of the White Rodgers Sensi Touch 2 Smart Thermostat, illustrating the wiring terminals for HVAC system connection.

4.3. App Setup and Wi-Fi Connection

Download the Sensi app from your mobile device's app store. Follow the in-app instructions to create an account, connect your thermostat to your home Wi-Fi network, and configure your system settings. This step is crucial for enabling smart features, remote control, and integration with voice assistants like Amazon Alexa and Google Assistant.

5. Bedryfsinstruksies

The Sensi Touch 2 Smart Thermostat can be operated directly via its LCD touchscreen or remotely through the Sensi mobile application.

5.1. Raakskerm werking

• Temperatuuraanpassing: Tap the up or down arrows on the screen to change the set temperature.
• Stelselmodus: Select between Heat, Cool, Auto, or Off modes. The "Auto Changeover" feature allows the thermostat to automatically switch between heating and cooling to maintain your desired temperature range.
• Aanhangermodus: Choose between Auto (fan runs only when heating/cooling) or On (fan runs continuously).
• Agterlig: The LCD touchscreen features a backlight for easy viewin verskillende beligtingstoestande.

5.2. Sensi App and Smart Features

The Sensi app provides comprehensive control and scheduling capabilities:

• Afstandbeheer: Adjust settings from anywhere using your smartphone or tablet.
• Skeduleer: Create custom heating and cooling schedules to optimize comfort and energy savings.
• Usage Reports: Monitor your HVAC system's run time and energy consumption.
• Geofencing: Pas die temperatuur outomaties aan volgens jou nabyheid aan die huis.
• Stembeheer: Integrate with Amazon Alexa or Google Assistant for hands-free temperature adjustments.

6. Onderhoud

The Sensi Touch 2 Smart Thermostat requires minimal maintenance to ensure optimal performance.

• Skoonmaak: Vee die raakskerm en buitekant liggies af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
• Lugfilter: Regularly check and replace your HVAC system's air filter as recommended by the filter manufacturer or your HVAC technician. A dirty filter can restrict airflow and reduce system efficiency.
• Sagteware-opdaterings: Ensure your Sensi app is up-to-date to receive the latest features and performance improvements for your thermostat.

7. Probleemoplossing

If you encounter issues with your Sensi Touch 2 Smart Thermostat, refer to the following common troubleshooting steps:

• Geen krag/leë skerm:
  • Check the circuit breaker for your HVAC system and ensure it is ON.
  • Verify that the C-wire is properly connected at both the thermostat and the HVAC system control board.
• Wi-Fi-ontkoppeling:
  • Ensure your home Wi-Fi network is operational.
  • Herbegin jou Wi-Fi-router.
  • Re-establish the Wi-Fi connection through the Sensi app's settings.
• Verkeerde temperatuurlesings:
  • Maak seker dat die termostaat nie aan direkte sonlig, trek of hittebronne (bv.amps, appliances) that could affect its sensor.
• HVAC-stelsel reageer nie:
  • Check that the system mode (Heat, Cool, Auto) is correctly selected on the thermostat or in the app.
  • Verifieer dat alle bedradingsverbindings veilig is.
  • If the issue persists, contact a qualified HVAC technician.

For more detailed troubleshooting, visit the White-Rodgers support website or consult the Sensi app's help section.

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information, technical support, or to register your product, please visit the official White-Rodgers webwebwerf of kontak hul kliëntediens. Bewaar u aankoopbewys as bewys van aankoop.

Aanlyn ondersteuning: sensi.emerson.com/en-us/support (Bvample link, actual link might vary)

Vervaardiger: Wit Rodgers
