Aramox Universal Underdash Air Conditioner (12V) - Instruction Manual

1. Inleiding

This Aramox Universal Underdash Air Conditioner is designed to provide cooling comfort in vehicles that lack factory-installed air conditioning. It is suitable for cars, RVs, motorhomes, vans, agricultural vehicles, and engineering vehicles. This unit features a 4-row, 32-channel coil for maximum airflow and cooling capacity, ensuring excellent performance and reliable quality.

2. Produk verbyview

The underdash air conditioner unit is a compact and efficient solution for adding air conditioning to various vehicles. It integrates the evaporator assembly, fan, and controls into a single unit designed for mounting under the dashboard.

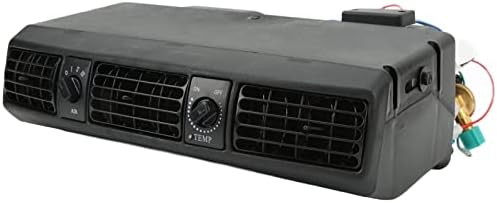

Figuur 2.1: Voorkant view of the Aramox Universal Underdash Air Conditioner unit, showing air vents and control knobs.

Figure 2.2: The air conditioner unit displayed with its included accessories, such as a hose and mounting brackets.

Figuur 2.3: Close-up view of the control panel, highlighting the fan speed selector (0-I-II-III) and temperature adjustment knob (ON/OFF TEMP).

Sleutel kenmerke:

• Verstelbare lugvloei: Three-speed fan control for customized air circulation.
• Temperatuurbeheer: Adjustable temperature settings for optimal comfort.
• Doeltreffende verkoeling: Features a 32-pass, 4-way coil for maximum airflow and cooling capacity.
• Duursame konstruksie: Made from premium ABS material, ensuring corrosion resistance and wear durability.
• Universele toepassing: Designed for a wide range of vehicles including RVs, vans, and agricultural vehicles.

3. Spesifikasies

Figuur 3.1: Dimensionaal view of the air conditioner unit, showing approximate measurements of 390mm (15.4in) length, 310mm (12.2in) width, and 120mm (4.7in) height.

4. Veiligheidsinligting

Lees asseblief alle veiligheidsinstruksies sorgvuldig deur voor installasie en gebruik. Versuim om hierdie instruksies te volg, kan lei tot skade aan eiendom, beserings of dood.

• Ontkoppel altyd die voertuig se battery voordat u enige elektriese werk uitvoer.
• Verseker behoorlike ventilasie tydens installasie en werking.
• Moenie probeer om die eenheid of sy komponente te wysig nie.
• Hou hande en los klere weg van bewegende dele tydens werking.
• This unit is designed for 12V vehicle systems only. Do not connect to other voltage bronne.
• This air conditioning evaporator is only suitable for left-hand drive vehicles.

5. Pakketinhoud

Verifieer dat alle items teenwoordig en onbeskadig is wanneer u die pakkie oopmaak:

• 1 x Air Conditioner Evaporator Assembly
• 1 x Condenser Pipe
• 1 x Three-way Pipe
• 3 x Fixed Bracket

6. Opstelling en installering

The installation of this underdash air conditioner requires specialized knowledge and tools. It is strongly recommended to have the unit installed by a qualified professional to ensure correct functionality and safety.

Belangrike oorwegings:

• This unit is an evaporator assembly only. It requires connection to an external compressor and condenser to function as a complete air conditioning system.
• Ensure adequate space under the dashboard for proper mounting and airflow.
• All electrical connections must be secure and properly insulated to prevent short circuits.
• Refrigerant lines must be properly sealed and charged by a certified technician.

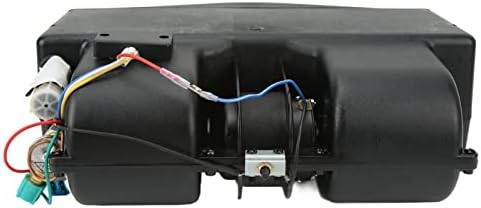

Figuur 6.1: Agter view of the air conditioner unit, illustrating the internal components, fan housing, and electrical wiring connections.

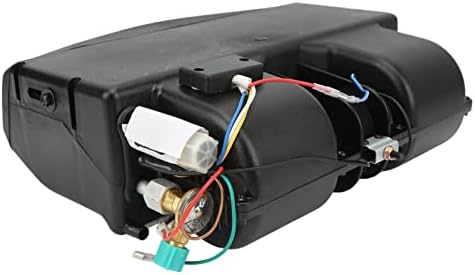

Figuur 6.2: Kant view of the unit, detailing the various pipes, sensors, and electrical connections required for installation into a vehicle's AC system.

7. Bedryfsinstruksies

Once properly installed and connected to a functioning AC system, operate the unit using the front panel controls:

• Waaierspoedbeheer: Rotate the 'AIR' knob to select desired fan speed: 0 (Off), I (Low), II (Medium), III (High).
• Temperatuurbeheer: Rotate the 'TEMP' knob to adjust the cooling temperature. Turn towards 'ON' for colder air and 'OFF' to reduce cooling.
• Lugrigting: Adjust the louvers on the air vents to direct airflow as needed.

Figure 7.1: An illustrative image depicting the underdash air conditioner unit and its application in a vehicle, such as a truck, providing a comfortable interior environment.

8. Onderhoud

Regular maintenance helps ensure optimal performance and longevity of your air conditioner unit.

• Filter skoonmaak: Periodically check and clean the pre-filter to maintain efficient airflow. Refer to your vehicle's manual for accessing the filter if applicable.
• Stelselinspeksie: Have the entire AC system, including refrigerant levels and connections, inspected by a professional annually.
• Buitenste skoonmaak: Vee die buitekant van die eenheid af met 'n sagte, damp lap. Moenie harde chemikalieë of skuur skoonmaakmiddels gebruik nie.

9. Probleemoplossing

If you encounter issues with your air conditioner, refer to the following common troubleshooting steps. For complex problems, consult a professional technician.

• Geen lugvloei: Check if the fan speed knob is set to '0'. Ensure the vehicle's electrical system is providing power to the unit. Check for any obstructions in the air vents.
• Swak lugvloei: Clean or replace the pre-filter if it is clogged. Ensure the fan speed is set to a higher setting.
• Geen verkoeling: Verify that the temperature knob is set to 'ON' or a colder setting. Ensure the external compressor and condenser are functioning correctly and the refrigerant level is adequate. This unit requires a fully charged AC system to provide cooling.
• Ongewone geluide: Turn off the unit immediately and inspect for any loose parts or obstructions. If the noise persists, professional inspection is recommended.

10. Waarborginligting

This Aramox product comes with a Limited Warranty. Please retain your proof of purchase for any warranty claims. For specific terms and conditions of the warranty, refer to the documentation provided at the time of purchase or contact Aramox customer support.

11. Ondersteuning

For further assistance, technical support, or inquiries regarding your Aramox Universal Underdash Air Conditioner, please refer to the contact information provided with your product or visit the official Aramox webwebwerf.
