Sundu 1400W Handheld Garment Steamer LE-IR004 Instruction Manual

Inleiding

Thank you for choosing the Sundu 1400W Handheld Garment Steamer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.

Belangrike veiligheidsinstruksies

Always use distilled or de-mineralized water to prevent mineral buildup and extend the life of your steamer.
Moenie die stoomboot in water of ander vloeistowwe dompel nie.
Hou die stoomboot weg van kinders en troeteldiere.
Exercise caution when handling hot steam. Keep hands and face away from the steam nozzle during operation.
Unplug the steamer from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
Maak seker dat die kragkabel nie beskadig of verstrengel is tydens gebruik nie.
Do not operate the steamer if it has been dropped or damaged. Contact customer support for assistance.

Produkkomponente

Familiarize yourself with the parts of your Sundu Handheld Garment Steamer:

Diagram of Sundu Handheld Garment Steamer with labeled parts including Iron Head, Steam Switch Button, Handle, Power Button, Steam Setting, Cord Protector, and 260ml Water Tank. — Figure 1: Sundu Handheld Garment Steamer with labeled components. Key parts include the Iron Head, Steam Switch Button, Handle, Power Button, Steam Setting indicators, Cord Protector, and the detachable 260ml water tank.

Iron Head: The steam outlet with multiple holes for even steam distribution.
Steam Switch Button: Activates and controls steam output.
Hanteer: Ergonomies ontwerp vir gemaklike greep.
Kragknoppie: Turns the steamer on/off and indicates status.
Steam Setting Indicators: Displays the selected steam level (low/high).
Cord Protector: Protects the power cord from wear and tear.
260 ml watertenk: Detachable reservoir for water.
Stof Borsel: An attachment for removing lint and enhancing steaming on certain fabrics.

Opstelgids

1. Vul die watertenk

Maak seker dat die stoomkoker afgeskakel en afgekoel het.
Remove the water tank by pulling it downwards from the main unit.
Open the rubber stopper on the bottom of the tank.
Fill the tank with distilled or de-mineralized water up to the 'MAX' line. Do not overfill.
Securely close the rubber stopper and reattach the water tank to the steamer until it clicks into place.

Close-up of the Sundu steamer's 260ml water tank being detached and reattached, showing the water level indicator and the steam lock button. — Figure 2: Detachable 260ml water tank and steam lock button. The water tank is easily removed for filling and features a clear indicator for water level. The steam lock button allows for continuous steam without holding the trigger.

2. Attaching the Fabric Brush

Rig die stofborselaanhegsel met die stoomkop.
Press firmly until it clicks into place. This attachment helps remove lint and provides a gentle surface for steaming delicate fabrics.

Bedryfsinstruksies

1. Powering On and Selecting Steam Mode

Plug the steamer into a suitable power outlet. The power indicator light will flash.
Press the Power Button to turn on the steamer. The indicator light will begin to flash rapidly, signifying quick heat-up.
Once the light turns solid blue (approximately 20 seconds), the steamer is ready for use.
Press the Steam Setting button to toggle between Low Steam Volume (20g/min) and High Steam Volume (25g/min) as needed for your fabric type.

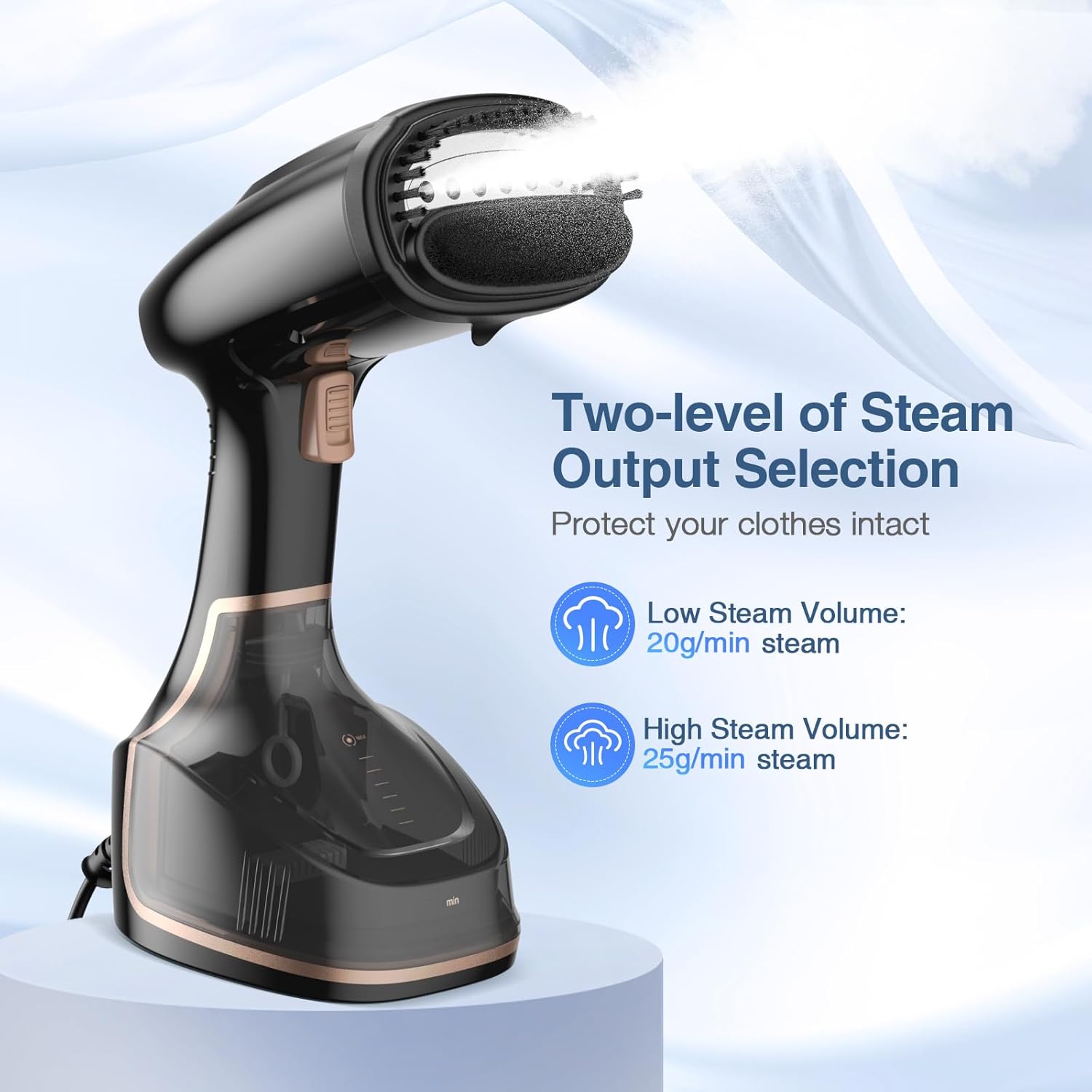

Sundu Handheld Garment Steamer showing two-level steam output selection: Low Steam Volume (20g/min) and High Steam Volume (25g/min). — Figure 3: Two-level steam output selection. Choose between Low Steam Volume (20g/min) for delicate fabrics and High Steam Volume (25g/min) for tougher wrinkles.

2. Stoom Klere

Hang jou kledingstuk aan 'n hanger.
Hold the steamer upright, keeping the steam head a few inches away from the fabric.
Press the Steam Switch Button to release steam. For continuous steam, slide the Steam Lock Button down.
Move the steamer slowly over the fabric, from top to bottom, allowing the steam to relax the fibers and remove wrinkles.
For stubborn wrinkles, gently press the fabric brush against the garment while steaming.
The stainless steel plate heats up in 20 seconds and can continuously output 25g/min steam for 20 minutes.

A person using the Sundu Handheld Garment Steamer on clothes hanging vertically, demonstrating its leak-proof design for steaming at any angle. — Figure 4: Steaming clothes with the Sundu steamer. The unique leak-proof design allows for vertical, horizontal, or angled steaming without water leakage, making it versatile for various garments.

Sundu Handheld Garment Steamer being used on various fabric types including Silk, Wool, Cotton, Linen, Nylon, and Cowboy denim, indicating ideal temperatures for each. — Figure 5: Steaming various fabric types. The steamer is suitable for a wide range of materials including silk, wool, cotton, linen, nylon, and denim, providing ideal temperatures for effective wrinkle removal.

3. Automatic Shut-Off Feature

For safety, the steamer is equipped with an automatic shut-off system.
If no steam is released for 8 minutes, the blue light on the power button will flash, signaling that the steamer is auto-off.
To resume steaming, simply press the power button again.

Sundu Handheld Garment Steamer demonstrating its Safety Auto-off System, which activates after 8 minutes of no steam releasing, indicated by a flashing blue light. — Figure 6: Safety Auto-off System. The steamer automatically turns off after 8 minutes of inactivity (no steam released), with the blue light on the power button flashing to indicate this status.

4. Amptelike produkvideo's

Video 1: Demonstrates the powerful handheld steaming capability and the no-spilling feature at any angle, ensuring efficient and mess-free wrinkle removal.

Video 2: Showcases how the Sundu 1400W Steamer can quickly transform clothes, removing wrinkles in seconds for a fresh look.

Video 3: Highlights the portability of the Sundu Steamer, making it an ideal travel garment steamer for wrinkle-free clothes on the go.

Sorg en Onderhoud

1. Maak die stoomboot skoon

Always ensure the steamer is unplugged and completely cool before cleaning.
Vee die buitekant van die stoommasjien af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
Maak enige oorblywende water uit die tenk leeg na elke gebruik.

2. Descaling (Anti-CALC System)

The steamer features an Anti-CALC system to reduce mineral buildup.
To maintain optimal performance, descale the steamer regularly, especially if using tap water (though distilled water is recommended).
Vul die watertenk met 'n mengsel van 50% wit asyn en 50% water.
Prop die stoomboot in en laat dit warm word.
Run the steamer until the tank is empty.
Repeat the process with clean distilled water to rinse out any vinegar residue.

3. Berging

Maak seker dat die stoomboot heeltemal koel en droog is voordat dit gebêre word.
Maak die watertenk leeg.
Bêre die stoomboot op 'n koel, droë plek, weg van direkte sonlig en vog.

Probleemoplossing

Probleem	Moontlike oorsaak	Oplossing
Steamer not producing steam	Water tank empty; Steamer not heated up; Power issue.	Fill water tank; Wait for indicator light to turn solid blue; Check power connection.
Water lek uit stoomkop	Water tank not properly sealed; Steamer not fully heated.	Ensure water tank stopper is closed and tank is securely attached; Wait for indicator light to turn solid blue before use.
Steamer automatically shuts off	Automatic shut-off activated due to inactivity.	Press the Power Button to restart the steamer.
Stoomuitset is swak of inkonsekwent	Mineral buildup; Low water level.	Perform descaling procedure; Refill water tank.

Produkspesifikasies

Handelsmerk: Sundu
Modelnommer: LE-IR004
Wattage: 1400 watt
Watertenk kapasiteit: 260 milliliter
Produk voordele: Remove Wrinkle
Item gewig: 2.59 pond
Pakket afmetings: 12.13 x 7.4 x 5.39 duim
Opwarmtyd: Ongeveer 20 sekondes
Deurlopende stoomuitset: Up to 20 minutes (at 25g/min)
Veiligheidskenmerke: Automatic Shut-Off (after 8 minutes of inactivity)

Waarborg en Ondersteuning

For warranty information or customer support, please refer to the documentation included in your product packaging or visit the official Sundu website. If you encounter any issues not covered in this manual, please contact Sundu customer service for assistance.
