MOKA SFX CO2 Jet Machine (Type 3) User Manual

1. Inleiding

This manual provides essential information for the safe and effective operation of your MOKA SFX CO2 Jet Machine. This device is designed to produce dramatic CO2 fog effects for various events such as nightclubs, parties, and stage shows. Please read this manual thoroughly before setup, operation, or maintenance to ensure proper usage and prevent potential hazards.

2. Belangrike veiligheidsinligting

• CO2 Gas Handling: Always use CO2 cylinders with appropriate pressure ratings and ensure secure connections. CO2 is an asphyxiant; use only in well-ventilated areas.
• Persoonlike beskermende toerusting: Wear appropriate eye and hand protection when handling CO2 cylinders and connecting hoses.
• Plasing: Position the machine on a stable, level surface. Ensure the jet is directed away from people, animals, and sensitive equipment. Maintain a safe distance from the jet output.
• Elektriese veiligheid: Connect the machine to a grounded power outlet. Do not operate with damaged cables or if the machine shows signs of malfunction.
• Temperatuur: Do not expose the machine to extreme temperatures or direct sunlight.
• Kinders en Ongemagtigde Personeel: Keep the machine out of reach of children and ensure only trained personnel operate the device.
• Noodprosedures: In case of a CO2 leak, immediately ventilate the area and shut off the CO2 supply. Seek medical attention if symptoms of CO2 exposure occur (dizziness, shortness of breath).

3. Pakketinhoud

Verifieer by uitpak dat al die items wat hieronder gelys word, teenwoordig en onbeskadig is:

• 1x MOKA SFX CO2 Jet Machine
• 1x 6-meter Gas Hose
• 1x kragkabel
• 1x Gebruikershandleiding

Image: Package contents including the CO2 jet machine, gas hose, power cable, and manual.

4. Tegniese spesifikasies

Image: Visual representation of product parameters and dimensions.

5. Opstelinstruksies

1. Plasing: Place the CO2 Jet Machine on a stable, flat surface. The heavy base ensures stability during operation. Ensure there is sufficient clear space above and in front of the nozzle for the CO2 jet.
2. Connect Gas Hose: Connect one end of the provided 6-meter gas hose to the CO2 Jet Machine's quick connector. Securely attach the other end to your CO2 gas cylinder. Ensure all connections are tight to prevent leaks.
3. Kragverbinding: Connect the power cable to the machine's power input and then to a suitable grounded electrical outlet (AC100-240V, 50/60Hz).
4. Pas hoek aan: The jet direction can be adjusted within a 0-110 degree range. Loosen the adjustment knob, set the desired angle, and tighten the knob to secure the position.
5. DMX-verbinding (opsioneel): For advanced control, connect a DMX controller to the DMX IN port. You can daisy-chain multiple units using the DMX OUT port.

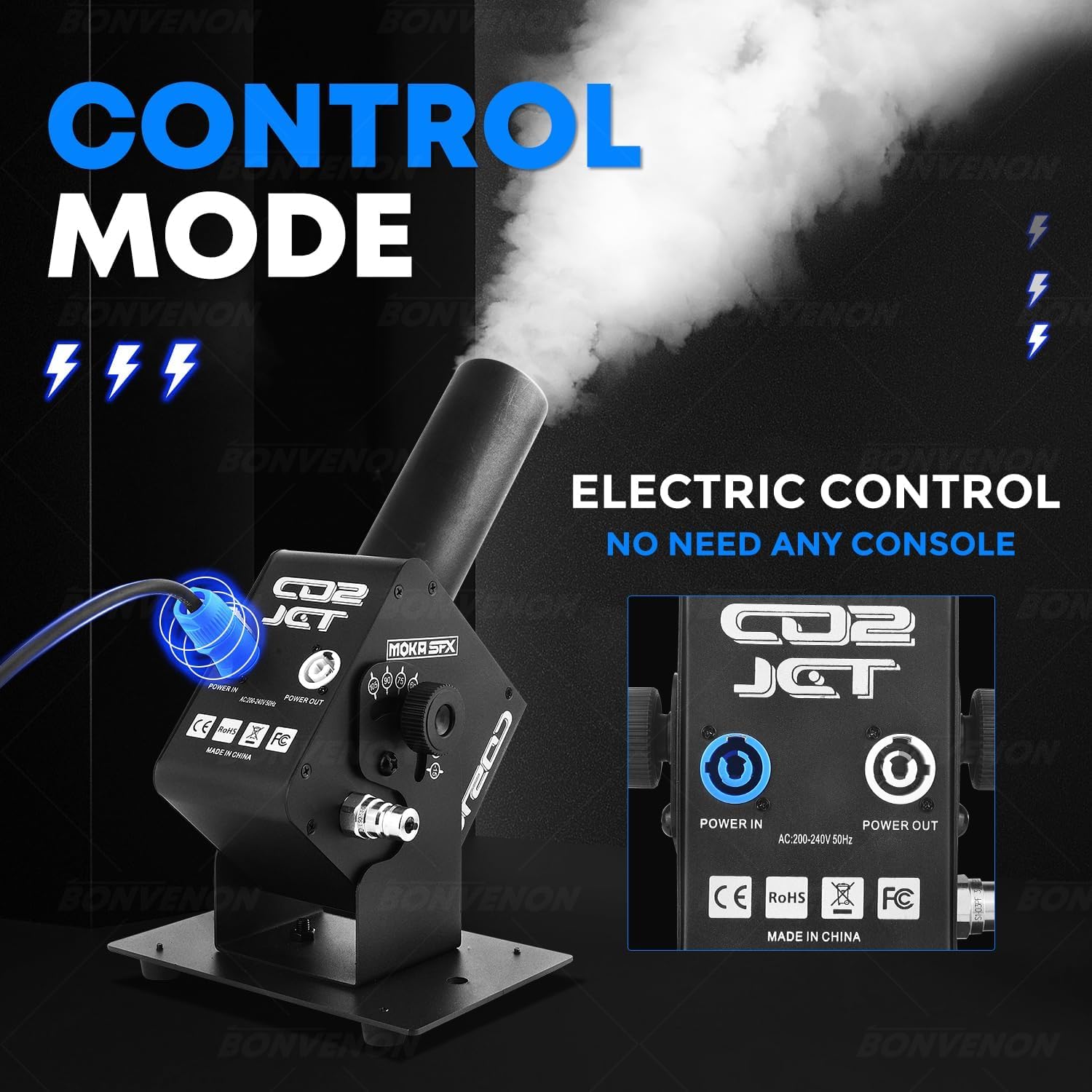

Beeld: Agter view of the CO2 Jet Machine showing power input/output and control panel.

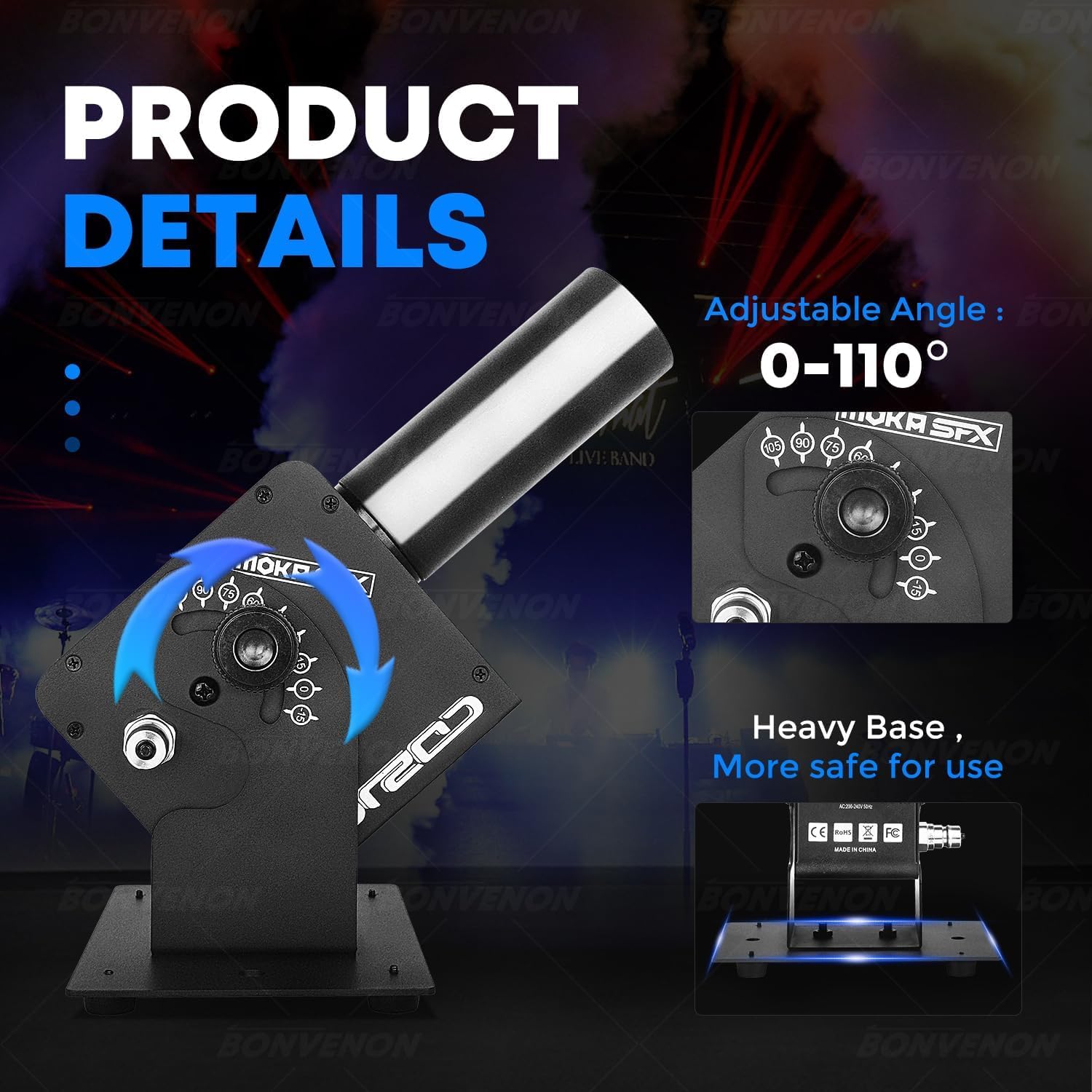

Image: Close-up of the adjustable angle mechanism on the CO2 Jet Machine.

6. Bedryfsinstruksies

1. Krag aan: Turn on the main power switch on the machine. The display will illuminate.
2. Open CO2 Cylinder Valve: Slowly open the valve on the CO2 gas cylinder. You may hear a hiss as the gas fills the hose.
3. Initiate Spray: The machine supports electronic control. Once powered and connected to the gas cylinder, it is ready to spray. Depending on the model, this can be triggered via a button on the unit, a remote control (if included), or a DMX controller.
4. Adjusting LED Effects: If your model includes LED lights, use the control panel buttons (MENU, UP, DOWN, ENTER) to select desired color modes or effects.
5. DMX beheer: If using DMX, ensure your DMX controller is properly configured to the machine's DMX channels. Refer to the DMX channel chart in the full manual for detailed programming.
6. Stop van die operasie: To stop the CO2 jet, release the trigger or deactivate the DMX channel. To completely shut down, close the CO2 cylinder valve first, allow any remaining gas in the hose to dissipate, then turn off the machine's power switch.

7. Onderhoud

• Skoonmaak: Regularly wipe down the exterior of the machine with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Verbindingskontroles: Before each use, inspect the gas hose and all connections for any signs of wear, damage, or leaks. Replace damaged components immediately.
• Berging: Store the machine in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect the CO2 cylinder and power when not in use.

8. Probleemoplossing

9. Waarborg en Ondersteuning

For warranty information and technical support, please refer to the official MOKA SFX webwebwerf of kontak hul kliëntediens direk. Bewaar u aankoopbewys as bewys van aankoop.

Bykomende beskermingsplanne kan moontlik afsonderlik aangekoop word.
