1. Inleiding
This manual provides instructions for the safe and efficient use of your LEDVANCE LINEAR LED SWIVEL Under Cabinet Light. This product is designed to provide warm white illumination with integrated motion and daylight sensing capabilities, ideal for various indoor applications.
Figuur 1: The LEDVANCE LINEAR LED SWIVEL Under Cabinet Light. This image shows the overall design of the light fixture.
2. Veiligheidsinstruksies
- Lees alle instruksies noukeurig voor installasie en gebruik.
- Bewaar hierdie handleiding vir toekomstige verwysing.
- Hierdie produk is vir slegs binnenshuise gebruik (IP20 protection class). Do not expose to water or high humidity.
- Maak seker dat die kragbron ontkoppel is voor installasie of instandhouding.
- Moenie probeer om die produk self te wysig of te herstel nie. Kontak gekwalifiseerde personeel vir diens.
- Hou buite bereik van kinders.
- Do not stare directly into the LED light source.
3. Pakketinhoud
Verifieer dat alle komponente in die pakket teenwoordig is:
- 1x LEDVANCE LINEAR LED SWIVEL Under Cabinet Light (Model: LINEAR LED SWIVEL MOB SEN35CM830USB)
- 1x USB cable (length: 0.5 m)
- Mounting accessories (e.g., magnetic attachments)

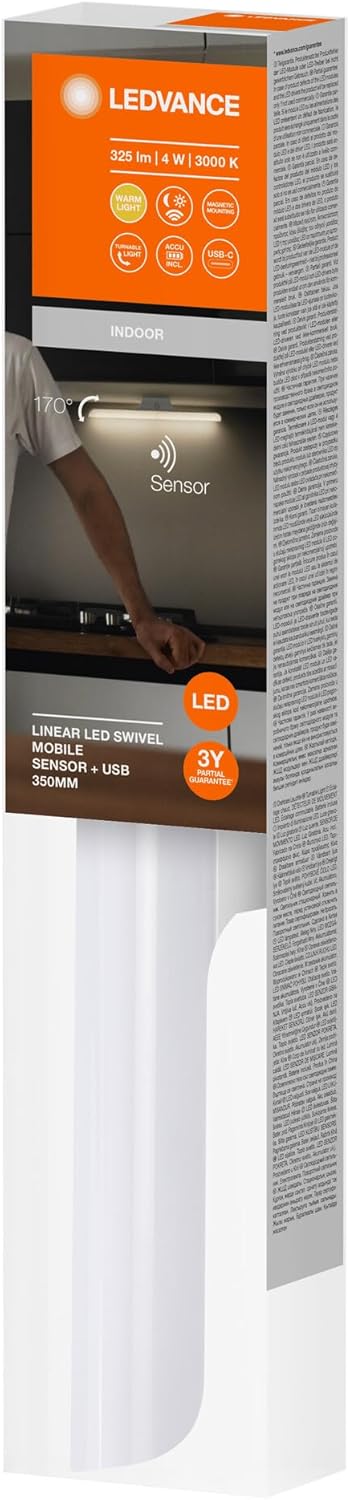

Figuur 2: Product packaging. The packaging indicates the product's features and specifications.
4. Opstelling en installering
The LEDVANCE LINEAR LED SWIVEL Under Cabinet Light is designed for easy installation, primarily using its magnetic attachment system.
- Kies ligging: Select a suitable indoor location under a cabinet, shelf, or similar surface. Ensure the surface is clean and dry.
- Attach Mounting: The light features magnetic attachment for easy removal and installation. Secure the corresponding magnetic mounting plates (if separate) to your desired surface using screws or adhesive (not specified if included, assume standard mounting).
- Berglig: Align the light fixture with the mounted magnetic plates. The light will securely attach magnetically.
- Koppel krag: Connect the provided 0.5m USB cable to the light fixture and to a compatible 5V USB power source (e.g., USB wall adapter, power bank, or computer USB port).
- Adjust Swivel: The light body can swivel up and down at an angle of 170° to direct illumination as needed.
Figuur 3: Example of the under cabinet light installed in a kitchen environment. The image demonstrates typical placement and illumination.
5. Bedryfsinstruksies
This light features a PIR motion and daylight sensor for efficient and automatic operation.
- Outomatiese aktivering: The integrated PIR motion sensor detects movement within its range. The light will automatically turn on when motion is detected in low light conditions (daylight sensor).
- Daglig sensor: The daylight sensor ensures the light only activates when ambient light levels are insufficient, conserving energy during daylight hours.
- Deaktivering: The light will automatically turn off after a period of no motion detection, provided sufficient ambient light is present or the set delay time has passed.
- Draai funksie: The light body can be manually swiveled up or down by up to 170 degrees to adjust the direction of the light output.
- Dimbaar: The product description indicates it is dimmable. Specific dimming controls are not detailed in the provided information, but typically this would be via a button on the unit or a connected remote (if applicable). Refer to the product's physical controls for dimming functionality.
Figuur 4: Close-up view of the light fixture, highlighting the integrated motion and daylight sensor. The power button is also visible.
6. Onderhoud
To ensure the longevity and optimal performance of your LEDVANCE LINEAR LED SWIVEL Under Cabinet Light, follow these simple maintenance guidelines:
- Skoonmaak: Disconnect power before cleaning. Wipe the surface with a soft, dry, or slightly damp lap. Moenie skuurmiddels, oplosmiddels of harde chemikalieë gebruik nie, aangesien dit die afwerking of elektroniese komponente kan beskadig.
- Inspeksie: Periodically check the USB cable for any signs of damage. Ensure the magnetic attachment remains secure.
- LED module: The LED module is permanently installed and not user-replaceable.
7. Probleemoplossing
If you encounter issues with your light, refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lig skakel nie aan nie. | No power, faulty USB connection, sufficient ambient light, sensor obstructed. | Check USB cable connection and power source. Ensure ambient light is low enough for the daylight sensor to activate. Clear any obstructions from the sensor. |
| Light turns on unexpectedly or stays on. | Constant motion detected, sensor malfunction, incorrect placement. | Ensure no continuous motion is within the sensor's range. Reposition the light if necessary to avoid false triggers. |
| Ligte flikkerings. | Unstable power supply, loose connection. | Ensure the USB power source is stable. Check all connections. |
Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.
8. Spesifikasies
Detailed technical specifications for the LEDVANCE LINEAR LED SWIVEL Under Cabinet Light:
| Kenmerk | Detail |
|---|---|
| Modelnommer | 4099854096556 |
| Handelsmerk | LEDVANCE |
| Krag | 4 W |
| Ligvloed | 325 lm |
| Kleur temperatuur | 3000 K (Warmwit) |
| Voltage | 5 Volt (USB-aangedrewe) |
| Ligbron | Geïntegreerde LED |
| Beheer metode | Motion Sensor, Daylight Sensor |
| Draaihoek | Tot 170° |
| Materiaal | Polycarbonate, Plastic |
| Kleur | Wit |
| Beskermingsklas | IP20 (Slegs binnenshuise gebruik) |
| Diens Lewe | Tot 30,000 uur |
| Produkafmetings (L x B x H) | Approx. 350mm x 36mm x 49.2mm (Refer to Figure 5) |
| Item gewig | 163 gram |
Figuur 5: Dimensional drawing of the LEDVANCE LINEAR LED SWIVEL light. Dimensions are approximately 350mm (length), 49.2mm (height), and 36mm (width).
9. Waarborg en Ondersteuning
Waarborginligting: This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official LEDVANCE webwebwerf vir gedetailleerde waarborgbepalings en -voorwaardes.
Kliëntediens: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact LEDVANCE customer support through their official webwebwerf of die kontakinligting wat op die produkverpakking verskaf word.
