Sejoy Portable Garment Steamer NJ-HIE02 Instruction Manual

1. Inleiding

Dankie vir die aankoopasing the Sejoy Portable Garment Steamer, Model NJ-HIE02. This compact and efficient steam iron is designed for quick wrinkle removal from various fabrics, making it ideal for both daily use and travel. Please read this manual thoroughly before operating the device to ensure safe and optimal performance.

2. Veiligheidsinstruksies

Om die risiko van brand, elektriese skok of besering te verminder, volg altyd hierdie basiese veiligheidsmaatreëls:

• Lees alle instruksies voor gebruik.
• Gebruik die stoomtoestel slegs vir die beoogde doel soos beskryf in hierdie handleiding.
• Om die risiko van elektriese skok te vermy, moenie die stomer in water of ander vloeistowwe dompel nie.
• Always turn off and unplug the steamer from the electrical outlet before filling or emptying water, and when not in use.
• Moenie die stoomtoestel gebruik met 'n beskadigde koord of prop nie, of as die toestel laat val of beskadig is.
• Keep the steam nozzle away from your body and hands during operation. Steam is hot and can cause burns.
• Moenie die stoomtoestel op klere gebruik terwyl jy dit dra nie.
• Gebruik slegs gedistilleerde of gedemineraliseerde water om mineraalopbou te voorkom en die lewensduur van die stomer te verleng.
• Hou buite bereik van kinders.

3. Produkkomponente

Familiarize yourself with the parts of your Sejoy Portable Garment Steamer:

• Steam Outlet Nozzle: Emits powerful and even steam for wrinkle removal.
• Kragknoppie: Simple one-button operation to turn the device on/off.
• 150ml Detachable Water Tank: Easy to fill and empty, designed with leak-proof technology.
• Opvoubare handvatsel: Vir gerieflike berging en draagbaarheid.
• Thermostatic Panel: Ensures consistent heating and steam output.

Figure 3.1: Handheld Garment Steamer Details. This image illustrates the key components of the steamer, including the power button, steam nozzle, water tank, and foldable handle, highlighting its simple and convenient operation.

Figure 3.2: Powerful Ironing Steamer Features. A detailed view of the steamer's front panel, emphasizing its thermostatic control, rapid 20-second heat-up time, 150ml water tank capacity, and leak-proof design for efficient and safe steaming.

4. Opstelling

1. Pak uit: Carefully remove the steamer from its packaging and check for any damage.
2. Vul watertenk: Detach the 150ml water tank. Open the rubber stopper and fill the tank with distilled or demineralized water. Do not overfill. Close the stopper securely and reattach the tank to the steamer.
3. Posisie: Plaas die stomer op 'n stabiele, hittebestande oppervlak of hou dit regop.
4. Inprop: Koppel die kragkabel aan 'n geskikte elektriese aansluiting.

Figure 4.1: Detachable Water Tank. This image demonstrates the process of filling the 150ml detachable water tank, highlighting its ease of use and leak-proof design. Product dimensions are also shown.

5. Bedryfsinstruksies

1. Aanskakel en voorverhit: Press the power button. The steamer will begin to heat up, typically reaching operating temperature in approximately 20 seconds.
2. Berei kledingstuk voor: Hang the garment on a hanger or lay it flat on a clean, heat-resistant surface.
3. Stoom toepassing: Hold the steamer upright, keeping the steam nozzle a few inches away from the fabric. Gently glide the steamer over the fabric, moving from top to bottom. For stubborn wrinkles, you may press the nozzle lightly against the fabric. The steamer can be used horizontally or vertically.
4. Stofversoenbaarheid: This steamer is suitable for a wide range of fabrics including cotton, polyester, blended fabrics, plush, satin, fiber, nylon, and lining. It can also be used on bedding, tablecloths, sofas, curtains, and toys.
5. Voltooi: Once steaming is complete, press the power button to turn off the steamer. Unplug the device from the outlet.

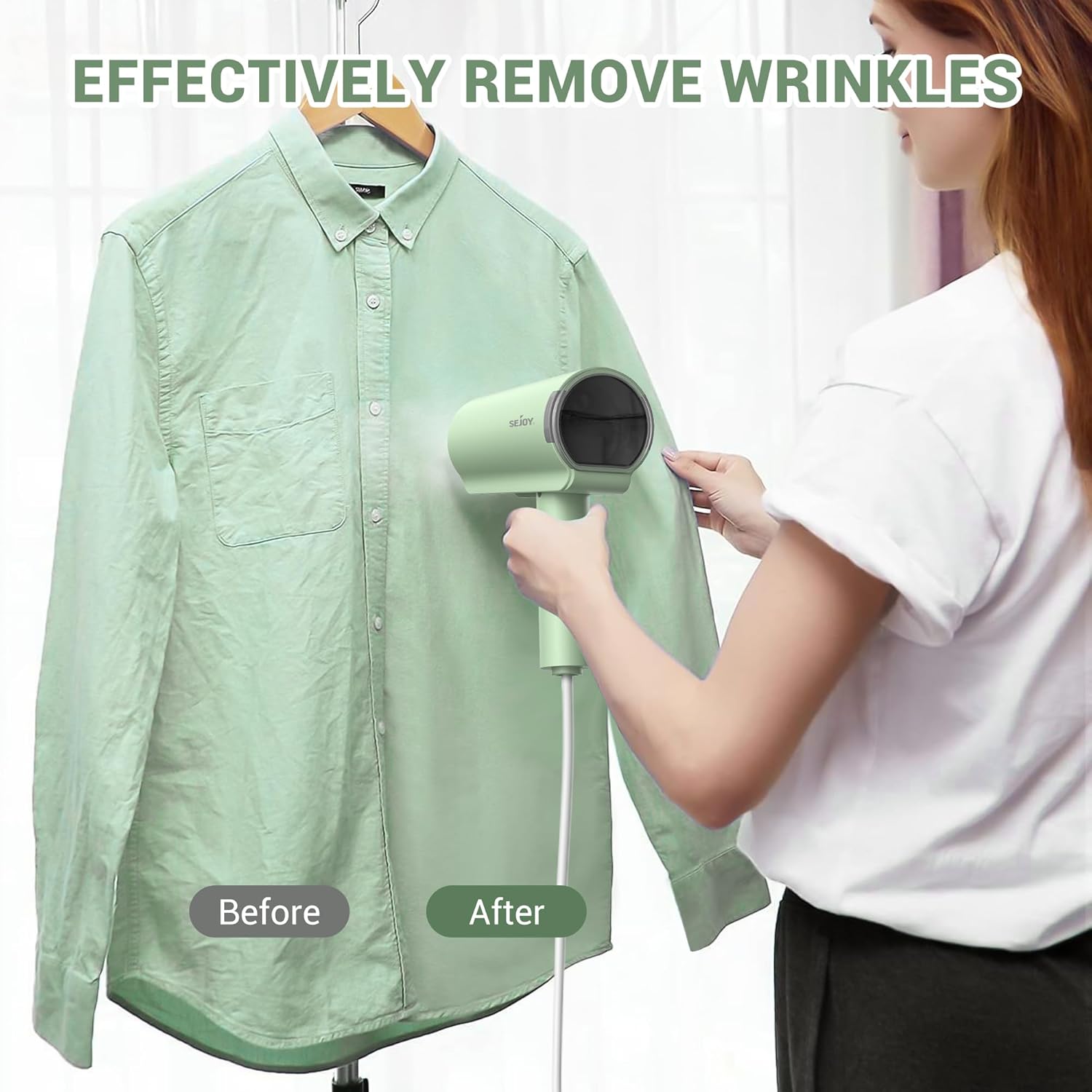

Figure 5.1: Effective Wrinkle Removal. This image demonstrates the steamer in action, showing a significant reduction in wrinkles on a shirt after use, illustrating its efficiency.

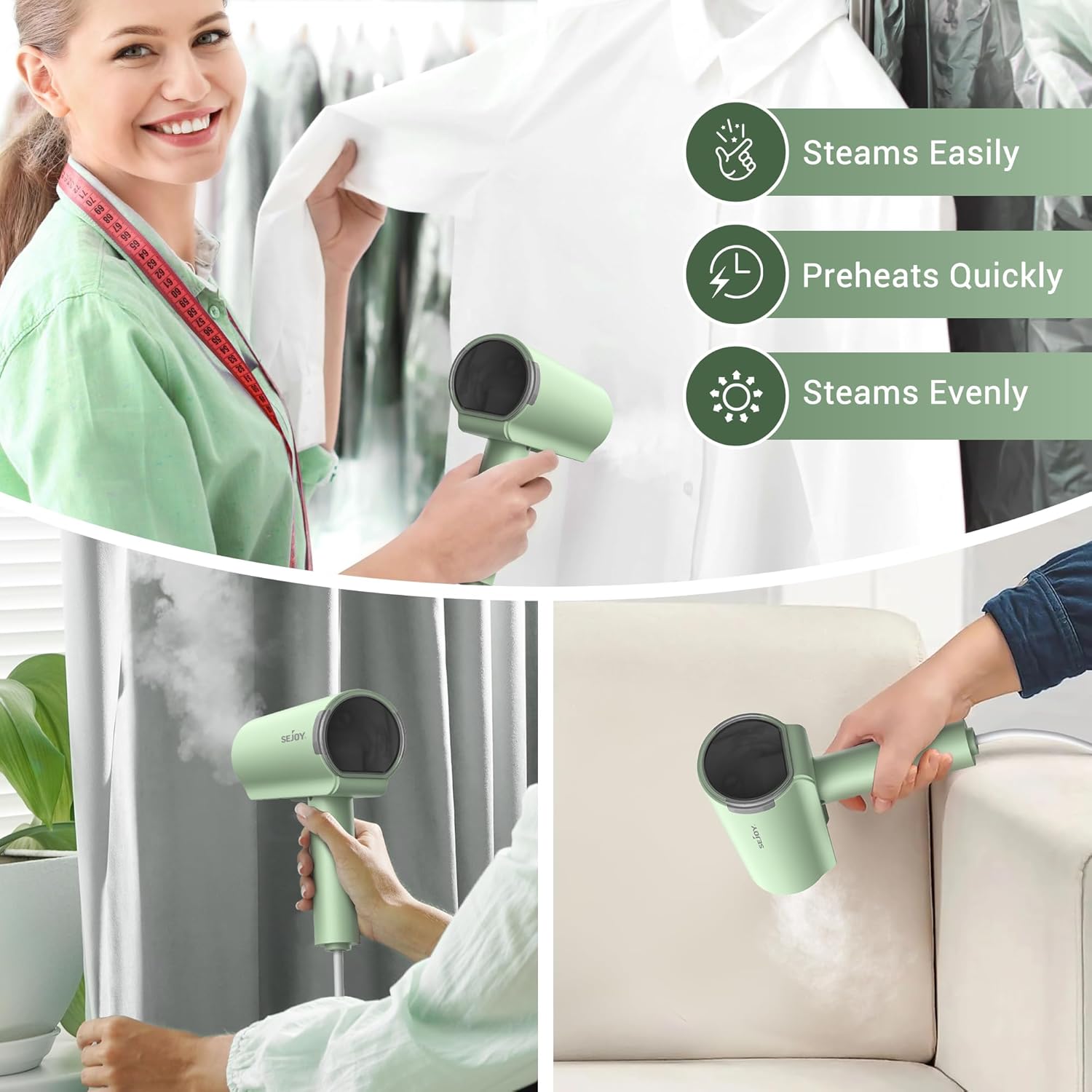

Figure 5.2: Suitable for a Variety of Fabrics. This visual highlights the versatility of the steamer, showcasing its safe and effective use on different types of clothing and household textiles.

6. Onderhoud

Proper maintenance ensures the longevity and performance of your steamer:

• Leë watertenk: After each use, ensure the steamer is unplugged and cooled down. Detach the water tank and empty any remaining water. This prevents mineral buildup.
• Skoonmaak: Vee die buitekant van die stoommasjien af ​​met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
• Berging: Store the steamer in a cool, dry place. The foldable handle allows for compact storage.
• Ontkalking (Periodiek): If you notice reduced steam output or mineral residue, mix equal parts white vinegar and distilled water. Fill the tank with this solution and run the steamer until half the solution is used. Unplug, let cool, then empty and rinse the tank thoroughly. Repeat with clean distilled water.

7. Probleemoplossing

As jy probleme met jou stoomtoestel ondervind, raadpleeg die volgende algemene probleme en oplossings:

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information or technical support, please refer to the warranty card included with your product or contact Sejoy customer service. Keep your purchase receipt as proof of purchase.

Vervaardiger: JOYTECH Healthcare Co.,Ltd
