GKOLED 120W Low Voltage Transformer and 9W LED Landscape Spot Light Kit User Manual

1. Produk verbyview

This manual provides instructions for the GKOLED 120W Low Voltage Transformer and the accompanying 9W LED Landscape Spot Lights. This kit is designed for outdoor landscape lighting applications, offering efficient and reliable illumination with integrated control features.

Image 1.1: GKOLED 120W Low Voltage Transformer and 9W LED Spot Lights installed in a garden.

Sleutel kenmerke:

• transformator: ETL Listed, CEC Level VI certified, 120W capacity, integrated photocell and timer with 11 preset operation modes, heavy-duty steel housing, 12V AC output with 2 channels.
• Spot Lights: 9W LED, 3000K warm white, 700 lumens, CRI90+, 30° beam angle, die-cast aluminum housing, sturdy aluminum spike, waterproof design, compatible with 9-15V low voltage stelsels.

2. Veiligheidsinligting

Lees en verstaan ​​asseblief alle veiligheidsinstruksies voor installasie en gebruik. Versuim om hierdie instruksies te volg, kan lei tot elektriese skok, brand of ander gevare.

• Always disconnect power at the source before installing, servicing, or cleaning the transformer or lights.
• Ensure the transformer is installed in a location protected from direct water spray and excessive moisture.
• Only use this low voltage system with a compatible 9-15V low voltage transformer. Do not connect directly to 120V AC power.
• All wiring connections must be secure and properly insulated to prevent short circuits.
• Keep children and pets away from electrical components during installation and operation.
• Do not attempt to modify or repair any components of this system. Contact qualified personnel for service.

3. Installasie en Opstelling

3.1 Transformator installasie

The GKOLED 120W Low Voltage Transformer is designed for wall mounting. Select a suitable outdoor location near a 120V AC power outlet, ensuring it is protected from direct weather exposure.

1. Using the provided mounting hardware, securely attach the transformer to a sturdy vertical surface.
2. Ensure the transformer is positioned to allow for proper ventilation and access to controls and wiring terminals.

Image 3.1: Transformer features and mounting hardware.

Image 3.2: Transformer dimensions (7.3 in H x 4.7 in W x 4 in D).

3.2 Wiring the Spot Lights to the Transformer

The transformer provides two 12V AC output channels. Connect your landscape lights to these terminals.

1. Hardloop laag voltage landscape wire (not included) from the transformer to the desired locations of your spot lights.
2. Strip approximately 1/2 inch of insulation from the ends of the landscape wire and the pre-wired leads of each spot light.
3. Connect the spot light wires to the landscape wire using the provided waterproof wire connectors. Ensure a tight and secure connection.
4. Connect the main landscape wire runs to the 12V AC output terminals on the transformer. Each terminal pair consists of a 'COM' (common) and a '12V' terminal. Ensure wires are securely fastened under the terminal screws.
5. Verify all connections are correct and secure before plugging the transformer into a 120V AC outlet.

Image 3.3: Transformer rear view with 12V AC output terminals.

3.3 Spot Light Placement and Installation

The 9W LED spot lights are designed for ground installation using the included sturdy aluminum spikes.

1. Choose desired locations for your spot lights. Ensure the location allows for proper illumination and wire routing.
2. Carefully push the aluminum spike into the ground until it is stable. Avoid forcing the spike into hard or rocky soil to prevent damage.
3. Attach the spot light fixture to the spike.
4. Adjust the angle of the spot light using the adjustable knuckle to direct illumination as desired.
5. Bury or conceal the low voltage wiring to protect it from damage and for a cleaner aesthetic.

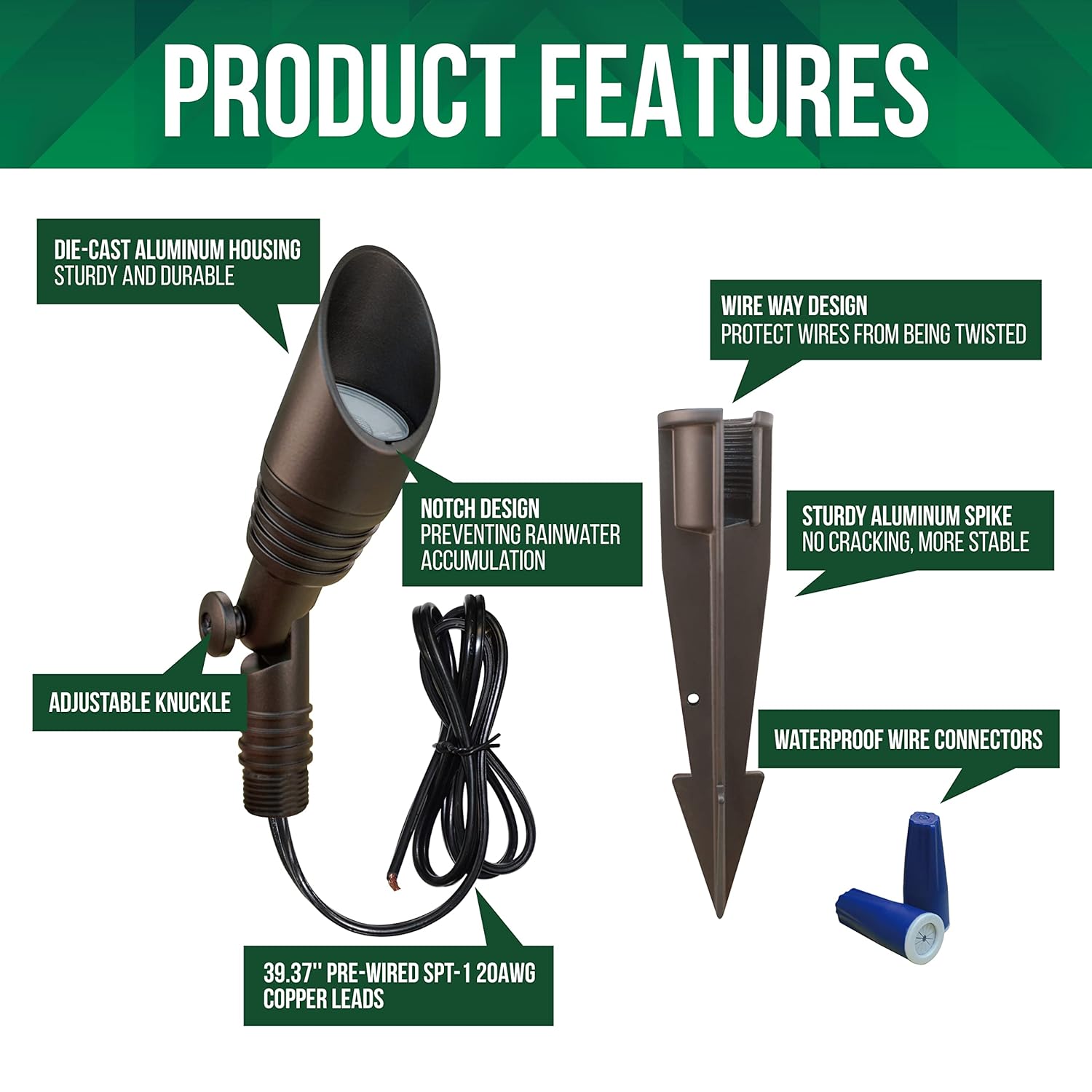

Image 3.4: Spot light features and components.

Image 3.5: Spot light dimensions (4.8 in L x 1.69 in W x 6.26 in H with spike).

4. Bedryfsinstruksies

The GKOLED transformer features an integrated photocell and timer for automated operation. The control panel on the transformer allows you to select various operating modes.

4.1 Beheerpaneel verbyview

The transformer's control panel typically includes a display and buttons for mode selection and adjustment. Refer to Image 3.1 for a visual representation.

• Fotosel: Detects ambient light levels to automatically turn lights on at dusk and off at dawn.
• Afteller: Allows setting specific durations for the lights to remain on after dusk. The transformer offers 11 preset operation modes.
• Knoppies: Used to cycle through the available modes and set timer durations.

4.2 Bedryfsmodusse instel

After plugging in the transformer, use the control buttons to select your desired operating mode. The display will indicate the current mode. Common modes include:

• OP: Lights remain on continuously.
• AF: Lights remain off.
• AUTO (Photocell): Lights turn on at dusk and off at dawn.
• TIMER (e.g., 4H, 6H, 8H): Lights turn on at dusk and remain on for the set duration (e.g., 4, 6, or 8 hours) before turning off.

Consult the specific mode indicators on your transformer's display for detailed information on each of the 11 preset modes.

5. Onderhoud

Regular maintenance ensures optimal performance and longevity of your GKOLED landscape lighting system.

• Skoonmaak: Periodically clean the lenses of the spot lights and the photocell on the transformer to ensure proper operation. Use a soft, damp lap. Moenie skuur skoonmaakmiddels gebruik nie.
• Verbindings: Annually inspect all wiring connections for tightness and corrosion. Re-tighten or clean as necessary.
• Fotosel: Ensure the photocell is not obstructed by debris, plants, or other objects that could interfere with its light-sensing capabilities.
• Fixture Condition: Check spot light fixtures and spikes for any signs of damage or instability. Replace damaged components promptly.

6. Probleemoplossing

If your GKOLED landscape lighting system is not functioning as expected, refer to the following common issues and solutions:

If troubleshooting steps do not resolve the issue, please contact GKOLED customer support.

7. Spesifikasies

8. Waarborg en Ondersteuning

8.1 Produkwaarborg

• transformator: This GKOLED 120W Low Voltage Transformer comes with a 2-year warranty from the date of purchase.
• Spot Lights: The GKOLED 9W LED Landscape Spot Lights are covered by a 3-year warranty from the date of purchase.

These warranties cover defects in materials and workmanship under normal use. They do not cover damage caused by improper installation, misuse, abuse, or acts of nature.

8.2 Kliëntediens

For technical assistance, warranty claims, or any questions regarding your GKOLED product, please contact our customer support team. Refer to the GKOLED official webwebwerf of u aankoopdokumentasie vir kontakinligting.

Ons is hier om te help.
