coioc S25 Bluetooth 5.3 Wireless Earbuds User Manual

Inleiding

Thank you for choosing the coioc S25 Bluetooth 5.3 Wireless Earbuds. These earbuds are designed to provide a high-quality audio experience with powerful deep bass, a comfortable ergonomic fit, and advanced features like Bluetooth 5.3 connectivity, an LED power display, and IPX7 waterproofing. This manual will guide you through the setup, operation, and maintenance of your new earbuds to ensure optimal performance and longevity.

Image: The coioc S25 charging case with a lanyard, shown attached to a backpack, illustrating its portable design for easy carrying.

Pakketinhoud

Kontroleer asseblief die pakket vir die volgende items:

• coioc S25 Wireless Earbuds (Left and Right)
• Laaikas
• USB-C-laaikabel
• Silikoon-oorstukke (Klein, Medium, Groot)
• Gebruikershandleiding

Opstelling

1. Aanvanklike laai

Before first use, fully charge the earbuds and the charging case. Connect the provided USB-C cable to the charging port on the case and to a power source. The LED power display on the case will indicate the charging status.

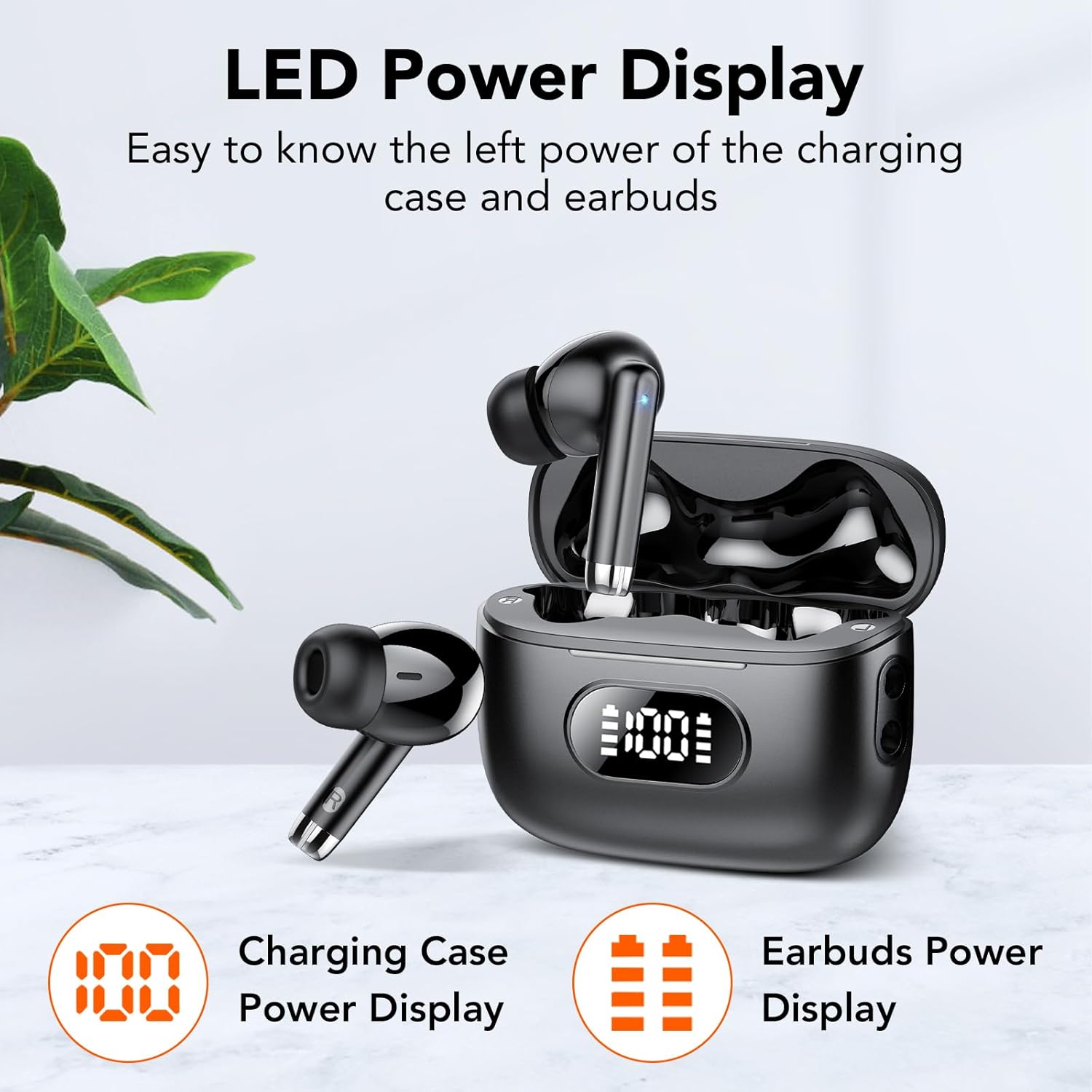

Image: The charging case with an LED display showing battery levels for both the case and the individual earbuds.

The LED display shows the charging percentage of the case and individual battery bars for each earbud. A full charge provides up to 6 hours of listening time for the earbuds, with the charging case offering an additional 5 charges for a total of up to 35 hours of playtime.

Image: The coioc S25 earbuds and charging case, illustrating playtime. The image indicates up to 6 hours for a single earbud charge and up to 40 hours total with the charging case. Please note that product specifications state up to 35 hours total playtime.

2. Dra van die oordopjes

Select the silicone eartips that provide the most comfortable and secure fit for your ears. A proper fit is crucial for optimal sound quality and noise isolation.

1. Choose the eartip size (S/M/L) that best seals your ear canal.
2. Insert the earbuds into your ears and gently rotate them until they feel secure and comfortable.

Image: A person wearing the coioc S25 earbuds, highlighting their ergonomic design and the soft silicone eartips for a secure and comfortable fit.

3. Koppeling met jou toestel

The coioc S25 earbuds feature Bluetooth 5.3 for a stable and fast connection.

1. Maak die laaikas oop en verwyder albei oorfone. Hulle sal outomaties aanskakel en in paringsmodus gaan.
2. Gaan na die Bluetooth-instellings op jou toestel (slimfoon, tablet, rekenaar).
3. Soek vir available devices and select "coioc S25" from the list.
4. Sodra dit gekoppel is, sal jy 'n bevestigingstoon hoor, en die oorfone sal gereed wees vir gebruik.

The earbuds will automatically reconnect to the last paired device when removed from the case, provided Bluetooth is enabled on your device.

Bedryfsinstruksies

Krag aan/af

• Krag aan: Verwyder die oorfone uit die laaikas. Hulle sal outomaties aanskakel.
• Skakel af: Plaas die oorfone terug in die laaikas. Hulle sal outomaties afskakel en begin laai.

Raak kontroles

The coioc S25 earbuds feature intuitive touch controls on each earbud. The specific functions may vary slightly depending on your device and application.

Klankkwaliteit

The earbuds feature 13mm large drivers with a high-quality PU composite diaphragm, delivering powerful bass and clear treble for a rich stereo sound experience.

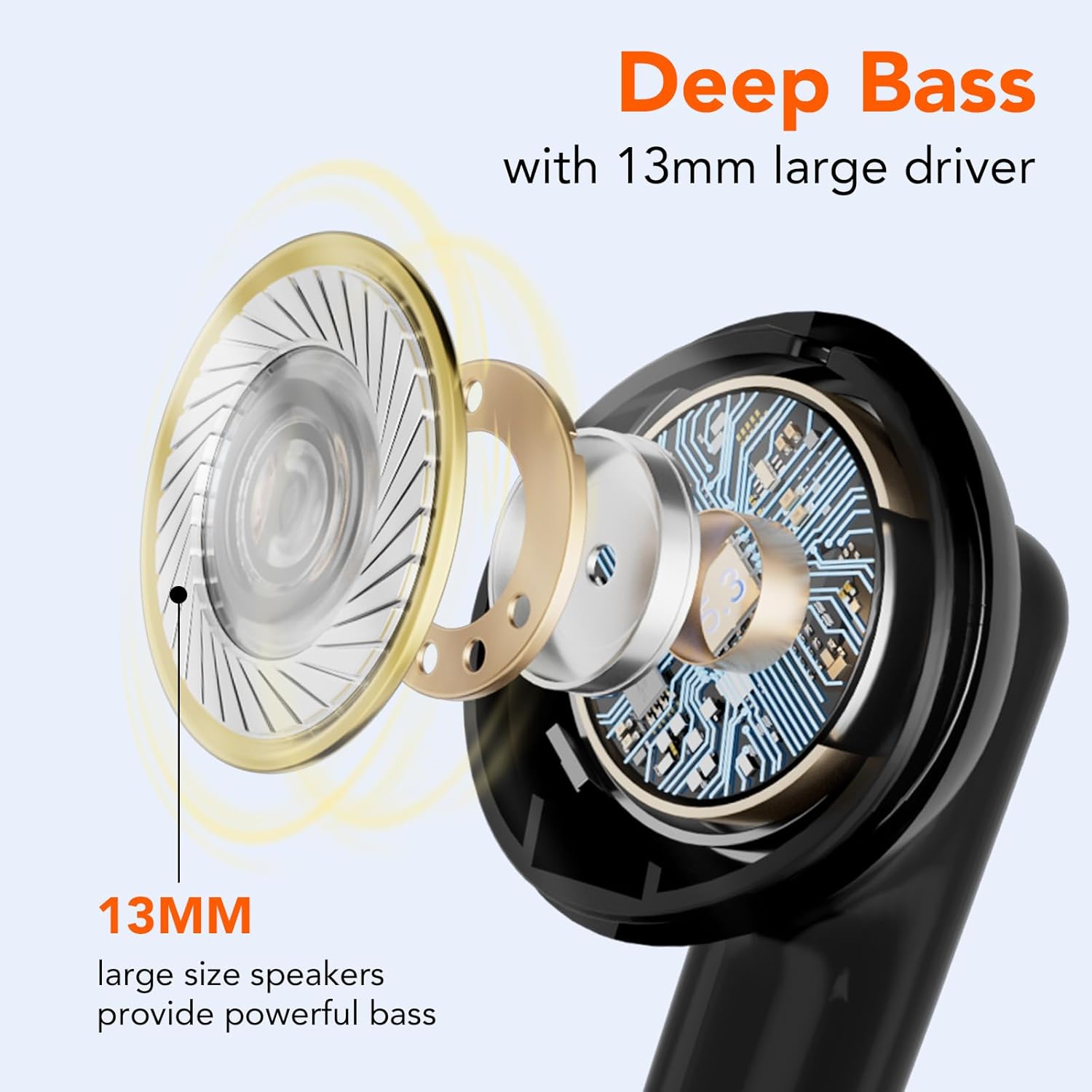

Beeld: 'n Ontplofte view diagram illustrating the 13mm large driver responsible for deep bass in the coioc S25 earbuds.

Onderhoud

• Skoonmaak: Regularly clean the earbuds, especially the eartips and charging contacts, with a dry, soft, lint-free cloth. Do not use harsh chemicals or abrasive materials.
• Waterweerstand: The earbuds are IPX7 waterproof, meaning they are protected against immersion in water up to 1 meter for 30 minutes. They are suitable for sports and workouts where sweat or light rain may occur. However, they are not designed for swimming or prolonged submersion. Ensure the earbuds are dry before placing them back in the charging case.
• Berging: Bêre die oordopjes in hul laaikas wanneer dit nie gebruik word nie om hulle te beskerm en gelaai te hou.
• Temperatuur: Vermy die blootstelling van die oorfone aan uiterste temperature (warm of koud) of hoë humiditeit.

Probleemoplossing

If you encounter any issues with your coioc S25 earbuds, please refer to the following common solutions:

Spesifikasies

Waarborg en Ondersteuning

Specific warranty information for the coioc S25 earbuds is not provided in the product details. For warranty claims, technical support, or any other inquiries, please refer to the contact information provided with your purchase or visit the official coioc webwebwerf.
