Ciays Automatic Pet Feeder (Model CIPS07W-5) Instruction Manual

1. Produk verbyview

The Ciays Automatic Pet Feeder (Model CIPS07W-5) is designed to provide scheduled and portion-controlled meals for your pets. This feeder helps establish consistent feeding routines, supports weight management, and offers convenience for pet owners. It features a 5.6-liter capacity, allowing for multiple days of feeding, and includes a voice recording function to call your pet to meals.

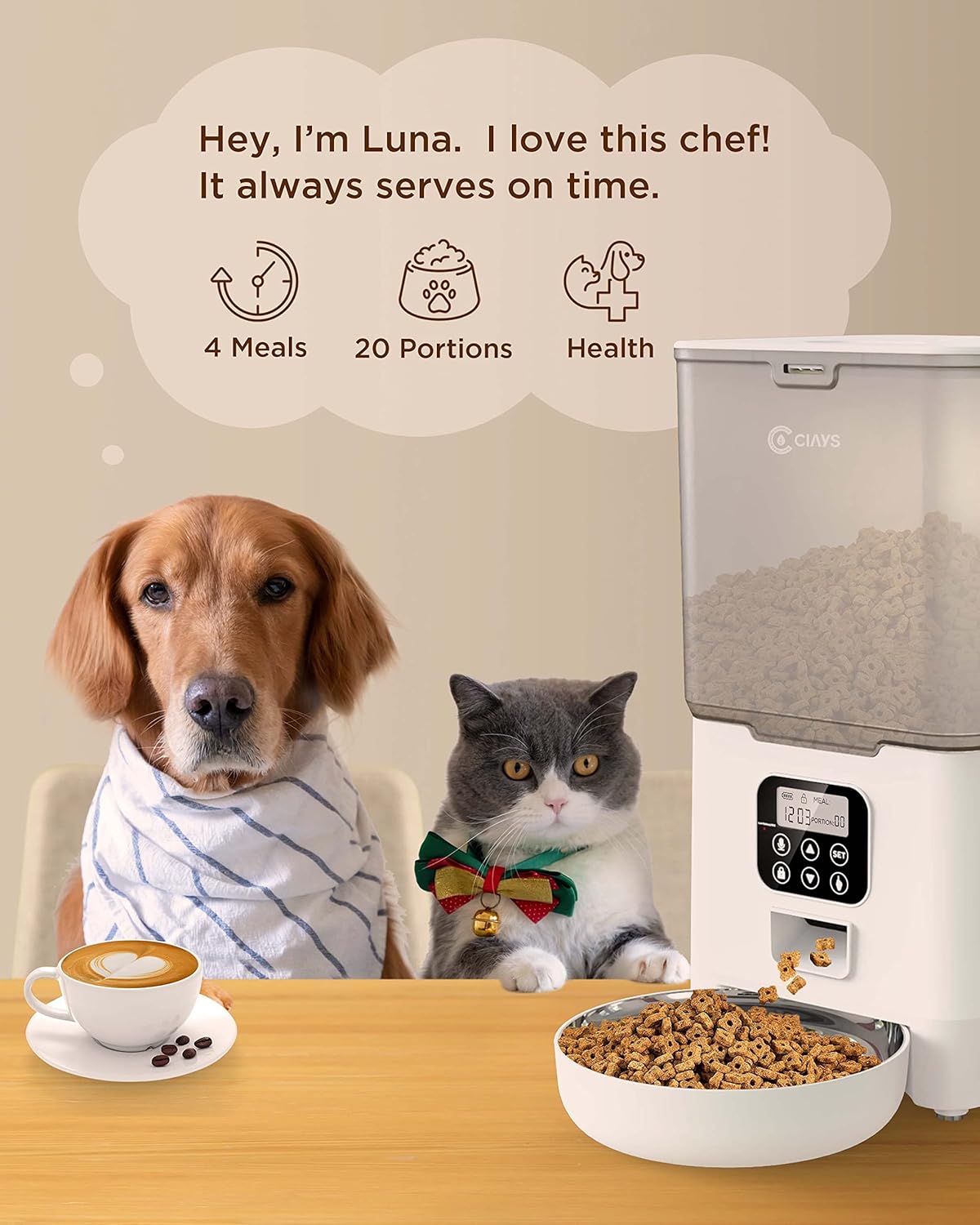

Image 1.1: Ciays Automatic Pet Feeder in use, highlighting its core functionalities.

Sleutel kenmerke:

• Personalized Feeding Schedules: Program up to 4 meals per day with adjustable portions (1-20 portions, approximately 5g per portion).
• Kibble Compatibility: Suitable for dry pet food sizes between 2mm and 10mm.
• Dubbele kragtoevoer: Operates via AC adapter or 3 D-cell batteries (not included) for up to 45 days of backup power.
• Stemopnemer: Record a 10-second personalized message to alert your pet at meal times.
• Veilige ontwerp: Features a lid-locking mechanism to prevent pets from accessing food.
• Maklike skoonmaak: Includes a dishwasher-safe stainless steel food bowl.
• Transparent Food Container: Maak voorsiening vir maklike monitering van voedselvlakke.

2. Produkkomponente

Before setting up your feeder, ensure all components are present and undamaged. The package should contain the following items:

• Outomatiese troeteldiervoereenheid
• Vlekvrye staal kosbak
• Wisselstroomadapter
• USB-kragkabel
• Desiccant Packet
• Gebruikershandleiding (hierdie dokument)

Image 2.1: Contents of the Ciays Automatic Pet Feeder package.

3. Opstelinstruksies

3.1 Uitpak en monteer

1. Verwyder alle komponente versigtig uit die verpakking.
2. Plaas die hoofvoereenheid op 'n plat, stabiele oppervlak.
3. Attach the stainless steel food bowl to the designated slot at the base of the feeder. Ensure it is securely seated.

3.2 Aandryf van die Voerder

The feeder can be powered by an AC adapter or D-cell batteries for backup.

1. AC krag: Connect the USB power cable to the feeder's power port and plug the AC adapter into a standard wall outlet.
2. Battery-rugsteun (opsioneel): Vir rugsteunkrag tydens uittages, open the battery compartment at the bottom of the feeder and insert 3 D-cell batteries (not included), ensuring correct polarity. The feeder will automatically switch to battery power if AC power is interrupted.

Image 3.1: Illustration of the feeder's backup power mode.

3.3 Filling the Food Hopper

1. Open the lid of the food hopper. The lid features a secure locking design.
2. Pour dry pet food into the hopper. Ensure the kibble size is between 2mm and 10mm to prevent dispensing issues.
3. Maak die deksel stewig toe totdat dit in plek klik.
4. Insert the desiccant packet into its designated slot under the lid to help keep food fresh.

4. Bedryfsinstruksies

4.1 Beheerpaneel verbyview

The control panel is located on the front of the feeder. It consists of a display screen and several buttons for programming and manual control.

Beeld 4.1: Beheerpaneel.

• SET -knoppie: Enters programming mode and confirms settings.
• OP/AF-knoppies: Adjust values (time, portions, meal numbers).
• Record Button (Microphone Icon): Records and plays voice messages.
• Manual Feed Button (Paw Icon): Dispenses one portion manually.
• Lock Button (Padlock Icon): Sluit/ontsluit die beheerpaneel.

4.2 Instelling van Huidige Tyd

1. Druk en hou die STEL button for 3 seconds until the hour digit flashes.
2. Gebruik die OP/AF knoppies om die uur aan te pas.
3. Druk STEL to confirm the hour and move to the minute setting.
4. Gebruik die OP/AF knoppies om die minuut aan te pas.
5. Druk STEL to save the current time.

4.3 Programming Meal Schedules

Die voerder ondersteun tot 4 maaltye per dag.

1. Druk die STEL button once to enter meal programming mode. The display will show "Meal 1".
2. Gebruik die OP/AF buttons to select the meal number (1-4) you wish to program.
3. Druk STEL. The hour digit for the selected meal will flash. Adjust the hour using OP/AF knoppies.
4. Druk STEL. The minute digit will flash. Adjust the minute using OP/AF knoppies.
5. Druk STEL. The portion number will flash. Adjust the number of portions (1-20) using OP/AF knoppies.
6. Druk STEL to save the settings for this meal.
7. Repeat steps 2-6 for additional meals. To disable a meal, set its portion to 0.

4.4 Recording a Voice Message

You can record a 10-second voice message that will play at each scheduled meal time.

1. Druk en hou die Record Button (Microphone Icon) vir 3 sekondes totdat jy 'n piep hoor.
2. Speak your message clearly into the microphone. The recording will automatically stop after 10 seconds or when you release the button.
3. To play back the recorded message, press the Opneem-knoppie een keer.

Image 4.2: Using the voice recording feature.

4.5 Handvoeding

To dispense a single portion of food immediately:

1. Ensure the control panel is unlocked (see section 4.6).
2. Druk die Manual Feed Button (Paw Icon) once. One portion of food will be dispensed.

4.6 Locking/Unlocking Control Panel

To prevent accidental changes to settings or manual dispensing, the control panel can be locked.

1. To lock the panel, press and hold the Lock Button (Padlock Icon) for 3 seconds. A lock icon will appear on the display.
2. To unlock the panel, press and hold the Sluit knoppie for 3 seconds again. The lock icon will disappear.

5. Onderhoud

5.1 Skoonmaak van die Voerder

Gereelde skoonmaak verseker higiëne en behoorlike werking van die voerder.

• Vlekvrye staal bak: The stainless steel food bowl is dishwasher safe for easy cleaning. Alternatively, wash it by hand with mild soap and water, then rinse thoroughly and dry.
• Hoofvoereenheid: Wipe the exterior of the feeder with a soft, damp cloth. Do not submerge the main unit in water or wash it in a dishwasher, as this can damage electronic components.
• Food Hopper: Periodically empty the food hopper and wipe the interior with a dry cloth to remove any food residue.

Image 5.1: Dishwasher-safe stainless steel bowl.

5.2 Refilling Food

Monitor the transparent food container regularly. When the food level is low, refill the hopper following the steps in Section 3.3.

5.3 Vervanging van Droogmiddel

The desiccant packet helps keep the dry food fresh. Replace it every 1-2 months, or as needed, especially in humid environments.

Image 5.2: Desiccant packet in the lid compartment.

6. Probleemoplossing

If you encounter issues with your Ciays Automatic Pet Feeder, refer to the following common problems and solutions:

7. Spesifikasies
