ANSMANN Rechargeable LED Bicycle Headlight 1600-0524 User Manual

1. Inleiding

Thank you for choosing the ANSMANN Rechargeable LED Bicycle Headlight. This manual provides essential information for the safe and efficient use of your new bicycle light. Please read these instructions carefully before installation and operation, and keep them for future reference.

This powerful LED headlight features two light modes, a robust design, and a range of up to 200 meters, ensuring optimal visibility and safety during your rides. It complies with the strict standards of German road traffic law for glare-free illumination.

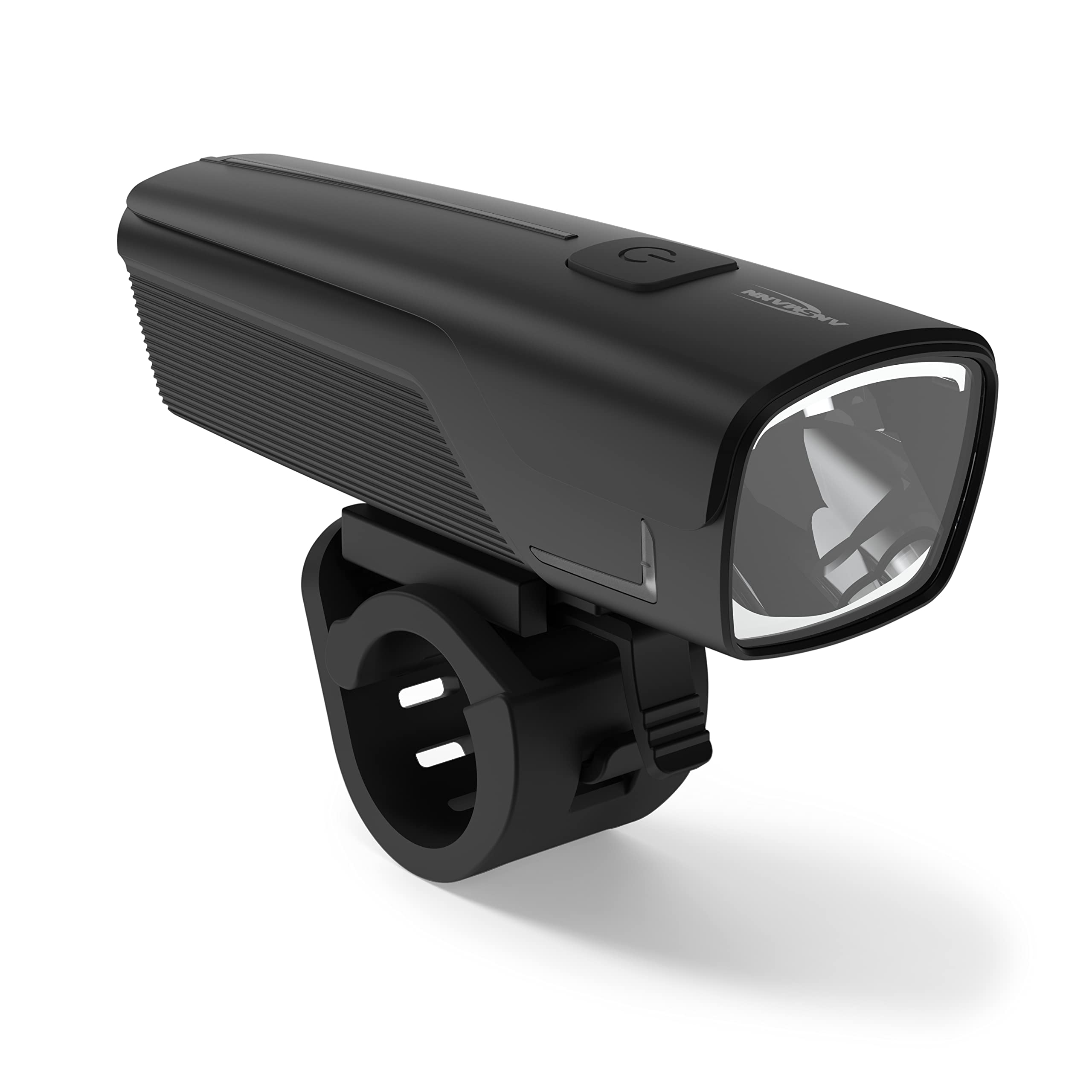

Image: The ANSMANN Rechargeable LED Bicycle Headlight with its included mounting bracket.

2. Veiligheidsinstruksies

• Do not look directly into the light beam: The LED light is very bright and can cause temporary vision impairment or eye damage.
• Veilige montering: Always ensure the headlight is securely mounted to your bicycle handlebar to prevent it from falling off during rides.
• Road traffic regulations: Ensure the headlight is positioned and adjusted according to local road traffic regulations to avoid dazzling other road users.
• Water weerstand: The light is water-repellent (IPX5 rated), but avoid submerging it in water.
• Kinders: Hou die toestel buite bereik van kinders.
• Battery veiligheid: Do not attempt to open or replace the integrated Li-Ion battery. Dispose of the product responsibly at the end of its life.

3. Pakketinhoud

Kontroleer asseblief dat alle items in die pakket teenwoordig is:

• 1x ANSMANN 50 Lux LED Bicycle Headlight
• 1x Mounting System (Handlebar Mount)
• 1x USB-laaikabel
• 1x Gebruikershandleiding

4. Opstelling en installering

The ANSMANN Bicycle Headlight is designed for easy, tool-free installation on all types of bicycles, including city bikes, mountain bikes, and children's bikes.

1. Heg die monteerbeugel aan: Secure the universal mounting bracket to your bicycle handlebar. The clip-technology allows for quick attachment without tools. Ensure it is firmly attached and does not obstruct your view of beheer oor die fiets.
2. Insert the Headlight: Slide the headlight onto the mounting bracket until it clicks securely into place.
3. Pas die hoek aan: Adjust the angle of the headlight to illuminate the road ahead without dazzling oncoming traffic. The switch should remain easily accessible.

Image: The headlight being easily attached to a bicycle handlebar, demonstrating tool-free installation.

Image: A diagram illustrating the universal mounting system, suitable for various bicycle types.

5. Bedryfsinstruksies

The ANSMANN LED Bicycle Headlight features two light settings and an intelligent light sensor for optimal illumination.

• Krag aan/af: Press and hold the power button located on top of the headlight for approximately 2 seconds to turn the light on or off.
• Skakel ligmodusse: Briefly press the power button to cycle between the two available light modes (e.g., High brightness, Low brightness). The maximum light output is 180 Lumens.
• Slim ligsensor: The integrated smart chip automatically detects ambient light conditions and adjusts the brightness accordingly. For example, the bicycle light will dim when encountering oncoming vehicles to prevent dazzling.

Image: The headlight providing bright illumination during a night ride, highlighting its performance.

Image: A visual representation of the smart light sensor automatically adjusting the light intensity based on ambient conditions.

6. Laai die battery

The headlight is equipped with an integrated 2600 mAh Li-Ion battery, providing up to 9 hours of continuous illumination. The light can be easily recharged via USB.

• Laai aanwyser: An LED display allows you to check the remaining charge. When the LED turns red, it indicates that the battery level is low and the device needs to be recharged.
• Laai proses: Connect the supplied USB charging cable to the headlight's charging port and to a suitable USB power source (e.g., USB charger, smartphone charger, laptop, or power bank).
• Laai tyd: Charging time may vary depending on the power source. Ensure the light is fully charged before long rides.

Image: The ANSMANN headlight being charged via a USB cable, illustrating its integrated rechargeable battery.

7. Onderhoud

• Skoonmaak: Clean the headlight with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the housing or lens.
• Berging: When not in use for extended periods, store the headlight in a cool, dry place. It is recommended to charge the battery every 3-6 months to maintain its lifespan.
• Waterweerstand: The IPX5 rating means the device is protected against low-pressure water jets from any direction. Do not immerse the light in water. Ensure the USB charging port cover is securely closed when not charging to maintain water resistance.

8. Probleemoplossing

9. Spesifikasies

10. Waarborg en Ondersteuning

ANSMANN provides a warranty for this product. Please refer to the warranty card included in your package or visit the official ANSMANN website for detailed warranty terms and conditions. The product comes with a 3-year warranty (as per "Garantie-omschrijving: 3").

For technical support, troubleshooting assistance, or spare parts, please contact ANSMANN customer service through their official webwebwerf of die kontakinligting wat in u produkverpakking verskaf word.

Webwebwerf: www.ansmann.de
