Franke FJO 624 XS 60cm Chimney Hood Instruction Manual

Inleiding

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Franke FJO 624 XS 60cm Chimney Hood. Please read these instructions carefully before use and retain them for future reference.

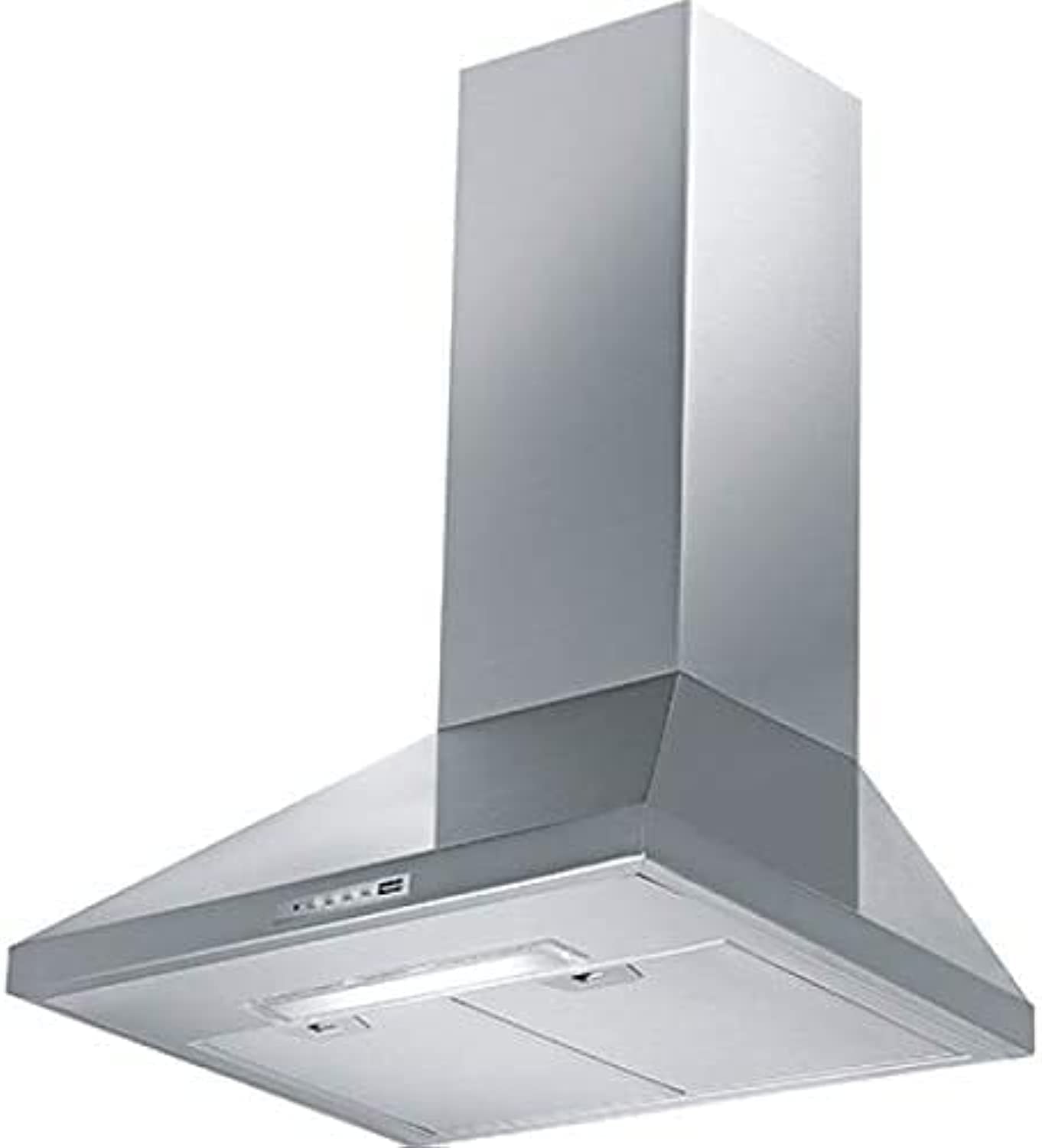

Beeld 1: Voorkant view of the Franke FJO 624 XS 60cm Chimney Hood. This stainless steel appliance is designed for wall mounting above a cooking surface.

Veiligheidsinligting

Volg altyd basiese veiligheidsmaatreëls wanneer u elektriese toestelle gebruik om die risiko van brand, elektriese skok en beserings te verminder.

• Maak seker dat die elektriese installasie aan plaaslike regulasies voldoen.
• Moenie toelaat dat kinders die toestel gebruik nie.
• Maak gereeld vetfilters skoon om brandgevare te voorkom.
• Moenie onder die afzuigkap flambeer nie.
• Verseker voldoende ventilasie in die vertrek wanneer die afzuigkap gelyktydig met gas- of ander brandstofverbrandende toestelle gebruik word.
• Ontkoppel die toestel van die hoofkragtoevoer voor enige skoonmaak of onderhoud.
• Do not use the hood if the power cord is damaged. Contact qualified personnel for repair.

Opstelling en installasie

The Franke FJO 624 XS is a wall-mounted canopy hood. Proper installation is crucial for optimal performance and safety.

Afmetings en opruiming

Refer to the following dimensions for installation planning:

• Overall Product Dimensions (Depth x Width x Height): 47 cm x 60 cm x 100 cm
• Basis breedte: 598-898 mm
• Base Depth: 471 mm
• Hoofliggaamshoogte: 200 mm
• Filter Minimum Height: 515 mm
• Filter Maximum Height: 795 mm
• Aspiration Minimum Height: 420 mm
• Aspiration Maximum Height: 795 mm
• Chimney Section Width (top): 126 mm
• Chimney Section Depth (top): 81 mm
• Chimney Section Height (top part): 169 mm
• Chimney Section Depth (lower part): 167 mm
• Ducting Outlet Height: 402 mm (from top of main body)
• Hood Edge Thickness: 25.5 mm

• Montage tipe: Muur berg.
• Aanbevole hoogte: Ensure the hood is installed at the recommended distance above the cooking surface as per local safety regulations and the appliance manual (typically 65-75 cm for electric hobs and 75-85 cm for gas hobs).
• Leiding: This model supports ducted/vented operation. Connect the exhaust outlet to an external ventilation system using appropriate ducting.

Installasiestappe (Algemeen)

1. Merk die boorpunte op die muur volgens die verskafde sjabloon of afmetings.
2. Boor gate en sit muurproppe in.
3. Bevestig die monteerbeugel aan die muur.
4. Mount the hood body onto the bracket.
5. Connect the ducting to the exhaust outlet.
6. Install the chimney sections, ensuring they are securely fastened.
7. Koppel die toestel aan die hoofkragbron.

Bedryfsinstruksies

The Franke FJO 624 XS chimney hood features push-button controls for easy operation.

Beheerpaneel

The control panel is located on the front of the hood and consists of push buttons for various functions.

• Krag aan/af: Press the main power button to turn the hood on or off.
• Spoedkeuse: The hood has 3 speed settings. Press the corresponding button (1, 2, or 3) to select the desired extraction power.
  • Spoed 1: Low extraction for light cooking.
  • Spoed 2: Medium extraction for general cooking.
  • Spoed 3: High extraction for intense cooking or strong odors.
• Ligbeheer: Press the light button to turn the LED lights on or off. The hood is equipped with 2x4W LED lights.

For best results, turn on the hood a few minutes before cooking and leave it running for a few minutes after cooking to clear residual fumes.

Onderhoud

Regular maintenance ensures the longevity and optimal performance of your chimney hood.

Maak die vetfilters skoon

The hood is equipped with mesh filters designed to trap grease particles. These filters should be cleaned regularly, typically every 2-4 weeks depending on usage.

1. Ontkoppel krag: Always switch off and unplug the hood from the power supply before cleaning.
2. Verwyder filters: Locate the filter release catches and carefully remove the mesh filters.
3. Maak filters skoon: Wash the filters by hand in hot soapy water or in a dishwasher on a low-temperature cycle. Avoid using abrasive detergents.
4. Droog en herinstalleer: Maak seker dat die filters heeltemal droog is voordat jy hulle weer installeer.

Skoonmaak van die buitekant

Clean the stainless steel exterior with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads that can scratch the surface.

Replacing Lights

If a light bulb needs replacement, ensure the hood is disconnected from power. Replace with a bulb of the same type and wattage (2x4W LED).

Probleemoplossing

Voordat u kliëntediens kontak, verwys na die volgende algemene probleme en oplossings:

Spesifikasies

Detailed technical specifications for the Franke FJO 624 XS Chimney Hood:

Waarborg en Ondersteuning

For warranty information, please refer to the documentation provided with your purchase or contact Franke customer support. Keep your proof of purchase for any warranty claims.

For technical assistance, spare parts, or service, please contact your local Franke service center or authorized dealer. You may need to provide the model number (FJO 624 XS) and part number (320.0545.169) when seeking support.

You can find more information on the official Franke webwebwerf: www.franke.com
