GGM Gastro FRSF2GT13 Dry Aging Meat Ripening Cabinet User Manual

1. Inleiding en oorview

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your GGM Gastro FRSF2GT13 Dry Aging Meat Ripening Cabinet. This professional-grade cabinet is designed for dry aging meat, creating an optimal environment for flavor development and minimal weight loss during the ripening process. It features two glass doors, a digitally controlled thermostat, and precise humidity display. The cabinet is constructed from high-quality AISI 304 stainless steel, ensuring durability and hygiene.

The integrated crystal salt stones in the base contribute to a unique salt cave climate, enhancing the meat's intense, ripe flavor.

2. Veiligheidsinstruksies

Please read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in injury or damage to the unit.

• Maak seker dat die toestel behoorlik geaard is en aan 'n geskikte kragtoevoer gekoppel is.
• Do not operate the cabinet with a damaged power cord or plug.
• Keep the area around the cabinet clear to ensure proper ventilation.
• Moenie ventilasie-openinge blokkeer nie.
• Slegs gekwalifiseerde personeel moet onderhoud of herstelwerk uitvoer.
• Always disconnect the power supply before cleaning or performing any maintenance.
• This appliance is designed for professional use and must be operated in accordance with hygiene and safety guidelines.
• The materials used comply with European food standards, and the article bears the CE mark.

3. Opstelling en installering

Proper installation is crucial for the performance and longevity of your dry aging cabinet.

1. Uitpak: Carefully remove all packaging materials. Inspect the cabinet for any shipping damage. Report any damage immediately to your supplier.
2. Plasing: Position the cabinet on a stable, level surface capable of supporting its weight when fully loaded. Ensure there is adequate space around the unit for air circulation, especially at the rear and sides, to allow for proper heat dissipation. Avoid direct sunlight or proximity to heat sources.
3. Nivellering: Use the adjustable feet at the bottom of the cabinet to ensure it is perfectly level. This is important for door alignment and proper drainage.
4. Elektriese verbinding: Connect the cabinet to a dedicated, grounded electrical outlet that matches the voltage and frequency specifications listed on the product label. Do not use extension cords.
5. Aanvanklike skoonmaak: Before first use, clean the interior and exterior of the cabinet with a mild detergent and warm water. Rinse thoroughly and dry completely.

Prent 3.1: Voorkant view of the GGM Gastro FRSF2GT13 Dry Aging Cabinet, illustrating its dimensions: 2150mm height, 1000mm width, and 695mm depth. The cabinet features two glass doors and a digital display at the bottom.

4. Bedryfsinstruksies

Follow these steps for optimal dry aging results.

1. Krag aan: After installation and initial cleaning, plug in the cabinet. The digital display will illuminate.
2. Temperatuurinstelling: Use the digital thermostat controls to set the desired internal temperature. The display provides a precise reading of the current internal temperature. Refer to your specific dry aging recipes for recommended temperature ranges.
3. Humiditeitsbeheer: The cabinet features a digital display for accurate humidity monitoring. Adjust humidity settings as required for your dry aging process. The crystal salt stones in the base naturally contribute to the internal climate.
4. Loading Meat: Hang larger cuts of meat using the provided hooks or place smaller cuts on the shelves. Ensure proper air circulation around each piece of meat. Avoid overcrowding the cabinet.
5. Monitering: Regularly check the temperature and humidity displays to ensure conditions remain stable. The two glass doors allow for visual inspection without opening the cabinet, minimizing temperature and humidity fluctuations.
6. Dry Aging Process: The cabinet is designed to facilitate the dry aging process, which typically involves specific temperature and humidity levels over an extended period to tenderize meat and develop complex flavors.

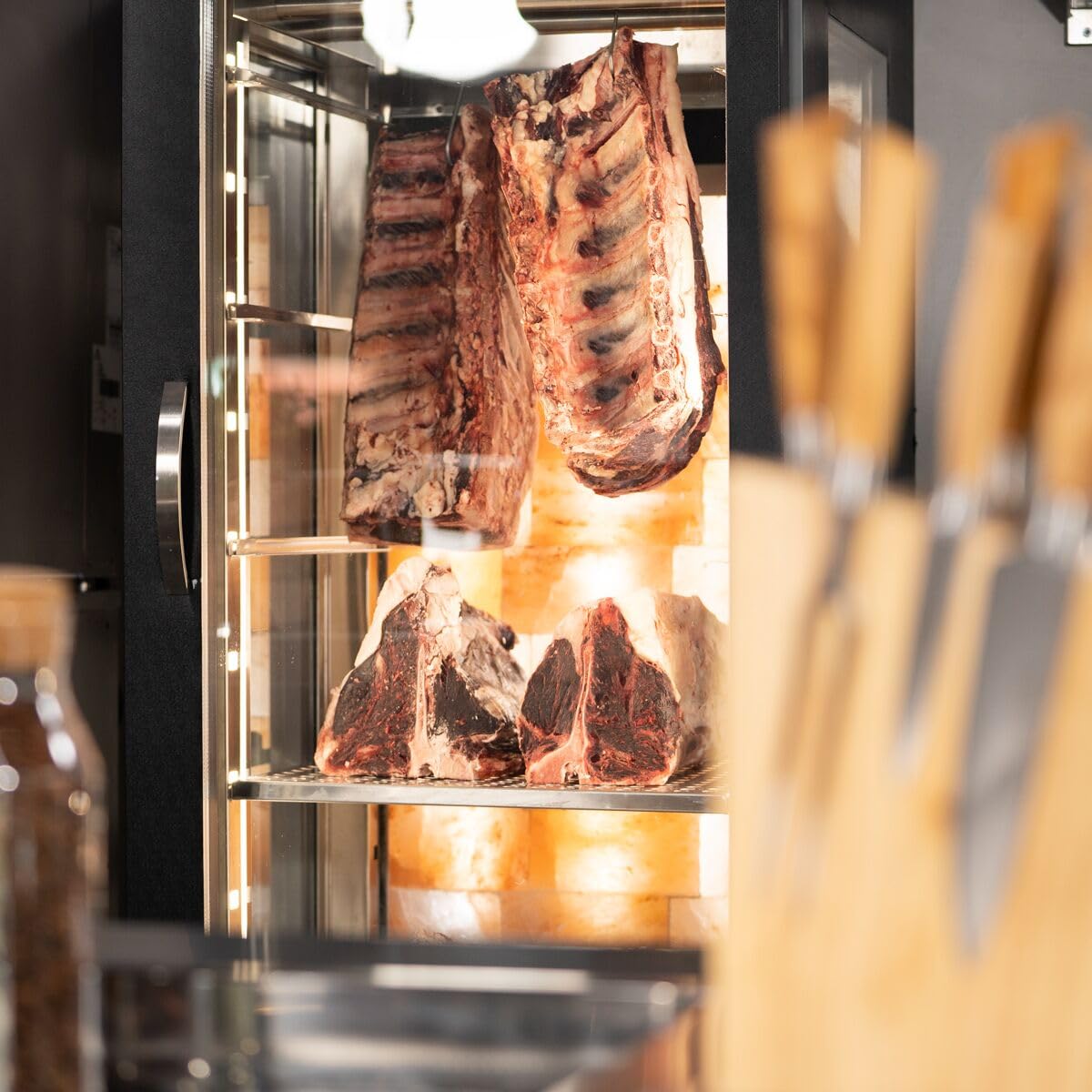

Prent 4.1: Binne view of the dry aging cabinet, showing large cuts of meat hanging from hooks and smaller cuts placed on wire shelves. The crystal salt stones are visible at the back, contributing to the aging environment.

Prent 4.2: A close-up shot inside the dry aging cabinet, focusing on a large cut of meat hanging from a hook. The stainless steel interior and the salt stone wall are clearly visible.

5. Onderhoud

Regular maintenance ensures the longevity and hygienic operation of your dry aging cabinet.

• Daaglikse skoonmaak: Wipe down the interior and exterior surfaces, including the glass doors, with a soft cloth and a mild, food-safe cleaning solution.
• Weeklikse skoonmaak: Remove shelves and hooks for thorough cleaning. Clean the interior walls and floor. Ensure all surfaces are dry before reassembling.
• Salt Stone Care: The crystal salt stones are self-cleaning to a degree due to their natural properties. However, periodically inspect them for any buildup or damage. Do not use harsh chemicals on the salt stones.
• Skoonmaak van kondensorspoel: Periodically clean the condenser coils (located at the rear or bottom of the unit) to ensure efficient cooling. Disconnect power before cleaning. Use a brush or vacuum cleaner to remove dust and debris.
• Deurpakkings: Inspect door gaskets regularly for wear and tear. Clean them to ensure a tight seal, which is crucial for maintaining internal temperature and humidity.
• Professionele diens: Schedule periodic professional servicing to check refrigerant levels, electrical components, and overall system performance.

6. Probleemoplossing

Voordat u die diens kontak, kyk asseblief na die volgende algemene probleme:

If the problem persists after attempting these solutions, please contact GGM Gastro customer support or a qualified service technician.

7. Spesifikasies

8. Waarborg en Ondersteuning

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official GGM Gastro website. Keep your purchase receipt and model number (FRSF2GT13) handy when contacting support.
