GGM Gastro EMH15 Ice Cream Machine User Manual

1. Inleiding

Thank you for choosing the GGM Gastro EMH15 Ice Cream Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read these instructions thoroughly before first use and keep them for future reference.

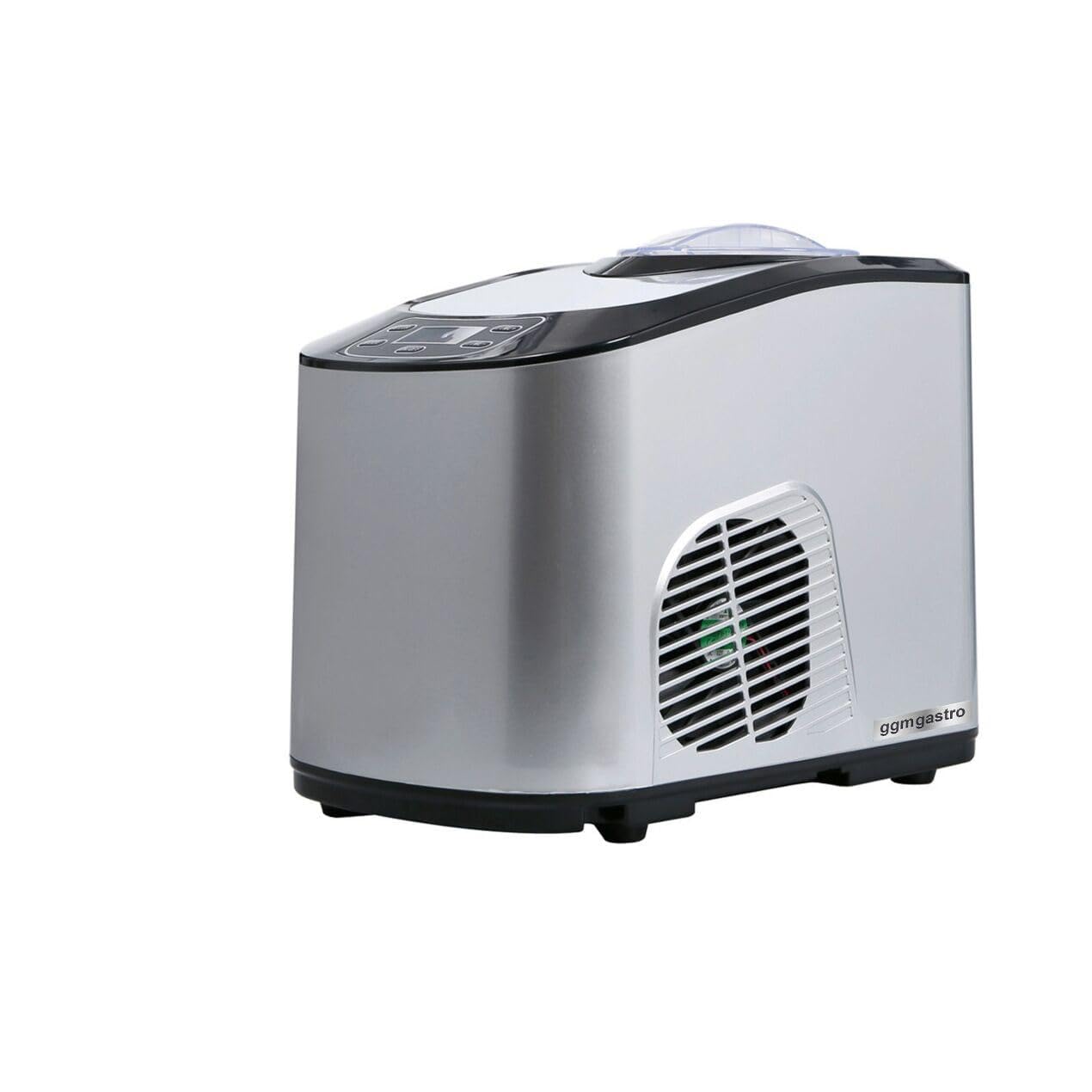

The GGM Gastro EMH15 is a compact tabletop ice cream maker designed for preparing soft ice cream, fruit sorbets, and milk ice cream. It features a digital display for easy control and a removable container for convenient cleaning.

2. Veiligheidsinstruksies

Om beserings of skade aan die toestel te voorkom, moet u altyd die volgende veiligheidsmaatreëls in ag neem:

• Elektriese veiligheid: Maak seker dat die kragtoevoer ooreenstem met die voltage specified on the appliance (230V, 50Hz). Do not operate the machine with a damaged power cord or plug. Always unplug the machine before cleaning or maintenance.
• Plasing: Place the machine on a stable, level, and dry surface. Ensure adequate ventilation around the unit, especially near the air vents, to prevent overheating. Do not place near heat sources or in direct sunlight.
• koelmiddel: This appliance contains R600a refrigerant. Handle with care. Do not damage the refrigerant circuit. In case of damage, avoid open flames and ventilate the room thoroughly.
• Gebruik: This appliance is intended for household or similar applications. Do not use outdoors. Do not immerse the main unit in water or other liquids.
• Kinders: Hou die toestel buite bereik van kinders. Noukeurige toesig is nodig wanneer die toestel naby kinders gebruik word.
• Onderhoud: Only qualified personnel should perform repairs. Do not attempt to disassemble or modify the appliance yourself.

3. Produk verbyview

Familiarize yourself with the components of your GGM Gastro EMH15 Ice Cream Machine.

Sleutelkomponente:

• Hoof Eenheid: Houses the motor and cooling system.
• Digitale skerm: Shows operating mode and time.
• Beheerknoppies: MODE, TIME, ON/OFF for operation.
• Verwyderbare houer: The inner bowl where ingredients are frozen. Capacity: 1.5 Liters.
• Mengpeddel: Stirring mechanism for consistent freezing.
• Deursigtige deksel: Allows observation of the freezing process.

4. Opstelling

Follow these steps to prepare your ice cream machine for first use:

1. Pak uit: Verwyder alle verpakkingsmateriaal versigtig en maak seker dat alle komponente teenwoordig en onbeskadig is.
2. Aanvanklike skoonmaak: Before first use, wash the removable container, mixing paddle, and lid with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp lap.
3. Plasing: Place the machine on a clean, dry, stable, and level surface. Ensure there is at least 10 cm of space around the machine for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
4. Vergadering: Insert the clean, dry removable container into the main unit. Place the mixing paddle inside the container, ensuring it is correctly seated. Secure the transparent lid on top of the unit.
5. Kragverbinding: Plug the power cord into a grounded electrical outlet (230V, 50Hz). The digital display should illuminate.

5. Bedryfsinstruksies

This section guides you through the process of making ice cream with your EMH15 machine.

Voorbereiding:

• Prepare your desired ice cream mixture according to your recipe. Ensure the mixture is chilled (refrigerated) before adding it to the machine for best results.
• Do not exceed the maximum fill line of 1.5 liters in the removable container, as the mixture will expand during freezing.

Operasie:

1. Ensure the machine is properly assembled and plugged in.
2. Pour the chilled ice cream mixture into the removable container.
3. Press the 'ON/OFF' button to turn on the machine.
4. Use the 'MODE' button to select the desired operating mode (e.g., Ice Cream, Cooling, Mixing). The digital display will show the selected mode.
5. Use the 'TIME' button to adjust the operating time. The recommended time for most ice cream recipes is typically 30-60 minutes, but this may vary.
6. Press 'ON/OFF' again to start the freezing process. The mixing paddle will begin to rotate, and the cooling system will activate.
7. Monitor the consistency of the ice cream through the transparent lid. Once the desired consistency is reached, press 'ON/OFF' to stop the machine.
8. Koppel die masjien uit die kragaansluiting.
9. Carefully remove the lid, mixing paddle, and the removable container with the finished ice cream.

6. Skoonmaak en Onderhoud

Regular cleaning ensures optimal performance and extends the lifespan of your ice cream machine.

1. Ontkoppel krag: Ontkoppel altyd die masjien van die kragtoevoer voordat u dit skoonmaak.
2. Demonteer: Remove the lid, mixing paddle, and the removable container from the main unit.
3. Was verwyderbare dele: Wash the removable container, mixing paddle, and lid with warm water and a mild dish soap. Use a soft sponge or cloth. Rinse thoroughly to remove all soap residue.
4. Maak hoofeenheid skoon: Vee die buitekant van die hoofeenheid af met advertensiemateriaal.amp lap. Moenie skuurmiddels of skuurmiddels gebruik nie. Moet nooit die hoofeenheid in water of enige ander vloeistof dompel nie.
5. Droog deeglik: Ensure all parts are completely dry before reassembling or storing the machine. Moisture can lead to damage or mold growth.
6. Berging: Store the machine in a clean, dry place, away from direct sunlight and extreme temperatures.

7. Probleemoplossing

If you encounter issues with your GGM Gastro EMH15, refer to the following common problems and solutions:

• Masjien skakel nie aan nie:
  • Kontroleer of die kragkabel stewig in 'n werkende elektriese aansluiting ingeprop is.
  • Ensure the 'ON/OFF' button has been pressed.
• Ice cream is not freezing or is too soft:
  • Ensure the ingredients were thoroughly chilled before adding them to the machine.
  • Check if the ambient room temperature is too high. Operate in a cooler environment if possible.
  • Verify that the machine's air vents are not blocked, allowing for proper cooling.
  • Increase the operating time using the 'TIME' button.
  • Ensure the mixture quantity does not exceed the 1.5-liter maximum capacity.
• Mixing paddle is not rotating:
  • Check if the mixing paddle is correctly installed.
  • Ensure the ice cream mixture is not too thick, which can impede rotation.
• Ongewone geluide tydens werking:
  • Maak seker dat die masjien op 'n stabiele, gelyk oppervlak is.
  • Check if all parts are correctly assembled.

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief GGM Gastro-kliëntediens.

8. Tegniese spesifikasies

9. Waarborg en Ondersteuning

For warranty information, technical support, or spare parts, please contact GGM Gastro customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Please have your model number (EMH15) and purchase date ready when contacting support.
