YONGNUO YN100 Soft LED Video Light Instruction Manual

Inleiding

This manual provides detailed instructions for the safe and effective operation of your YONGNUO YN100 Soft LED Video Light. Please read this manual thoroughly before using the product and retain it for future reference.

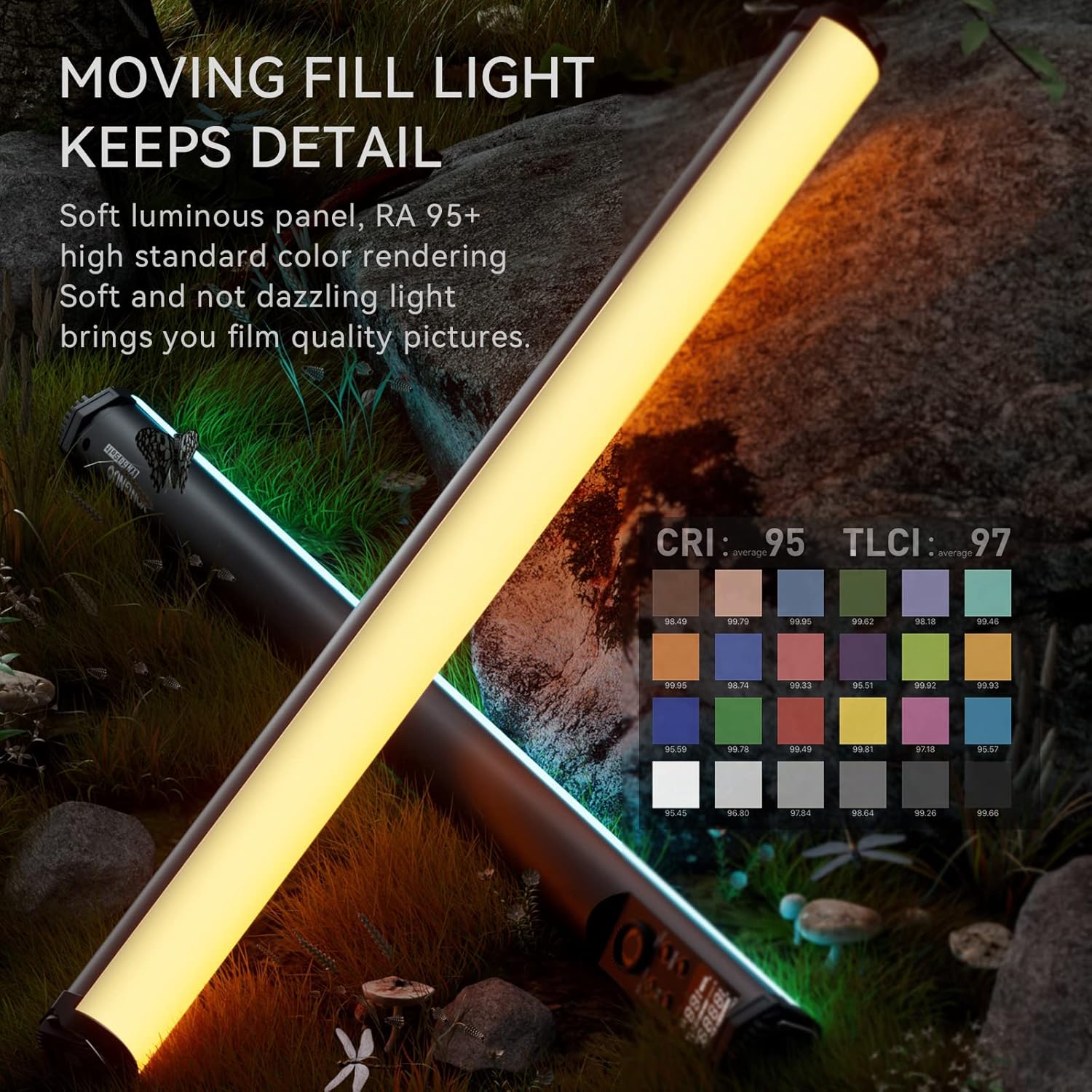

The YN100 Soft LED Video Light is a versatile 39-inch handheld wand light designed for professional video and photography. It features a wide color temperature range from 2000K to 10000K, full RGB color control, and 31 special scene effects. With a high CRI of 95+, it ensures accurate color reproduction. The light supports APP remote control for convenient adjustments and includes a built-in battery for portable use.

Beeld: Oorview of the YN100 Soft LED Video Light's main features.

Veiligheidsinligting

• Do not disassemble or modify the product. Unauthorized modifications may cause damage or injury.
• Keep the product away from water and other liquids. Do not operate with wet hands.
• Verseker behoorlike ventilasie tydens gebruik om oorverhitting te voorkom.
• Use only the specified power adapter (DC 19V/3A) for charging and continuous power.
• Avoid direct eye exposure to the light source, as it may cause discomfort or vision impairment.
• Berg die produk op 'n droë, koel plek wanneer dit nie gebruik word nie.

Pakketinhoud

Kontroleer asseblief die inhoud van die pakkie na opening om seker te maak dat alle items teenwoordig is:

• 1 x YN100 Soft RGB Ice Light
• 1 x 19V3A Power AC Adapter
• 1 x Tube Clip Bracket
• 1 x Drasak
• 1 x User Manual (English & Chinese)

Image: Included accessories with the YN100 Soft LED Video Light.

Produk verbyview

The YN100 Soft LED Video Light features an intuitive design for ease of use. Key components include the light tube, control panel with LCD screen, and mounting points.

Image: LCD screen and control interface of the YN100 Soft LED Video Light.

Beheerpaneel funksies:

• LCD skerm: Displays real-time data including channel, color temperature, intensity, and battery capacity.
• Kieslys-knoppie: Kry toegang tot verskeie instellings en opsies.
• Cold/Warm Light Button: Toggles between CCT mode and RGB mode.
• Intensity Adjustment Knob: Rotates to adjust brightness, color temperature, or other parameters. Press to confirm selections.
• FX-knoppie: Activates special effects modes.
• Skakel knoppie: Skakel die toestel aan/af.

Opstelling

1. Laai die battery:

The YN100 Soft LED Video Light has a built-in 7.2V, 2600mAh battery. To charge, connect the provided 19V/3A power AC adapter to the light's DC input port and then to a power outlet. The battery indicator on the LCD screen will show charging status. A full charge provides over 2 hours of continuous use at full power.

2. Montering van die Lig:

Use the included tube clip bracket to mount the light onto a light stand or other compatible support. The flexible design allows for various lighting angles and positions.

Bedryfsinstruksies

1. Skakel aan/af:

Druk en hou die Skakel knoppie on the control panel to power the light on or off.

2. Adjusting Color Temperature (CCT Mode):

In CCT mode, rotate the Intensity Adjustment Knob to change the color temperature from 2000K (warm) to 10000K (cool). Press the knob to confirm. The LCD screen will display the current color temperature.

Image: Adjusting color temperature in CCT mode.

3. RGB Full Color Adjustment:

Druk die Cold/Warm Light Button to switch to RGB mode. Use the Intensity Adjustment Knob to cycle through hue, saturation, and intensity settings. Rotate the knob to adjust each parameter and press to confirm.

4. Special Effects Modes (FX):

Druk die FX-knoppie to access the 31 built-in special effect modes. Rotate the Intensity Adjustment Knob to select an effect (e.g., lightning, police car, candlelight) and press to activate. Adjust parameters of the effect as needed using the knob.

Beeld: Bvamples of the 31 special effect modes.

5. APP Remote Control:

Download the YONGNUO APP from your device's app store (iOS or Android). Enable Bluetooth on your mobile device and open the APP. The APP will automatically detect the YN100 Soft LED Video Light. You can then control all functions, including color temperature, RGB, intensity, and special effects, directly from your smartphone. The effective control distance is up to 15 meters.

Image: Controlling the light via the YONGNUO mobile application.

6. Multi-Light Interconnection:

The YN100 Soft LED Video Light supports 256 channels for multi-light interconnection. This allows you to control multiple YN100 lights simultaneously or in groups using the YONGNUO APP. Refer to the APP's instructions for detailed setup of multi-light control.

Onderhoud

• Skoonmaak: Use a soft, dry cloth to clean the light's surface. Do not use abrasive cleaners or solvents.
• Berging: When not in use for extended periods, store the light in its carry bag in a cool, dry place. Ensure the battery is partially charged (around 50%) before storage to prolong its lifespan.
• Batterysorg: Avoid fully discharging the battery frequently. Recharge the battery regularly, even if not in use, to maintain battery health.

Probleemoplossing

• Lig gaan nie aan nie:
  • Kyk of die battery gelaai is.
  • Ensure the power adapter is correctly connected if using external power.
  • Verify the power button is pressed and held sufficiently.
• APP koppel nie:
  • Maak seker dat Bluetooth op jou mobiele toestel geaktiveer is.
  • Make sure the light is powered on.
  • Restart the YONGNUO APP and try reconnecting.
  • Ensure your mobile device is within the 15-meter control range.
• Light flickering or unstable output:
  • Kontroleer vir lae battery.
  • Ensure the power adapter connection is stable.
  • Vermy sterk elektromagnetiese interferensiebronne.

Spesifikasies

Amptelike Produkvideo

Waarborg en Ondersteuning

Waarborg:

This YONGNUO YN100 Soft LED Video Light comes with a 1 jaar waarborg from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, unauthorized modification, or improper storage.

Kliëntediens:

For technical support, troubleshooting assistance, or warranty inquiries, please contact YONGNUO customer service. Refer to the official YONGNUO webwebwerf vir die mees onlangse kontakinligting.

YONGNUO Official Webwebwerf: www.yongnuo.com.cn
