QearFun Dinosaur Bluetooth Headphones AH-906R User Manual

Inleiding

The QearFun Dinosaur Bluetooth Headphones AH-906R are designed to provide a safe and enjoyable audio experience for children. These headphones feature an 85dB volume limit to protect young ears, versatile connectivity options including Bluetooth 5.2 and a 3.5mm wired mode, and a built-in microphone for clear communication. Their foldable design and comfortable ear pads make them suitable for extended use at school, during travel, or at home.

Sleutel kenmerke

• 85dB Hearing Protection: Engineered with a strict 85dB volume limit to safeguard sensitive young ears.
• Ingeboude mikrofoon: Ensures crystal-clear voice transmission for online classes, video calls, and gaming.
• 3-in-1 Play Modes: Supports Bluetooth 5.2 wireless connection, 3.5mm wired audio, and TF memory card playback (card not included).
• Stable Bluetooth 5.2: Provides a reliable and fast wireless connection.
• Heeldagse gemak: Features pillow-soft, skin-friendly ear pads and an adjustable headband for a pressure-free fit.
• Fold-and-Go Design: Lightweight and foldable for easy portability and storage in backpacks.
• Vinnige laai: Vinnige laaivermoë vir minimale stilstandtyd.

Wat is in die boks

• QearFun Dinosaur Bluetooth Headphones (AH-906R)
• 3.5 mm oudio kabel
• USB-laaikabel
• Gebruikershandleiding
• Bonus Dinosaur Toys (4 pieces, dispatched randomly)

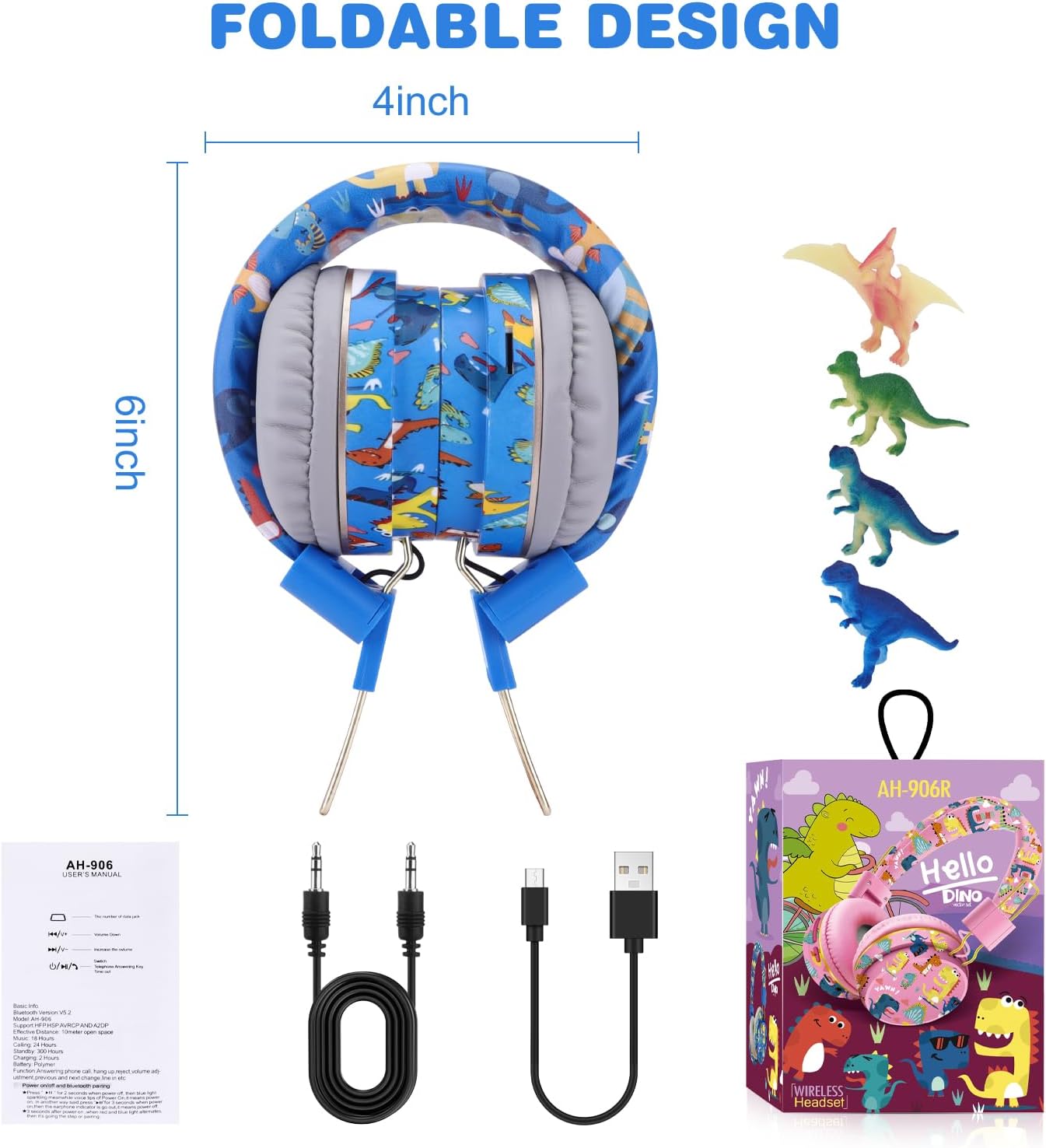

Image: The package contents, showing the foldable headphones, 3.5mm audio cable, USB charging cable, and bonus dinosaur figures.

Opstelling

1. Laai die oorfone

Before first use, fully charge the headphones. Connect the provided USB charging cable to the charging port on the headphones and the other end to a USB power source (e.g., computer, wall adapter). The LED indicator will show charging status. A full charge typically takes 1-2 hours.

2. Skakel aan/af

To power on, press and hold the multi-function button (often labeled with a phone icon) for a few seconds until the LED indicator lights up. To power off, press and hold the same button until the LED indicator turns off.

3. Bluetooth-koppeling

1. Maak seker dat die oorfone afgeskakel is.
2. Press and hold the multi-function button until the LED indicator flashes blue and red alternately, indicating pairing mode.
3. Aktiveer Bluetooth op jou toestel (slimfoon, tablet, skootrekenaar) en soek vir beskikbare toestelle.
4. Select "AH-906R" or "QearFun Dinosaur" from the list.
5. Sodra dit gekoppel is, flits die LED -aanwyser stadig blou.

4. Bedrade verbinding

For wired listening, plug the 3.5mm audio cable into the audio jack on the headphones and the other end into your audio device. The headphones will automatically switch to wired mode, conserving battery life.

5. TF-kaartterugspeel

Insert a TF (MicroSD) memory card (not included) with your desired audio files into the designated slot on the headphones. The headphones will automatically detect the card and begin playing music.

Beeld: Oorview of headphone features including control buttons for volume, track navigation, power/answer call, and modes for charging, plug-in, and TF card.

Bedryfsinstruksies

Kontroles verbyview

• Multifunksie-knoppie: Press and hold to power on/off. Short press to play/pause music or answer/end calls. Double press to redial the last number.
• Volume op (+): Druk kort om die volume te verhoog. Druk lank vir die volgende snit.
• Volume af (-): Druk kort om die volume te verlaag. Druk lank vir die vorige snit.

Maak/Ontvang Oproepe

• Beantwoord oproep: Druk kort op die multifunksieknoppie.
• Beëindig oproep: Druk kort op die multifunksieknoppie tydens 'n oproep.
• Verwerp oproep: Druk die multifunksieknoppie lank.
• Herhaal: Dubbeldruk die multifunksieknoppie.

Image: A child enjoying media with the headphones, highlighting the built-in microphone for communication and Bluetooth 5.2 connectivity.

Verstel van die kopband

The headband is adjustable to fit various head sizes. Gently slide the earcups up or down along the metal frame until a comfortable fit is achieved. The soft padding ensures comfort during prolonged use.

Beeld: Gedetailleerd view of the headphones, emphasizing the dinosaur design and the adjustable, soft headband for a comfortable fit.

Onderhoud

• Skoonmaak: Use a soft, dry cloth to wipe the headphones. Do not use liquid cleaners or abrasive materials.
• Berging: When not in use, fold the headphones and store them in a cool, dry place away from direct sunlight and extreme temperatures.
• Kabelversorging: Vermy skerp draaie of oormatige trek aan die kabels om skade te voorkom.

Probleemoplossing

Spesifikasies

• Handelsmerk: QearFun
• Modelnommer: AH-906R
• Verbindingstegnologie: Draadloos (Bluetooth 5.2), Bedraad (3.5mm-aansluiting)
• Oorplasing: Oor Oor
• Oudiobestuurdergrootte: 40 millimeter
• Impedansie: 32 ohm
• Frekwensiereeks: 20 Hz - 20 000 Hz
• Bluetooth-reeks: 10 meter
• Battery laai tyd: Ongeveer 2 ure
• Battery gemiddelde lewensduur: Up to 24 Hours (Music/Calling)
• Bystandtyd: Tot 300 ure
• Beheer tipe: Knoppie beheer
• Bykomende kenmerke: Adjustable Headband, Fast Charging, Microphone Included, TF Card Slot
• Materiaal: Kunsleer, Plastiek

Waarborg en Ondersteuning

QearFun provides a 30-day, no-questions-asked money-back guarantee for your purchase. For any product-related inquiries, technical support, or warranty claims, please contact QearFun customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty validation.

Produkvideo's
