1. Produk verbyview
The havit GK59 Gaming Microphone is designed for clear audio capture during gaming, streaming, and voice communication. It features a condenser microphone for high-quality sound and a versatile design for ease of use.
Figuur 1.1: Voorkant view of the havit GK59 Gaming Microphone, showcasing its main body, stand, and control buttons.
Sleutel kenmerke:
- Maklik om te gebruik: Simple plug-and-play functionality.
- Good Performance: Delivers clear and consistent audio.
- Good Quality: Duursame konstruksie vir betroubare gebruik.
- Draagbare ontwerp: Kompak en maklik om te vervoer.
- Verstelbare staander: Allows for flexible positioning.
2. Opstelinstruksies
2.1 Pakketinhoud
Kontroleer asseblief die pakket vir die volgende items:
- havit GK59 Gaming Microphone
- USB-verbindingskabel
- Gebruikershandleiding (hierdie dokument)
2.2 Die mikrofoon koppel
The GK59 microphone offers versatile connectivity options for various devices.
- USB-verbinding: Connect the provided USB cable to the USB-C port on the back of the microphone and the other end to an available USB port on your computer or gaming console. The microphone is plug-and-play and should be automatically recognized by most operating systems.
- 3.5mm Jack Connection: For devices supporting a 3.5mm auxiliary input, connect a 3.5mm audio cable (not included) to the 3.5mm jack on the back of the microphone and to your device's audio input.

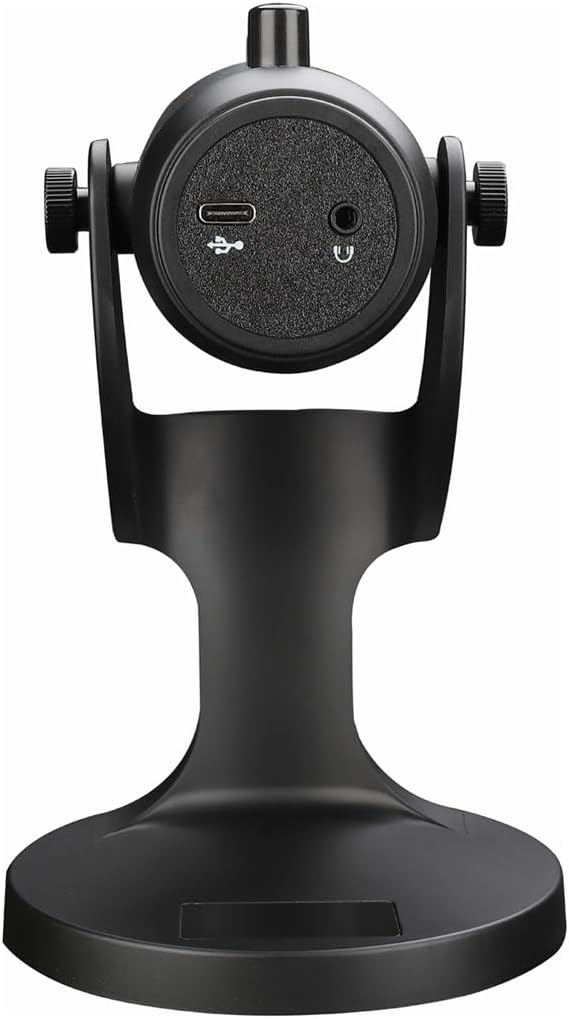

Figuur 2.1: Agter view of the havit GK59 Gaming Microphone, highlighting the USB-C port for data and power, and the 3.5mm headphone jack for monitoring.
After connecting, ensure the microphone is selected as the default input device in your system's sound settings or your gaming/streaming software.
3. Bedryfsinstruksies
3.1 Basiese kontroles
The havit GK59 features intuitive controls located on the front of the microphone body:
- Demp-knoppie: Press to mute or unmute the microphone. An indicator light will typically show the mute status.
- MIC +/- Buttons: Adjust the microphone input sensitivity (gain). Press '+' to increase, '-' to decrease.
- VOL +/- knoppies: Adjust the headphone output volume for monitoring. Press '+' to increase, '-' to decrease.
- ECHO +/- Buttons: Adjust the echo effect level. Press '+' to increase, '-' to decrease.
Figuur 3.1: Gedetailleerd view of the microphone's control panel, including the mute button, microphone gain, volume, and echo adjustment buttons.
3.2 Adjusting Microphone Position
The microphone is equipped with an adjustable stand, allowing you to optimize its position for best sound capture and comfort.
- Gently hold the microphone body and the base of the stand.
- Tilt the microphone forward or backward to achieve the desired angle. The stand's design helps reduce vibration and abnormal sounds during use.
- Plaas die mikrofoon ongeveer 15-30 cm van jou mond af vir optimale stemduidelikheid.
Figure 3.2: The havit GK59 microphone demonstrating its adjustable tilt feature on the stand, designed for anti-vibration.
4. Onderhoud
4.1 Skoonmaak
To maintain the microphone's performance and appearance:
- Disconnect the microphone from its power source before cleaning.
- Gebruik 'n sagte, droë lap om die buite-oppervlaktes af te vee.
- Moenie vloeibare skoonmaakmiddels, aërosols of oplosmiddels gebruik nie, aangesien dit die afwerking of interne komponente kan beskadig.
4.2 Berging
When not in use, store the microphone in a cool, dry place away from direct sunlight and extreme temperatures. Protect it from dust and moisture.
5. Probleemoplossing
If you encounter issues with your havit GK59 Gaming Microphone, please refer to the following table for common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| No sound input from microphone | Mikrofoon nie behoorlik gekoppel nie Incorrect input device selected Mikrofoon gedemp | Maak seker dat die USB-kabel stewig gekoppel is. Check system sound settings and select GK59 as input. Press the Mute button on the microphone to unmute. |
| Lae mikrofoonvolume | Microphone gain too low System input volume too low | Press the 'MIC +' button on the microphone. Adjust input volume in your system's sound settings. |
| Distorted or unclear audio | Microphone gain too high Mikrofoon te naby aan mond Omgewingsgeraas | Press the 'MIC -' button on the microphone. Adjust microphone position (6-12 inches from mouth). Verminder agtergrondgeraas in jou omgewing. |
| No headphone monitoring sound | Oorfone nie gekoppel nie Headphone volume too low | Ensure headphones are plugged into the 3.5mm jack. Press the 'VOL +' button on the microphone. |
6. Tegniese spesifikasies
Below are the technical specifications for the havit GK59 Gaming Microphone:
| Kenmerk | Spesifikasie |
|---|---|
| Handelsmerk | hawe |
| Modelnommer | GK59 |
| Verbindingstegnologie | USB, 3.5 mm Jack (Auxiliary) |
| Aanbevole gebruike | Speletjies |
| Polêre patroon | Eenrigting |
| Mikrofoonvormfaktor | Handheld (with desktop stand) |
| Item gewig | 429 gram |
| Impedansie | 250 ohm |
| Sein-tot-geraas verhouding | 18 dB |
| Hoorbare geraas | 18 Desibel |
| Kragbron | Koord Elektries (via USB) |
| Versoenbare toestelle | Gaming Consoles, PCs |
| Itemafmetings (LxBxH) | 5.59 x 4.92 x 9.06 duim |
| Kleur | Swart |
7. Waarborg en Ondersteuning
7.1 Waarborginligting
The havit GK59 Gaming Microphone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official havit webwebwerf vir gedetailleerde waarborgbepalings en -voorwaardes.
7.2 Kliëntediens
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact havit customer support through their official channels. You can find more information and contact details on the Havit Winkel op Amazon of hul amptenaar webwebwerf.
