Voyager WVSXC150 Wireless Backup Camera Instruction Manual

Inleiding

This manual provides instructions for the Voyager WVSXC150 Auto Pairing Wireless Backup Camera. This camera is designed for use with the Voyager WVOS541 Digital Wireless Backup System featuring WiSight 2.0 Technology. It offers both backup and rear observation views for towed vehicles, enhancing safety and convenience.

Key features include a built-in microphone, advanced CMOS sensor technology, 14 infrared LED lights for superior low-light performance, and an IP69K waterproof design for durability in various environmental conditions.

Pakketinhoud

Voordat u met die installasie begin, maak seker dat alle komponente in die pakket teenwoordig is:

• Voyager WVSXC150 Wireless Backup Camera
• Montagebeugel
• Hardware Kit (screws, nuts, etc.)

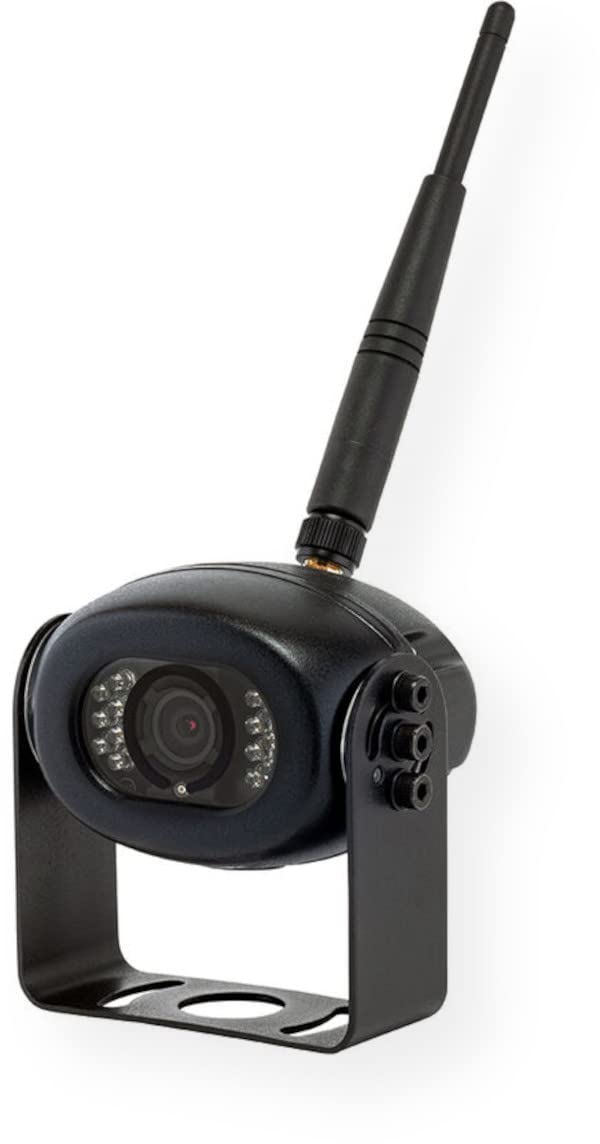

The image displays the Voyager WVSXC150 wireless backup camera along with its mounting bracket and associated hardware.

Opstelling en installasie

The WVSXC150 camera is designed for auto-pairing with compatible Voyager WiSight 2.0 systems. Follow these steps for proper installation:

1. Monteer die kamera: Select a suitable location on your vehicle for mounting the camera, typically at the rear. Use the provided bracket and hardware to securely attach the camera. Ensure the camera has a clear, unobstructed view and a direct line of sight to the monitor for optimal wireless signal transmission.
2. Kragverbinding: Connect the camera to a stable 12V DC power source. This may involve tapping into existing vehicle wiring (e.g., reverse lights for backup functionality, or running lights for continuous observation). Consult your vehicle's service manual or a qualified technician for proper wiring procedures to avoid damage.
3. Outomatiese paring: Once the camera is powered on and the compatible Voyager WiSight 2.0 monitor (sold separately) is also active, the camera will automatically attempt to pair. If automatic pairing does not occur, refer to the specific pairing instructions provided with your Voyager monitor system.

This image illustrates the Voyager WVSXC150 wireless backup camera, showing a typical external mounting position on a vehicle.

Bedryfsinstruksies

Once properly installed and paired, the WVSXC150 camera will transmit video to your Voyager monitor. Familiarize yourself with its operational features:

• Video-oordrag: The camera continuously transmits a live video feed to your compatible Voyager monitor. The monitor allows you to switch between different camera views if multiple cameras are connected to your system.
• Lae-lig prestasie: The camera is equipped with 14 infrared LED lights. These lights automatically activate in low-light conditions, providing clear black-and-white visibility even in complete darkness, which is crucial for nighttime maneuvering.
• Ingeboude mikrofoon: The integrated microphone captures ambient audio from the camera's vicinity. This audio is transmitted along with the video feed to your monitor, allowing you to hear sounds from the rear of your vehicle or towed unit.
• Wyd Viewhoek: The camera provides a wide field of view to minimize blind spots. The viewing angles are approximately 100° horizontal, 74° vertical, and 137° diagonal.

This image represents the wide-angle view captured by the Voyager WVSXC150 wireless backup camera, as it would appear on a compatible monitor.

Onderhoud

The WVSXC150 camera features an IP69K waterproof design, making it highly resistant to dust and high-pressure, high-temperature water jets. For optimal performance and longevity, follow these maintenance guidelines:

• Maak die lens skoon: Maak die kameralens gereeld skoon met 'n sagte, damp cloth to remove any accumulated dirt, dust, or debris. This ensures a clear and unobstructed view. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the lens coating.
• Inspeksie: Regularly inspect the camera's mounting bracket and hardware to ensure they remain tight and secure. Check all cable connections for corrosion or damage and ensure they are properly seated.
• Omgewingsblootstelling: While the camera is highly durable, prolonged exposure to extreme weather conditions (e.g., direct sunlight for extended periods, extreme cold) can affect its lifespan.

Probleemoplossing

If you encounter issues with your Voyager WVSXC150 camera, refer to the following common troubleshooting steps:

• Geen beeld op monitor nie:
  • Ensure the camera is receiving adequate 12V DC power. Check all power connections.
  • Verify that the camera is properly paired with your Voyager monitor. Refer to your monitor's instruction manual for specific pairing procedures.
  • Check for any physical obstructions or significant metal objects between the camera and the monitor that might interfere with the wireless signal.
  • Confirm that your monitor is set to the correct camera input channel.
• Swak beeldkwaliteit:
  • Clean the camera lens thoroughly with a soft, damp lap.
  • Ensure there are no physical obstructions (e.g., dirt, ice, stickers) blocking the camera's view.
  • Check for strong electromagnetic interference sources (e.g., high-power antennas, certain electronic devices) nearby that could degrade the wireless signal.
• No Audio from Microphone:
  • Ensure the microphone opening on the camera is not obstructed.
  • Check the audio settings on your Voyager monitor to ensure the volume is turned up and audio input from the camera is enabled.

Spesifikasies

Waarborg en Ondersteuning

For detailed warranty information, technical assistance, or customer support regarding your Voyager WVSXC150 Wireless Backup Camera, please refer to the warranty card or documentation included with your original purchase. You may also visit the official Voyager website for the most current support resources and contact information.

Belangrik: Retain your proof of purchase (receipt or invoice) as it will be required for any warranty claims or service requests.
