Yottamaster 5-Bay RAID HDD Enclosure (DF5RU3) User Manual

1. Inleiding

The Yottamaster 5-Bay RAID HDD Enclosure (Model DF5RU3) is designed for high-performance external storage, supporting up to five 3.5-inch or 2.5-inch SATA SSD/HDD drives. It features USB 3.0 connectivity for fast data transfer and offers multiple RAID modes for flexible data management and protection. The enclosure also includes an RGB silent cooling fan and a transparent side panel for efficient heat dissipation and visual appeal.

Image: Yottamaster 5-Bay RAID HDD Enclosure, front view.

2. Pakketinhoud

Verifieer asseblief dat alle items in u pakket teenwoordig is:

• 1 x Yottamaster 5-Bay Gaming HDD Enclosure with RAID Functionality
• 1 x USB Cable (Type-A to Type-B, 100cm)
• 1 x Kragkabel
• 1 x Screwdriver & Screw Set (for 2.5" and 3.5" hard drives)
• 1 x Gebruikershandleiding

3. Opstelling

3.1. Drive Installasie

To install hard drives or SSDs into the enclosure:

1. Ensure the enclosure is safely disconnected from your computer and the power is off.
2. Open the drive bays and insert your 3.5-inch or 2.5-inch SATA HDDs/SSDs. Secure them with the provided screws if necessary.
3. Close the drive bays.

Image: Illustrates the insertion of hard drives into the enclosure bays.

3.2. Connecting the Enclosure

Connect the enclosure to your computer using the provided USB cable and power adapter. Ensure stable power supply by using the original data cable and connecting to a stable USB interface on the host side.

3.3. Initial Drive Formatting and RAID Configuration

Before using new hard drives, they must be formatted. If you plan to use RAID modes, it is crucial to back up all important data as changing RAID modes typically requires formatting the drives.

3.3.1. Adding a Hard Drive (PM/Normal Mode)

This video demonstrates how to add a hard drive when the enclosure is in PM (Normal) mode.

Video: Guide on adding a hard drive to the enclosure in PM (Normal) mode, including initial formatting steps.

3.3.2. Setting up Soft-RAID in Windows

This video provides instructions for setting up Soft-RAID using Windows' built-in tools.

Video: Detailed steps for configuring Soft-RAID on a Windows operating system.

3.3.3. Setting up Soft-RAID in Mac OS

This video guides you through the process of setting up Soft-RAID on a Mac OS system.

Video: Instructions for configuring Soft-RAID on a Mac OS operating system.

4. Bedryfsinstruksies

4.1. Data-oordrag

The enclosure supports USB 3.0 for high-speed data transfer up to 5Gbps. Connect the enclosure to a compatible USB 3.0 port on your computer for optimal performance.

Image: Depicts the enclosure connected to a computer, highlighting fast data transfer capabilities.

4.2. RAID Modes

The Yottamaster DF5RU3 supports 8 different RAID modes: RAID0, RAID1, RAID3, RAID5, RAID10, SPAN (JBOD), Clone, and Normal. These modes can be managed via both hardware (DIP switches) and software. Each mode offers different benefits in terms of speed, data redundancy, and capacity utilization.

Belangrike nota:

• When changing RAID modes, it is necessary to format the HDDs. Always back up your data before formatting.
• To change RAID modes using hardware DIP switches, ensure the enclosure is safely disconnected from the computer and powered off. Adjust the DIP switches according to the desired RAID mode configuration (refer to the diagram on the enclosure's rear panel). Then, press and hold the SET button while powering on the enclosure. Release the SET button after approximately 15 seconds.

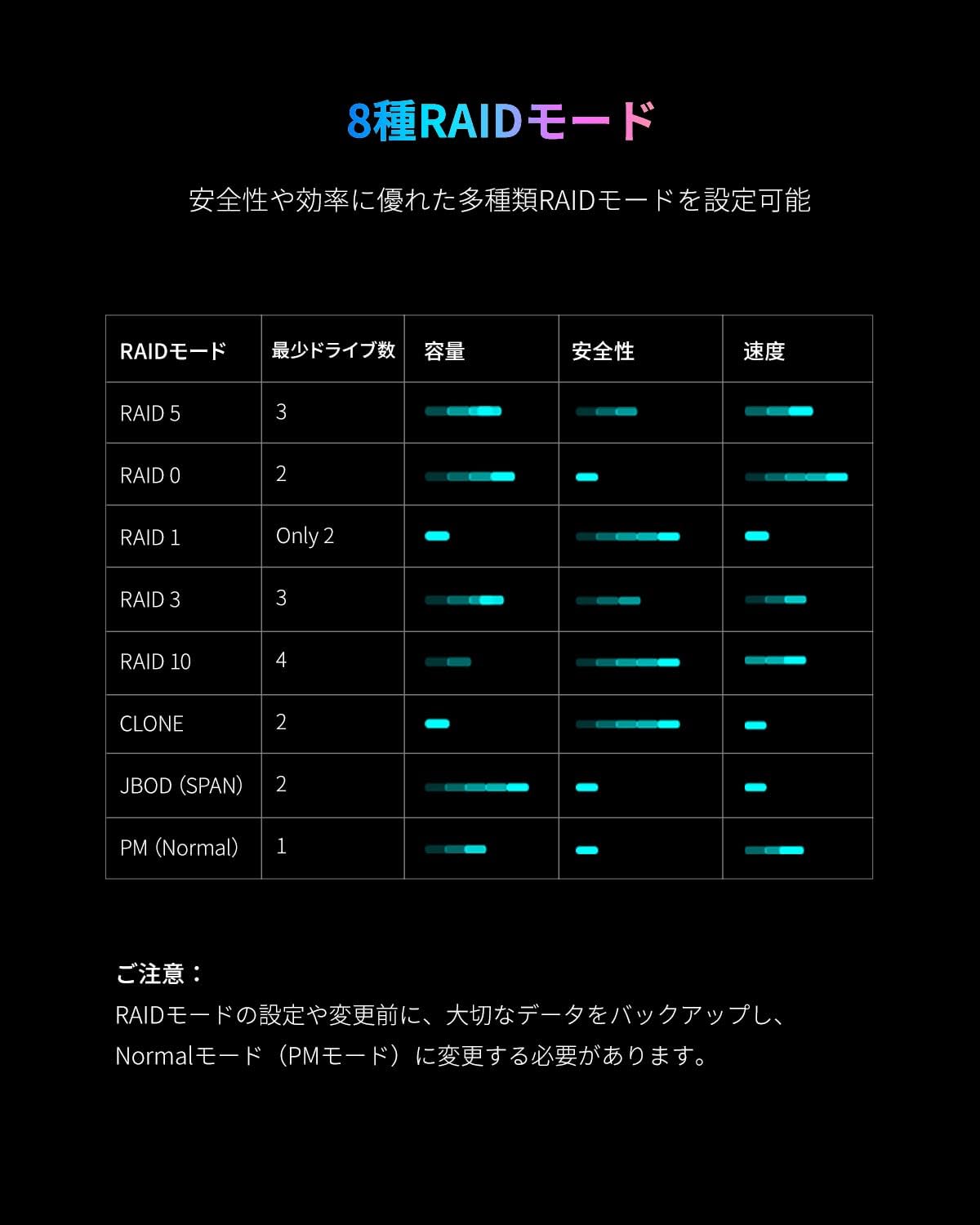

Image: Detailed table explaining the characteristics of each RAID mode.

4.3. Sleep Mode Settings

The enclosure features an energy-saving automatic sleep mode that activates after 10 minutes of inactivity. The sleep mode duration can be adjusted.

Video: Instructions on how to set or disable the sleep timer function for the enclosure.

4.4. RGB Cooling Fan

The enclosure is equipped with an 80mm RGB silent cooling fan and large-area heat dissipation holes to minimize heat generated by the drives during operation. The transparent acrylic side panels allow the colorful RGB LED lights to enhance your setup.

Beeld: Nabyskoot view of the RGB silent cooling fan and transparent side panel.

5. Onderhoud

5.1. Data-rugsteun

Regularly back up important data from your drives, especially before performing any RAID configuration changes or formatting operations, as these actions can lead to data loss.

5.2. Safe Removal

Always use the computer's "Safely Remove Hardware" function before disconnecting the enclosure to prevent data corruption or drive damage. Do not directly unplug the power cable while the enclosure is operating.

5.3. Power Stability

Onstabiel voltage can affect the lifespan and performance of your mobile hard drives. Ensure the enclosure is connected to a stable power source and use the original data cable for optimal performance.

6. Probleemoplossing

6.1. RAID Mode Issues

If you encounter issues with RAID mode configuration or changes, refer to the following video for guidance on deleting and changing RAID modes.

Video: Demonstrates how to delete and change RAID modes, including formatting drives if necessary.

6.2. Sleep Mode Recovery

If the enclosure fails to wake up from sleep mode, please contact technical support for the latest firmware update.

7. Spesifikasies

8. Ondersteuning

8.1. Tegniese Ondersteuning

For any technical inquiries, firmware updates, or assistance with your Yottamaster product, please contact our technical support team at supports@yottamaster.com.

8.2. Waarborginligting

Please refer to the product packaging or the official Yottamaster webwebwerf vir gedetailleerde waarborginligting.
