1. Inleiding
Welcome to the instruction manual for your Tepro Keansburg 6 Special Edition Gas Barbecue. This manual provides essential information for the safe assembly, operation, and maintenance of your new gas grill. Please read all instructions carefully before use and retain this manual for future reference.
2. Belangrike veiligheidsinligting
Failure to follow these safety instructions could result in serious injury or property damage. Always exercise caution when operating a gas barbecue.
- Lees alle instruksies: Before assembling or operating the barbecue, read and understand all instructions and warnings.
- Slegs buitegebruik: This gas barbecue is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
- Gaslekkasies: Check for gas leaks before each use. Never use a flame to check for leaks. Use a soapy water solution.
- Ventilasie: Ensure adequate ventilation around the barbecue.
- Opruiming: Maintain a safe distance from combustible materials. Keep the barbecue at least 1 meter (3 feet) away from walls, fences, and other structures.
- Kinders en troeteldiere: Keep children and pets away from the hot barbecue.
- Warm oppervlaktes: Surfaces become very hot during operation. Use protective gloves and tools.
- Gassilinder: Use only approved gas cylinders. Ensure the cylinder is placed on a stable, level surface and is properly secured.
- Reguleerder en slang: Only use the supplied gas hose and regulator. Inspect them regularly for cuts, cracks, or wear. Replace immediately if damaged.
- Moet nooit sonder toesig los nie: Moenie die braai sonder toesig laat terwyl dit in gebruik is nie.
- Grease fires: Keep the barbecue clean to prevent grease buildup, which can lead to flare-ups or grease fires.
3. Pakketinhoud en samestelling
Before beginning assembly, ensure all parts are present and undamaged. Refer to the assembly diagram (Figure 1) for identification of components. Assembly typically requires two people.
3.1 Pakketinhoud
- Main grill unit with lid and integrated thermometer
- Grill grates (approx. 84 x 43 cm grill surface)
- Warming rack (approx. 81 x 11.5 cm)
- 4 standard burners, 1 Power Zone burner, 1 side burner
- Beheerknoppe
- Side shelves (one with integrated side burner, one with bottle opener)
- Gas hose and pressure regulator
- Assembly hardware and tools (if included)
- Instruksie handleiding
Figuur 1: Exploded diagram of the Tepro Keansburg 6 Special Edition Gas Barbecue, illustrating various components such as the thermometer in the glass window, infrared side burner, Power Zone, and control knobs.
3.2 Monteerstappe
Follow the detailed assembly instructions provided in the separate assembly guide or the included diagrams. Ensure all connections are secure before proceeding.
- Pak komponente uit: Verwyder alle dele versigtig uit die verpakking en verifieer dit teen die lys van die verpakkingsinhoud.
- Monteer hoofraam: Construct the base frame and main body of the grill according to the diagram.
- Attach Side Shelves: Secure the left and right side shelves to the main grill body. The right side shelf typically houses the side burner.
- Install Burners: Place the main burners, Power Zone burner, and side burner into their designated positions.
- Connect Gas Lines: Carefully connect the gas lines to each burner, ensuring all connections are tight.
- Place Grill Grates and Warming Rack: Position the main grill grates and the warming rack in the cooking chamber.
- Connect Gas Hose and Regulator: Attach the supplied gas hose and regulator to the barbecue's gas inlet and then to a suitable gas cylinder. Ensure a tight seal.
- Lektoets: Perform a gas leak test before first use. Apply a soapy water solution to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately and tighten connections. Repeat the test. Do not use the barbecue if a leak persists.
Figuur 2: The fully assembled Tepro Keansburg 6 Special Edition Gas Barbecue, showcasing the main grill area, warming rack, and side burner.
4. Bedryfsinstruksies
4.1 Voor eerste gebruik
Before cooking, operate the barbecue on high heat for 10-15 minutes with the lid closed to burn off any manufacturing residues and season the grates.
4.2 Aansteek van die branders
- Maak seker dat die gassilinder se klep heeltemal oop is.
- Maak die braaideksel oop.
- Push in and turn one of the main burner control knobs (Figure 3) to the HIGH position.
- Press the ignition button (if separate) or continue holding the knob for integrated ignition until the burner lights. You should hear a 'click' and see a flame.
- Once lit, release the knob. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the process.
- Repeat for other main burners, the Power Zone burner, and the side burner as needed.

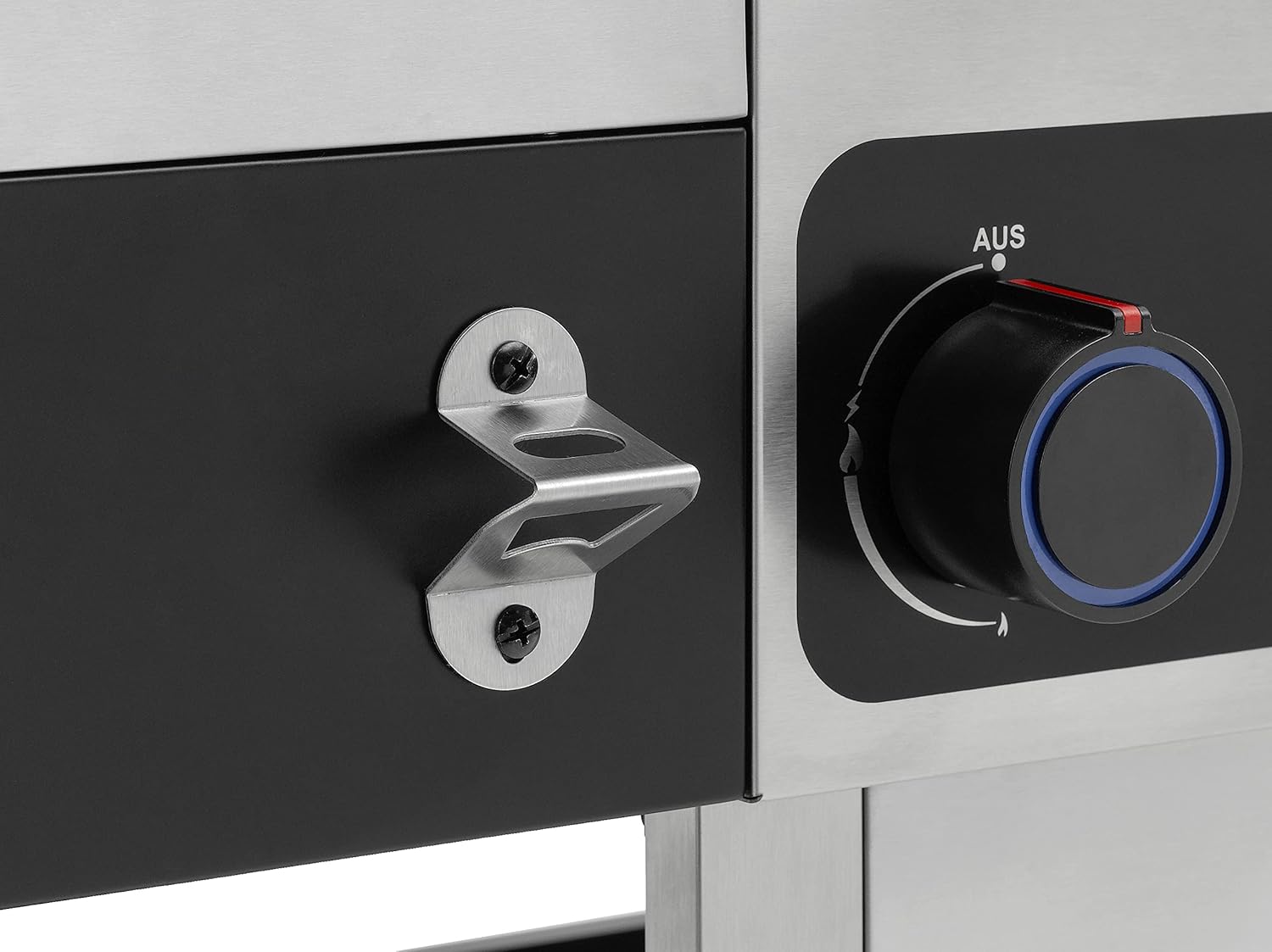

Figuur 3: Control knob for burner adjustment, located on the front panel. A bottle opener is also visible.
4.3 Temperatuurbeheer
Adjust the heat by turning the control knobs between HIGH and LOW settings. The integrated thermometer in the lid (Figure 4) provides an approximate internal temperature reading of the cooking chamber.
Figuur 4: Integrated thermometer on the barbecue lid, displaying temperature in both Celsius and Fahrenheit for precise cooking control.
4.4 Using the Side Burner
The side burner (Figure 5) is ideal for preparing sauces, boiling water, or cooking side dishes while grilling on the main cooking area. To light, open the side burner lid, push in and turn the side burner control knob to HIGH, and ignite as described above.

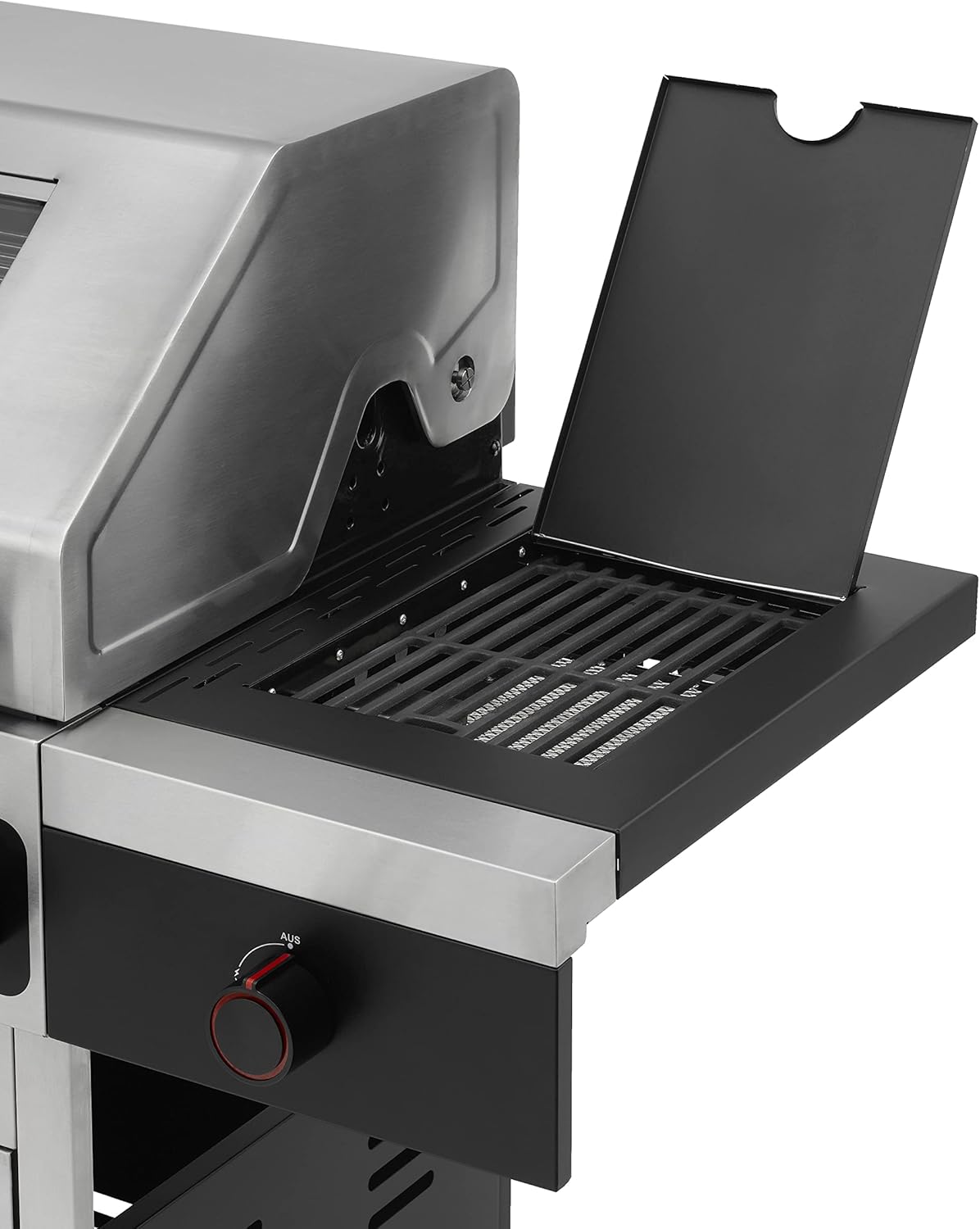

Figuur 5: The side burner with its protective lid open, ready for use with pots or pans.
4.5 General Grilling Tips
- Preheat the grill for 10-15 minutes before placing food on the grates.
- Use appropriate grilling tools and heat-resistant gloves.
- Avoid overcrowding the grill for even cooking.
- Keep the lid closed as much as possible to maintain consistent temperature.

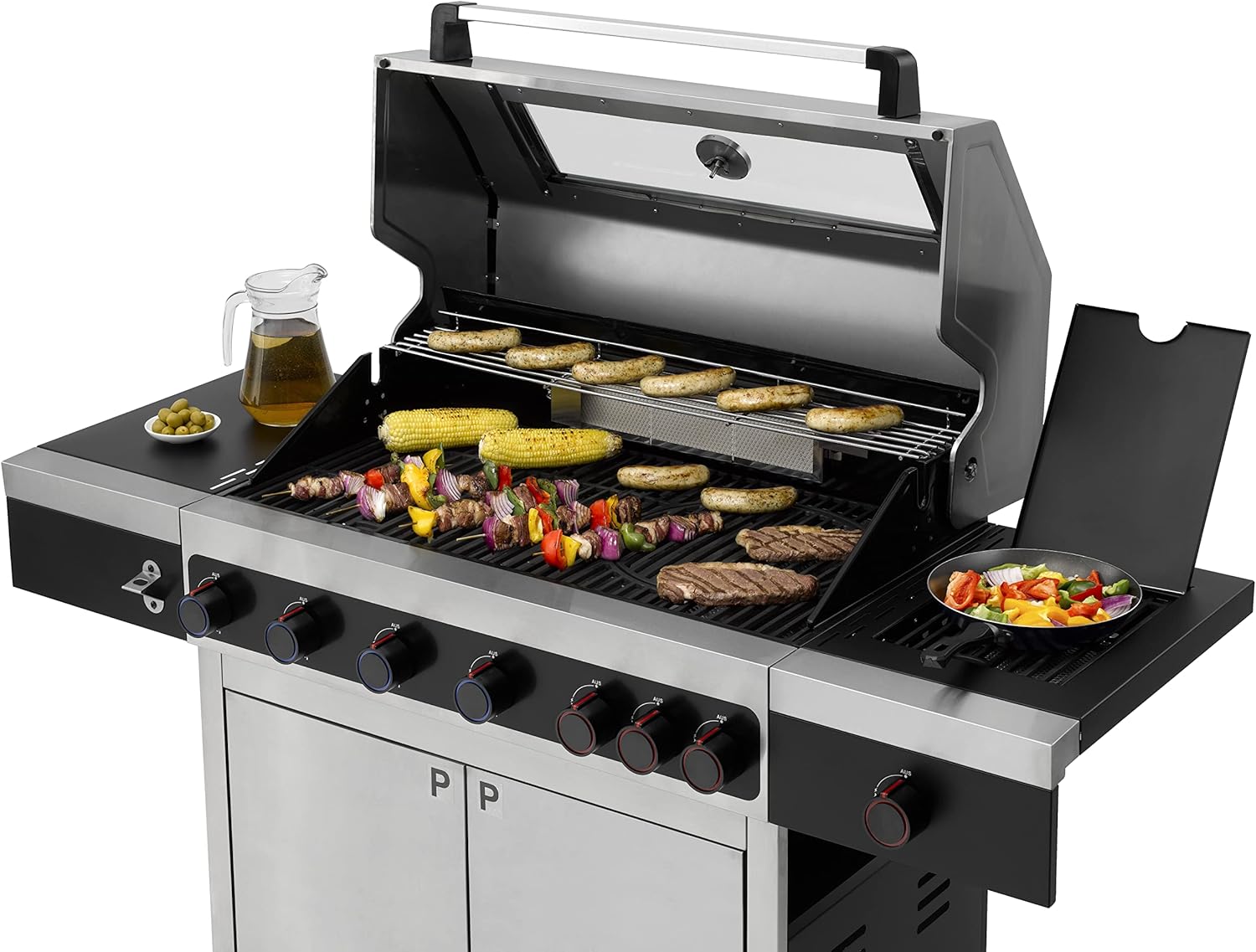

Figuur 6: The Tepro Keansburg gas barbecue in operation, demonstrating its large cooking surface and warming rack with various foods.
4.6 Afskakel
When finished cooking, turn all burner control knobs to the OFF position. Close the valve on the gas cylinder. Allow the grill to cool completely before cleaning or covering.
5. Onderhoud en versorging
Regular maintenance ensures the longevity and safe operation of your barbecue.
5.1 Cleaning the Grill Grates
After each use, while the grill is still warm, brush the grill grates with a stiff wire brush to remove food residue. For deeper cleaning, remove grates and wash with warm soapy water. Rinse thoroughly and dry before reinstalling.
5.2 Cleaning Burners
Periodically inspect burner ports for blockages caused by food debris or insects. Use a wire brush or a stiff wire to clear any debris from the burner holes. Ensure gas ports are clear for proper flame distribution. Never use water on hot burners.
5.3 Buite Skoonmaak
Vee buiteoppervlakke af met adamp cloth and mild detergent. For stainless steel parts, use a specialized stainless steel cleaner to maintain shine and prevent corrosion. Avoid abrasive cleaners or scouring pads that can scratch the finish.
5.4 Berging
When not in use for extended periods, disconnect the gas cylinder and store the barbecue in a dry, protected area. Consider using a weather-resistant grill cover to protect it from the elements and prolong its lifespan.
6. Probleemoplossing
This section addresses common issues you might encounter with your gas barbecue.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Brander brand nie | No gas supply, clogged burner port, faulty igniter, gas cylinder empty. | Check gas cylinder level and ensure valve is open. Clear burner ports. Check igniter electrode and wire for damage or misalignment. Replace gas cylinder if empty. |
| Lae vlam of ongelyke hitte | Low gas pressure, clogged burner ports, regulator issue, partially closed gas valve. | Ensure gas cylinder valve is fully open. Clean burner ports. Inspect regulator and hose for damage or kinks. Reset regulator if necessary (refer to regulator instructions). |
| Gas leak detected (smell of gas, bubbling with soapy water) | Loose connections, damaged hose/regulator, faulty gas cylinder valve. | Immediately turn off gas at the cylinder. Tighten all gas connections. Replace damaged hose or regulator. If leak persists, do not use the barbecue and contact a qualified technician or Tepro customer service. |
| Lid thermometer inaccurate | Thermometer calibration issue, external factors. | Compare with an external thermometer. If consistently inaccurate, contact customer service for replacement. |
7. Spesifikasies
- Handelsmerk: Tepro
- Model Naam: Keansburg
- Modelnommer: 3316
- Kleur: Silwer
- Materiaal: Vlekvrye staal
- Algehele afmetings (L x B x H): 152 x 62 x 118 cm (62 x 152 x 118 centimetres)
- Item gewig: 57 kg (57000 gram)
- Totale hitte-uitset: 25400 watt
- Main Grill Surface Area: Ongeveer 84 x 43 cm
- Warming Rack Dimensions: Ongeveer 81 x 11.5 cm
- branders:
- 4 Standard Burners: 3.2 kW each
- 1 Power Zone Burner: 4.2 kW
- 1 Side Burner: 3.2 kW
- Totale branders: 6
- Ingesluit bykomstighede: Gas hose and pressure regulator
- Vergadering benodig: Ja
8. Waarborginligting
For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Tepro website. Retain your proof of purchase for any warranty claims. Warranty coverage typically applies to manufacturing defects and may vary by region.
9. Kliëntediens
Should you have any questions, require assistance with assembly, or encounter issues not covered in this manual, please contact Tepro customer service. Contact details can typically be found on the manufacturer's webwebwerf of in jou produkdokumentasie.
Amptelik Webwebwerf: www.tepro-garten.de
