Hayward Micro 3.5KW Mono Heat Pump User Manual

1. Inleiding en Veiligheidsinligting

Thank you for choosing the Hayward Micro 3.5KW Mono Heat Pump. This manual provides important information for the safe installation, operation, and maintenance of your heat pump. Please read this manual thoroughly before installation and use, and keep it for future reference.

Belangrike veiligheidsinstruksies

• Ontkoppel altyd die krag voordat u enige diens of onderhoud uitvoer.
• Installation must be performed by a qualified professional in accordance with all local and national electrical and plumbing codes.
• Do not operate the heat pump if any part is damaged or missing.
• Hou kinders weg van die eenheid tydens werking.
• Verseker behoorlike ventilasie rondom die eenheid.

2. Produk verbyview & Kenmerke

The Hayward Micro 3.5KW Mono Heat Pump is specifically designed for above-ground pools, offering efficient heating to extend your swimming season. It features a robust construction and smart control capabilities.

Sleutel kenmerke:

• Dedicated for Above-Ground Pools: Optimized performance for smaller pool volumes.
• Slegs verhittingsmodus: Provides efficient water heating.
• Duursame konstruksie: Galvanized casing offers high resistance to UV radiation and corrosion, ensuring longevity.
• Low Ambient Temperature Operation: Functions effectively down to an ambient temperature of 10°C.
• Stil werking: Engineered for minimal noise during use.
• Bluetooth-verbinding: Control your heat pump remotely via a dedicated mobile application.

Figuur 2.1: Voorkant view of the Hayward Micro 3.5KW Mono Heat Pump, showcasing sy kompakte ontwerp en digitale skerm.

3. Opstelling en Installasie

Proper installation is crucial for the performance and safety of your heat pump. It is highly recommended that installation be carried out by a qualified pool professional.

3.1 Plasing

• Choose a location with adequate airflow, away from walls or obstructions.
• Maak seker dat die eenheid op 'n stabiele, gelyk oppervlak geplaas word.
• Maintain a minimum distance of 50 cm from any vertical surface for optimal air circulation.

3.2 Loodgieterverbindings

Connect the heat pump to your pool's filtration system. Water flows from the filter, through the heat pump, and back to the pool. Let wel: While some product descriptions may suggest otherwise, a bypass kit is generally recommended for proper flow control and maintenance of pool heat pumps. Consult with your installer regarding the necessity of a bypass for your specific setup.

3.3 Elektriese verbindings

The heat pump requires a dedicated electrical circuit. All electrical wiring must comply with local and national electrical codes. Ensure the power supply matches the specifications of the unit.

Figuur 3.1: Kant view of the heat pump, illustrating the water inlet/outlet connections and general unit layout for installation planning.

4. Bedryfsinstruksies

Once installed and connected, operating your Hayward heat pump is straightforward, either via the integrated control panel or the dedicated Bluetooth application.

4.1 Aanvanklike aanvang

1. Ensure the pool pump is running and water is flowing through the heat pump.
2. Turn on the electrical power to the heat pump.
3. The unit will perform a self-check and display the current water temperature.

4.2 Setting Desired Temperature

Use the control panel on the unit to adjust the desired water temperature. Refer to the specific button functions indicated on the unit's display for temperature up/down adjustments.

4.3 Bluetooth-appbeheer

The Hayward Micro Heat Pump can be controlled remotely via a dedicated smartphone application. Download the official Hayward app from your device's app store.

1. Aktiveer Bluetooth op jou slimfoon.
2. Open the Hayward app and follow the on-screen instructions to pair with your heat pump.
3. Once connected, you can monitor the pool temperature, set the desired temperature, and manage other settings directly from your phone.

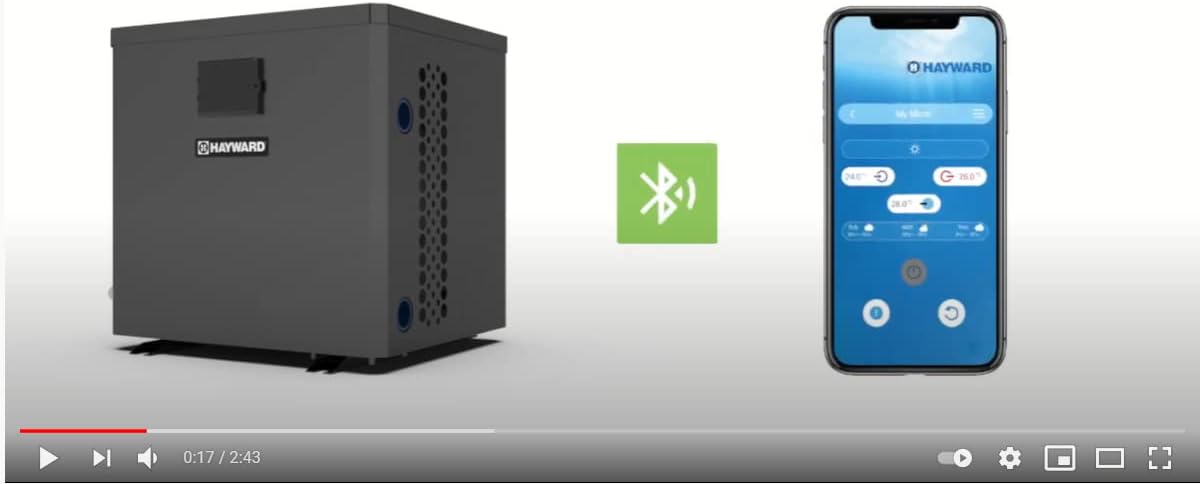

Figuur 4.1: The heat pump unit alongside a smartphone displaying the Bluetooth connection interface, indicating remote control capability.

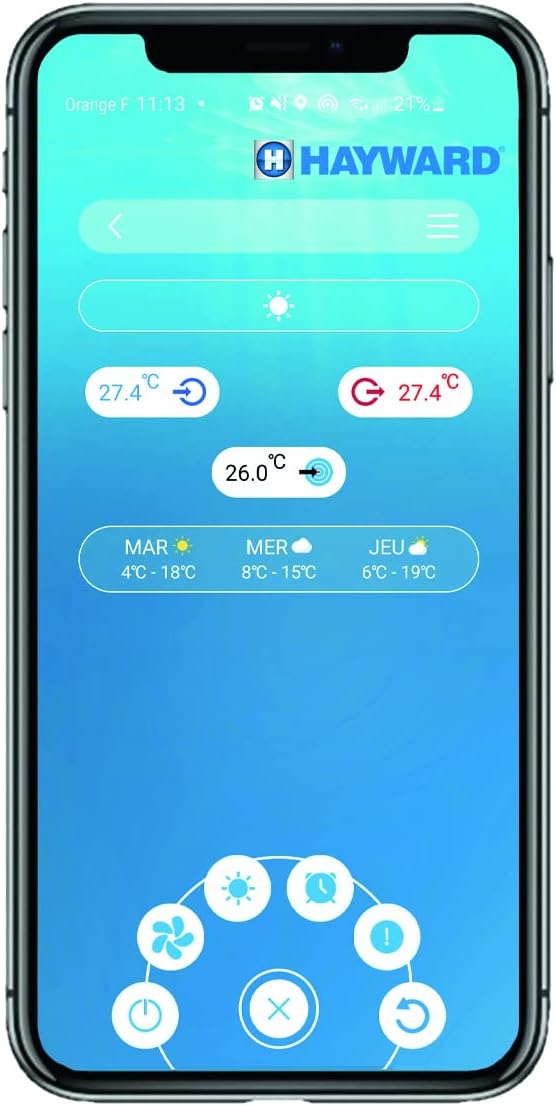

Figuur 4.2: 'n Gedetailleerde view of the Hayward mobile application interface, showing temperature settings and control options for the heat pump.

5. Onderhoud

Gereelde onderhoud verseker optimale werkverrigting en verleng die lewensduur van jou hittepomp.

5.1 Skoonmaak

• Spoel skoonmaak: Periodically inspect and clean the evaporator coil (fins) to remove leaves, dirt, and debris. Use a soft brush or vacuum cleaner.
• Buitenste skoonmaak: Wipe down the exterior casing met advertensieamp lap. Moenie harde chemikalieë of skuur skoonmaakmiddels gebruik nie.

5.2 Winterisering

Before freezing temperatures arrive, it is essential to properly winterize your heat pump to prevent damage.

• Turn off the heat pump and disconnect its power supply.
• Dreineer al die water uit die hittepomp se leidingwerk.
• Cover the unit with a protective, breathable cover.

6. Probleemoplossing

This section addresses common issues you might encounter. For problems not listed here or if issues persist, contact a qualified service technician.

Algemene kwessies:

• No Heat/Insufficient Heating: Check if the pool pump is running, ensure the desired temperature is set correctly, and verify that the unit has power. Low ambient temperatures (below 10°C) can reduce heating efficiency.
• Eenheid skakel nie aan nie: Check the circuit breaker and ensure the power supply is connected.
• Foutkodes op vertoon: Refer to the specific error code in the full technical manual (if available) or contact customer support with the code displayed.
• Ongewone geraas: Inspect for debris in the fan or loose components. If the noise persists, contact a technician.

7. Spesifikasies

8. Waarborg en ondersteuning

Hayward products are manufactured to the highest standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Hayward webwebwerf.

For technical assistance, spare parts, or service inquiries, please contact Hayward customer support or your authorized Hayward dealer. When contacting support, please have your model number (HP2031DT3C) and purchase date available.

Hayward Customer Service: Please refer to the contact information provided on the official Hayward webwebwerf vir jou streek.
