Moulinex Quickchef Lite Hand Blender DD656D27 User Manual

1. Belangrike veiligheidsinstruksies

Please read all instructions carefully before using your Moulinex Quickchef Lite Hand Blender. Keep this manual for future reference.

• Elektriese veiligheid: Verseker die voltage wat op die toestel aangedui word, stem ooreen met u plaaslike netvoedingtage before connecting. Do not immerse the motor unit in water or any other liquid. Always unplug the appliance after use and before cleaning.
• Bladveiligheid: The blades are very sharp. Handle them with extreme care, especially when assembling, disassembling, or cleaning.
• Kinders: Hierdie toestel moet nie deur kinders gebruik word nie. Hou die toestel en sy snoer buite bereik van kinders.
• Toesig: Noukeurige toesig is nodig wanneer enige toestel naby kinders gebruik word.
• Skade: Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact authorized service for examination, repair, or electrical or mechanical adjustment.
• Aanhegsels: Die gebruik van aanhegsels wat nie deur die vervaardiger aanbeveel of verkoop word nie, kan brand, elektriese skok of beserings veroorsaak.
• Warm vloeistowwe: Exercise extreme caution when blending hot liquids, as hot steam can cause burns.
• Oorvul: Do not overfill the blending beaker or chopper bowl.
• Bewegende dele: Vermy kontak met bewegende dele.

2. Produk verbyview

The Moulinex Quickchef Lite Hand Blender DD656D27 is a versatile kitchen tool designed for efficient blending, chopping, and whisking. It features a powerful 1000W motor and exclusive Powelix blade technology for optimal performance.

Figure 2.1: Moulinex Quickchef Lite Hand Blender with all included attachments.

Komponente:

• A. Motoriese Eenheid: The main body containing the 1000W motor and speed control dial.
• B. Blending Foot: Stainless steel shaft with Powelix blades for blending.
• C. 800ml Measuring Beaker: For blending liquids and measuring ingredients.
• D. 500ml Chopper Bowl with Blade: For chopping various ingredients.
• E. Whisk Attachment: For whisking and beating ingredients.

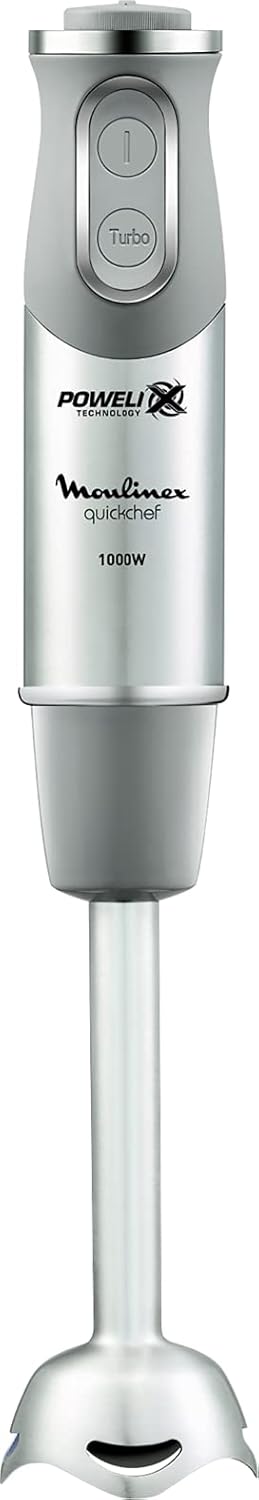

Figure 2.2: The main motor unit of the hand blender.

Figure 2.3: The 800ml measuring beaker.

Figure 2.4: The hand blender assembled with the chopper attachment.

3. Opstelling en samestelling

3.1 Assembling the Blending Foot

1. Align the blending foot (B) with the motor unit (A).
2. Twist the blending foot clockwise until it locks securely into place.

3.2 Assembling the Chopper Attachment

1. Carefully place the chopper blade onto the central pin inside the chopper bowl (D).
2. Add your ingredients to the chopper bowl.
3. Plaas die deksel van die kappmasjien op die bak en maak seker dat dit behoorlik vassit.
4. Attach the motor unit (A) to the chopper lid, twisting until it locks.

3.3 Assembling the Whisk Attachment

1. Insert the whisk (E) into the whisk adapter.
2. Attach the whisk adapter to the motor unit (A), twisting until it locks.

4. Bedryfsinstruksies

The Moulinex Quickchef Lite Hand Blender features 20 adjustable speeds and a Turbo function for optimal control and performance.

4.1 General Blending (Blending Foot)

1. Assemble the blending foot (B) to the motor unit (A).
2. Place the ingredients into the 800ml measuring beaker (C) or another suitable container.
3. Immerse the blending foot into the ingredients.
4. Prop die toestel in.
5. Adjust the speed using the dial on top of the motor unit. You can change speeds during operation without stopping.
6. Press the power button to start blending. For maximum power, press the 'Turbo' button.
7. Meng totdat die verlangde konsekwentheid bereik is.
8. Release the power button and unplug the appliance.

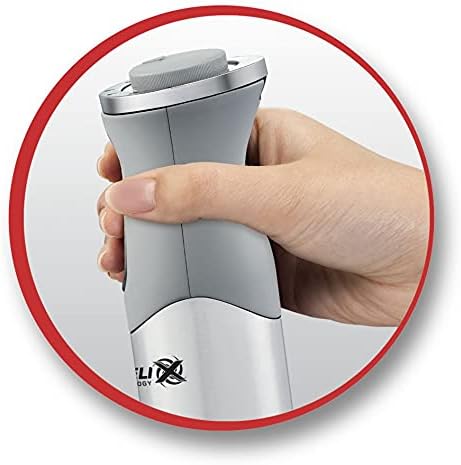

Figure 4.1: Ergonomic design for comfortable and secure handling.

4.2 Gebruik van die slypmasjien-aanhegsel

1. Monteer die kappersaanhegsel soos beskryf in Afdeling 3.2.
2. Prop die toestel in.
3. Press the power button to start chopping. Use short pulses for coarse chopping or continuous operation for finer results.
4. Release the power button and unplug the appliance.

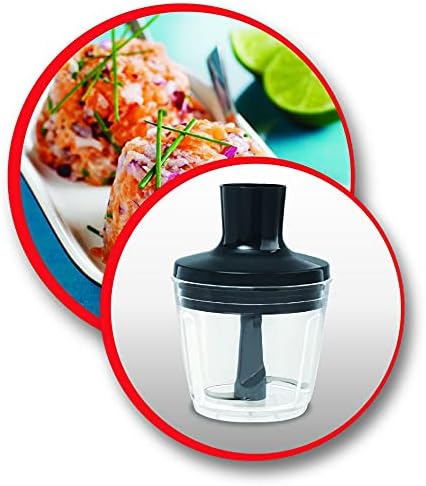

Figure 4.2: The 500ml chopper bowl efficiently processes various ingredients.

4.3 Gebruik van die klitser-aanhegsel

1. Monteer die klitser-aanhegsel soos beskryf in Afdeling 3.3.
2. Place ingredients into a suitable bowl.
3. Prop die toestel in.
4. Press the power button to start whisking. Adjust speed as needed.
5. Release the power button and unplug the appliance.

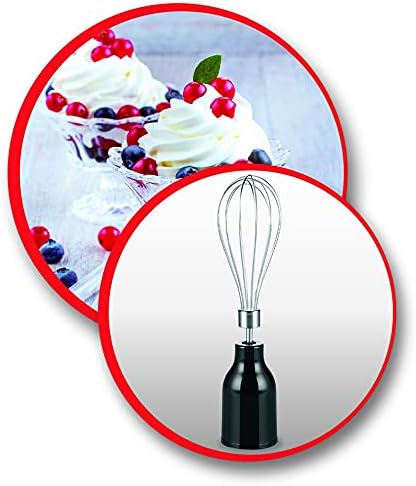

Figure 4.3: The whisk attachment is ideal for whipping cream or beating eggs.

4.4 Powelix Blade Technology

The Moulinex Quickchef Lite Hand Blender is equipped with exclusive Powelix blade technology. This innovative design combines optimized cutting angle, extremely sharpened blades, and advanced geometry to deliver up to 30% faster performance and incredibly smooth results, even with the toughest ingredients.

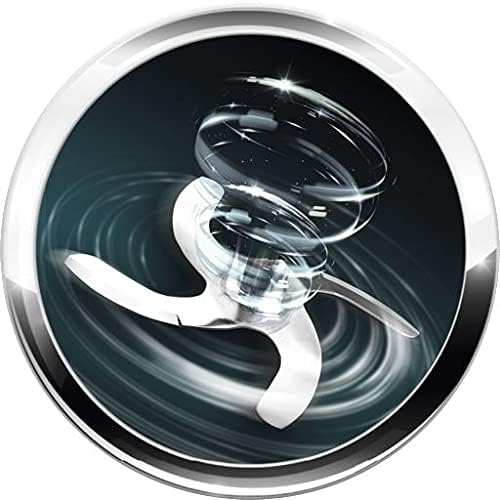

Figure 4.4: Close-up of the Powelix blades, engineered for superior blending.

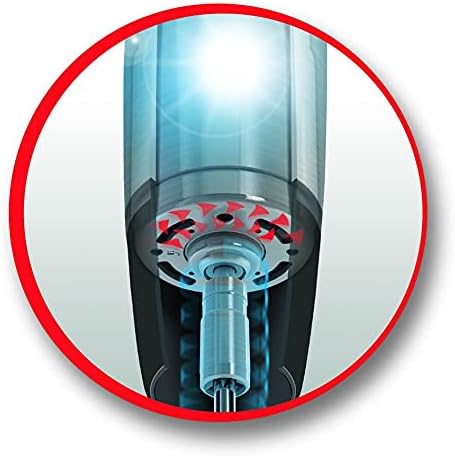

Figuur 4.5: Intern view of the Powelix blade technology.

5. Skoonmaak en Onderhoud

Behoorlike skoonmaak en onderhoud sal die lang lewensduur en optimale werkverrigting van jou handmenger verseker.

• Ontkoppel altyd die toestel voor skoonmaak.
• Motor Unit (A): Vee die motoreenheid af met adamp lap. Moet dit nie in water of enige ander vloeistof dompel nie.
• Blending Foot (B), Beaker (C), Chopper Bowl (D), Chopper Blade, Whisk (E), and Whisk Adapter: These parts are dishwasher safe. Alternatively, they can be washed by hand in warm soapy water. Rinse thoroughly and dry.
• Hanteer lemme versigtig: Be extremely careful when cleaning the chopper blade and blending foot blades as they are very sharp.
• Berging: Store the hand blender and its attachments in a dry place.

6. Probleemoplossing

If you encounter any issues with your hand blender, please refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.

7. Spesifikasies

• Handelsmerk: Moulinex
• Model: DD656D27
• Kleur: Silwer
• Krag: 1000 Watt
• Voltage: 230 Volt
• Aantal snelhede: 20 (Adjustable dial)
• Beheer tipe: Knop
• Blending Foot Material: Vlekvrye staal
• Bladmateriaal: Stainless Steel (Powelix Technology)
• Beaker Capacity: 800 ml
• Chopper Bowl Capacity: 500 ml
• Ingesluit komponente: Hand blender motor unit, blending foot, 800ml beaker, 500ml chopper with blade, whisk attachment.
• Product Dimensions (DxWxH): 25.2 x 14.6 x 25.8 cm
• Item gewig: 1.72 kg
• Spesiale kenmerk: Draagbaar
• Onderdele vir skottelgoedwasser: Yes (excluding motor unit)

8. Waarborg en Ondersteuning

Your Moulinex Quickchef Lite Hand Blender DD656D27 comes with a 1-jaar beperkte waarborg vanaf die aankoopdatum.

This warranty covers manufacturing defects under normal household use. It does not cover damage resulting from misuse, negligence, accident, alteration, or unauthorized repair.

For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official Moulinex webwebwerf.

Moulinex is committed to product reparability for 10 years. This commitment ensures that spare parts are available for a long period, supporting sustainability and extending the life of your appliance.
