GALAX Revolution-01 Gaming PC Case User Manual

1. Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your GALAX Revolution-01 Gaming PC Case. Please read this manual thoroughly before beginning installation to ensure proper setup and optimal performance.

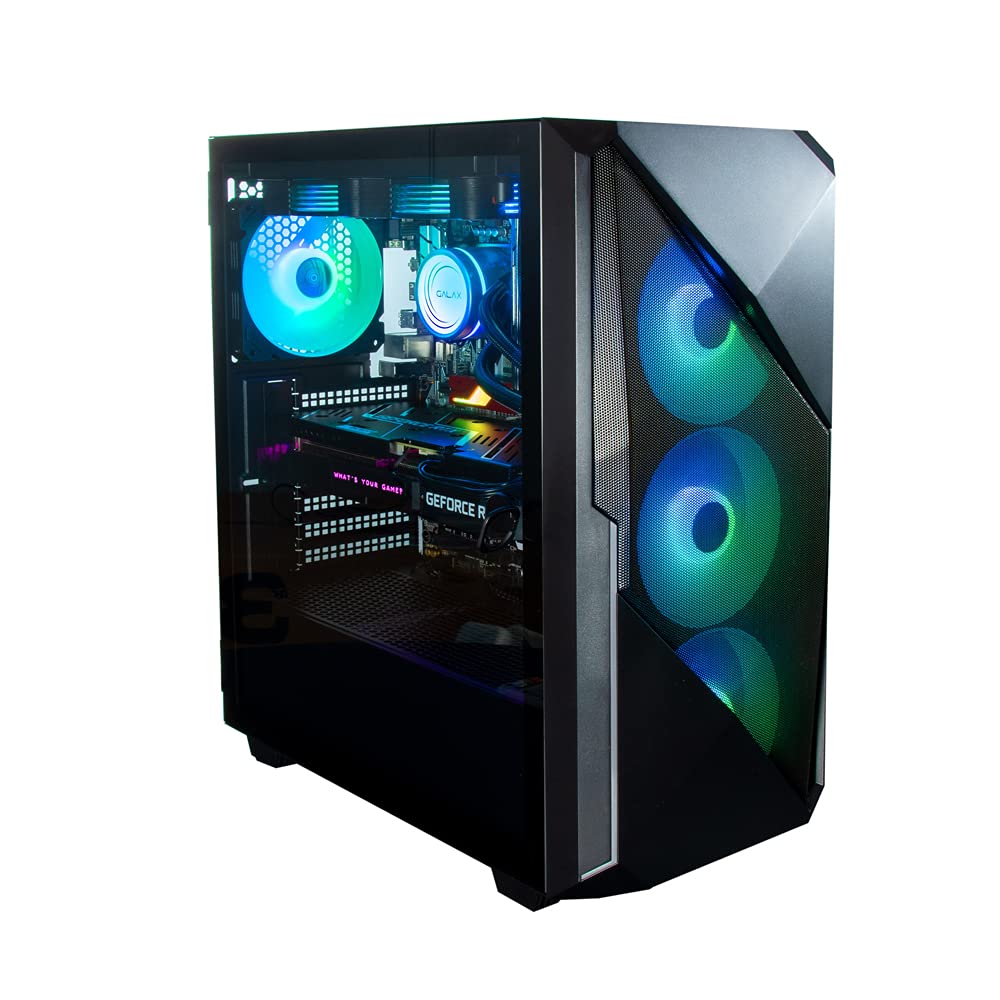

Figuur 1: Voor-links view of the GALAX Revolution-01 Gaming PC Case.

2. Produkkenmerke

• Mid Tower Design: Accommodates ATX, M-ATX, and M-ITX motherboards, offering versatile compatibility for various PC builds.
• Integrated ARGB Controller: Manages customizable lighting effects for the four pre-installed ARGB cooling fans and other compatible RGB components.
• Premium Tempered Glass Panel: A durable side panel provides a clear view of internal components while ensuring structural integrity.
• Optimized Airflow Design: Engineered for efficient cooling, promoting stable performance during intensive gaming sessions.
• Ruim binnekant: Facilitates easy installation of large components such as graphics cards, CPU coolers, and multiple storage drives.
• Magnetic Dust Filter: Located on the top panel, this filter helps prevent dust accumulation, maintaining cleaner internals and extending component lifespan.

3. Opstelling en installering

3.1 Unpacking the Case

Carefully remove the PC case from its packaging. Inspect for any damage that may have occurred during transit. Retain all packaging materials for future transport or warranty claims.

3.2 Toegang tot die binnekant

The GALAX Revolution-01 features a hinged tempered glass side panel for easy access. Gently open the panel to expose the interior for component installation.

Figure 2: Tempered glass side panel in open position.

3.3 Moederbord installasie

The case supports ATX, Micro-ATX, and Mini-ITX motherboards. Install the necessary standoffs for your motherboard form factor. Carefully place your motherboard onto the standoffs and secure it with screws.

Figure 3: Component placement diagram for motherboard, storage, and fans.

3.4 Installasie van kragtoevoereenheid (PSU).

Install your power supply unit in the designated top-mount location. Secure it with screws from the rear of the case.

3.5 Installasie van stoorskyf

The case provides bays for 3.5-inch hard disk drives (HDDs) and 2.5-inch solid-state drives (SSDs). Refer to the case's internal structure for specific mounting points and secure your drives.

3.6 Grafiese kaart en uitbreidingskaart installasie

Install your graphics card and other expansion cards into the appropriate PCIe slots on your motherboard. Secure them with the provided screws or retention clips.

3.7 Kabelbestuur

Utilize the cable routing cutouts and tie-down points behind the motherboard tray to manage cables. This improves airflow and maintains a clean interior aesthetic.

Figuur 4: Binne view highlighting cable management areas.

4. Operating the ARGB Lighting

The GALAX Revolution-01 comes with four pre-installed ARGB fans and an integrated ARGB controller. Connect the ARGB cables from the fans to the controller, and the controller to your motherboard's ARGB header (if available) or a SATA power connector for standalone operation.

4.1 ARGB Control

Lighting effects can be controlled via:

• Moederbord sagteware: If connected to a compatible motherboard ARGB header, use the motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion) to synchronize and customize lighting.
• Case Control Button: If no motherboard ARGB header is used, a dedicated button on the case's front I/O panel may cycle through pre-set lighting modes.

Figuur 5: Binne view with active ARGB lighting.

5. Onderhoud

5.1 Skoonmaak van die stoffilter

The top panel features a magnetic dust filter. Regularly remove and clean this filter to maintain optimal airflow and prevent dust buildup inside the case. Wash with water and mild soap, then dry completely before reattaching.

5.2 General Case Cleaning

Gebruik 'n sagte, damp cloth to wipe down the exterior surfaces of the case. For the tempered glass panel, use a glass cleaner and a microfiber cloth to avoid streaks. Avoid abrasive cleaners or solvents.

5.3 Fan Cleaning

Periodically clean the fan blades with compressed air or a soft brush to remove dust. Ensure the system is powered off before cleaning fans.

6. Probleemoplossing

6.1 Fans Not Spinning or Lighting Up

• Gaan kragverbindings na: Ensure all fan power cables and the ARGB controller's power cable (SATA) are securely connected to the power supply.
• Kontroleer ARGB-verbindings: Verify that ARGB cables are correctly connected to the controller or motherboard header.
• Moederbord sagteware: If using motherboard software, ensure it is updated and configured correctly for ARGB control.

6.2 Poor Airflow or Overheating

• Maak stoffilters skoon: Ensure the top magnetic dust filter and any other intake filters are clean.
• Kontroleer waaieroriëntasie: Verifieer dat waaiers met die korrekte inlaat-/uitlaatoriëntasie geïnstalleer is vir optimale lugvloei.
• Kabelbestuur: Improve cable routing to reduce obstructions to airflow.

Figure 6: Airflow diagram illustrating cooling potential.

7. Spesifikasies

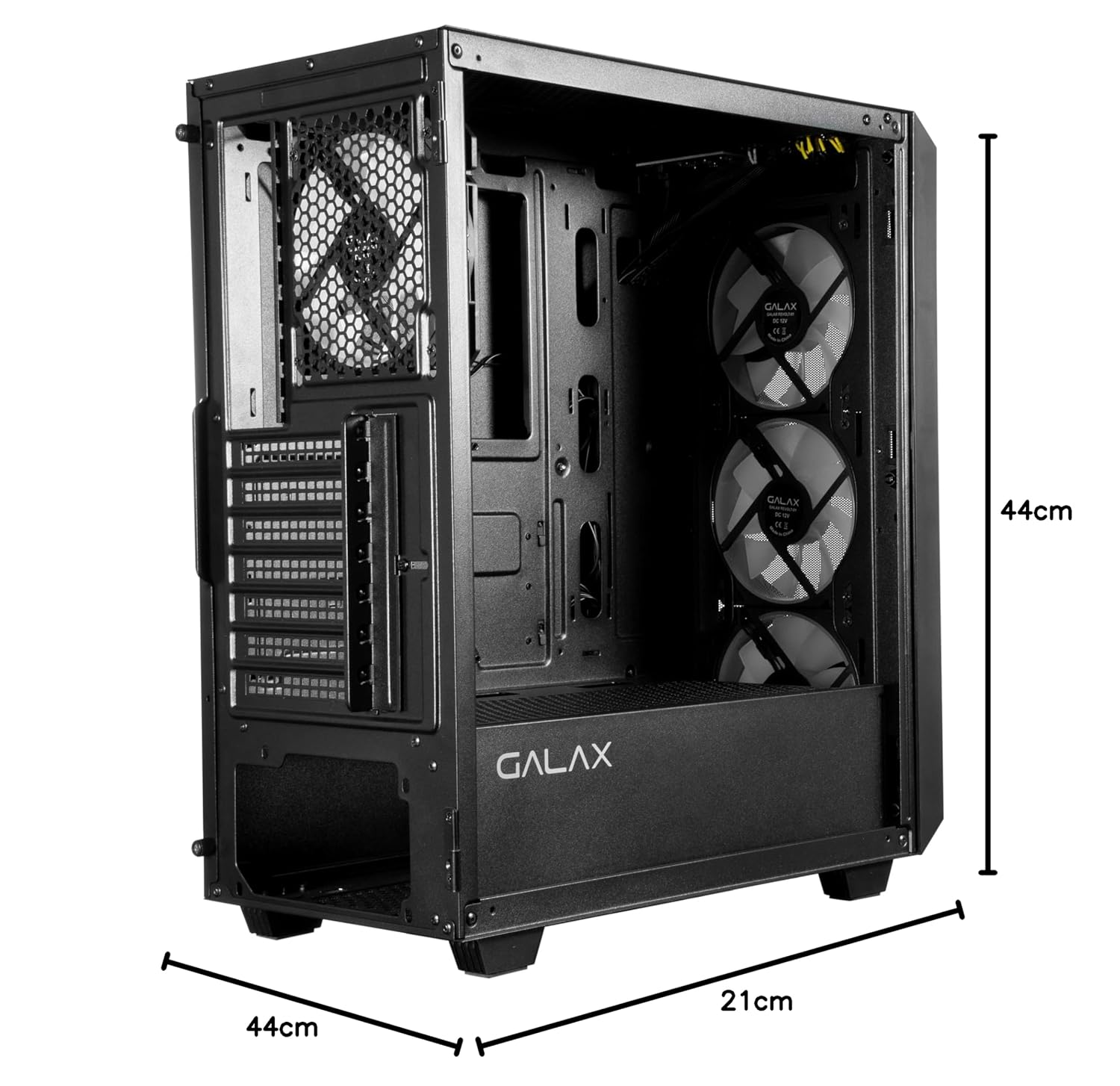

Figure 7: Case dimensions.

8. Waarborg en Ondersteuning

8.1 Waarborginligting

Hierdie produk word gedek deur 'n 1 Jaar Vervaardigerswaarborg from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects but does not cover damage caused by improper installation, misuse, or accidental damage.

8.2 Importer Contact Information

For support or warranty inquiries, please contact the importer:
