Gikfun Mini Amplifier Electronic Stereo Speaker Box DIY Kit User Manual

Model: Mini Amplewendiger

1. Inleiding

This manual provides detailed instructions for assembling, operating, and maintaining your Gikfun Mini Amplifier Electronic Stereo Speaker Box DIY Kit. This kit is designed for enthusiasts to build a functional stereo speaker system, offering both an educational experience in electronics and a practical audio device. Please read all instructions carefully before beginning assembly.

2. Veiligheidsinligting

Please observe the following safety precautions during assembly and operation:

  • Volwasse toesig: This kit contains small parts and requires soldering. Adult supervision is recommended for younger users.
  • Soldeerveiligheid: Use appropriate ventilation when soldering. Wear safety glasses to protect your eyes from solder splatter. Avoid touching hot soldering iron tips or recently soldered components.
  • Elektriese veiligheid: Ensure all connections are correct before applying power. Incorrect wiring can damage components or pose a fire hazard.
  • Komponent Hantering: Handle electronic components carefully to avoid damage from static electricity or physical stress.
  • Kragbron: Use only the specified USB power source. Do not exceed the recommended voltage of huidige.
  • Plasing: Place the assembled speakers on a stable, dry surface, away from water or excessive heat.

3. Pakketinhoud

Verify that all components listed below are present in your kit before starting assembly. Refer to the image below for a visual representation of the kit contents.

All components of the Gikfun Mini Amplifier Electronic Stereo Speaker Box DIY Kit laid out on a dark surface.

Beeld: Oorview of all components included in the DIY kit. This includes circuit boards, speakers, acrylic panels, resistors, capacitors, LEDs, wires, screws, and a USB cable.

  • 2x PCB (Printed Circuit Boards)
  • 2x 4Ohm 3W 40mm Diameter Full Range Audio Speakers
  • Acrylic panels for speaker enclosures
  • Various resistors, capacitors, and diodes
  • LEDs for music spectrum display
  • Geïntegreerde stroombane (IC's)
  • USB-kragkabel
  • 3.5mm audio input cable
  • Verbind drade
  • Nuts, screws, and standoffs for assembly
  • Other small electronic components

4. Opstel- en Monteringsinstruksies

Follow these steps carefully to assemble your stereo speaker kit. Basic soldering skills are required.

4.1. Komponentidentifikasie en -voorbereiding

Before soldering, identify all components. Resistors are color-coded, and capacitors have values printed on them. Ensure you have a clean workspace and your soldering iron is heated to the appropriate temperature.

Detailed dimensions of a 40mm speaker, showing diameter, height, and mounting hole spacing in millimeters.

Image: Technical drawing showing the dimensions of one of the 40mm speakers.

Two 40mm full-range audio speakers, black cones with silver frames, ready for assembly.

Image: Two 4Ohm 3W 40mm diameter full-range audio speakers.

4.2. Soldering Components to PCBs

Carefully solder all resistors, capacitors, diodes, ICs, and other small components onto the two provided PCBs according to the circuit diagram. Pay attention to component polarity where applicable (e.g., electrolytic capacitors, diodes, LEDs, ICs).

  1. Insert each component into its designated holes on the PCB.
  2. Bend the leads slightly to hold the component in place.
  3. Solder each lead, ensuring a good, shiny solder joint.
  4. Trim excess leads with flush cutters.

4.3. Bedradingsverbindings

Connect the speakers, USB power cable, and 3.5mm audio input cable to the PCBs as shown in the wiring diagram. Ensure secure and correct connections to avoid malfunction.

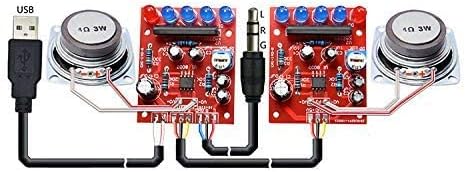

Wiring diagram for the Gikfun Mini Amplifier kit, showing connections between USB power, 3.5mm audio input, two circuit boards, and two speakers.

Image: Detailed wiring diagram illustrating how to connect the USB power, 3.5mm audio input, circuit boards, and speakers.

  1. Connect the speaker wires to the designated speaker output terminals on each PCB.
  2. Connect the USB power cable to the power input on one of the PCBs.
  3. Connect the 3.5mm audio input cable to the audio input on the appropriate PCB.
  4. Connect the two PCBs together using the provided interconnecting wires, ensuring correct left (L) and right (R) channel connections.

4.4. Enclosure Assembly

Assemble the transparent acrylic enclosures for each speaker. The PCBs and speakers will fit into these enclosures.

  1. Peel off any protective film from the acrylic panels.
  2. Mount the speakers into the front panel of each enclosure using the provided screws and nuts.
  3. Mount the assembled PCBs into the enclosure, aligning them with the designated standoffs.
  4. Secure all acrylic panels together using the remaining screws and nuts to form the complete speaker boxes.
Two assembled Gikfun Mini Amplifier speakers in clear acrylic boxes, with internal LEDs glowing red and blue, indicating active operation.

Image: Fully assembled stereo speakers with transparent acrylic enclosures and illuminated LEDs.

5. Bedryfsinstruksies

Once assembled, your Gikfun Mini Amplifier speakers are ready for use.

  1. Koppel krag: Plug the USB cable into a standard USB power source (e.g., computer USB port, USB wall adapter). The LEDs on the circuit boards should illuminate.
  2. Koppel klankbron: Plug the 3.5mm audio jack into the headphone output of your audio device (e.g., smartphone, tablet, laptop, MP3 player).
  3. Speel oudio: Start playing music or audio on your connected device. The speakers will output sound, and the LEDs will react to the music spectrum.
Two assembled Gikfun Mini Amplifier speakers connected to a smartphone via a 3.5mm audio jack, demonstrating compatibility.

Image: Assembled speakers connected to a smartphone, illustrating typical usage.

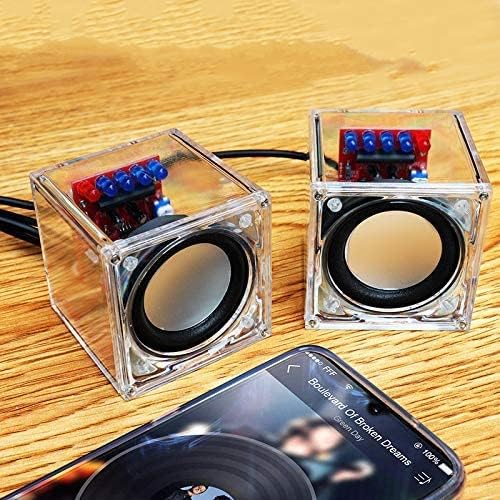

Nog een view of the two assembled Gikfun Mini Amplifier speakers connected to a smartphone, highlighting their compact size and clear enclosures.

Image: The speakers in operation, connected to a mobile device.

6. Onderhoud

To ensure the longevity and optimal performance of your Gikfun Mini Amplifier speakers, follow these simple maintenance guidelines:

  • Skoonmaak: Use a soft, dry cloth to wipe the acrylic enclosures. Avoid abrasive cleaners or solvents that could scratch or damage the plastic.
  • Stof: Keep the speakers free from dust. A soft brush or compressed air can be used to clean crevices.
  • Berging: When not in use for extended periods, store the speakers in a cool, dry place.
  • Vermy vog: Do not expose the speakers to water or high humidity, as this can damage the electronic components.

7. Probleemoplossing

If you encounter issues with your Gikfun Mini Amplifier speakers, refer to the following troubleshooting tips:

ProbleemMoontlike oorsaakOplossing
Geen klankuitset nie
  • No power to speakers
  • Audio cable not connected or faulty
  • Audio source volume too low or muted
  • Incorrect wiring during assembly
  • Faulty speaker or component
  • Ensure USB power is connected and active.
  • Check 3.5mm audio cable connection at both ends. Try a different cable.
  • Increase volume on the audio source device.
  • Review wiring diagram and check all soldered connections for continuity and shorts.
  • Inspekteer luidsprekers vir fisiese skade.
Distorted or low sound
  • Los verbindings
  • Overdriven audio input
  • Faulty component
  • Check all soldered joints and wire connections.
  • Reduce volume on the audio source device.
  • Inspect components for damage or incorrect values.
LED's brand nie
  • Geen krag nie
  • Incorrect LED polarity
  • Faulty LEDs or associated components
  • Verify USB power connection.
  • Check LED orientation during soldering.
  • Inspect solder joints for LEDs and related resistors.

8. Spesifikasies

Key technical specifications for the Gikfun Mini Amplifier Electronic Stereo Speaker Box DIY Kit:

  • Handelsmerk: Gikfun
  • Model Naam: Mini Amplewendiger
  • Luidspreker maksimum uitsetkrag: 3 Watt per luidspreker
  • Tipe luidspreker: Woofer (Full Range Audio Speaker)
  • Luidsprekergrootte: 40 Millimeters Diameter
  • Aantal oudiokanale: 2.0 (Stereo)
  • Klankuitsetmodus: Stereo
  • Verbindingstegnologie: USB (for power), 3.5mm Audio Jack (for input)
  • Verbindingsprotokol: USB
  • Kragbron: Koord Elektries (via USB)
  • Beheer metode: Touch (refers to the nature of the DIY kit, not a physical touch control on the device)
  • Versoenbare toestelle: Desktop, Laptop, MP3 Player, Smartphone, Tablet, Television
  • Montage tipe: Plug Mount (refers to component mounting on PCB)
  • Is waterdig: ONWAAR

9. Waarborginligting

This Gikfun product comes with a limited warranty. The warranty typically covers individual components prior to assembly for a specified period from the date of purchase. Damage resulting from improper assembly, misuse, or modification is not covered. For specific warranty terms and conditions, please refer to the product packaging or contact Gikfun customer support.

10. Kliëntediens

For further assistance, technical support, or inquiries regarding your Gikfun Mini Amplifier Electronic Stereo Speaker Box DIY Kit, please contact Gikfun customer service. You can typically find contact information on the Gikfun official webwebwerf of deur die kleinhandelaar waar die produk gekoop is.

Aanlyn hulpbronne: Besoek die Gikfun Store on Amazon vir produkinligting en opdaterings.

© 2023 Gikfun. All rights reserved.
