1. Inleiding
This manual provides essential instructions for the proper installation, operation, and maintenance of your Generic N577285 Auxiliary Handle. This genuine OEM replacement part is designed for use with Craftsman String Trimmer models CMCST900D1 and CMCST900B. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

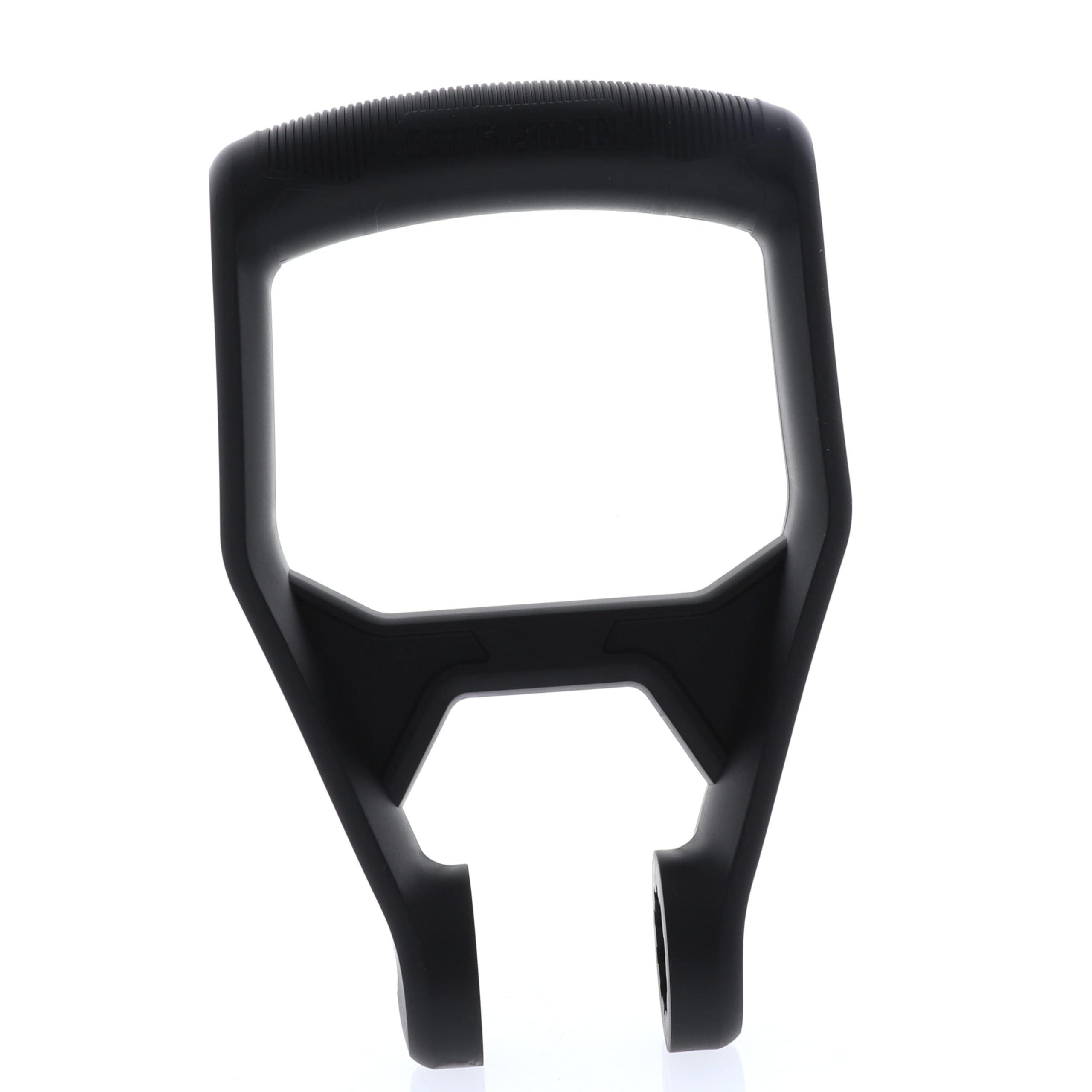

Figure 1: Generic N577285 Auxiliary Handle. This image shows the black, ergonomic auxiliary handle with its attachment points.
2. Veiligheidsinligting
Always observe basic safety precautions when working with power tools and replacement parts. Failure to follow these instructions may result in injury or damage to the equipment.
- Ontkoppel krag: Before installing or removing the auxiliary handle, always ensure the string trimmer's battery is removed or the power cord is unplugged to prevent accidental startup.
- Dra beskermende toerusting: Use appropriate personal protective equipment (PPE) such as safety glasses, gloves, and sturdy footwear.
- Read Trimmer Manual: Refer to your Craftsman String Trimmer's original instruction manual for specific safety guidelines related to its operation.
- Veilige installasie: Ensure the auxiliary handle is securely fastened before operating the string trimmer. A loose handle can lead to loss of control.
- Inspekteer vir skade: Before each use, inspect the auxiliary handle for any signs of wear, cracks, or damage. Do not use if damaged.
3. Pakketinhoud
Verifieer dat alle items teenwoordig is wanneer die pakkie oopgemaak word:
- 1 x Generic N577285 Auxiliary Handle
- (Note: Mounting hardware, if required, is typically reused from the original handle or purchased separately.)
4. Opstelling en Installasie
Follow these steps to install the auxiliary handle onto your Craftsman String Trimmer:
- Berei die trimmer voor: Ensure the string trimmer is turned off and the battery is removed (for cordless models) or unplugged (for corded models).
- Verwyder ou handvatsel (indien van toepassing): If replacing an existing handle, carefully remove any screws or clamps securing the old handle to the trimmer shaft. Keep any hardware for reuse.
- Posisioneer die nuwe handvatsel: Slide the Generic N577285 Auxiliary Handle onto the trimmer shaft. The handle is designed to fit specific Craftsman models (CMCST900D1, CMCST900B) and should align with the mounting points on the shaft.
- Bevestig die handvatsel: Use the appropriate screws or clamping mechanism (typically provided with the original trimmer or reused from the old handle) to firmly attach the auxiliary handle to the trimmer shaft. Ensure it is tight and does not wobble.
- Pas posisie aan: Adjust the handle to a comfortable operating position that allows for balanced control of the trimmer. Ensure it is securely tightened after adjustment.
Figuur 2: Close-up view of the auxiliary handle's attachment mechanism. This image highlights the circular opening and internal splines designed for secure mounting on the trimmer shaft.
5. Operasie
The auxiliary handle provides an additional grip point for improved control and comfort during string trimmer operation.
- Behoorlike greep: Hold the main handle of the trimmer with one hand and the auxiliary handle with the other. This two-handed grip enhances stability and reduces fatigue.
- Saldo: Adjust the position of the auxiliary handle along the trimmer shaft to achieve optimal balance for your height and working conditions.
- Beheer: Use the auxiliary handle to guide the trimmer head smoothly and precisely, especially when trimming edges or around obstacles.
6. Onderhoud
Regular maintenance ensures the longevity and safe operation of your auxiliary handle.
- Skoonmaak: Vee die handvatsel skoon met advertensieamp cloth after each use to remove dirt, grass, and debris. Avoid using harsh chemicals that could damage the plastic.
- Inspeksie: Periodically check the handle for any signs of cracks, chips, or excessive wear. Ensure all mounting hardware remains tight.
- Berging: Store the string trimmer with the auxiliary handle in a clean, dry place, away from direct sunlight and extreme temperatures.
7. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Die handvatsel voel los of wankelrig. | Mounting screws/clamp nie styf genoeg nie. | Tighten all mounting screws or clamping mechanisms securely. Ensure the handle is properly seated on the trimmer shaft. |
| Difficulty installing the handle. | Verkeerde belyning of onversoenbare model. | Verify that the handle is correctly aligned with the trimmer shaft's mounting points. Confirm your trimmer model (CMCST900D1 or CMCST900B) is compatible with N577285. |
8. Spesifikasies
- Modelnommer: N577285
- Verenigbaarheid: Craftsman String Trimmers CMCST900D1, CMCST900B
- Afmetings (Benader): 8.3 x 5.4 x 1.85 duim (21.1 x 13.7 x 4.7 cm)
- Gewig (ongeveer): 8.8 onse (249 gram)
- Materiaal: Durable plastic composite
9. Waarborg en ondersteuning
For information regarding warranty coverage or technical support for your Generic N577285 Auxiliary Handle, please refer to the retailer or manufacturer's official webwebwerf waar die produk gekoop is. Bewaar u bewys van aankoop vir enige waarborgeise.
