NORDRIVE N70060 Fit-Kit A Mounting Kit User Manual

1. Inleiding

Thank you for choosing the NORDRIVE N70060 Fit-Kit A. This kit is specifically designed to securely mount NORDRIVE Premium-Guard partition grilles in your vehicle, ensuring the safety of your pets during travel. Please read this manual carefully before installation and retain it for future reference.

2. Produk verbyview

The N70060 Fit-Kit A provides the necessary components to attach your NORDRIVE Premium-Guard pet barrier to the headrest posts of your vehicle's rear seats. This ensures a stable and reliable installation, preventing movement of the barrier during transit.

2.1 Verenigbaarheid

This Fit-Kit A is compatible with the following NORDRIVE Premium-Guard partition grilles:

• N70051
• N70052
• N70053
• N70054
• N70055
• N70056
• N70057

3. Pakketinhoud

Please verify that all components are present in the package before proceeding with the installation.

Image of the retail packaging for the NORDRIVE N70060 Fit-Kit A, indicating its model number and compatibility with Premium-Guard grilles.

The NORDRIVE N70060 Fit-Kit A typically includes:

• Verstelbare clamps for headrest posts (quantity may vary)
• Connecting bars/tubes to link clamps to the grille
• Fasteners and hardware for assembly
• Instruction leaflet (this manual)

4. Opstelling en installering

Follow these steps to correctly install the NORDRIVE N70060 Fit-Kit A with your Premium-Guard pet barrier.

4.1 Kit Components Overview

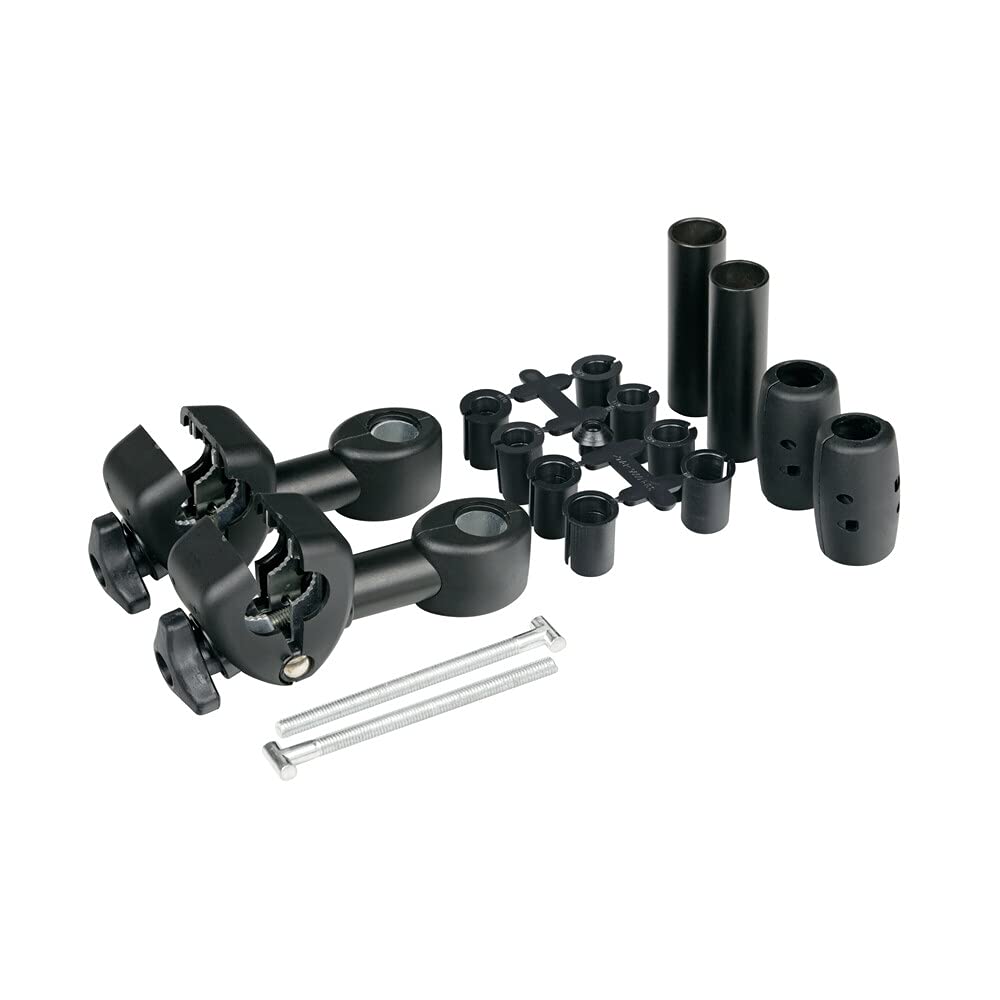

Image showing the individual components of the NORDRIVE N70060 Fit-Kit A, including the adjustable clamps and connecting bars designed to attach to vehicle headrest posts.

4.2 Attaching the Kit to the Grille

Illustration demonstrating how the N70060 Fit-Kit A connects to a NORDRIVE Premium-Guard pet barrier grille, providing the attachment points for the vehicle's headrests.

1. Identify the attachment points on your NORDRIVE Premium-Guard pet barrier. These are typically located on the lower horizontal bar of the grille.
2. Assemble the connecting bars of the Fit-Kit A to these attachment points using the provided fasteners. Ensure they are finger-tight for now.

4.3 Installing the Grille in the Vehicle

Diagram illustrating the NORDRIVE pet barrier grille, secured by the N70060 Fit-Kit A, installed behind the rear seats of a vehicle, showing its position relative to the headrests.

3. Position the assembled grille and Fit-Kit A behind the rear seats of your vehicle.
4. Adjust the height of your vehicle's rear headrests as needed to allow the Fit-Kit A clamps to engage with the headrest posts.
5. Heg die verstelbare sluiting aanamps of the Fit-Kit A to the metal posts of the headrests. Ensure the clamps are fully engaged and centered on the posts.
6. Tighten all fasteners securely. The grille should be firm and not wobble. Do not overtighten, but ensure there is no play.
7. Perform a final check to ensure the grille is stable and properly positioned to prevent your pet from accessing the front of the vehicle.

5. Bedryfsinstruksies

Once installed, the NORDRIVE N70060 Fit-Kit A operates passively by holding the pet barrier in place. No further operation is required.

• Voor elke reis: Visually inspect the Fit-Kit A and the pet barrier to ensure all connections are secure and the barrier remains stable.
• Aanpassings: If you need to adjust the position of the barrier or remove it, loosen the clamps from the headrest posts, make the necessary adjustments, and then re-secure all connections.

6. Onderhoud

Regular maintenance will ensure the longevity and continued performance of your Fit-Kit A.

• Skoonmaak: Maak die komponente skoon met adamp cloth and mild soap if necessary. Avoid abrasive cleaners or solvents.
• Periodieke inspeksie: Kontroleer gereeld alle skroewe, boute en klemmeamps for tightness. Vibrations during driving can sometimes loosen fasteners.
• Berging: If removing the kit for extended periods, store it in a dry place away from direct sunlight and extreme temperatures.

7. Probleemoplossing

If you encounter issues during installation or use, refer to the following common solutions.

• Grille feels loose after installation:
  • Ensure all fasteners on the Fit-Kit A and the grille are tightened securely.
  • Verify that the headrest clamps are fully engaged with the headrest posts and are not slipping.
  • Check if the headrest posts themselves are loose in the seat.
• Fit-Kit A does not fit headrest posts:
  • Die klamps are designed to be adjustable. Ensure you are using the correct inserts (if provided) for your headrest post diameter.
  • Confirm that your vehicle's headrest posts are standard size.
• Difficulty attaching Fit-Kit A to the grille:
  • Ensure you are using the correct NORDRIVE Premium-Guard grille model as listed in the compatibility section.
  • Refer to the grille's own instruction manual for specific attachment points.

8. Spesifikasies

9. Waarborginligting

For detailed warranty information regarding your NORDRIVE N70060 Fit-Kit A, please refer to the official warranty documentation provided by NORDRIVE or contact their customer service directly. Warranty terms and conditions may vary by region and retailer.

10. Ondersteuning

Should you require further assistance with the installation, operation, or troubleshooting of your NORDRIVE N70060 Fit-Kit A, please contact NORDRIVE customer support. Contact details can typically be found on the product packaging or the official NORDRIVE webwebwerf.
