1. Belangrike veiligheidsinstruksies
Please read these instructions carefully before using the appliance to prevent damage, fire, or injury. Keep this manual for future reference.
- Maak altyd seker dat die toestel op 'n stabiele, hittebestande oppervlak geplaas word.
- Moenie die toestel, koord of prop in water of ander vloeistowwe dompel nie.
- Ontkoppel die toestel uit die uitlaat wanneer dit nie gebruik word nie, voordat jy onderdele monteer of uitmekaar haal, en voor skoonmaak.
- Moenie enige toestel gebruik met 'n beskadigde koord of prop, of nadat die toestel wanfunksioneer of op enige manier beskadig is nie.
- Keep children away from the appliance during operation. The surface can become hot.
- Moenie bykomstighede gebruik wat nie deur die vervaardiger aanbeveel word nie.
- Hierdie toestel is slegs vir huishoudelike gebruik.
Image: Standard European power plug. Ensure the plug is fully inserted into a grounded outlet.
2. Produk verbyview
2.1 Komponente
The Steba BM 3 Bread Maker includes the following main components:
- Main Unit with Control Panel and Display
- Removable Baking Pan with Non-stick Coating
- Knie -paddle
- Maatbeker
- Maatlepel
- Haak vir die verwydering van die knie-paddle
- Deksel met Viewing Venster
Beeld: Voorkant view of the Steba BM 3 Bread Maker, showing its compact design.

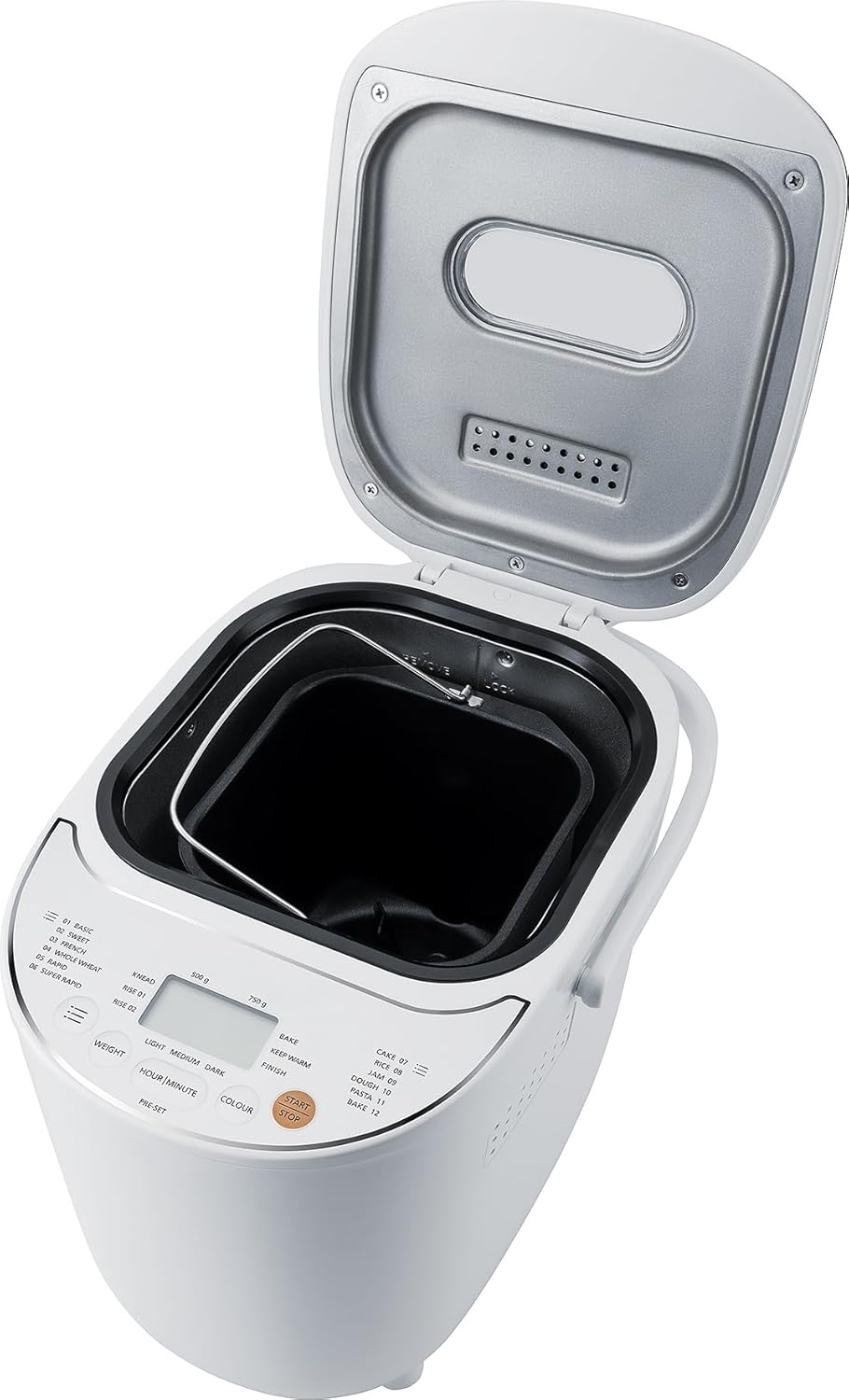

Image: The bread maker with its lid open, revealing the removable baking pan inside.

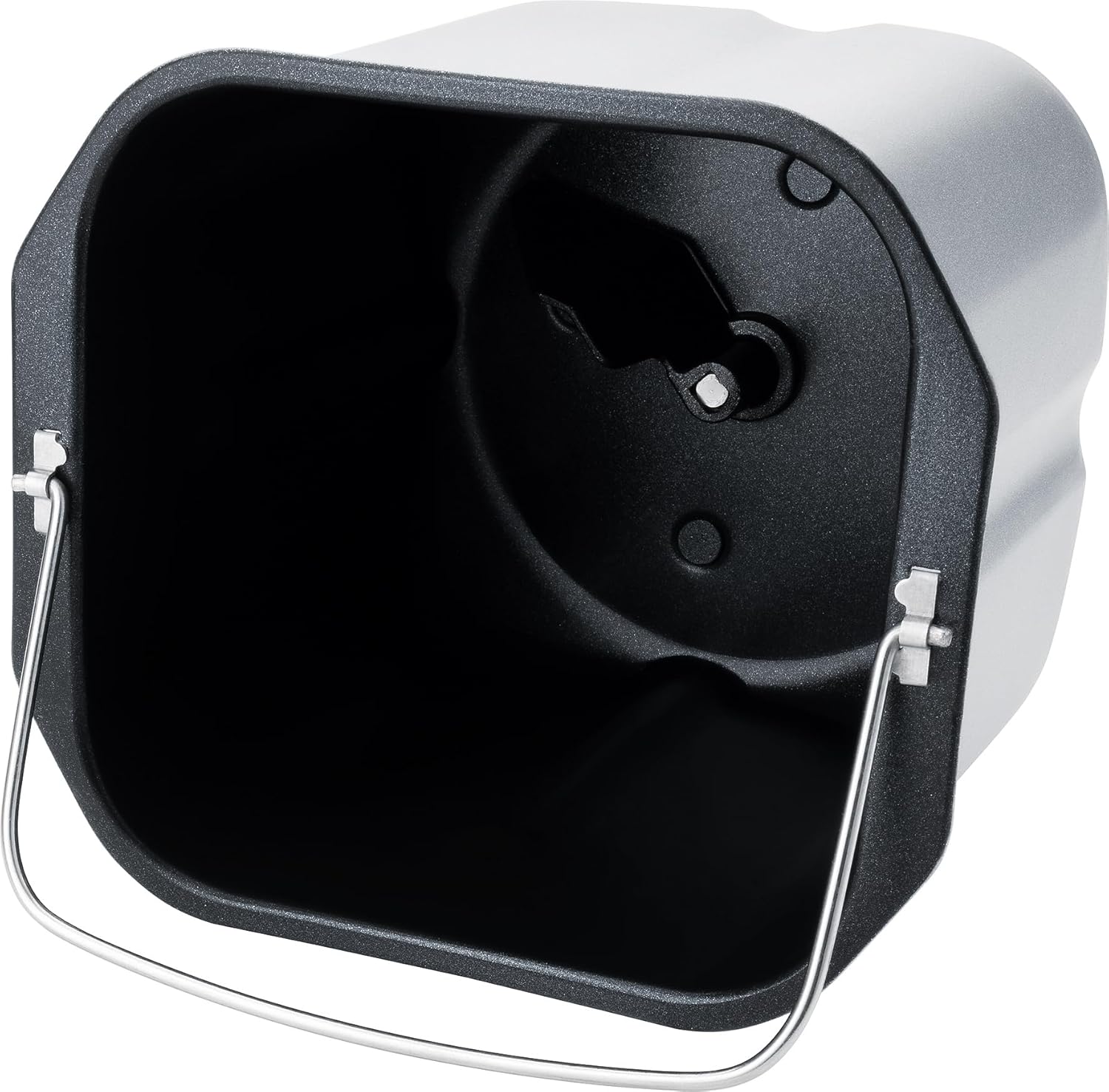

Beeld: Gedetailleerd view of the non-stick baking pan with the kneading paddle shaft.
Image: Included accessories: a measuring cup, a double-sided measuring spoon, and a hook for removing the kneading paddle.
2.2 Beheerpaneel en skerm
The intuitive Touch-Control panel allows for easy program selection and setting adjustments.
Image: Close-up of the control panel, showing the digital display, program list, and control buttons for weight, time, color, and start/stop.
Sleutelkontroles:
- Vertoon: Shows selected program, time, and settings.
- Programkeuse: Choose from 12 automatic programs (Basic, Sweet, French, Whole Wheat, Rapid, Super Rapid, Cake, Rice, Jam, Dough, Pasta, Bake).
- Weight Button: Adjust bread weight (500g or 750g).
- Colour Button: Select crust browning level (Light, Medium, Dark).
- Hour/Minute (Pre-set) Buttons: Set delay timer for up to 13 hours.
- Start/Stop -knoppie: Initiate or cancel a program.
3. Opstelling en eerste gebruik
3.1 Uitpak
- Verwyder die broodmasjien en alle bykomstighede versigtig uit die verpakking.
- Verwyder enige beskermende films of plakkers van die toestel.
- Wash the baking pan, kneading paddle, measuring cup, and spoon in warm, soapy water. Rinse thoroughly and dry completely. The main unit should only be wiped with a damp lap.
3.2 Aanvanklike gebruik
- Place the bread maker on a clean, dry, and stable surface.
- Insert the baking pan into the main unit and twist it clockwise until it locks into place.
- Attach the kneading paddle onto the shaft inside the baking pan.
- For the first use, it is recommended to run a short 'Bake' cycle (Program 12) without ingredients for about 10 minutes to burn off any manufacturing residues. Ensure good ventilation during this process.
- Allow the appliance to cool down completely before cleaning and proceeding with actual baking.
4. Operasie
4.1 Basiese Broodbakstappe
- Voeg bestanddele by: Follow a recipe and add liquid ingredients first, then dry ingredients, and finally yeast. Ensure yeast does not come into direct contact with liquids or salt.
- Kies program: Plug in the bread maker. The default program (usually 'Basic') will appear on the display. Press the 'Program' button repeatedly to cycle through the 12 available programs until your desired program is selected.
- Set Weight: Press the 'Weight' button to choose between 500g or 750g loaf size, if applicable for the selected program.
- Set Crust Colour: Press the 'Colour' button to select Light, Medium, or Dark crust.
- Begin bak: Press the 'Start/Stop' button. The bread maker will begin the selected program.
- Voltooiing: Once the program finishes, the bread maker will beep and automatically switch to a 1-hour 'Keep Warm' function.
- Verwyder Brood: Unplug the appliance. Using oven mitts, carefully remove the baking pan by twisting it counter-clockwise and lifting it out. Invert the pan to release the bread onto a wire rack to cool. If the kneading paddle remains in the bread, use the provided hook to remove it.
4.2 Vertragingstimerfunksie
The delay timer allows you to set the bread maker to finish baking at a later time, up to 13 hours. This is ideal for fresh bread in the morning.
- Voeg al die bestanddele by die bakpan.
- Select your desired program, weight, and crust colour.
- Press the 'Hour' and 'Minute' buttons to set the desired delay time. The displayed time includes the baking cycle duration.
- Press 'Start/Stop'. The timer will count down, and the bread maker will start automatically when the delay time expires.
Let wel: Do not use the delay timer with recipes containing highly perishable ingredients like milk, eggs, or fresh fruit, as they may spoil.
Image: An assortment of various types of freshly baked bread, illustrating the potential output of the bread maker.
5. Onderhoud en Skoonmaak
Proper cleaning and maintenance ensure the longevity and optimal performance of your bread maker.
5.1 Skoonmaak
- Ontkoppel altyd die toestel en laat dit heeltemal afkoel voordat dit skoongemaak word.
- Bakpan en Kniepaddle: These parts are non-stick and should be washed by hand with warm, soapy water. Avoid abrasive cleaners or scouring pads that could damage the non-stick coating. Rinse thoroughly and dry completely.
- Hoof Eenheid: Vee die buitekant van die broodmasjien af met 'n sagte, damp lap. Moenie harde chemikalieë gebruik of die eenheid in water dompel nie.
- Deksel: Die deksel kan skoongevee word met advertensieamp lap. Die viewing window can be cleaned with a mild glass cleaner if necessary.
5.2 Berging
Store the bread maker in a dry, clean place, away from direct sunlight and out of reach of children.
6. Probleemoplossing
As jy probleme met jou broodmasjien ondervind, raadpleeg die volgende algemene probleme en oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Brood rys nie | Expired yeast, incorrect water temperature, too much salt/sugar, wrong program. | Kontroleer die vervaldatum van die gis, gebruik louwarm water, maak seker dat die korrekte verhoudings van bestanddele korrek is, kies die gepaste program. |
| Brood is te dig | Too much flour, not enough liquid, yeast issue. | Measure ingredients precisely, ensure proper liquid-to-flour ratio, check yeast activity. |
| Kniepaddel vas in brood | Normale voorkoms. | Gebruik die meegeleverde haak om die roer versigtig te verwyder nadat die brood effens afgekoel het. |
| Toestel begin nie | Not plugged in, program not selected, 'Start/Stop' not pressed. | Ensure power connection, select a program, press 'Start/Stop'. |
7. Spesifikasies
Technical details for the Steba BM 3 Bread Maker:
- Modelnommer: 188300
- Handelsmerk: Steba
- Voltage: 230 Volt
- Wattage: 540 watt
- Kapasiteit: Up to 750 Grams
- Produk Afmetings (D x B x H): 34D x 27.5B x 24H cm
- Item gewig: 4 kilogram
- Materiaal: Plastiek
- Aantal programme: 12
- Versorgingsinstruksies: Slegs handwas (vir verwyderbare dele)
- Beskikbaarheid van onderdele in die EU: 2 Jaar
Image: Diagram showing the dimensions of the Steba BM 3 Bread Maker: 34 cm depth, 27.5 cm width, and 24 cm height.
8. Waarborg en Ondersteuning
For warranty claims, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty validation.
