U.S. Solid Motorized Ball Valve - 1/2 Inch Stainless Steel, 9-24V AC/DC, 2-Wire Auto Return

1. Inleiding

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your U.S. Solid 1/2 Inch Stainless Steel Motorized Ball Valve. This valve features a full port design, 9-24V AC/DC power compatibility, and a 2-wire auto return setup, making it suitable for various fluid control applications. Please read this manual thoroughly before use and retain it for future reference.

2. Veiligheidsinligting

• Ensure all power sources are disconnected before installation or maintenance to prevent electrical shock.
• Verifieer dat die voltage and current of your power supply match the valve's specifications (9-24V AC/DC).
• Install the valve in an environment where the ambient temperature is within the specified range (less than 40°C).
• Ensure the medium temperature flowing through the valve does not exceed 100°C.
• Do not exceed the maximum operating pressure of 1.0 MPa (10 Bars).
• Use appropriate sealing materials, such as PTFE tape, on threaded connections to prevent leaks.
• Avoid applying excessive force during installation that could damage the valve body or motor.

3. Produk verbyview

3.1 Kenmerke

• Veilig en betroubaar: Constructed from 304 stainless steel, offering durability and an estimated life expectancy of 80,000 to 100,000 cycles.
• NPT Threading: Features 1/2" 304SS NPT threads, ensuring compatibility with standard pipe systems.
• Full Port Design: The bore in the ball is a full 1/2", minimizing pressure loss through the valve.
• Wye Voltage reeks: Operates effectively with 9-24V AC/DC power supply.
• Vinnige werking: Opens or closes the valve in 3-5 seconds.
• 2-Wire Auto Return Setup: Simple two-wire connection. The valve largely de-energizes after closing and returns to fully open if power is removed.
• Alternative to Solenoid Valves: Automatically cuts off power once fully open or fully closed, reducing the likelihood of overheating.

3.2 Komponente

The U.S. Solid Motorized Ball Valve consists of a stainless steel ball valve body and an integrated electric actuator. The actuator houses the motor, gearing, and control circuitry.

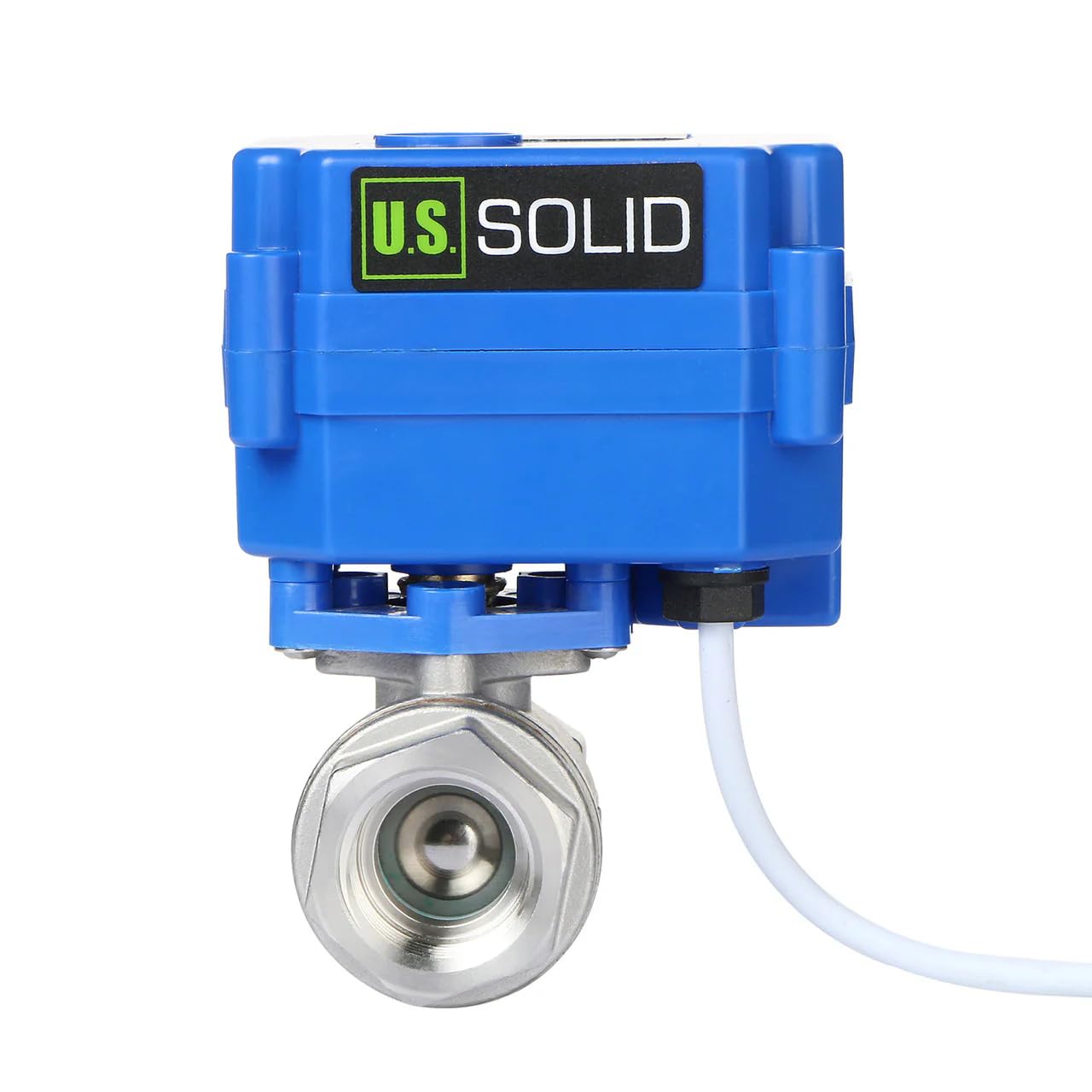

Figure 1: U.S. Solid 1/2 Inch Motorized Ball Valve (Model USS-MSV00071)

Figure 2: Key dimensions of the motorized ball valve, showing its compact design with a length of 2.7 inches for the actuator and 2.5 inches for the valve body, and a total height of 3.6 inches.

Figuur 3: Close-up view of the 1/2" NPT threading and the full port design (15mm bore) of the valve, ensuring minimal flow restriction.

4. Opstelling en installering

4.1 Meganiese installasie

1. Ensure the piping system is clean and free of debris before installing the valve.
2. Apply appropriate thread sealant (e.g., PTFE tape) to the male pipe threads.
3. Screw the valve firmly into the piping system. Do not overtighten.
4. Ensure the valve is installed in a position that allows for easy access for wiring and future maintenance.

Figure 4: Wiring diagram for the 2-wire auto return function, illustrating DC and AC connections for opening and closing the valve.

4.2 Electrical Wiring (2-Wire Auto Return)

This valve operates with a simple 2-wire auto return mechanism. When power is applied, the valve opens. When power is removed, the valve automatically closes.

• Connect the two wires from the valve to your 9-24V AC/DC power source. The valve will open when energized.
• When the power is disconnected, the valve will automatically return to its fully closed position.
• A limit switch minimizes power consumption once the valve is fully open or closed.

5. Bedryfsinstruksies

The U.S. Solid Motorized Ball Valve is designed for straightforward operation based on power supply.

• Om die klep oop te maak: Apply 9-24V AC/DC power to the valve's two wires. The motor will actuate, rotating the ball to the open position within 3-5 seconds. Once fully open, the internal limit switch will reduce power consumption.
• Om die klep toe te maak: Disconnect the power supply from the valve. The auto-return mechanism will engage, rotating the ball to the closed position.

Figure 5: Illustration of normally open and normally closed valve states, showing how the valve position changes with power ON/OFF.

6. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your motorized ball valve.

• Periodieke inspeksie: Regularly check for any signs of leakage, corrosion, or physical damage to the valve body and actuator.
• Elektriese verbindings: Maak seker dat alle elektriese verbindings veilig en vry van korrosie is.
• Skoonmaak: Keep the exterior of the actuator clean and free from dust or debris. Do not use harsh chemicals that could damage the housing.
• Operasionele kontrole: Periodically cycle the valve (open and close) to ensure smooth operation.

7. Probleemoplossing

If you encounter issues with your U.S. Solid Motorized Ball Valve, consider the following common checks:

• Valve Not Opening/Closing:
  • Check power supply: Ensure the correct voltage (9-24V AC/DC) is being supplied and that connections are secure.
  • Inspect wiring: Verify that the wires are correctly connected according to the 2-wire auto return diagram.
  • Check for obstructions: Ensure there are no physical obstructions preventing the ball from rotating.
• Lekkasie:
  • Check threaded connections: Ensure NPT threads are properly sealed with PTFE tape and tightened sufficiently.
  • Inspect valve body: Look for any cracks or damage to the stainless steel body.
• Ongewone geraas tydens werking:
  • This could indicate internal wear or debris. If persistent, contact customer support.

For issues not resolved by these steps, please contact U.S. Solid customer support.

8. Spesifikasies

9. Waarborg en Ondersteuning

U.S. Solid stands behind the quality of its products. This motorized ball valve comes with a 1-year warranty or money-back promise, ensuring customer satisfaction.

For technical support, warranty claims, or any inquiries, please visit the official U.S. Solid webwebwerf of kontak hul kliëntediensafdeling. Jy kan meer inligting vind by www.ussolid.com.
