Inleiding
Thank you for choosing the Renkforce RF-SBS-500 2D Wired Barcode Scanner. This device is designed for efficient and reliable scanning of both 1D and 2D barcodes from various surfaces, including paper and smartphone screens. Its omnidirectional scanning capability and hands-free operation make it suitable for a wide range of applications. This manual provides essential information for the proper setup, operation, and maintenance of your scanner.
Veiligheidsinstruksies
- Do not expose the scanner to extreme temperatures, humidity, or direct sunlight.
- Avoid dropping the scanner or subjecting it to strong impacts.
- Do not attempt to disassemble or modify the scanner. This will void the warranty.
- Keep the scanning window clean to ensure optimal performance. Use a soft, dry cloth.
- Ensure the USB cable is connected securely to prevent accidental disconnection.
Pakketinhoud
- Renkforce RF-SBS-500 2D Wired Barcode Scanner
- Integrated USB-A Cable
- Gebruikershandleiding (hierdie dokument)
Opstelling
Follow these steps to set up your Renkforce RF-SBS-500 barcode scanner:
- Pak die skandeerder uit: Verwyder die skandeerder versigtig uit sy verpakking.
- Koppel aan 'n rekenaar: Plug the integrated USB-A cable from the scanner into an available USB port on your desktop or laptop computer.
- Bestuurder installasie: The scanner is typically plug-and-play. Your operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers. Wait for the installation to complete.

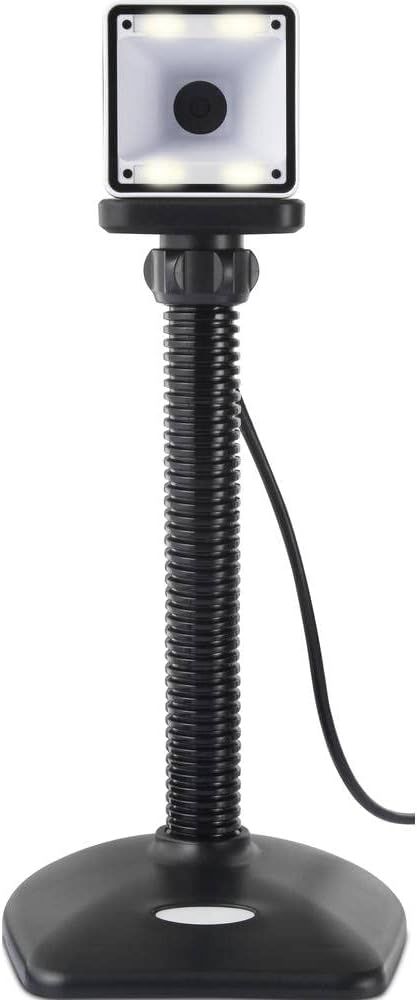

- Plasing: Place the scanner on a stable, flat surface. The flexible neck allows for adjustment of the scanning head angle for optimal positioning.
Die gebruik van die skandeerder
The Renkforce RF-SBS-500 is designed for ease of use with its omnidirectional and hands-free capabilities.
- Krag aan: Once connected via USB, the scanner will power on automatically. The LED indicators on the scanner head may illuminate briefly.
- Scanning a Barcode: Position the barcode within the scanning area of the scanner head. The scanner will automatically detect and read the barcode.
- Visuele en hoorbare terugvoer: Upon successful scanning, the integrated buzzer will emit a short beep, and the LED display on the scanner will flash or change color, indicating a successful read.
- Omnidirectional Reading: The scanner can read barcodes regardless of their orientation, eliminating the need to align the barcode precisely.
- Hands-Free Mode (Presentation Mode): The scanner operates continuously in a presentation mode, allowing you to simply pass items with barcodes in front of the scanning window without pressing any buttons. This saves time and improves workflow efficiency.
- Ondersteunde strepieskodes: The scanner supports both 1D (e.g., EAN, UPC, Code 39) and 2D (e.g., QR Code, Data Matrix, PDF417) barcode types.
Onderhoud
Proper maintenance ensures the longevity and optimal performance of your scanner.
- Cleaning the Scanning Window: Maak die skanderingsvenster gereeld skoon met 'n sagte, pluisvrye lap. Vir hardnekkige vuilgoed, liggies dampen the cloth with water or a mild, non-abrasive cleaner. Do not spray cleaner directly onto the scanner.
- Algemene skoonmaak: Wipe the exterior of the scanner with a dry or slightly damp lap. Vermy die gebruik van harde chemikalieë of skuurmateriaal.
- Berging: When not in use, store the scanner in a clean, dry environment away from direct sunlight and extreme temperatures.
Probleemoplossing
As u probleme met u skandeerder ondervind, raadpleeg die volgende algemene probleme en oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Die skandeerder skakel nie aan nie. | USB cable not connected properly or faulty USB port. | Ensure the USB cable is firmly connected to both the scanner and the computer. Try a different USB port. |
| Scanner does not read barcodes. | Barcode damaged, scanning window dirty, or incorrect barcode type. | Check the barcode for damage. Clean the scanning window. Ensure the barcode type is supported (1D/2D). Adjust the distance and angle of the barcode to the scanner. |
| No beep or LED feedback after scanning. | Barcode not read successfully. | Refer to the "Scanner does not read barcodes" solution. If the issue persists, contact support. |
| Scanned data appears incorrectly. | Keyboard layout mismatch or software issue. | Ensure your computer's keyboard layout matches the expected output. Test with a simple text editor. |
If the problem persists after trying these solutions, please contact Renkforce customer support.
Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Modelnommer | RF-4679568 |
| Skandeervermoë | 1D and 2D Barcodes |
| Verbindingstegnologie | USB-A (Bedraad) |
| Skandeertempo | 60 beelde per sekonde |
| Skandeermodus | Omnidirectional, Hands-free (Presentation Mode) |
| Terugvoer | Integrated Buzzer, LED Display |
| Versoenbare toestelle | Desktop Computer, Laptop, Smartphone (via appropriate adapter if needed) |
| Afmetings (L x B x H) | 150 x 5.2 x 5.2 cm |
| Item gewig | 102 gram |
| Kragbron | USB aangedryf |
| Land van oorsprong | Duitsland |
Waarborg en Ondersteuning
Renkforce products are manufactured to high-quality standards and come with a standard warranty. Please refer to your purchase documentation or the Renkforce official webwebwerf vir spesifieke waarborgbepalings en -voorwaardes wat op u streek van toepassing is.
For technical support, troubleshooting assistance, or warranty claims, please contact Renkforce customer service. Contact details can typically be found on the Renkforce webwebwerf of op u produkverpakking.
