Atlas Automotive Equipment BP10000X 2-Post Commercial Grade Vehicle Lift User Manual

1. Inleiding en oorview

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Atlas Automotive Equipment BP10000X 2-Post Commercial Grade Vehicle Lift. The BP10000X is a robust 10,000 lb. capacity baseplate, open-top style lift, specifically engineered for facilities with ceiling heights as low as 11 feet. Its design allows for efficient use of space without sacrificing performance or versatility, making it suitable for lifting both heavy-duty vehicles and compact cars.

Key features include oversized columns with middle welded support gussets for enhanced structural strength, dual hydraulic chain-drive cylinders meeting ANSI standards, and super-symmetric arms with a single-point lock release system for convenient operation.

2. Veiligheidsinligting

WAARSKUWING: Read and understand all safety warnings and instructions before installing, operating, or maintaining this vehicle lift. Failure to follow these instructions may result in serious injury or death.

• Only trained and authorized personnel should operate this equipment.
• Always ensure the vehicle is properly centered and secured on the lift arms before raising.
• Never exceed the maximum rated capacity of 10,000 lbs.
• Ensure the lift is installed on a level, solid concrete foundation that meets minimum specifications.
• Keep hands and feet clear of moving parts and pinch points.
• Always lower the vehicle onto the safety locks before working underneath.
• Regularly inspect all components for wear, damage, or loose fasteners.
• Do not modify the lift in any way. Use only genuine replacement parts.

3. Opstelling en installering

Proper installation is critical for the safe and reliable operation of your BP10000X vehicle lift. This baseplate lift is designed for garages with a minimum ceiling height of 11 feet.

3.1 Oorwegings voor installasie

• Werf seleksie: Choose a level, indoor location with adequate clearance around the lift for safe operation and vehicle movement.
• Betonfondasie: The lift requires a concrete foundation that is at least 4 inches thick and has a minimum compressive strength of 3000 PSI. Consult a structural engineer if unsure about your foundation's suitability.
• Kragvereistes: The power unit typically requires a 220V single-phase electrical supply. Refer to the power unit specifications for exact requirements.

3.2 Shipping and Offloading

The lift components are heavy and require appropriate equipment for offloading and handling.

Image: Illustration of offloading requirements, showing a forklift removing lift components from a truck. Proper equipment is necessary due to the weight of the lift.

Image: Diagram illustrating shipping guidelines, emphasizing the need for proper handling during delivery.

Image: Visual of a vehicle lift being picked up at a local terminal, indicating options for delivery and pickup.

3.3 Lift Type Comparison: Overhead vs. Baseplate

The BP10000X is a baseplate style lift, ideal for low ceiling environments.

Image: Diagram comparing overhead and baseplate 2-post lifts. Baseplate lifts are shown to be suitable for lower ceiling heights, as they lack an overhead bar.

3.4 Measuring for Installation

Accurate measurements are crucial for proper installation and safe operation.

Image: Diagram illustrating key measurements for 2-post lift installation, including between column and drive-thru dimensions for both asymmetric and symmetric configurations.

Refer to the detailed installation manual provided with your lift for step-by-step assembly instructions, including anchoring procedures and hydraulic connections.

4. Bedryfsinstruksies

Follow these steps for safe and effective operation of your Atlas BP10000X vehicle lift.

4.1 Lifting a Vehicle

1. Position Vehicle: Drive the vehicle between the lift columns, ensuring it is centered.
2. Posisie Arms: Swing the super-symmetric arms into position under the vehicle's designated lifting points. Use the included 12-piece truck adapter set for taller vehicles or trucks as needed.
3. Raise Vehicle: Press and hold the "UP" button on the power unit. The lift will begin to raise.
4. Engage Safety Locks: Once the vehicle reaches the desired working height, lower the lift slightly until the safety locks engage. This is crucial for stability.

Image: A white pickup truck securely raised on the Atlas BP10000X 2-Post Vehicle Lift, demonstrating its lifting capability.

Beeld: Voorkant view of the Atlas BP10000X lift with a truck, showing overall height (111 7/8" or 9' 3 7/8") and maximum lifting height with and without adapters (86 3/8" or 7' 2 3/8" with adapters, 77 3/8" or 6' 5 3/8" without adapters).

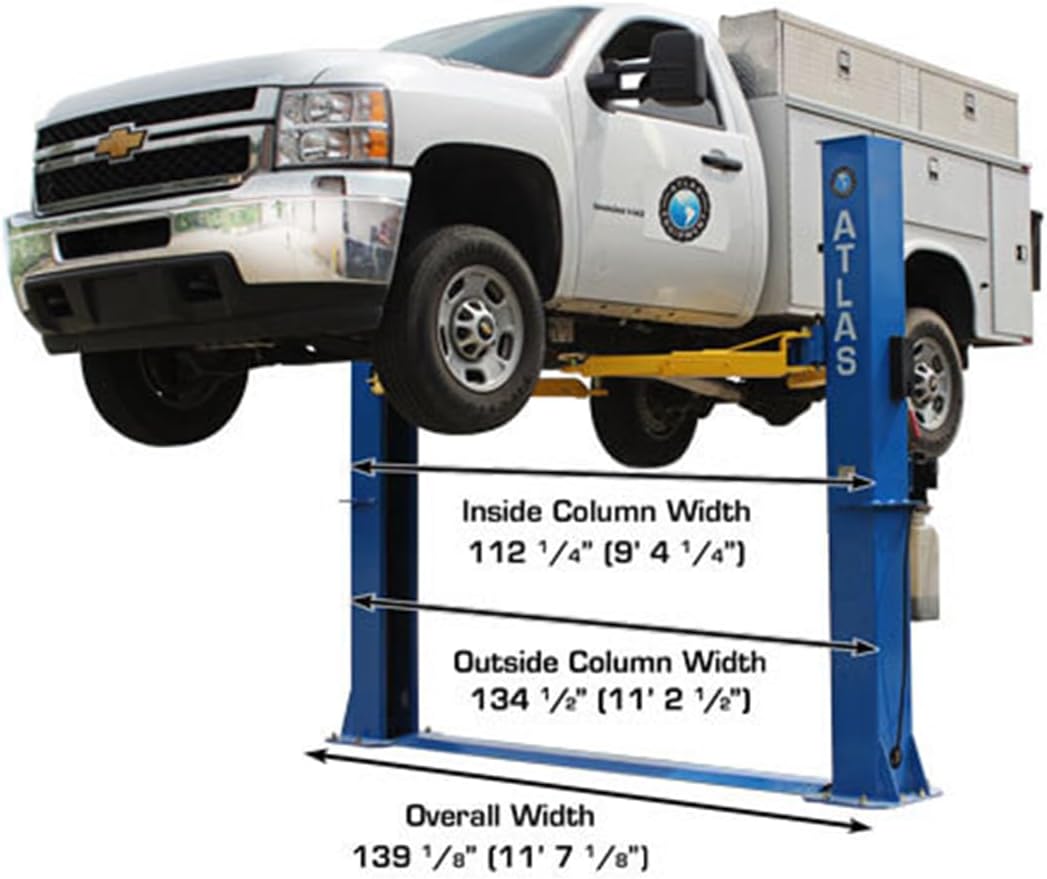

Beeld: Sykant view of the Atlas BP10000X lift with a truck, indicating inside column width (112 1/4" or 9' 4 1/4"), outside column width (134 1/2" or 11' 2 1/2"), and overall width (139 1/8" or 11' 7 1/8").

Beeld: Agter view of the Atlas BP10000X lift with a van, showing inside column width (112 1/4" or 9' 4 1/4"), outside column height (134 1/2" or 11' 2 1/2"), and drive-thru width (101 1/4" or 8' 5 1/4").

Beeld: Sykant view of the Atlas BP10000X lift with a van, detailing overall height (111 7/8" or 9' 3 7/8") and maximum lifting heights with and without adapters (86 3/8" or 7' 2 3/8" with adapters, 77 3/8" or 6' 5 3/8" without adapters).

4.2 Lowering a Vehicle

1. Liggies oplig: Briefly press the "UP" button to relieve pressure on the safety locks.
2. Disengage Locks: Use the single-point lock release system to disengage both column safety locks simultaneously.
3. Onderste Voertuig: Press and hold the "DOWN" lever or button. The vehicle will slowly descend. Ensure the area below the vehicle is clear.
4. Remove Arms: Once the vehicle is fully on the ground, swing the lift arms clear before driving the vehicle away.

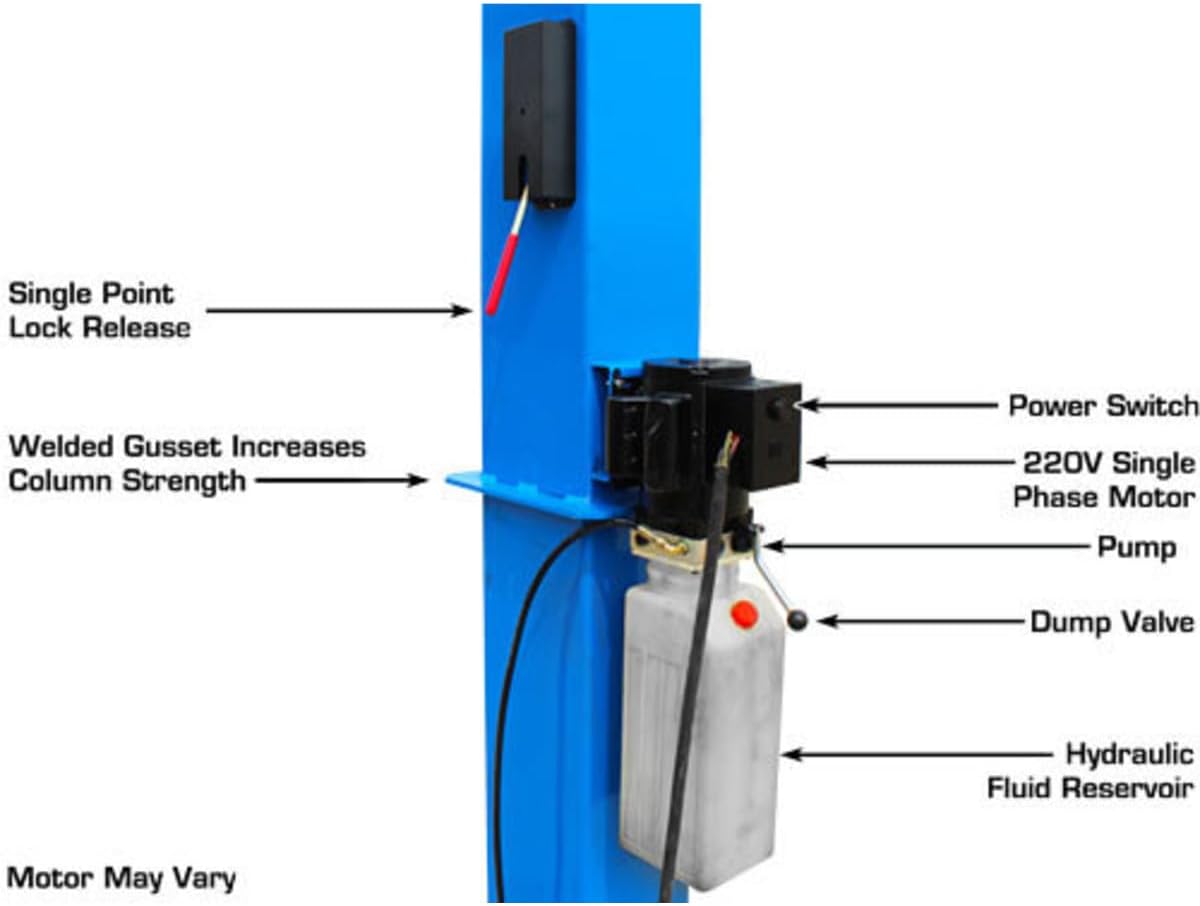

Beeld: Nabyskoot view of the power unit and column, highlighting the single-point lock release, power switch, 220V single-phase motor, pump, dump valve, and hydraulic fluid reservoir. Also shows welded gusset for column strength.

Beeld: Intern view of the lift column, illustrating the cable equalization system for synchronized locking, the chain over roller piston lift carriage, and the hydraulic fluid mechanism. Also shows access hole and door guard.

5. Onderhoud

Regular maintenance ensures the longevity and safe operation of your Atlas BP10000X lift.

• Daaglikse kontroles: Inspect for any visible damage, leaks, or unusual noises. Ensure all safety locks engage properly.
• Weeklikse tjeks: Check hydraulic fluid level and top up if necessary. Inspect cables and chains for wear or damage. Lubricate moving parts as recommended in the full manual.
• Maandelikse tjeks: Inspect anchor bolts for tightness. Check electrical connections.
• Jaarlikse inspeksie: A qualified technician should perform a thorough annual inspection of the entire lift system.

Always refer to the comprehensive maintenance schedule in your detailed product manual for specific intervals and procedures.

6. Probleemoplossing

This section addresses common issues you might encounter. For complex problems, contact customer support.

7. Spesifikasies

Detailed technical specifications for the Atlas BP10000X 2-Post Vehicle Lift.

8. Waarborg en Ondersteuning

The Atlas BP10000X Vehicle Lift comes with a 5-year warranty on material and workmanship.

For technical assistance, replacement parts, or warranty claims, please contact Atlas Automotive Equipment's service department. A well-trained service department and a well-stocked parts inventory are available to support your needs.

Beeld: Oorview of the Atlas service department and a well-stocked warehouse for replacement parts, emphasizing commitment to customer support.

You can find more information and contact details on the official Atlas Automotive Equipment webwebwerf of deur u gemagtigde handelaar.
