1. Inleiding en oorview
The Aperion Audio RST MKII Aluminum-Ribbon Super Tweeter is designed to extend the high-frequency response of your existing speaker system, providing enhanced clarity and detail in the upper registers. This manual provides essential information for the proper setup, operation, and maintenance of your super tweeters to ensure optimal performance and longevity.
Beeld: Voorkant view of the Aperion Audio RST MKII Super Tweeters.
2. Wat is in die boks
Kontroleer asseblief die inhoud van u pakket om seker te maak dat alle items teenwoordig is:
- Aluminum Ribbon Super Tweeter Speakers x Two (2) Pcs
- User Manual x One (1) Pcs
3. Kenmerke
The Aperion Audio RST MKII Super Tweeters incorporate several key features for superior audio performance and user adjustability:
- Extended High Frequency Aluminum Ribbon Tweeter: Designed to reproduce frequencies up to 40,000 Hz, significantly extending beyond typical tweeters to provide an ultra-smooth and clean high-frequency response.
- 5-point Crossover + OFF: Allows selection of the super tweeter's lower frequency limit at 8, 10, 12, 14, or 16 kHz. An 'OFF' position is also available. The crossover slope is 12 dB/octave.
- Treble Adjust Knob: Provides attenuation of the super tweeter's output by up to -5dB, allowing fine-tuning to match your listening preferences and room acoustics.
- Maklike verbinding: Connects directly to the same binding posts as your main speakers, drawing power from the existing amplifier connection. No separate amplifier connection is required.
- Beautifully Curved Cabinet: Features a matte black finish with a curved cabinet design, suitable for various decor styles.
- 5-Way Gold-Plated Binding Posts: Offers versatile connection options including bare wire, banana plugs, spades, round pins, or flat pins.

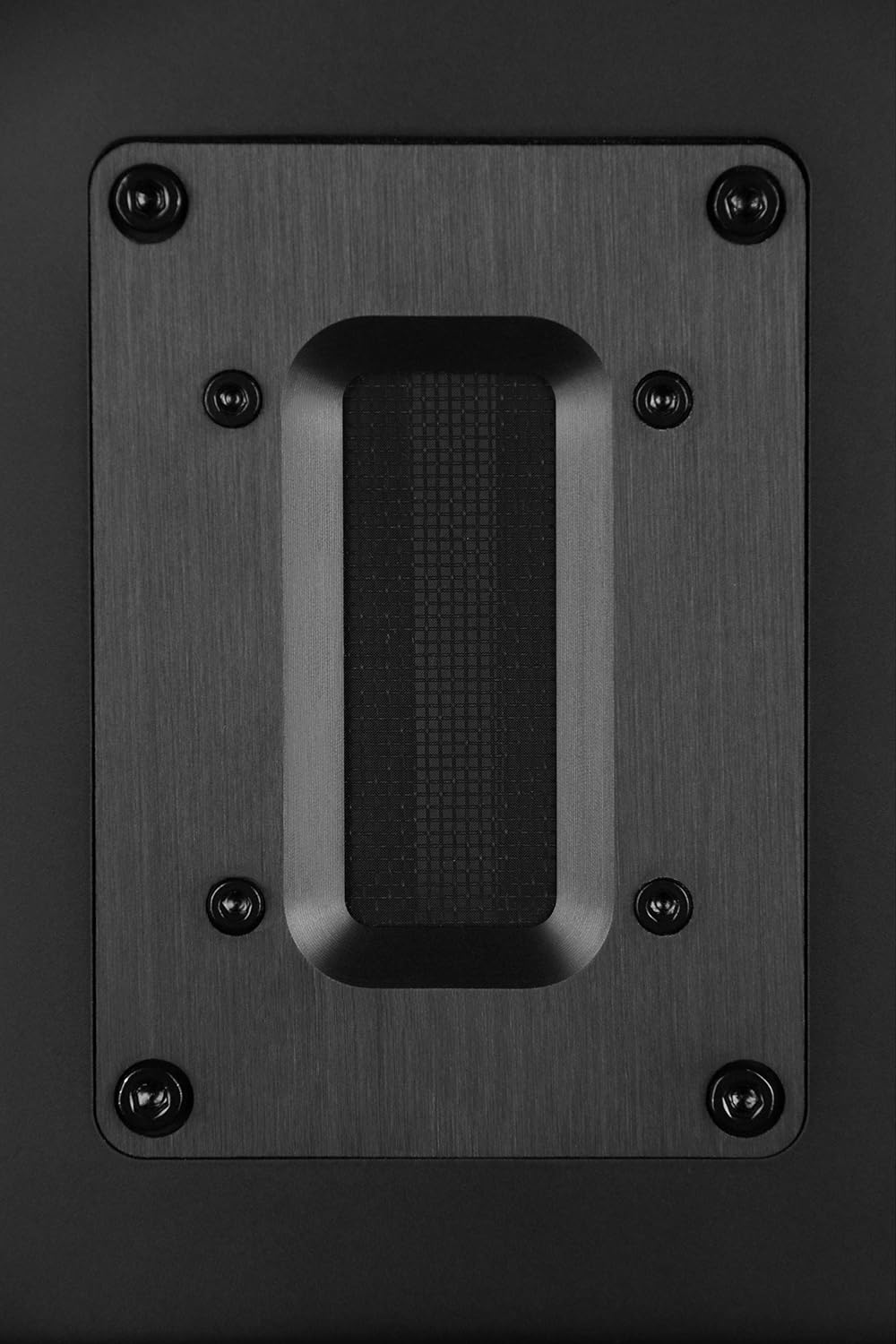

Beeld: Gedetailleerd view of the Aluminum Ribbon Tweeter.

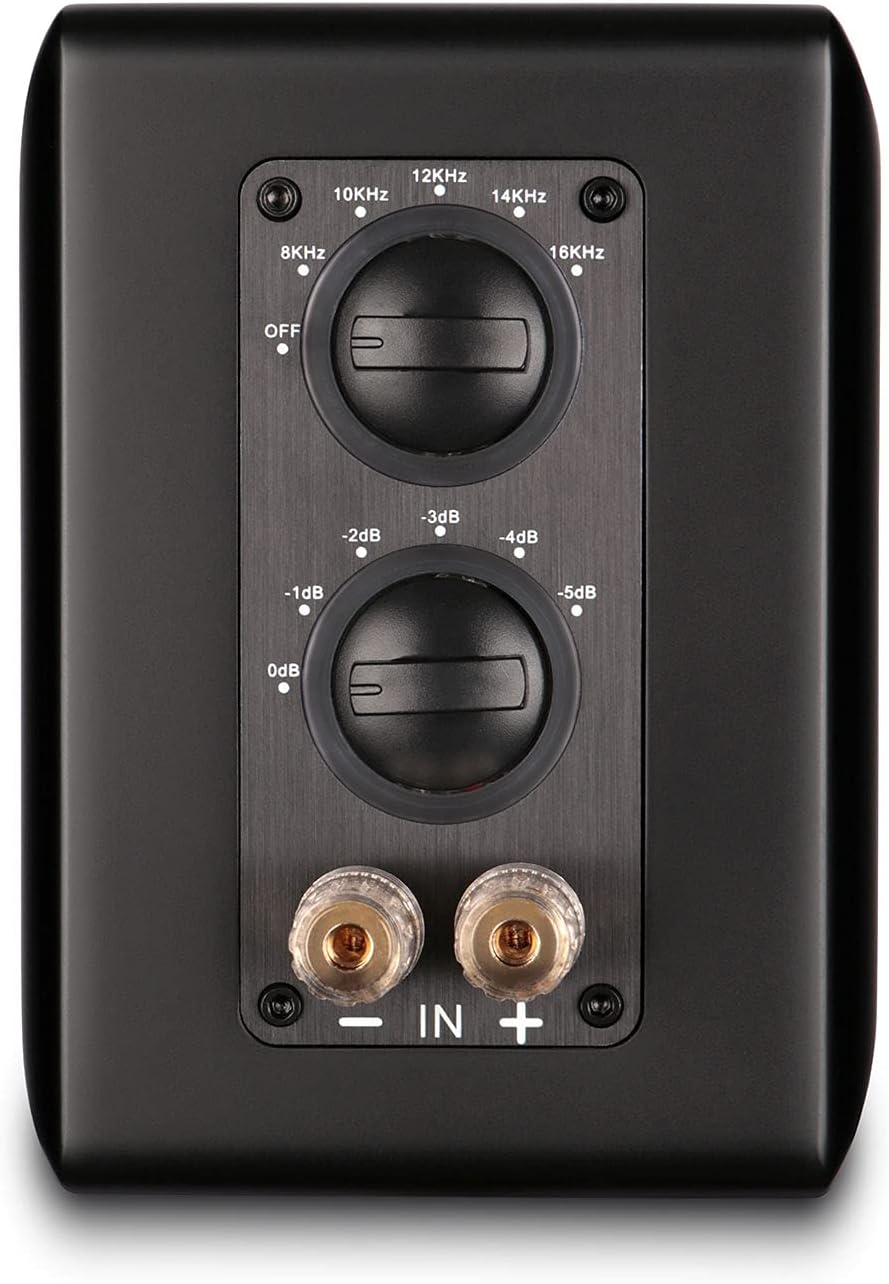

Image: Rear panel with crossover and treble adjustment controls.
4. Veiligheidsinligting
Belangrik: Do not connect the super tweeters directly to an amplifier output without connecting them in parallel with your main speakers. This product is designed to be connected to the same speaker terminals as your main speakers.
5. Opstelling
5.1 Plasing
The RST MKII Super Tweeters are designed for top-on-speaker placement. Position them on top of your main stereo or home theater speakers. Ensure they are stable and do not obstruct the main speaker's drivers.
5.2 Verbinding
Connect the super tweeters in parallel with your main speakers. Use high-quality speaker wire to connect the positive (+) terminal of the super tweeter to the positive (+) terminal of your main speaker, and the negative (-) terminal of the super tweeter to the negative (-) terminal of your main speaker. Your main speaker will then connect to your amplifier as usual.
Image: Connection diagram for the Super Tweeter.
Image: Gold-plated binding posts for speaker wire connection.
6. Bedryfsinstruksies
6.1 Crossover Point Adjustment
The RST MKII features a 5-point crossover knob on the rear panel. This allows you to set the frequency at which the super tweeter begins to operate. Experiment with the settings (8 kHz, 10 kHz, 12 kHz, 14 kHz, 16 kHz) to find the best blend with your main speakers. The 'OFF' position disables the super tweeter.
- 8 kHz: Provides the most overlap with your existing tweeter, potentially adding more presence to the upper midrange and lower treble.
- 16 kHz: Offers minimal overlap, primarily extending the very top end of the frequency range.
6.2 Treble Attenuation
Below the crossover knob, there is a treble adjust knob for attenuation. This allows you to reduce the output level of the super tweeter from 0dB (no attenuation) down to -5dB. Adjust this setting to achieve a balanced sound that complements your main speakers and room acoustics, avoiding excessive brightness.
Image: Frequency response chart demonstrating crossover and treble adjustment effects.
6.3 Amptelike Produkvideo
Video: An official video from Aperion Audio showcasing the MKII Aluminum Ribbon Super Tweeter, highlighting its design and features. This video provides a visual overview of the product and its key components.
7. Onderhoud
To maintain the appearance and performance of your super tweeters:
- Wipe the cabinet with a soft, dry cloth. Avoid abrasive cleaners or solvents.
- Keep the ribbon tweeter free from dust and debris. Use a soft brush or compressed air if necessary, being careful not to touch the delicate ribbon.
- Ensure connections remain secure. Periodically check the binding posts for tightness.
8. Probleemoplossing
If you experience issues with your Aperion Audio RST MKII Super Tweeters, refer to the following common troubleshooting steps:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| No sound from super tweeters | Incorrect wiring; Crossover knob set to 'OFF'; Treble adjust set too low; Faulty speaker wire. | Check all speaker wire connections for correct polarity (+ to + and - to -). Ensure the crossover knob is set to an active frequency (8-16 kHz). Adjust the treble knob to 0dB or a higher setting. Test with different speaker wires. |
| Klank is te helder of hard | Treble adjust set too high; Crossover point too low; Room acoustics. | Reduce the treble adjust setting (e.g., -1dB to -5dB). Try a higher crossover frequency (e.g., 14 kHz or 16 kHz). Consider room treatment if the issue persists. |
| Lack of detail or extension | Crossover point too high; Treble adjust set too low. | Try a lower crossover frequency (e.g., 8 kHz or 10 kHz). Increase the treble adjust setting towards 0dB. |
9. Spesifikasies
Detailed technical specifications for the Aperion Audio RST MKII Aluminum-Ribbon Super Tweeter:
| Spesifikasie | Waarde |
|---|---|
| Model Naam | RST Stealth Black |
| Montage tipe | Top on Speaker |
| Materiaal | Aluminium |
| Tipe luidspreker | Tweeter |
| Aanbevole gebruike | For 2ch stereo sound system, For Home Theater System, For high fidelity home audio system |
| Kleur | Stealth Swart |
| Produk afmetings | 6.5" D x 4.4" B x 6" H |
| Item gewig | 4 pond |
| Impedansie | 6 ohm |
| Aantal items | 2 |
| Tipe oudiobestuurder | Lintbestuurder |
| Oudiobestuurdergrootte | 60 millimeter |
| Luidspreker Maksimum uitsetkrag | 100 Watt |
| Frekwensierespons | Tot 40 KHz |
| Verbindingstegnologie | RCA (Note: Connects to speaker terminals, not directly to RCA output) |
| Klankuitvoermodus | Stereo |
10. Waarborg en Ondersteuning
Aperion Audio products are designed for reliability and performance. For warranty information and technical support, please refer to the official Aperion Audio webwebwerf of kontak hul kliëntediens direk. Bewaar u aankoopbewys as bewys van aankoop vir waarborgeise.
