Ymiko Dash Cam TVI Car Camera Instruction Manual

Produk verbyview

The Ymiko Dash Cam TVI Car Camera is designed to enhance driving safety with its high-resolution imaging and wide viewing angle. It features advanced night vision and robust waterproofing for reliable performance in various conditions.

• Hoë resolusie: Provides a clear front view en wyd viewing angle for accurate road condition identification and accident prevention.
• High-Definition Starlight Night Vision: Features a 180° wide angle and color high-definition chip for clear imaging, ensuring visibility during night driving or reversing.
• IP68 Waterproofness: The camera is rated IP68 waterproof, protecting it from adverse weather and ensuring long-term reliability.
• Eenvoudige installasie: Designed for easy connection of the camera cable to the AV cable and then to the vehicle's display.
• Wire Protection: The camera wire is equipped with a corrugated tube to prevent high-temperature burns when routed through the engine compartment, improving durability and safety.

Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• 1 x kamera
• 1 x AV-kabel
• 1 x netsnoer
• 2 x skroewe
• 1 x Gebruikershandleiding

Opstelling en installasie

Follow these steps to properly install your Ymiko Dash Cam TVI Car Camera:

1. Koppel die kamera: Connect the camera cable to the AV cable.
2. Koppel aan voertuig: Connect the AV cable to your vehicle's compatible display unit.
3. Kragverbinding: Connect the power cord to a 12V DC power source in your vehicle.
4. Veilige bedrading: Ensure the camera wire, equipped with its corrugated tube, is routed safely to prevent high-temperature damage, especially when passing through the engine compartment.
5. Montering: Securely mount the camera using the provided screws in a location that provides an unobstructed view.

Let wel:

This product only supports Android large screens that support TVI 30 input.

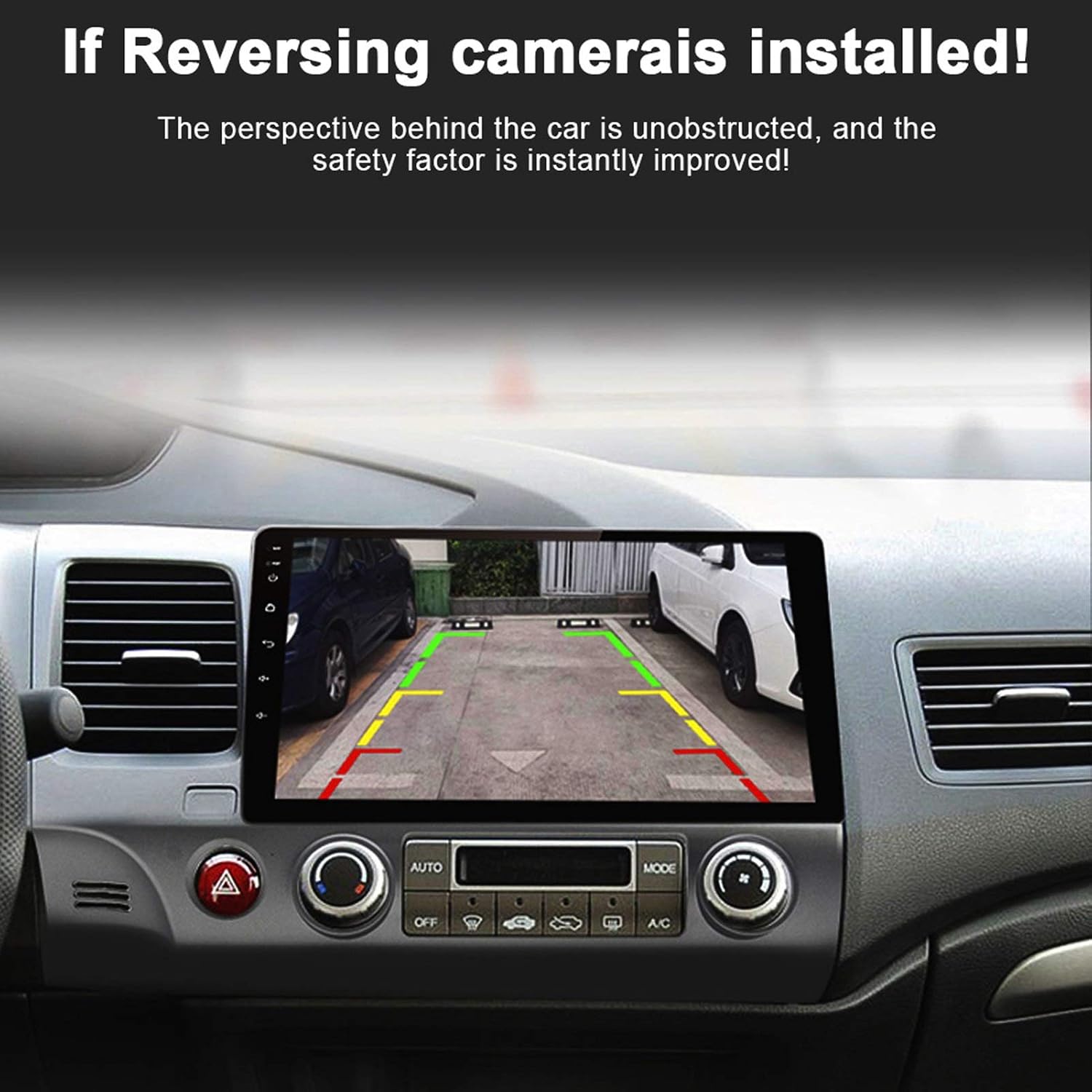

This image shows the Ymiko Dash Cam TVI Car Camera displaying a clear rear view with parking assist lines on an in-car Android screen, demonstrating its functionality when installed.

'n Gedetailleerde view of the Ymiko Dash Cam TVI Car Camera with its dimensions labeled, indicating a width of 40mm (1.6 inches), height of 26mm (1.02 inches), and depth of 28mm (1.1 inches).

This image compares the Ymiko Dash Cam TVI Car Camera's display quality and fisheye lens design against an ordinary camera, illustrating the enhanced viewing angle and clarity provided by the Ymiko product.

Three scenarios depicting common reversing dangers: a child in a blind spot, difficulty judging distance between vehicles, and a novice driver's challenge with parking near an obstacle. These highlight the need for a reliable reversing camera.

A series of four screenshots illustrating how to configure an Android head unit for the Ymiko Dash Cam. Steps include accessing factory settings (password 8888), selecting protocol parameter settings, choosing reverse video resolution settings, and adjusting specific parameters for TVI 30 input.

Bedryfsinstruksies

Once installed, the camera operates automatically when the vehicle is in reverse gear, displaying the rear view on your compatible Android screen.

Sleutel kenmerke:

• Hoë-resolusie-skerm: Verskaf 'n duidelike en gedetailleerde view van die area agter jou voertuig.
• 180° Wye Hoek: Bied 'n uitgebreide veld van view to minimize blind spots.
• Starlight Night Vision: Verseker duidelike sigbaarheid selfs in lae ligtoestande.
• Parkeerlyne: Integrated parking assist lines help guide you safely into parking spaces.

Onderhoud

To ensure optimal performance and longevity of your Ymiko Dash Cam TVI Car Camera, follow these maintenance guidelines:

• Gereelde skoonmaak: Gently clean the camera lens with a soft, damp cloth to remove dirt, dust, or water spots. Avoid abrasive cleaners.
• Inspekteer bedrading: Periodically check the wiring for any signs of wear, damage, or loose connections. Ensure the corrugated tube protecting the wire is intact.
• Waterdigte integriteit: While the camera is IP68 waterproof, avoid directing high-pressure water jets directly at the camera during car washes.
• Sagteware-opdaterings: If your Android head unit supports software updates for camera compatibility, ensure it is kept up-to-date.

A close-up image of the Ymiko HD fisheye camera, emphasizing its lens and the 'Start light nightvision TVI 720P' feature, indicating its capability for clear low-light recording.

An image showing the Ymiko Dash Cam TVI Car Camera being splashed with water, visually representing its IP68 waterproof and anti-fog capabilities, ensuring durability in wet conditions.

Probleemoplossing

If you encounter issues with your Ymiko Dash Cam, refer to the following common problems and solutions:

Belangrike nota:

As noted in customer feedback, this camera defaults to a mirrored image, making it suitable primarily for rear-view applications. It does not offer an option to revert to an original, non-mirrored image for front camera use.

Tegniese spesifikasies

Waarborg en Ondersteuning

For warranty information and technical support, please contact Ymiko customer service.

• Retourbeleid: This product typically has a 30-day return/replacement policy. Please refer to your purchase platform for specific details.
• Vervaardiger ondersteuning: For product-specific inquiries or technical assistance, please visit the official Ymiko store or contact their support channels.
• Aanlyn hulpbronne: Additional support and FAQs may be available on the Ymiko brand store page: Ymiko Store.
