EGLO Palmaves 3 Dimmable LED Ceiling Light

Inleiding

Welcome to the EGLO Palmaves 3 Dimmable LED Ceiling Light instruction manual. This guide provides essential information for the safe and efficient use of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

The EGLO Palmaves 3 features a modern design with two interlocking LED rings, offering adjustable brightness, color temperature from warm white to cool white, and indirect RGB colored lighting, all controllable via the included remote.

Image: EGLO Palmaves 3 LED Ceiling Light, front view.

Veiligheidsinstruksies

• Always disconnect power at the main fuse or circuit breaker before installation, maintenance, or any service.
• Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met plaaslike elektriese kodes en regulasies.
• Do not modify the fixture. Use only specified parts and accessories.
• Maak seker dat die monteeroppervlak die gewig van die toebehore veilig kan ondersteun.
• Vermy direkte oogblootstelling aan die LED-ligbron.
• Keep the remote control away from water and extreme temperatures.

Pakketinhoud

Verifieer dat alle komponente teenwoordig en onbeskadig is voordat u met die installasie begin:

• EGLO Palmaves 3 LED Ceiling Light Fixture
• Afstandbeheer
• Monteringshardeware (skroewe, muurproppe)
• Instruksie Handleiding

Opstelling en installasie

Belangrik: Ensure the main power supply is turned off before any installation work.

1. Voorbereiding: Turn off the main power supply at the circuit breaker. Confirm the power is completely disconnected using a voltage toetser.
2. Merk: Hold the mounting bracket against the ceiling at the desired installation location. Mark the positions for drilling holes.
3. Boor: Drill holes at the marked positions. Insert appropriate wall plugs (if necessary for your ceiling type) into the drilled holes.
4. Montagebeugel: Bevestig die monteerbeugel aan die plafon met die meegeleverde skroewe. Maak seker dat dit stewig vas is.
5. Bedrading: Connect the electrical wires from the ceiling to the terminal block on the fixture. Ensure correct polarity: Live (L), Neutral (N), and Earth (⍎). If unsure, consult a qualified electrician.
6. Heg toebehore aan: Carefully attach the ceiling light fixture to the mounting bracket, securing it with the provided screws or fasteners. Ensure the fixture is stable and flush with the ceiling.
7. Krag aan: Herstel die kragtoevoer by die hoofstroombreker.
8. Afstandbeheeropstelling: Insert 2 AAA batteries (not included) into the remote control, observing correct polarity.

Beeld: Hoekig view of the EGLO Palmaves 3 LED Ceiling Light, showing its two interlocking rings.

Bedryfsinstruksies

Your EGLO Palmaves 3 ceiling light can be controlled via the included remote control or a standard wall switch.

Afstandbeheer funksies:

The remote control allows for full functionality of your ceiling light.

Image: EGLO Palmaves 3 Remote Control.

• Aan/af-knoppie: Skakel die lig aan of af.
• Helderheid aanpassing: Use the sun icons (brighter/dimmer) to adjust the light intensity.
• Color Temperature Adjustment (K+/K-): Changes the white light from warm white (3000 Kelvin) to neutral white to cool white (6500 Kelvin).
• RGB aan/af: Activates or deactivates the indirect RGB colored lighting.
• RGB-kleurkeuse: Use the 'R G B' button to cycle through various RGB colors or the dedicated RGB button for specific color modes.
• Geheue funksie: The light retains the last used settings (brightness, color temperature, RGB color) when turned off and on via the remote control.

Muurskakelaarbeheer:

If you do not use the remote control, you can cycle through different white light color temperatures (warm white, neutral white, cool white) by repeatedly turning the wall switch off and on quickly.

Image: EGLO Palmaves 3 emitting warm white light.

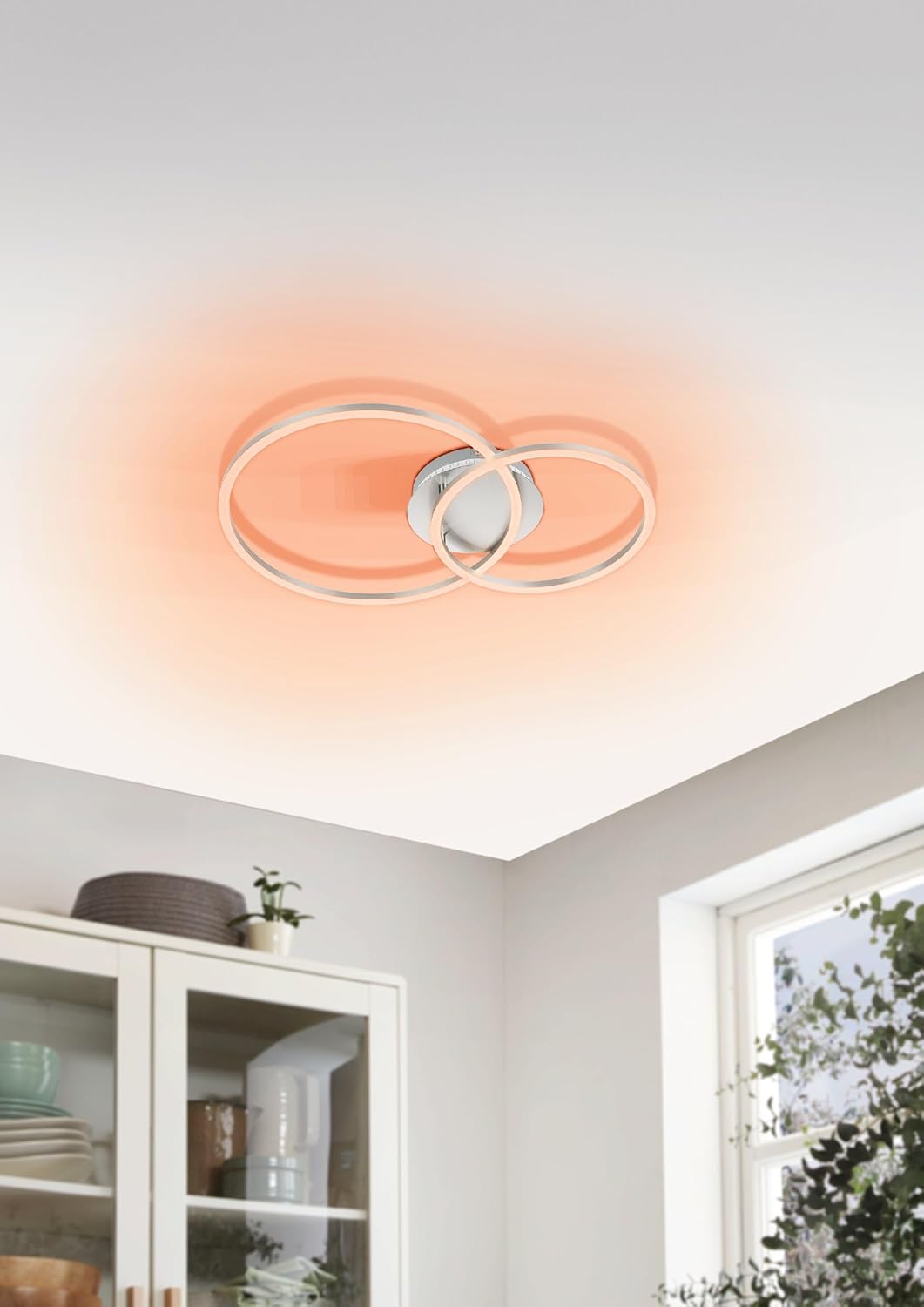

Image: EGLO Palmaves 3 with indirect RGB red lighting.

Onderhoud

• Skoonmaak: Ontkoppel die krag voor skoonmaak. Vee die toestel af met 'n sagte, droë of effens droë lap.amp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or electrical components.
• LEDs: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the LED components. If the LEDs fail, the entire fixture may need replacement.

Probleemoplossing

If you encounter issues with your EGLO Palmaves 3 ceiling light, refer to the following common problems and solutions:

• Lig gaan nie aan nie:
  • Kontroleer of die kragtoevoer gekoppel is en die stroombreker aan is.
  • Ensure the remote control batteries are correctly inserted and not depleted. Replace if necessary.
  • Verify all wiring connections are secure at the terminal block.
• Afstandbeheer werk nie:
  • Vervang die AAA-batterye in die afstandbeheer.
  • Maak seker dat daar geen obstruksies tussen die afstandbeheerder en die ligtoestel is nie.
  • Confirm you are within the remote control's operating range.
• Lig flikker of dof onverwags:
  • Check for a stable power supply to the fixture.
  • Ensure the dimming function is not accidentally activated or set to a very low level.

If problems persist after attempting these solutions, contact EGLO customer support or a qualified electrician.

Spesifikasies

Detailed technical specifications for the EGLO Palmaves 3 LED Ceiling Light:

Afmetings:

• Large Light Element Diameter: 39 cm (15.35 inches)
• Small Light Element Diameter: 29 cm (11.42 inches)
• Hoogte: 6.8 cm (2.68 duim)
• Total Length: 56 cm (22.05 inches)

Image: Dimensions of the EGLO Palmaves 3 LED Ceiling Light.

Image: Key features including energy-saving LEDs, plastic construction, and 3000-6500K color temperature range.

Waarborg en Ondersteuning

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official EGLO website. EGLO is committed to providing quality products and customer satisfaction.

Contact EGLO customer service for further assistance with product inquiries, troubleshooting, or warranty claims.
