Kolink INSPIRE K9 Midi-Tower Gaming Case User Manual

Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your Kolink INSPIRE K9 Midi-Tower Gaming Case. Please read this manual thoroughly before beginning assembly or use to ensure proper functionality and safety. The Kolink INSPIRE K9 is designed for gaming enthusiasts, offering ample space for high-performance components, efficient cooling options, and customizable RGB lighting.

Produk Kenmerke

• ATX Tower Compatibility: The interior accommodates motherboards from Mini-ITX to ATX formats, along with high-performance graphics cards up to 300 mm in length. CPU coolers can be installed with a maximum height of 155 mm.
• Verkoelingstelsel: Features a pre-installed 120 mm fan at the rear with digitally addressable RGB lighting. Supports up to six 120 mm fans in total. Radiators up to 240 mm can be installed at the front, and up to 120 mm at the rear for water cooling setups.
• Bergingsopsies: The case provides space for up to 2 x 3.5/2.5 inch drive bays and 2 x 2.5 inch drive bays.
• I/O-paneel: Equipped with 1x USB 3.0 port, 2x USB 2.0 ports, and an RGB LED control button for easy access and customization.
• RGB Design with Tempered Glass: A side panel made of lightly tinted tempered glass complements the elegant design of the midi tower, allowing for a clear view of internal components and RGB lighting.

Spesifikasies

Opstelling en installasie

Follow these steps for proper assembly and installation of components within your Kolink INSPIRE K9 case.

1. Voorbereiding van die Saak

• Unpack the case and place it on a stable, flat surface.
• Remove the tempered glass side panel by unscrewing the thumb screws, then carefully slide it off and set it aside on a soft, non-abrasive surface to prevent scratches.
• Remove the solid metal side panel by unscrewing the thumb screws at the rear and sliding it backward.

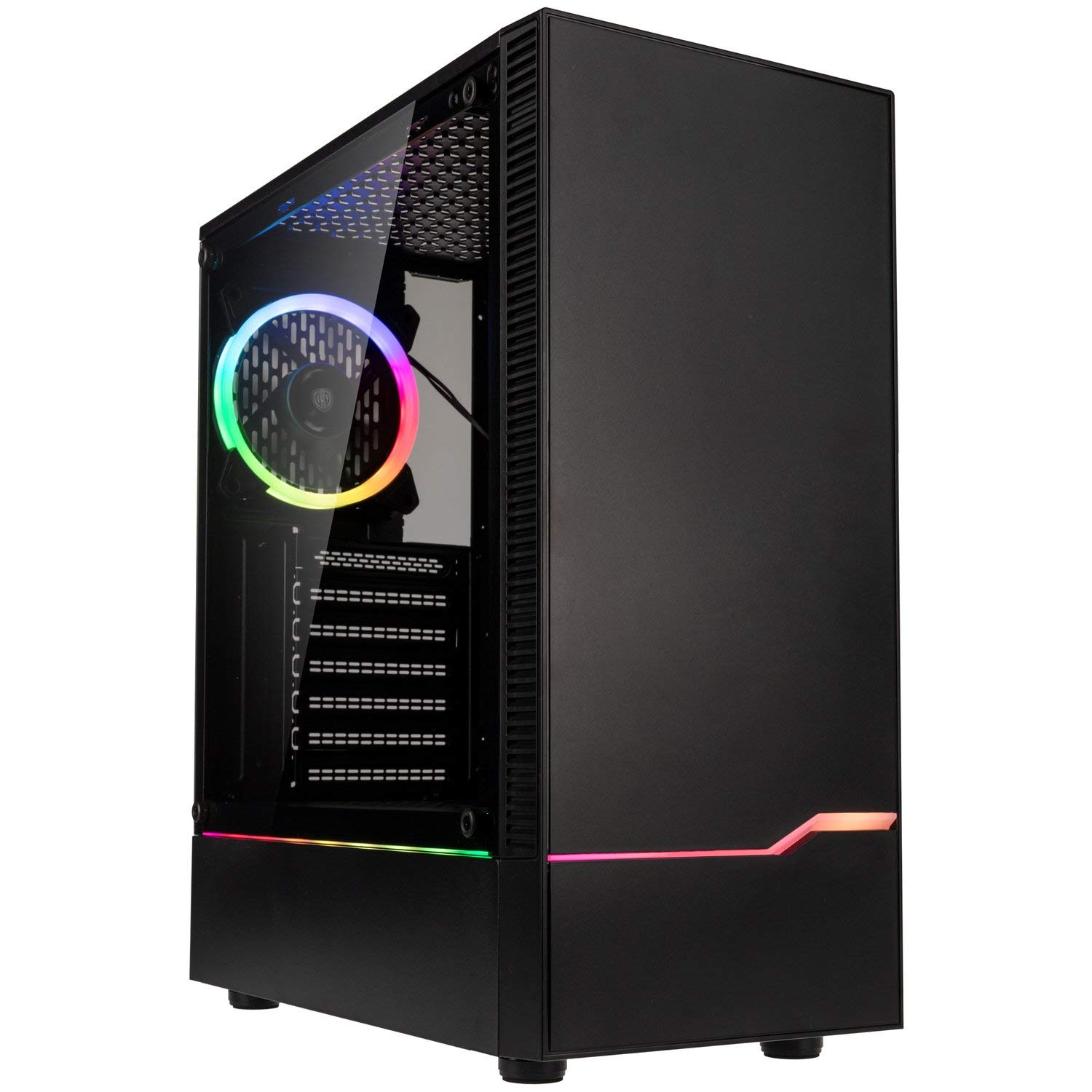

Beeld: Voor-links view of the Kolink INSPIRE K9 case, showcasing the tempered glass side panel and front RGB strip.

Image: Right side panel of the Kolink INSPIRE K9 case, showing the solid metal panel.

2. Moederbord Installasie

• Install the I/O shield that came with your motherboard into the designated slot at the rear of the case.
• Align your ATX or Mini-ITX motherboard with the standoffs inside the case. Ensure all standoffs match the screw holes on your motherboard.
• Maak die moederbord vas met die meegeleverde skroewe. Moenie te styf vasdraai nie.

Beeld: Binnekant view of the Kolink INSPIRE K9 case, showing the motherboard tray and cable routing options.

3. CPU and CPU Cooler Installation

• Install your CPU onto the motherboard socket according to your motherboard's instructions.
• Apply thermal paste to the CPU. Refer to the video below for proper thermal paste application techniques.
• Install your CPU cooler (air or liquid) ensuring it fits within the 155 mm height limit. For liquid coolers, install radiators at the front (up to 240mm) or rear (up to 120mm) of the case.

4. Grafiese kaart (GPU) Installasie

• Remove the necessary expansion slot covers at the rear of the case. The case has 7 expansion slots.
• Insert your graphics card into the primary PCIe slot on your motherboard. Ensure it clicks into place.
• Secure the graphics card with screws. The case supports GPUs up to 300 mm in length.

5. Installasie van stoorskyf

• Install 3.5-inch or 2.5-inch drives into the designated drive bays. The case supports 2 x 3.5/2.5 inch and 2 x 2.5 inch drives.
• Secure the drives with screws.

6. Installasie van die kragtoevoereenheid (PSU)

• Install your PSU into the bottom mounting area of the case.
• Bevestig die PSU met skroewe van die agterkant van die kas.

7. Kabelbestuur

• Route all power and data cables through the cutouts in the motherboard tray to the rear of the case.
• Use cable ties (not included) to neatly bundle and secure cables behind the motherboard tray. This improves airflow and aesthetics.

Beeld: Agter view of the Kolink INSPIRE K9 case, showing the I/O shield cutout, expansion slots, and rear fan.

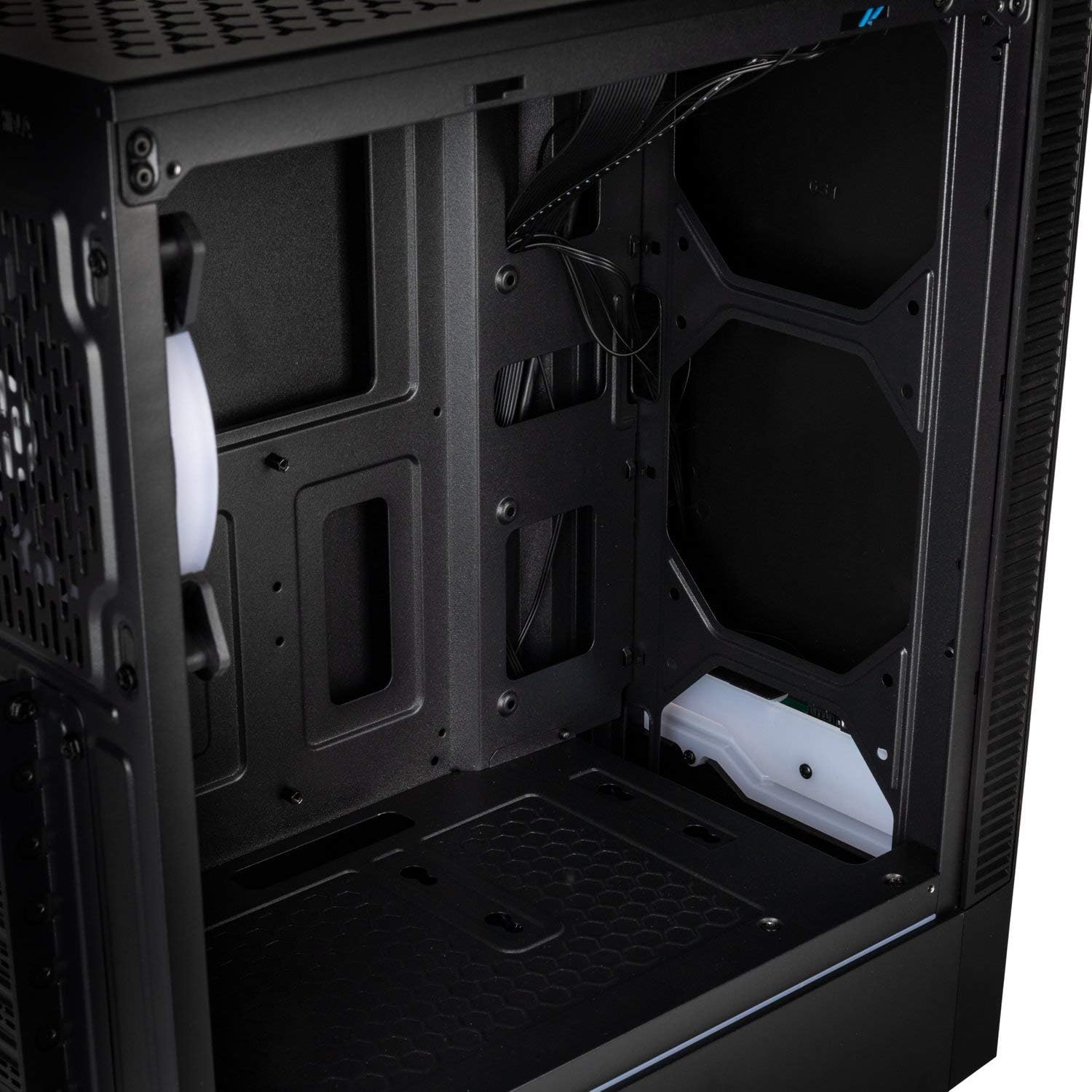

Beeld: Binnekant view of the Kolink INSPIRE K9 case from the right side, showing cable routing space and drive bays.

8. Connecting Front Panel I/O

• Connect the front panel cables (USB 3.0, USB 2.0, HD Audio, Power Switch, Reset Switch, Power LED, HDD LED, RGB LED Control) to the corresponding headers on your motherboard. Refer to your motherboard manual for header locations.

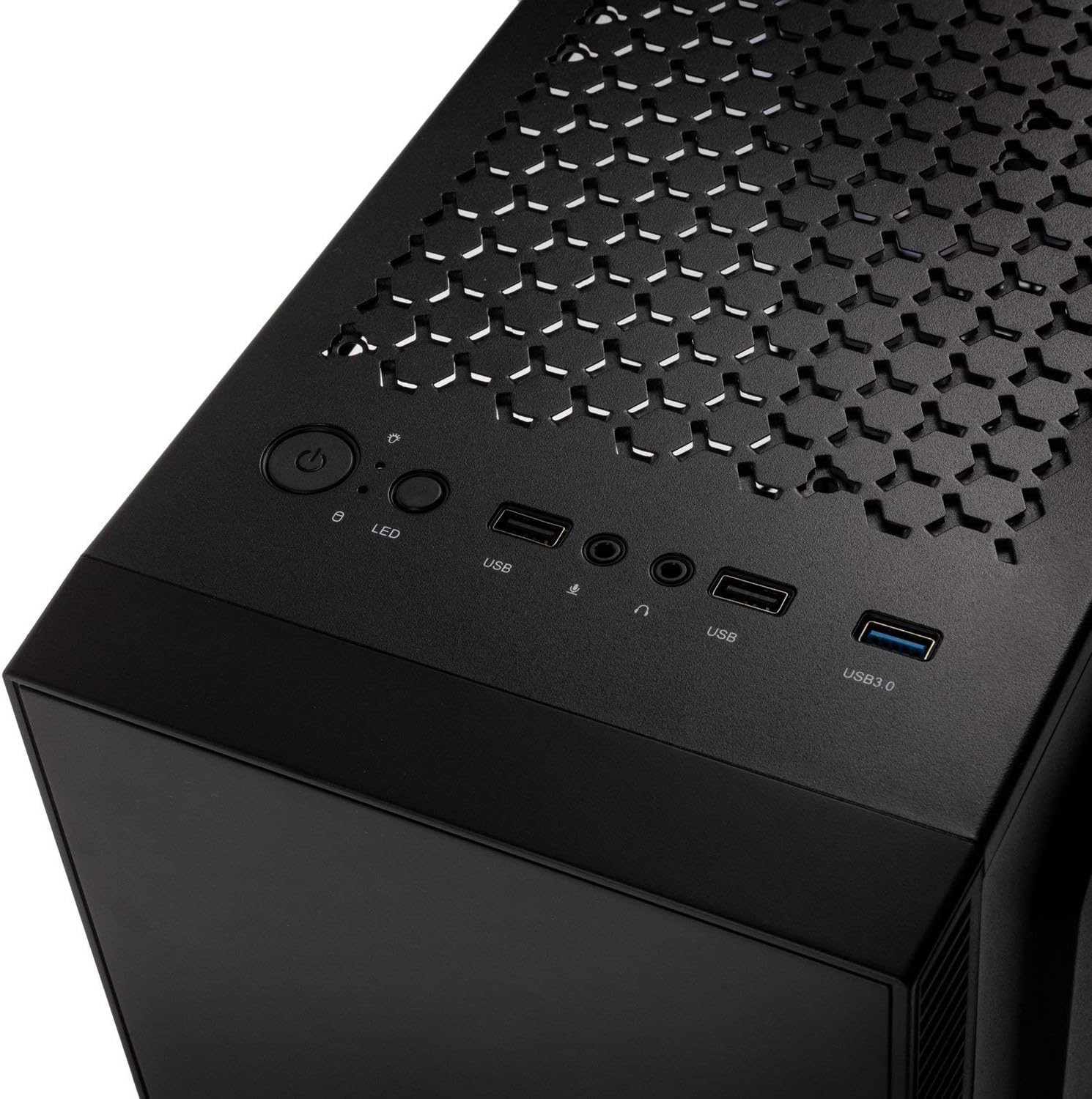

Image: Close-up of the top I/O panel of the Kolink INSPIRE K9 case, featuring USB ports, audio jacks, power button, and RGB LED control.

Bedryfsinstruksies

• Krag aan/af: Press the power button on the top I/O panel to turn your system on or off.
• RGB-beheer: Use the dedicated RGB LED control button on the top I/O panel to cycle through various lighting modes and colors for the pre-installed RGB fan and front RGB strip.
• USB-poorte: Utilize the USB 3.0 and USB 2.0 ports for connecting peripherals and external devices.
• Oudio-aansluitings: Connect your headphones and microphone to the audio jacks on the top I/O panel.

Beeld: Nabyskoot view of the pre-installed 120mm RGB fan at the rear of the Kolink INSPIRE K9 case.

Onderhoud

Gereelde onderhoud help om optimale werkverrigting en lang lewensduur van jou rekenaarkomponente te verseker.

• Stof skoonmaak: Periodically clean dust from the interior of the case, especially from fans and dust filters. Use compressed air or a soft brush.
• Buitenste skoonmaak: Wipe the exterior surfaces, including the tempered glass panel, with a soft, damp lap. Vermy skuur skoonmakers.
• Kabelbestuurskontrole: Kontroleer die kabelroetes af en toe om te verseker dat geen kabels die lugvloei of waaierwerking belemmer nie.

Probleemoplossing

If you encounter issues with your PC build, consider the following common troubleshooting steps related to the case:

• Stelsel skakel nie aan nie:
  • Ensure the power supply is properly connected to the wall outlet and the PSU switch is in the ON position.
  • Verifieer dat die voorpaneel se kragskakelaarkabel korrek aan die moederbord se kopstuk gekoppel is.
  • Check all power connections from the PSU to the motherboard and components.
• Fans Not Spinning / RGB Not Working:
  • Confirm that the fan power cables are securely connected to the motherboard or fan controller.
  • Check that the RGB cables are properly connected to the motherboard's RGB header or the case's RGB controller.
  • Press the RGB LED control button on the I/O panel to cycle through modes.
• USB-poorte werk nie:
  • Ensure the USB 3.0 and USB 2.0 front panel cables are correctly plugged into their respective headers on the motherboard.
• Oorverhittingskwessies:
  • Verify that all case fans are spinning correctly and are oriented for optimal airflow (intake/exhaust).
  • Clean any dust buildup from fans and filters.
  • Ensure the CPU cooler is properly seated and thermal paste is correctly applied.

Waarborg en Ondersteuning

For warranty information and technical support, please refer to the official KOLINK webwebwerf of kontak jou kleinhandelaar. Bewaar jou bewys van aankoop vir waarborgeise.

Vervaardiger: Koli

Modelnommer: INSPIREK9

Global Trade Item Number (GTIN): 05999094004030
