1. Inleiding

This manual provides essential information for the proper installation, operation, and maintenance of your Toyota OEM Genuine Blind Spot Radar Sensor, part number 88162-06050. This sensor is designed to enhance driving safety by detecting vehicles in your blind spots. Please read this manual thoroughly before attempting any installation or operation.

2. Veiligheidsinligting

• Professionele installasie word aanbeveel: Installation of this component requires specialized tools and knowledge of vehicle electrical systems. It is highly recommended that installation be performed by a certified Toyota technician or a qualified automotive professional.
• Ontkoppel battery: Always disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent electrical shock or damage to vehicle components.
• Hanteer versigtig: The radar sensor is a precision electronic device. Avoid dropping it or subjecting it to strong impacts.
• Correct Part Application: Ensure this part number (88162-06050) is correct for your specific vehicle model and year (e.g., 2018-2019 Toyota Camry). Incorrect application may lead to system malfunction.
• Bedrading: Maak seker dat alle bedradingverbindings stewig en behoorlik geïsoleer is om kortsluitings te voorkom.

3. Pakketinhoud

Upon opening the package, verify that all components are present and undamaged. The standard package for the Toyota OEM Genuine Blind Spot Radar Sensor 88162-06050 typically includes:

• Toyota OEM Genuine Blind Spot Radar Sensor (Part No. 88162-06050)
• Associated mounting hardware (may vary)
• This instruction manual (or similar documentation)

Image: The Toyota Blind Spot Radar Sensor 88162-06050 shown in its original brown cardboard packaging, indicating it is a genuine part.

4. Opstelling en installering

The blind spot radar sensor is typically located behind the rear bumper fascia of the vehicle. Specific installation steps will vary depending on the vehicle model and year. Always refer to the official Toyota service manual for your specific vehicle for detailed, step-by-step instructions.

4.1 General Installation Steps (Consult Service Manual for Details)

1. Voorbereiding: Park the vehicle on a level surface, engage the parking brake, and disconnect the negative terminal of the vehicle's battery.
2. Toegang: Carefully remove the rear bumper fascia to gain access to the sensor mounting locations.
3. Montering: Secure the new radar sensor to the designated mounting bracket using the appropriate hardware. Ensure the sensor is oriented correctly as per the service manual.

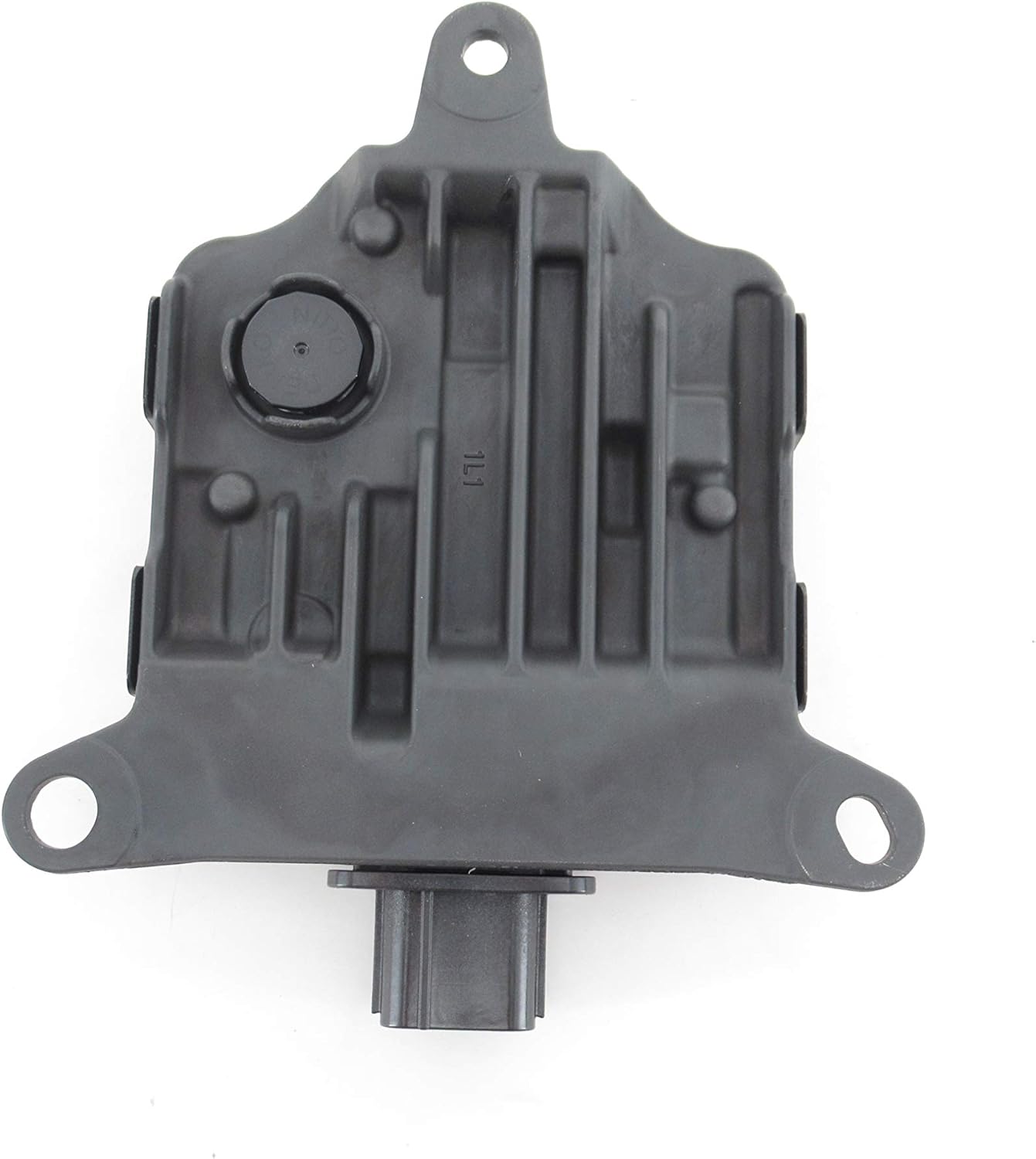

Beeld: Bo view of the radar sensor, highlighting its overall shape and the two circular mounting points at the top and bottom.

4. Elektriese verbinding: Connect the vehicle's wiring harness to the sensor's electrical connector. Ensure a firm and secure connection.

Beeld: Nabyskoot view of the multi-pin electrical connector located at the bottom of the radar sensor.

5. Hermontering: Reinstall the rear bumper fascia and any other components removed during the process.
6. Battery Reconnection: Herkoppel die negatiewe batteryterminaal.
7. Kalibrasie: After installation, the Blind Spot Monitor (BSM) system may require calibration using a diagnostic tool. This step is crucial for accurate sensor operation and must be performed by a qualified technician.

5. Bedryfsinstruksies

The Toyota Blind Spot Monitor (BSM) system, which utilizes this radar sensor, is designed to assist the driver by detecting vehicles in adjacent lanes that are in the driver's blind spot. The system typically activates when the vehicle speed exceeds a certain threshold (e.g., 10 mph or 16 km/h).

• Bespeuring: When a vehicle is detected in your blind spot, an indicator light will illuminate on the corresponding side mirror.
• Waarskuwing: If you activate your turn signal while a vehicle is detected in your blind spot, the indicator light will flash, and an audible warning may sound (depending on vehicle configuration).
• System Activation/Deactivation: The BSM system can usually be turned on or off via a button or through the vehicle's infotainment settings. Refer to your vehicle's owner's manual for specific instructions on how to control the BSM system.
• Beperkings: The BSM system is an aid and does not replace the need for careful driving and checking mirrors. It may not detect all objects or vehicles under certain conditions (e.g., severe weather, very small objects, or rapidly approaching vehicles).

6. Onderhoud

The Toyota Blind Spot Radar Sensor is designed to be maintenance-free under normal operating conditions. However, proper care of the surrounding area is important for optimal performance.

• Hou sensorarea skoon: Ensure the area of the bumper fascia covering the sensor is kept clean and free from dirt, snow, ice, or stickers. Obstructions can interfere with radar signal transmission and reception.
• Skoonmaak: If cleaning is necessary, use a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or high-pressure washers directly on the sensor area.
• Skade inspeksie: Periodically inspect the rear bumper area for any signs of damage that might affect the sensor's alignment or functionality.

7. Probleemoplossing

If you experience issues with your Blind Spot Monitor system after sensor replacement, consider the following common troubleshooting steps:

• System Not Working:
  • Verify the BSM system is turned ON via the vehicle's controls.
  • Check for any dashboard warning lights related to the BSM system.
  • Ensure the sensor area on the bumper is clean and unobstructed.
• Incorrect Detections / False Alarms:
  • This often indicates a need for system calibration. Recalibration by a Toyota technician is essential after sensor replacement.
  • Check for any physical damage or misalignment of the sensor.
• No Power to Sensor:
  • Check the electrical connection to the sensor for looseness or corrosion.
  • Inspect relevant fuses in the vehicle's fuse box (refer to your vehicle's owner's manual for fuse locations).

For persistent issues, it is recommended to consult a certified Toyota service center for diagnosis and repair, as specialized diagnostic equipment may be required.

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information regarding your Toyota OEM Genuine Blind Spot Radar Sensor 88162-06050, please refer to the documentation provided at the time of purchase or contact your authorized Toyota dealer or the seller directly. Warranty terms and conditions may vary.

For technical support or service, please contact an authorized Toyota service center or a qualified automotive technician.
