Absima Truck Racing 1:14 RC Electric Monster Truck 4WD RtR 2.4 Instruction Manual

1. Inleiding

Dankie vir die aankoopasing the Absima Truck Racing 1:14 RC Electric Monster Truck 4WD RtR 2.4. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new remote-controlled vehicle. Please read this manual thoroughly before operating the truck to ensure proper function and to maximize your enjoyment.

This 1:14 scale electric monster truck features 4-wheel drive (4WD) for enhanced performance and control. It is designed for Ready-to-Run (RtR) convenience, meaning most components are pre-assembled and ready for use after initial setup.

Beeld 1.1: Voorkant view of the Absima Truck Racing 1:14 RC Electric Monster Truck. The truck features a blue and black body with racing decals, large off-road tires, and a robust front bumper.

2. Veiligheidsmaatreëls

Always observe the following safety guidelines to prevent injury or damage to the product and surroundings:

• Volwasse toesig: This product is recommended for users aged 14 and above. Adult supervision is advised for younger users.
• Bedryfsomgewing: Operate the RC truck in open areas, away from people, pets, vehicles, and water. Avoid public roads.
• Batteryveiligheid:
  • Use only the specified charger and batteries.
  • Moenie batterye oorlaai of kortsluit nie.
  • Moenie batterye aan uiterste temperature of direkte sonlig blootstel nie.
  • Remove batteries from the truck and transmitter when not in use.
  • Gooi batterye weg volgens plaaslike regulasies.
• Bewegende dele: Keep fingers, hair, and loose clothing away from rotating wheels and other moving parts to prevent entanglement.
• Waterbeskerming: The electronics are splash-protected, but avoid submerging the vehicle in water.
• Wysigings: Do not modify the truck or its components. Unauthorized modifications can void the warranty and compromise safety.
• Berging: Store the truck and its components in a cool, dry place, out of reach of children.

3. Pakketinhoud

Maak asseblief seker dat al die volgende items ingesluit is wanneer u dit uitpak:

• Absima Truck Racing 1:14 RC Electric Monster Truck (pre-assembled)
• 2.4 GHz Remote Control Transmitter
• Rechargeable Lithium-ion Battery for the truck (2 included)
• USB-batterylaaier
• Instructiehandleiding (hierdie dokument)

Image 3.1: The included USB battery charger and two green lithium-ion batteries. The charger is black with two charging slots and connects via a USB cable.

4. Opstelling

4.1. Laai die voertuigbattery

1. Connect the USB charger to a compatible USB power source (e.g., computer USB port, USB wall adapter).
2. Insert the rechargeable Lithium-ion battery into the charger. Ensure correct polarity.
3. The charger's indicator light will show the charging status (refer to charger's specific instructions if available).
4. Once fully charged, disconnect the battery from the charger and the charger from the power source. Charging time may vary.

4.2. Installing the Vehicle Battery

1. Locate the battery compartment on the underside of the truck. It is typically secured by clips or screws.
2. Maak die batteryvakdeksel oop.
3. Carefully insert the charged Lithium-ion battery into the compartment.
4. Connect the battery connector to the vehicle's power connector. Ensure a secure connection.
5. Maak die batterykompartement se deksel stewig toe.

Beeld 4.2.1: Onderkant view of the Absima RC truck chassis. The battery compartment is visible in the center, designed for easy access.

4.3. Installering van senderbatterye

The remote control transmitter requires its own batteries (not specified in product data, typically AA batteries). Refer to the transmitter's manual for specific battery type and installation instructions.

1. Open the battery cover on the back of the transmitter.
2. Plaas die benodigde batterye in en let op die korrekte polariteit (+/-).
3. Maak die batterydeksel stewig toe.

4.4. Pairing the Transmitter and Vehicle

The 2.4 GHz system usually pairs automatically. Follow these steps:

1. Ensure both the vehicle battery and transmitter batteries are installed and charged.
2. Skakel eers die sender aan.
3. Turn on the vehicle's power switch.
4. The indicator lights on both the transmitter and vehicle should show a solid light, indicating a successful connection. If not, turn both off and repeat the process.

5. Bedryfsinstruksies

5.1. Basiese kontroles

• Gasklep sneller: Pull the trigger towards you to accelerate forward. Push the trigger away from you to brake or reverse.
• Stuurwiel: Turn the steering wheel left to steer the truck left, and right to steer the truck right.

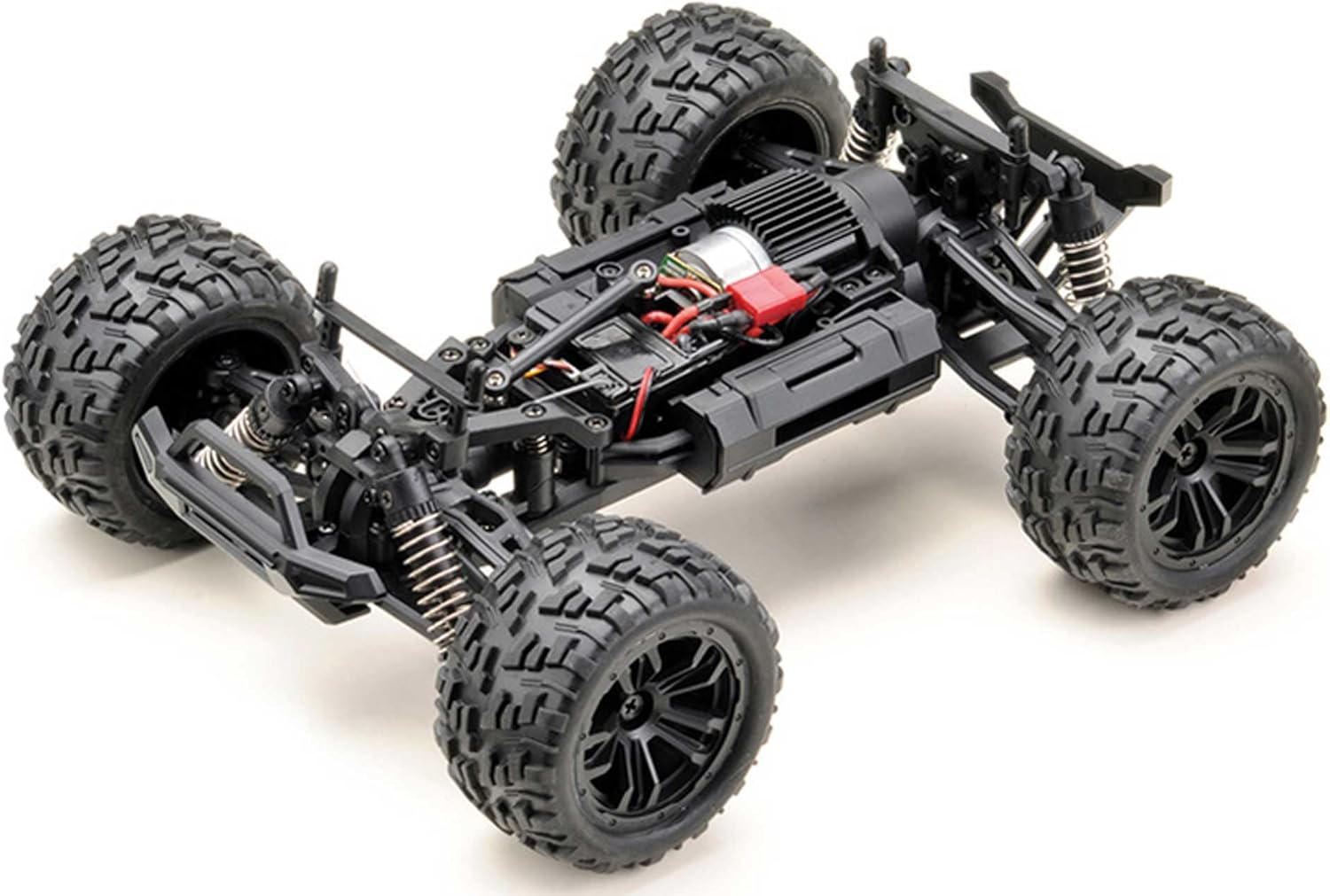

Beeld 5.1.1: Bo-na-onder view of the Absima RC truck chassis with the body removed, showing the motor, electronics, and suspension components. This view highlights the internal layout for maintenance and understanding controls.

5.2. Bestuurswenke

• Start slowly to get accustomed to the controls.
• Oefen stuur- en versnellerbeheer in 'n oop, skoon area.
• Vermy skielike stops of draaie teen hoë spoed om omrol te voorkom.
• Be mindful of obstacles and uneven terrain. The 4WD system provides good traction, but extreme conditions can still cause issues.
• When the battery power is low, the truck's performance will decrease. Recharge the battery promptly.

5.3. Adjustments (Steering Trim)

If the truck does not drive straight when the steering wheel is centered, use the steering trim dial on the transmitter to adjust it. Turn the dial incrementally until the truck tracks straight.

6. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en optimale werkverrigting van jou RC-vragmotor.

6.1. Skoonmaak

• After each use, especially in dusty or dirty conditions, clean the truck.
• Gebruik 'n sagte borsel of saamgeperste lug om vuiligheid en puin van die onderstel, vering en motorarea te verwyder.
• Vee die liggaam af met advertensieamp lap. Vermy die gebruik van harde chemikalieë.

6.2. Batteryversorging

• Always fully charge batteries before use.
• Moenie batterye sonder toesig laat laai nie.
• Store batteries in a cool, dry place, ideally at a storage charge level (around 50%).
• If a battery appears damaged or swollen, discontinue use immediately and dispose of it safely.

6.3. Inspeksies

• Kontroleer gereeld alle skroewe en bevestigingsmiddels vir styfheid.
• Inspect the suspension components (shocks, arms) for damage or wear.
• Check the tires for wear and ensure they are securely mounted.
• Examine wiring for any cuts or loose connections.

6.4. Berging

• Remove all batteries from the truck and transmitter before long-term storage.
• Store the truck in a clean, dry environment, away from direct sunlight and extreme temperatures.

7. Probleemoplossing

Hierdie afdeling spreek algemene probleme aan wat jy mag teëkom. Indien probleme voortduur, kontak kliëntediens.

8. Spesifikasies

Key technical specifications for the Absima Truck Racing 1:14 RC Electric Monster Truck:

• Modelnommer: 14004
• Skaal: 1:14
• Aandrywingstelsel: Vierwielaandrywing (4WD)
• Kragbron: Elektries
• Batterye: 2 Litium-ioon (ingesluit)
• Afmetings (L x B x H): 30 x 23 x 13 cm (ongeveer 11.8 x 9.1 x 5.1 duim)
• Gewig: 845 gram (ongeveer 1.86 lbs)
• Materiaal: Rubber (tires), other components not specified but typically plastic/metal.
• Kleur: Swart/blou
• Spesiale kenmerk: Splash-protected electronics
• Aanbevole ouderdom: 14+ jaar

9. Waarborg en Ondersteuning

Absima products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided with your purchase or visit the official Absima webwebwerf. Bewaar u bewys van aankoop vir waarborgeise.

For technical support, spare parts, or further assistance, please contact your retailer or the Absima customer service department. Contact details can typically be found on the product packaging or the manufacturer's webwebwerf.
